Overview#

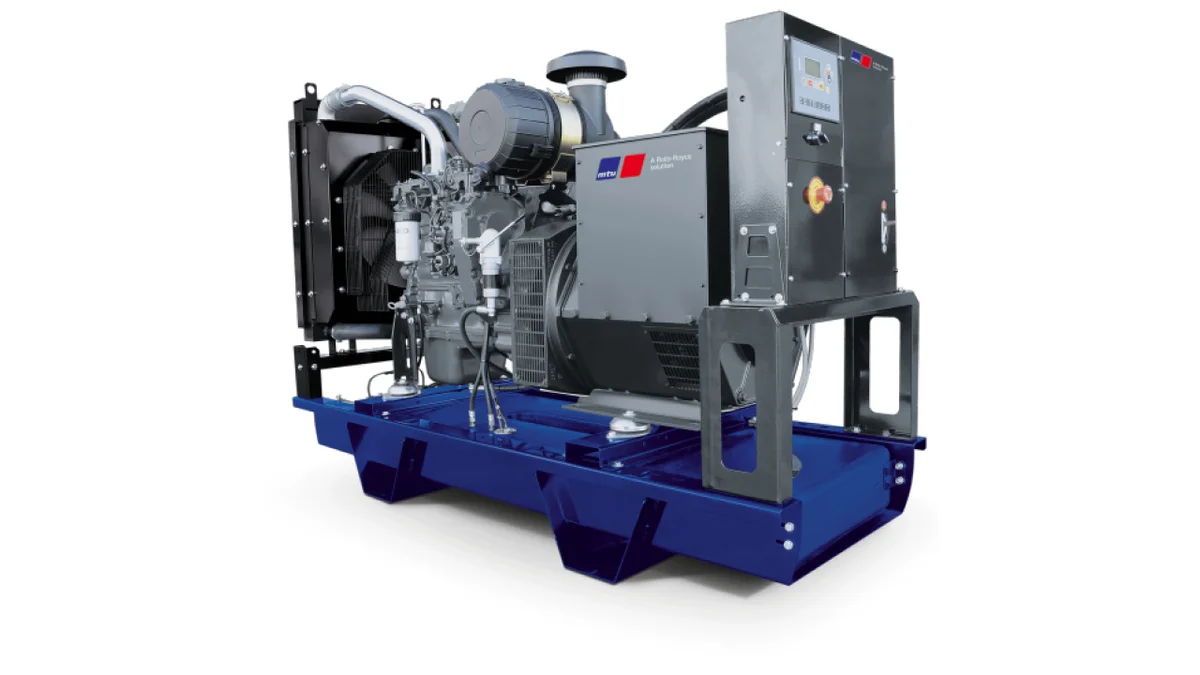

The MTU 6R0150 DS300 is a 300 kW standby diesel generator set powered by a John Deere 6090HFG86 engine — a 9.0-liter, inline six-cylinder diesel with turbocharging and aftercooling that produces up to 345 kWm (463 bhp) at 1800 RPM. The genset is rated at 300 kW (375 kVA) standby and 275 kW prime, with output voltage configurations spanning 208V through 600V in three-phase arrangements. The unit carries EPA Tier 3 and SCAQMD certifications for stationary emergency operation.
The DS300 pairs the 6090HFG86 engine with a 432CSL6212 alternator — a 4-pole, Class H unit. The complete package measures 144 x 60 x 85 inches and weighs 6,790 lb dry, making it a manageable installation for mechanical contractors working in tight equipment rooms. The Tier 3 emissions compliance means no exhaust aftertreatment hardware (DPF/SCR), which simplifies both installation and long-term maintenance compared to Tier 4 alternatives.
The John Deere 6090 platform#
The John Deere 6090 is one of the most widely deployed industrial diesel engines in the 200–350 kW generator class. The 9.0-liter displacement with a 16:1 compression ratio and common-rail fuel injection delivers responsive transient performance — important for facilities with large motor starting loads. At the DS300 rating, sound output is 85.6 dBA at 7 meters (open unit), which is notably quieter than the larger 12V1600 series. Exhaust flow is 2,246 CFM at 927 degrees F, and combustion air requirement is 936 SCFM — modest figures that simplify equipment room ventilation design.
The 6090 platform's key advantage in the MTU lineup is its combination of proven reliability with straightforward serviceability. The inline-6 layout provides excellent access to filters, belts, and injectors without the packaging complexity of V-configuration engines.
Our service experience#
The 6R0150 DS300 is one of the most service-friendly units in the MTU lineup, largely because of the John Deere 6090 engine beneath the mtu badge. John Deere has an extensive dealer network across Northern California, and parts availability for the 6090 platform is excellent — filters, belts, and injectors are commonly stocked and cross-referenced across the broader John Deere industrial and agricultural channels. This is a significant practical advantage over units powered by European-sourced engines where consumables may require longer procurement lead times.
We see the DS300 deployed across mid-size commercial buildings, medical office complexes, and municipal facilities throughout the Bay Area. At 300 kW it covers the majority of single-building emergency loads in these applications. The 85.6 dBA sound level (open unit) is manageable with standard sound-attenuated enclosures for installations near occupied spaces or property lines with noise ordinance constraints.
