Hipower Systems · HRVW Mobile Series

Hipower HRVW-685

605 kW standby / 550 kW prime · Diesel · Liquid-cooled

756 kVA (605 kW standby) mobile diesel generator with a Volvo TWD1683GE engine. Tier 4 Final.

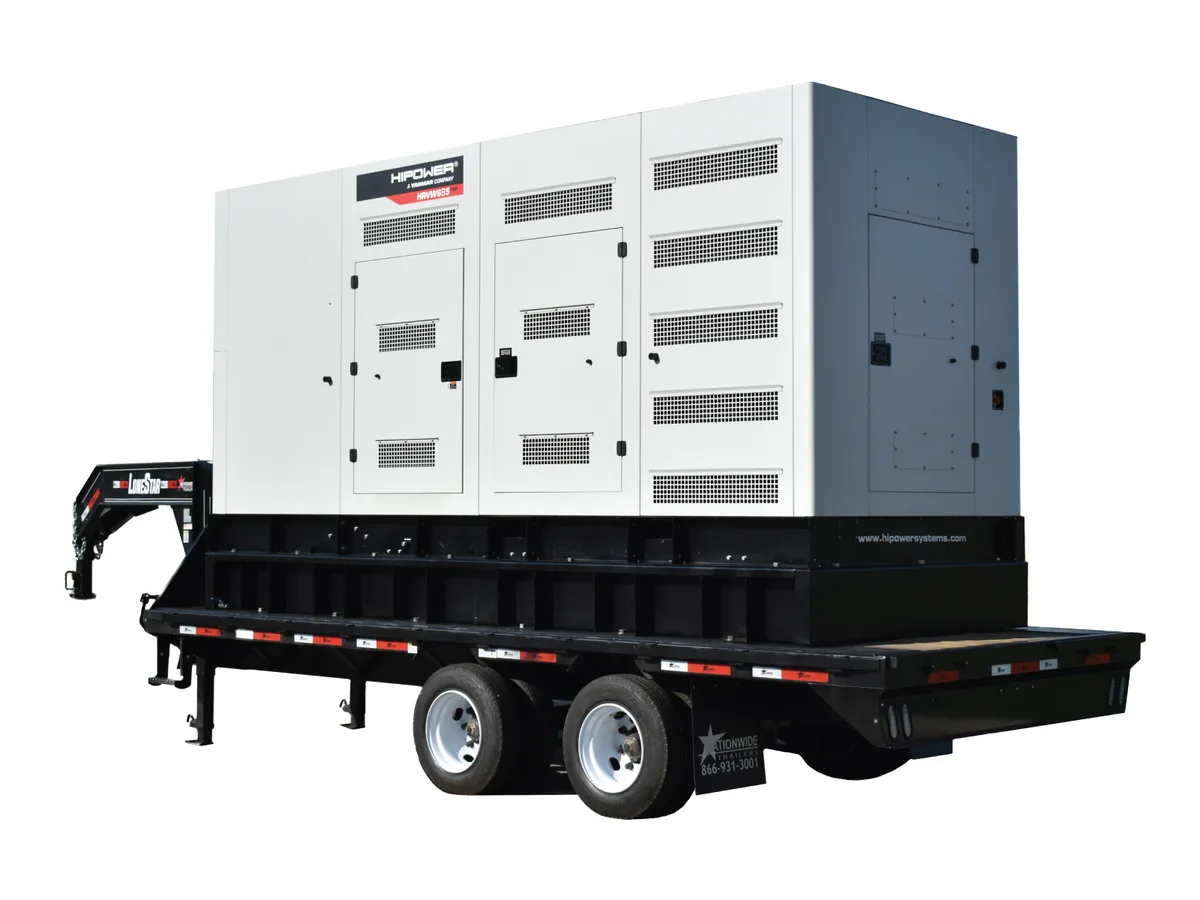

Hipower Systems Hipower HRVW-685 generator — specifications and details
Standby power
605 kW / 550 kW prime
Voltage options
208V, 480V
Frequency / Phase
60 Hz · 3-phase
Engine
Volvo Penta TWD1683GE · 16.12L
EPA / Emissions
Tier 4 Final
Alternator
Stamford S5L1D.F4

Overview#

The Hipower HRVW-685 T4F is a mobile diesel generator rated 687 kVA / 550 kW PRP and 756 kVA / 605 kW ESP at 60 Hz. The Hipower product page lists a Volvo TWD1683GE engine (16.12 L, six cylinders in line, 1,800 RPM, turbocharged and after-cooled), a Stamford alternator and Tier IV Final emissions.

Data from the product page#

The page lists fuel consumption at PRP of 10.7 gal/h at 25% load, 19.1 at 50%, 27.58 at 75% and 36.8 at 100%, a fuel tank capacity of 599.93 gal and a sound pressure level of 72 +/- 2.4 dB(A) at 7 m. The Hipower product page lists generator-set datasheets for 208/120 V, 480/277 V and 600/347 V.

Our Service Experience#

OnPoint Generators provides local Bay Area and NorCal service for Hipower HRVW mobile units. Our technicians are experienced with Volvo Penta generator engine service.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Hipower HRVW-685

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HRVW-685

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

6.1 hours(0.3 days)

Fuel consumption ≈ 32.67 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What are the standby and prime ratings of the HRVW-685?
The Hipower product page lists 687 kVA / 550 kW PRP (prime) and 756 kVA / 605 kW ESP (standby), 60 Hz, Tier IV Final, with a Stamford alternator.
What engine powers the HRVW-685?
A Volvo TWD1683GE, 1,800 RPM, 4-stroke direct-injection diesel, turbocharged and after-cooled, six cylinders in line, 983.64 cu in (16.12 L). The page lists a rated engine output of 626 kW PRP and 685 kW standby.
What fuel consumption and tank size does the HRVW-685 list?
The page lists fuel consumption at PRP of 10.7 gal/h at 25% load, 19.1 at 50%, 27.58 at 75% and 36.8 at 100%, with a fuel tank capacity of 599.93 gal.
What sound level does the HRVW-685 list?
72 +/- 2.4 dB(A) at 7 m for the standard version.

Compatible equipment

More in the HRVW Mobile Series

Volvo-powered trailer generators from 544 to 1,210 kW — over 1 MW of highway-towable standby for data centers and large construction.

Similar models

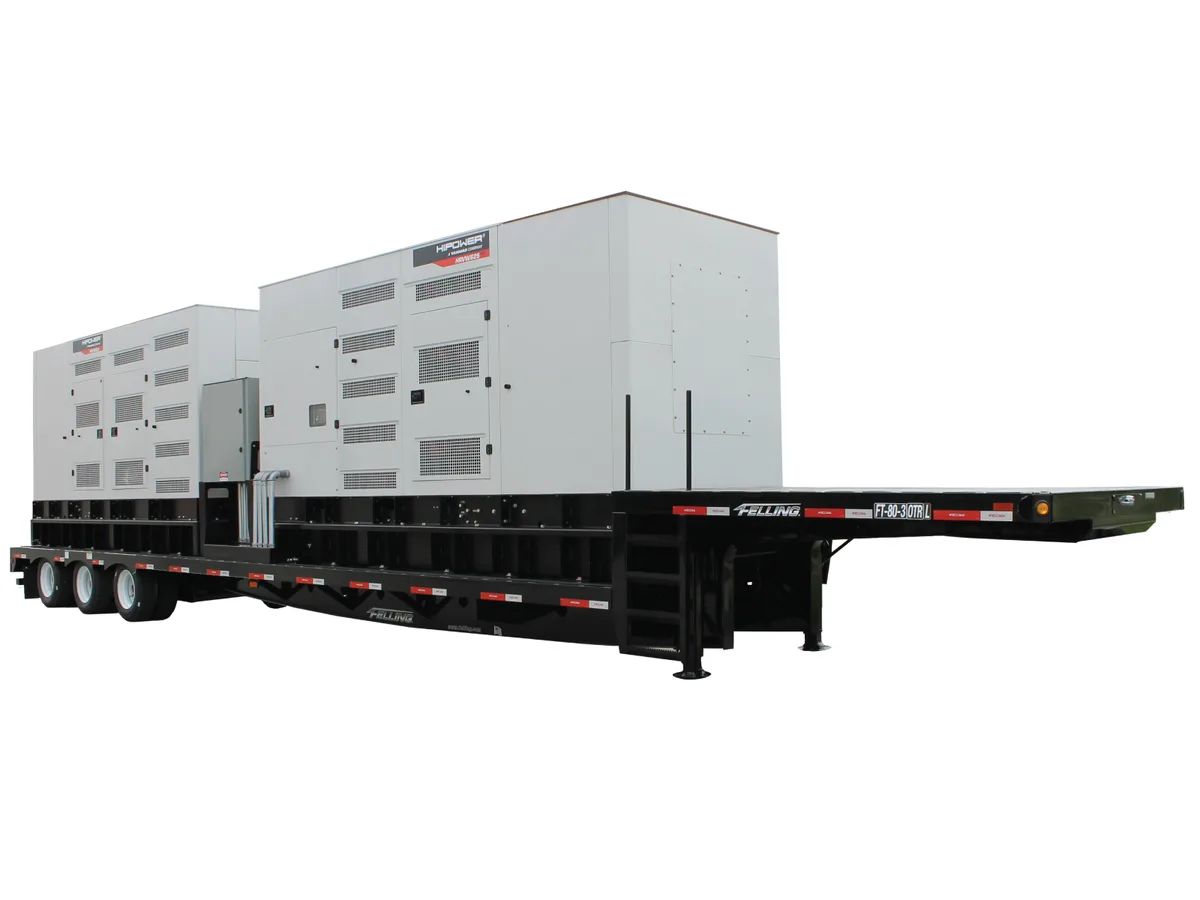

Hipower Systems Hipower HRVW-1250 1.1 MW liquid-cooled standby generator

Hipower Systems

Hipower HRVW-1250

Over 1 MW of mobile diesel power — Volvo TWD-powered, Tier 4 Final, for data centers, substations, and major construction.

1.1 MW standby · Diesel · Liquid-cooled

1250 kVA (1088 kW standby) mobile diesel generator with Volvo TWD1644GE family engine. Tier 4 Final. Over 1 MW of mobile standby power.

Tier 4 Final3-phaseconstructionrental-fleet
Hipower Systems Hipower HRVW-625 550 kW liquid-cooled standby generator

Hipower Systems

Hipower HRVW-625

Large Volvo-powered trailer mobile generators — 544 kW standby, Tier 4 Final, for data center and heavy construction rental deployment.

550 kW standby · Diesel · Liquid-cooled

625 kVA (544 kW standby) mobile diesel generator with Volvo TAD1353GE family engine. Tier 4 Final. Large trailer mobile unit for construction and data center backup.

Tier 4 Final3-phaseconstructionrental-fleet

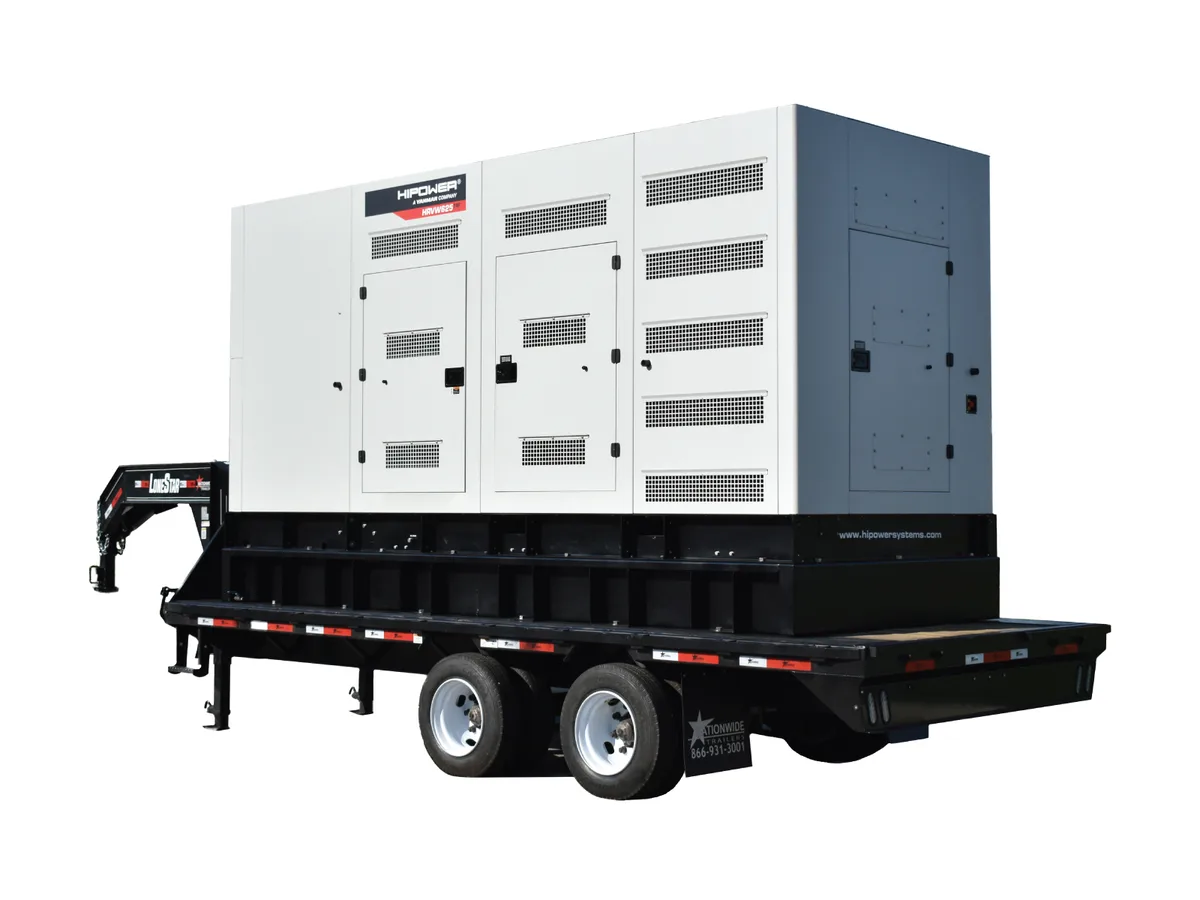

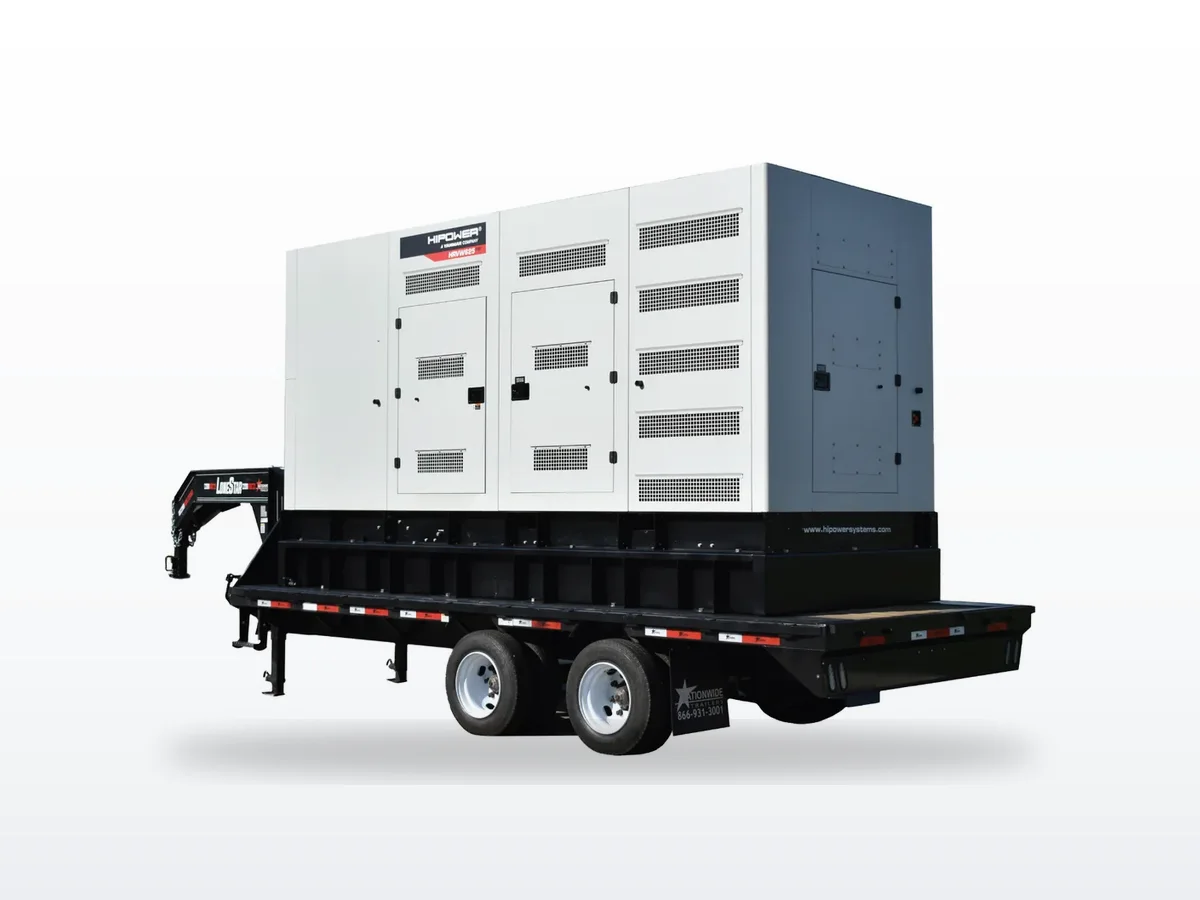

Hipower Systems Hipower HMW-615 600 kW liquid-cooled standby generator
