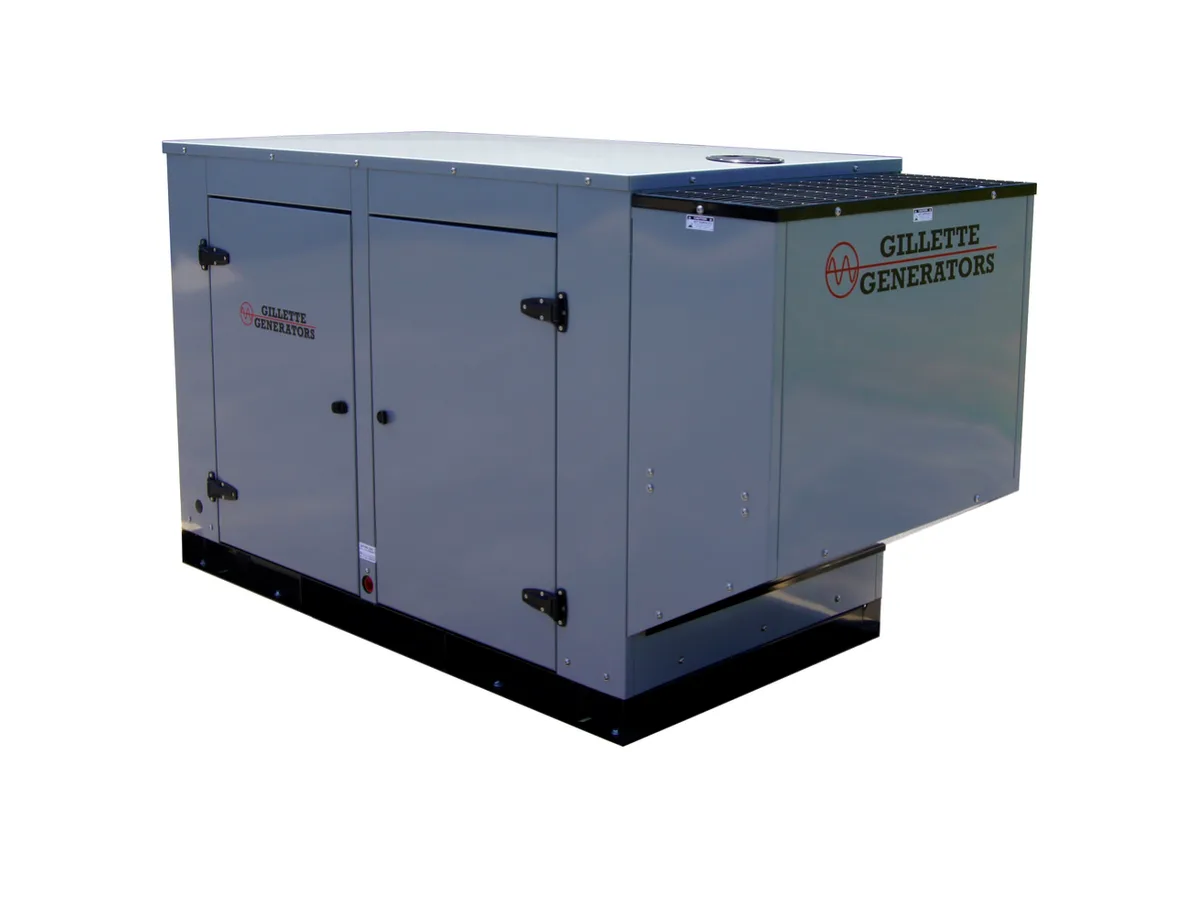

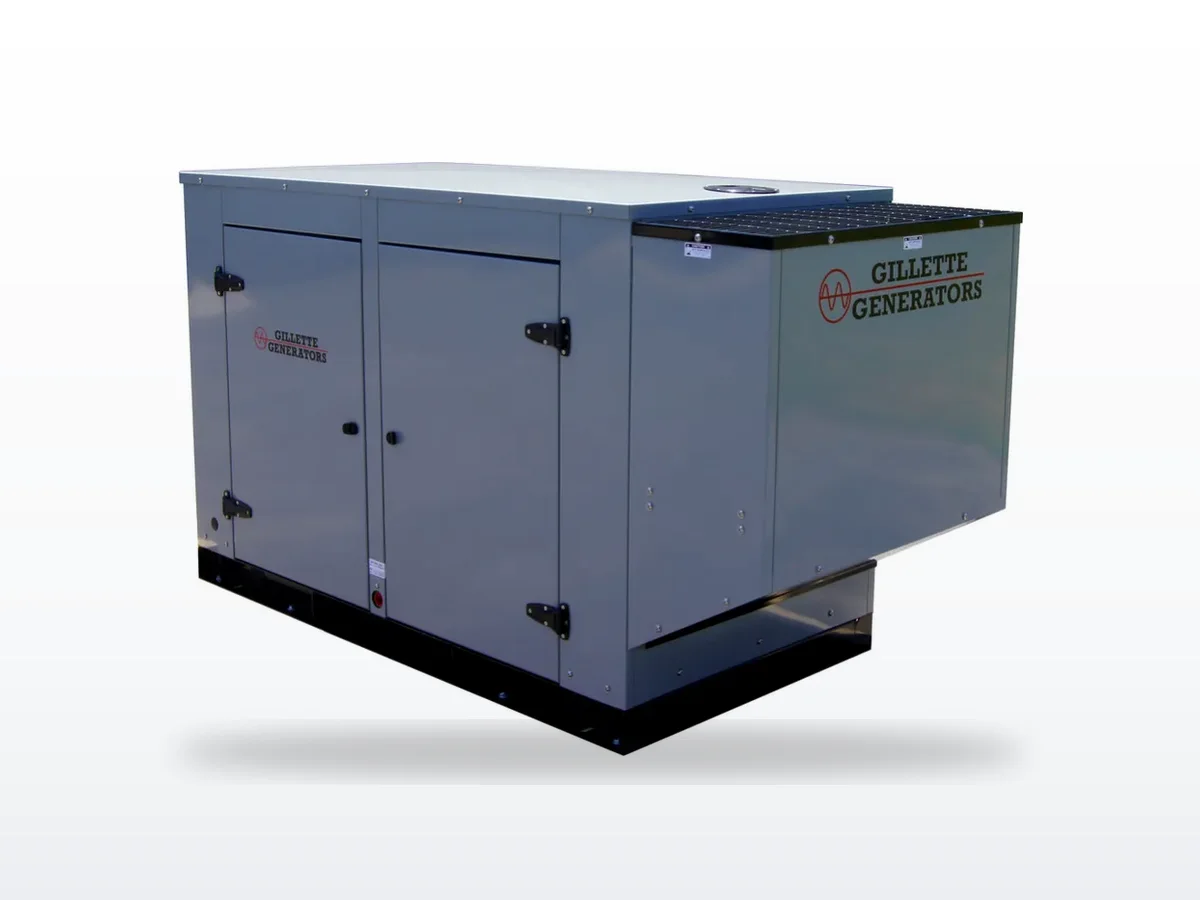

The Gillette SPD-300 is a 30-kilowatt stationary diesel standby generator — Gillette's entry-level diesel unit, built on the Perkins 404D-22TAG turbocharged inline-4. At 30 kW, it serves the smallest commercial diesel applications: telecom sites, retail buildings without gas service, pump stations, and construction support facilities.
Perkins' 400D series is one of the most widely deployed small industrial diesel platforms globally. Stamford alternator, DSE 7420 MKII controller — the same open-architecture component strategy as all Gillette units.
23.3:1 compression ratio — high compression for reliable cold starting and combustion efficiency
Interim Tier IV certified — the only Gillette industrial diesel at this emissions tier (all larger SPD/SPJD models are Tier III)
48.8 bhp mechanical output at standby — well within the engine's continuous duty envelope
The 404D series parts are globally available through Perkins' dealer network — a significant advantage for remote installations where John Deere or Volvo dealer coverage may not reach.
At 30 kW, the natural gas alternative is the Gillette SP-250 (25 kW NG). Diesel is preferred when:
No natural gas service — remote telecom towers, pump stations, agricultural buildings
Extended runtime required — on-site fuel storage provides predictable runtime independent of utility gas supply
Code mandates diesel — some fire pump and life safety installations require diesel per NFPA 110
The tradeoff: diesel requires fuel maintenance (testing, polishing, and replenishment) and periodic exercising to prevent fuel degradation. Gas requires no fuel storage but depends on continuous utility supply.
The Perkins 400D series is a well-known engine in our territory — we encounter it across multiple generator brands at the 20-40 kW diesel range. Parts are readily available, service procedures are well-documented, and the engine responds well to standard diesel maintenance protocols: 500-hour oil changes, annual fuel filter replacement, and quarterly fuel quality testing for standby installations.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
96.4 hours(4.0 days)
Fuel consumption ≈ 2.08 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPD-300 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / tank contamination
Hard starting, filter clogging, injector fouling
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Coolant hoses
Slow coolant loss at clamp connections
8,000+
minor
Frequently Asked Questions
What engine does the SPD-300 use?
Perkins 404D-22TAG — a 2.22L turbocharged inline-4 diesel with air-to-air charge cooling. This is Perkins' 400 series, one of the most widely deployed small diesel engine platforms in the generator market. Interim Tier IV certified, 48.8 bhp at standby.
How does the SPD-300 compare to the SPJD-600 at twice the kW?
The SPD-300 uses a Perkins 2.2L I4 at 30 kW while the SPJD-600 uses a John Deere 4.5L I4 at 60 kW. Both are 4-cylinder turbocharged diesel — the SPJD is simply a larger displacement at a higher output tier. For sites needing only 30 kW, the SPD-300 is substantially smaller, lighter (1,334 vs 1,814 lbs), and more fuel-efficient.
What is the fuel consumption at full load?
2.69 gal/hr at 100% load (30 kW). At 75% load: 1.72 gal/hr. At 50%: 1.22 gal/hr. The small displacement and efficient turbocharging make this unit economical for sustained standby operation.
What fuel tank options are available?
Gillette offers UL-142 double-wall sub-base fuel tanks in multiple capacities. Mounted-tank configurations are available per the dimensional drawings. Runtime depends on tank size and average load — at 75% load, a 100-gallon tank provides approximately 58 hours.
Is the SPD-300 suitable for cold-weather installations?
The Perkins 404D includes a block heater connection and the DSE 7420 MKII supports coolant heater monitoring. For extreme cold, verify battery capacity (BCI#31, 12V) and consider a cold-weather package with additional block heating.
