The Gillette SPD-600 is a 60-kilowatt stationary diesel standby generator — a direct Perkins-powered alternative to the John Deere-powered SPJD-600 at the same output level. Built on Perkins' 1104D-E44TG1 turbocharged 4.4L inline-4 with common rail injection, Stamford UCI224F alternator, DSE 7420 MKII controller.
At 60 kW diesel, this serves the same commercial applications as the SPJD-600: pump stations, telecom sites, municipal infrastructure, and commercial buildings without natural gas service. The choice between SPD and SPJD at 60 kW comes down to engine preference and dealer availability.
Perkins 1104D vs. John Deere 4045: a 60 kW comparison#
Gillette offers both engines at 60 kW, giving specifiers a genuine choice:
Spec
SPD-600 (Perkins)
SPJD-600 (John Deere)
Engine
1104D-E44TG1
4045T
Displacement
4.4L
4.5L
Fuel system
Common rail
Stanadyne rotary
Emissions
EPA Tier III + CARB
EPA Tier III
Open weight
1,814 lbs
1,871 lbs
Fuel consumption (100%)
4.7 gal/hr
5.0 gal/hr
The Perkins unit is slightly more fuel-efficient at full load and uses modern common rail injection. The John Deere has a simpler rotary fuel system that's more tolerant of marginal fuel quality — relevant for remote installations with less rigorous fuel management.
We service Perkins 1104D engines across multiple generator brands in our territory. The common rail system requires more careful fuel management than older mechanical injection systems, but when fuel quality is maintained, these engines are highly reliable. Parts availability through Perkins' distribution network is strong for the 1100 series. The DSE 7420 MKII controller provides the same transparent diagnostics across all Gillette models — no dealer lock-in.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
55.2 hours(2.3 days)
Fuel consumption ≈ 3.63 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPD-600 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality
Hard starting, filter clogging, injector fouling
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Coolant hoses
Weeping at connections, slow coolant loss
8,000+
minor
Frequently Asked Questions
How does the SPD-600 compare to the SPJD-600?
Both are 60 kW diesel standby generators in the same physical footprint (78 x 42 in). The SPD-600 uses a Perkins 1104D-E44TG1 (4.4L I4, common rail), while the SPJD-600 uses a John Deere 4045T (4.5L I4, Stanadyne rotary). They differ mainly in parts availability and dealer networks. In Northern California, John Deere has stronger dealer coverage; Perkins has broader global availability.
What fuel consumption should I expect?
4.7 gal/hr at full load (60 kW). At 75% load: 4.1 gal/hr. At 50%: 3.0 gal/hr. With a 100-gallon sub-base tank at 75% load, expect approximately 24 hours of runtime.
What is the Perkins 1104D fuel injection system?
Common rail electronic fuel injection — a more modern system than the Stanadyne rotary injection used on the comparable John Deere 4045T in the SPJD-600. Common rail provides more precise fuel delivery and lower emissions but requires clean fuel to protect the high-pressure pump and injectors.
Is the SPD-600 EPA Tier III or Tier IV?
EPA Tier III and CARB certified — the same emissions tier as most Gillette industrial diesel models. Only the smaller SPD-300 (Perkins 404D) is Interim Tier IV.

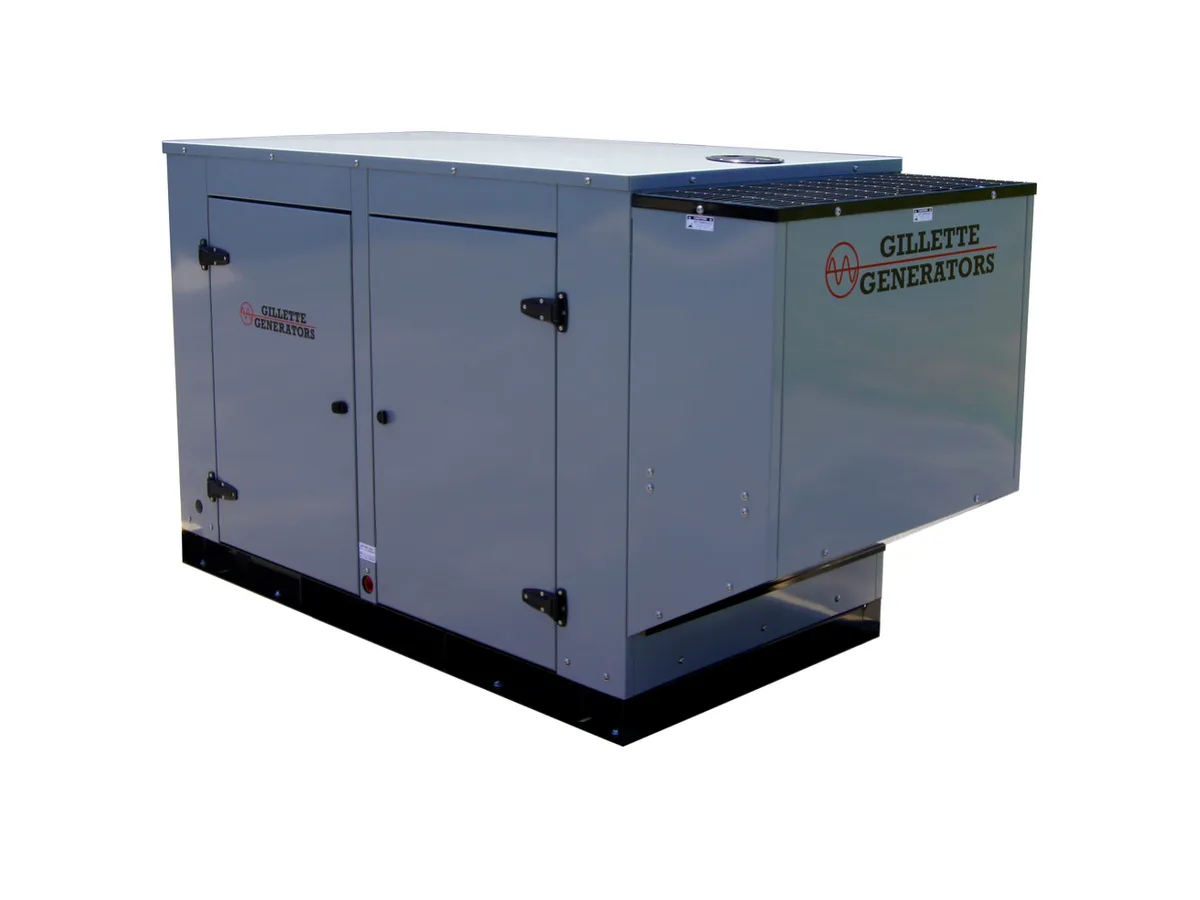

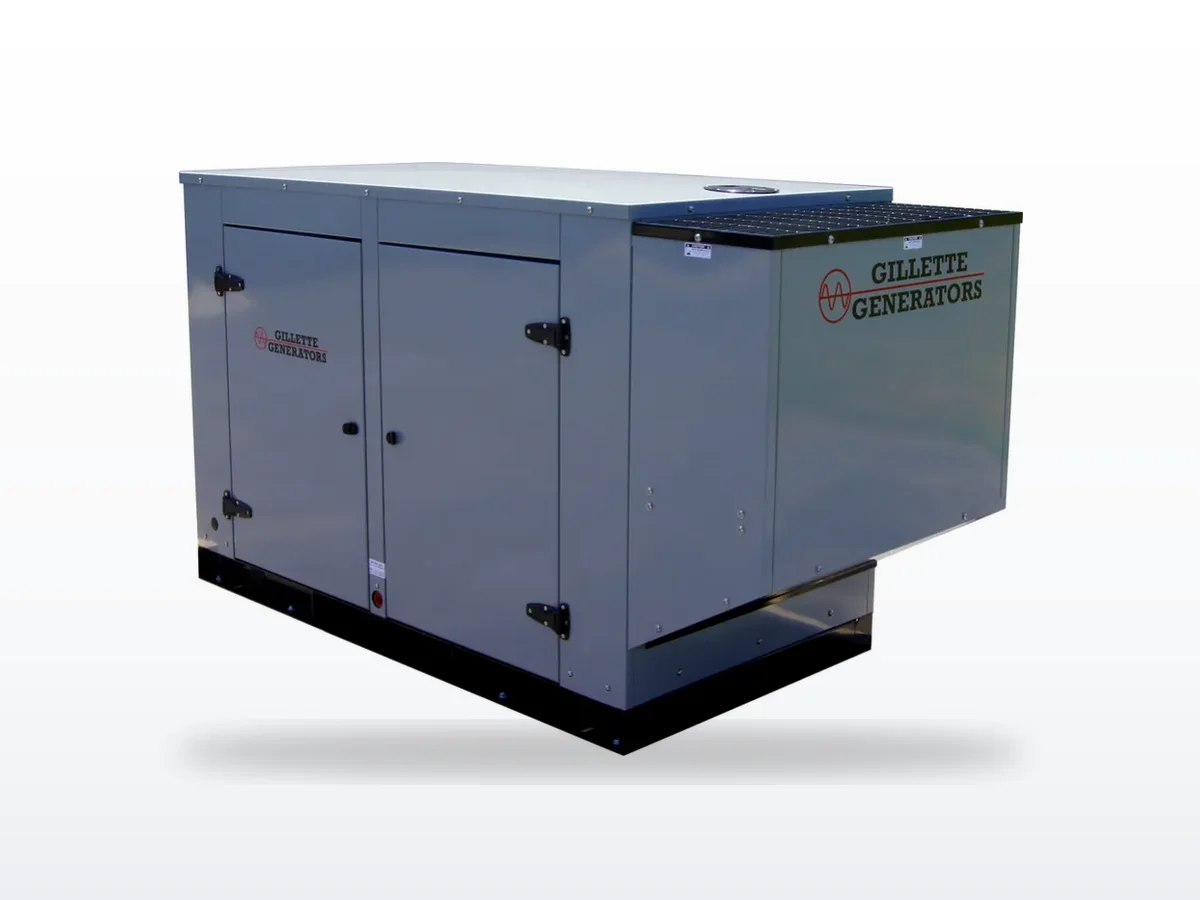

30 kW stationary diesel standby generator with Perkins 404D-22TAG engine. Made-in-USA commercial diesel unit with Stamford alternator and DSE 7420 MKII controller.
Tier 4 Interim3-phasecommercialtelecom
G
Gillette
New

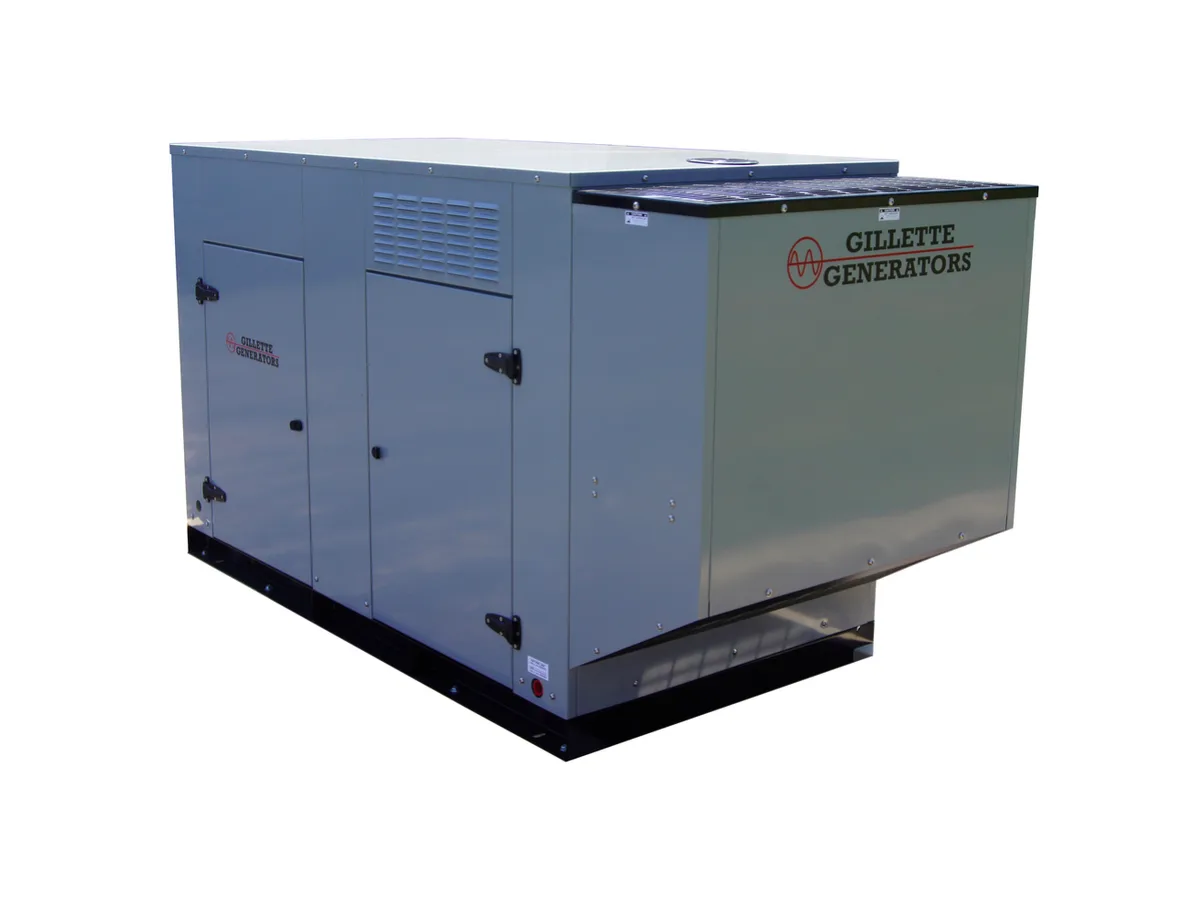

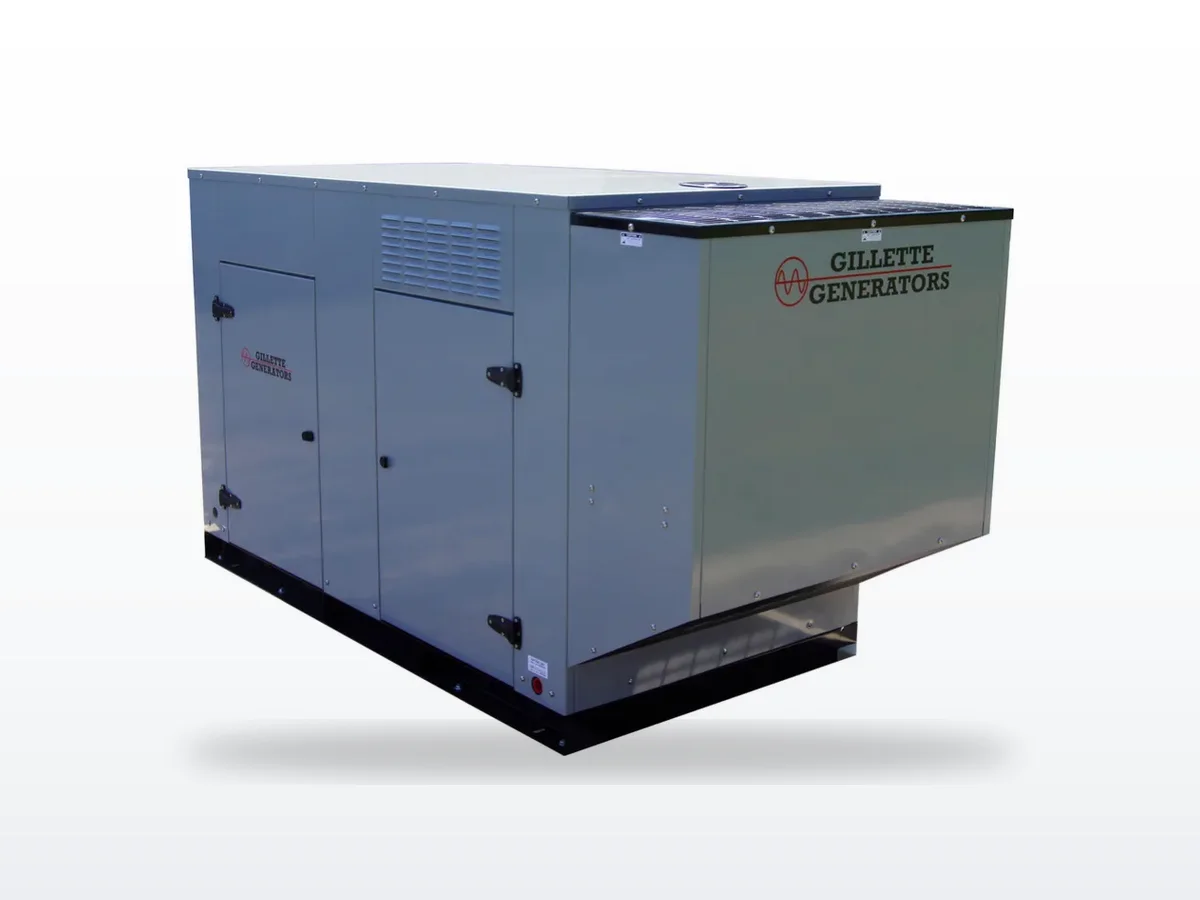

Gillette SPJD-600
60 kW standby · Diesel · Liquid-cooled
60 kW stationary diesel standby generator with John Deere engine. Made-in-USA commercial diesel unit with DSE controller and Stamford or Marathon alternator.
Tier 33-phasecommercialtelecom
G
Gillette
New

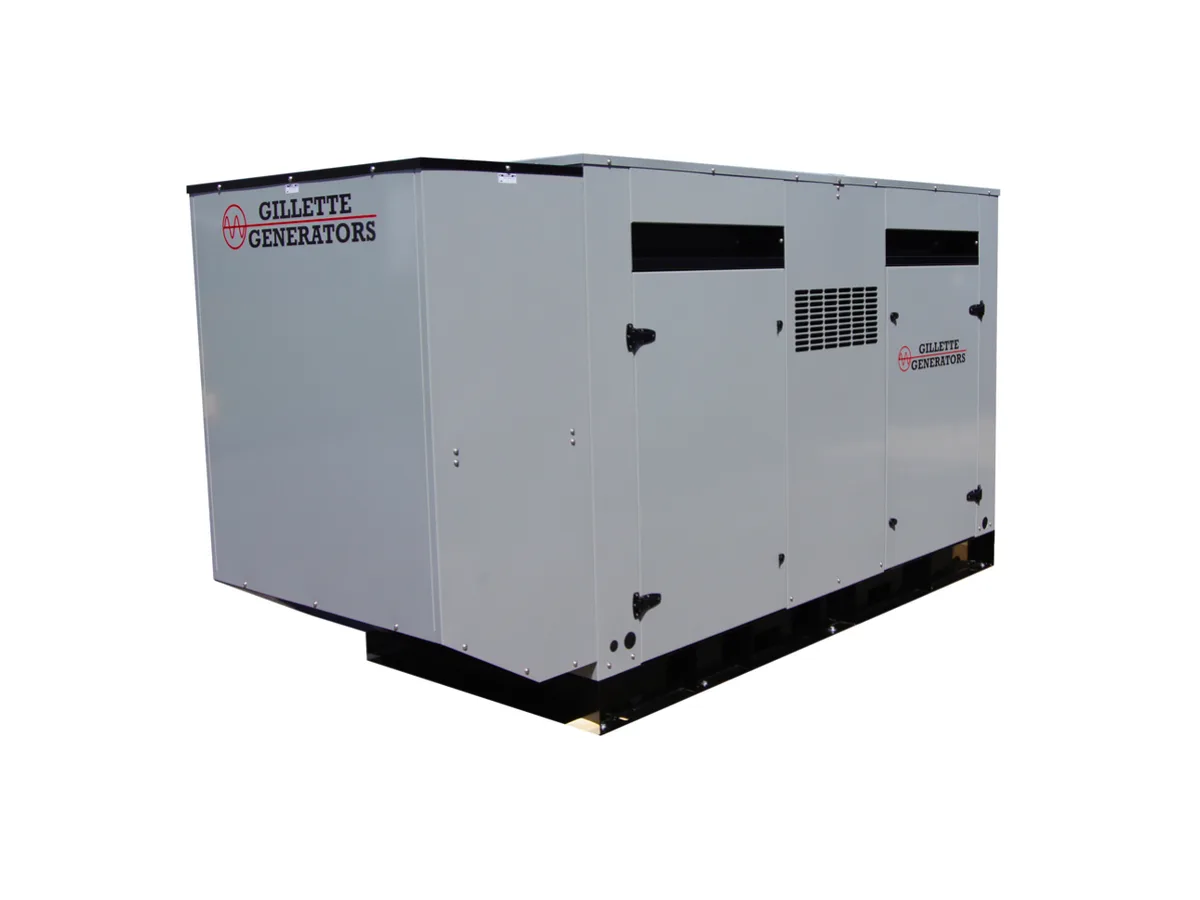

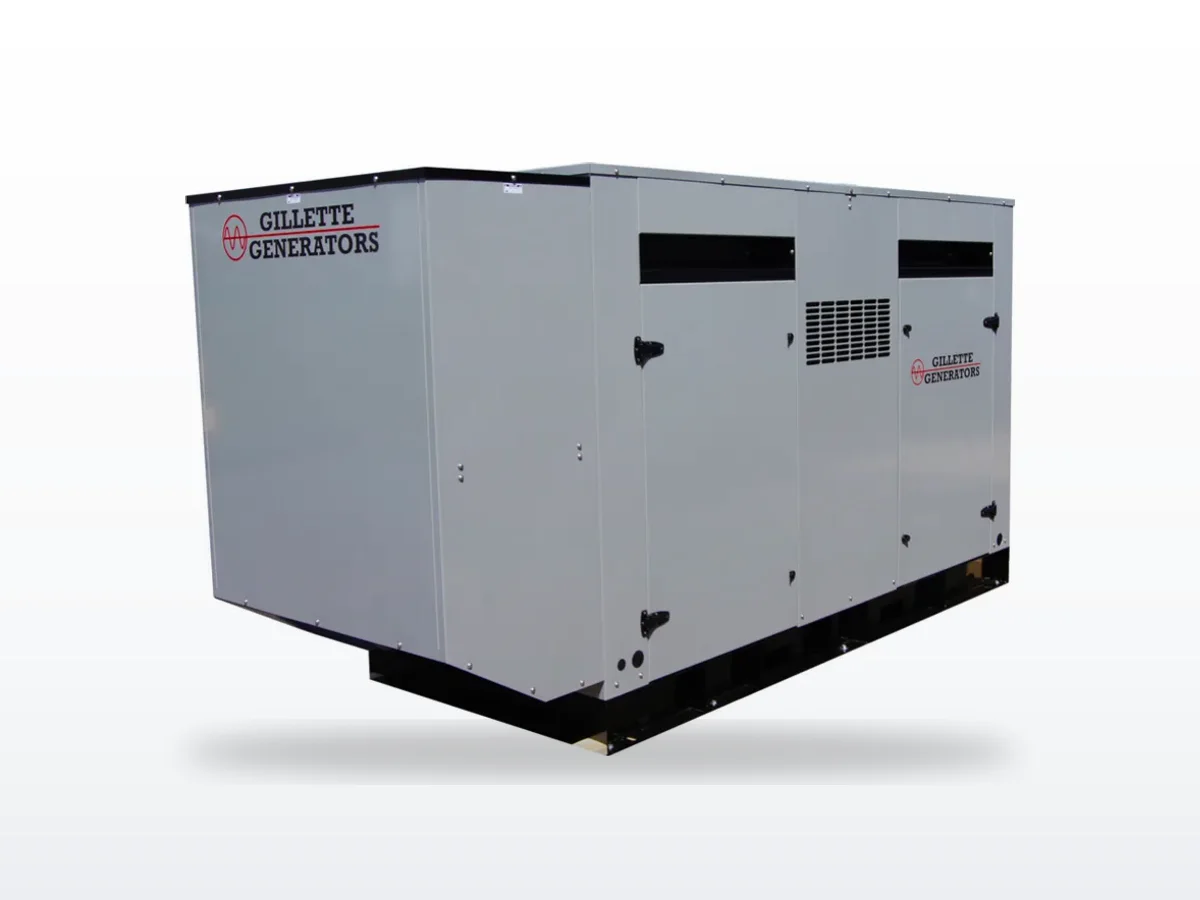

Gillette SPD-1000
