Cummins · Cummins N6 Commercial Gas

Cummins C600 N6

600 kW standby · Natural Gas / LPG · Liquid-cooled

600 kW natural gas standby generator with GTA38 gas engine. 600 kW / 750 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

Cummins Cummins C600 N6 generator — specifications and details
Standby power
600 kW
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Cummins GTA38

Overview#

The Cummins C600 N6 is a 600 kW (750 kVA) standby natural gas generator set powered by the GTA38 gas engine -- a turbocharged and aftercooled spark-ignited engine. The unit runs on natural gas or propane vapor (field selectable) and is equipped with PowerCommand controls providing isochronous governing and AmpSentry alternator protection. It carries UL 2200 listing and EPA certification for stationary emergency use.

The C600 N6 serves large commercial and industrial standby applications including hospitals, data centers, large office complexes, and manufacturing facilities. At 600 kW, it provides substantial emergency capacity for full-building backup while avoiding diesel fuel storage infrastructure, permitting, and secondary containment requirements.

Technical Specifications#

ParameterValue
Standby Rating600 kW (750 kVA)
Frequency60 Hz
Power Factor0.8
Engine ModelGTA38
Fuel TypeNatural gas / LPG
CoolingLiquid
AspirationTurbocharged and aftercooled
Rated Speed1800 rpm
NG Fuel Consumption (Full Load)~6,000 CFH

Our Service Experience#

The GTA38 gas engine is a well-established platform for the 600-650 kW gas generator class. Service access on the GTA38 is good, though the engine's physical size means spark plug replacement takes longer than on smaller units. The catalytic converter (where fitted) requires periodic backpressure testing -- catalyst degradation is the most common cause of power derating on large gas units.

Gas supply infrastructure must be carefully sized for 600 kW gas generators. At approximately 6,000 CFH full-load consumption, a dedicated gas meter, adequately sized supply piping (typically 3-inch minimum), and a properly sized pressure regulator are essential.

Frequently Asked Questions#

What engine does the C600 N6 use? The Cummins GTA38 -- a turbocharged and aftercooled spark-ignited gas engine rated for 600 kW standby at 1800 rpm.

What is the standby rating of the C600 N6? 600 kW (750 kVA) at 60 Hz, 0.8 power factor. Emergency Standby Power (ESP) rating.

Can OnPoint Generators service the C600 N6 in Northern California? Yes. OnPoint Generators provides authorized Cummins natural gas generator service across the San Francisco Bay Area, Silicon Valley, and Northern California.

Engineering specifications

Ready to order this model?

Configure your Cummins C600 N6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C600 N6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

6,300,000 BTU/hr≈ 6300.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What engine does the Cummins C600 N6 use?
The C600 N6 is powered by the Cummins GTA38 gas engine -- a turbocharged and aftercooled spark-ignited engine rated for 600 kW standby output at 1800 rpm.
What is the standby rating of the Cummins C600 N6?
The C600 N6 is rated at 600 kW (750 kVA) standby at 60 Hz, 0.8 power factor. This is an Emergency Standby Power (ESP) rating for both natural gas and propane vapor fuel types.
How much natural gas does the C600 N6 consume at full load?
Approximately 6,000 CFH at full standby load on natural gas. Adequate gas supply sizing, dedicated metering, and high-capacity pressure regulation are essential at this power level.
Can OnPoint Generators service the C600 N6 in Northern California?
Yes. OnPoint Generators provides authorized Cummins natural gas generator service across the San Francisco Bay Area, Silicon Valley, and Northern California. We handle spark plug service, gas regulator calibration, turbocharger inspection, catalytic converter service, and load bank testing for C600 N6 installations.

Compatible equipment

Similar models

Cummins Cummins C600 D6 600 kW liquid-cooled standby generator

Cummins

Cummins C600 D6

Diesel with the 19-litre, inline-6 Cummins QSK19 engine and its Modular Common Rail fuel System (MCRS).

600 kW standby · Diesel · Liquid-cooled

Diesel standby generator with QSK19 19L inline-6 engine and MCRS fuel injection. EPA Tier 2 compliant, liquid-cooled, for large commercial, industrial, and data center standby applications.

Tier 23-phasecommercial-standbylarge-commercial

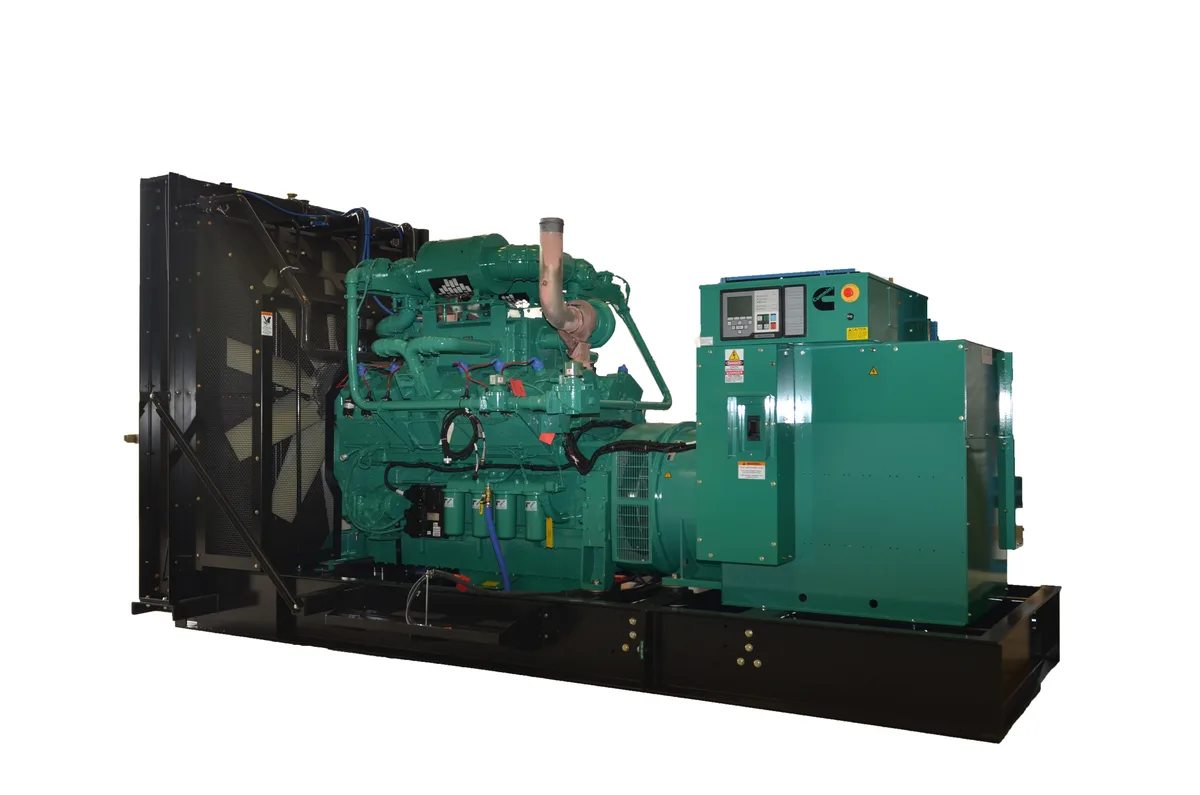

Cummins Cummins C550 N6 550 kW liquid-cooled standby generator

Cummins

Cummins C550 N6

550 kW natural gas standby powered by the GTA28 gas engine. Industrial-grade gas power without diesel logistics.

550 kW standby · Natural Gas / LPG · Liquid-cooled

550 kW natural gas standby generator with GTA28 gas engine. 550 kW / 688 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

3-phasecommercial-standbyindustrial-standby

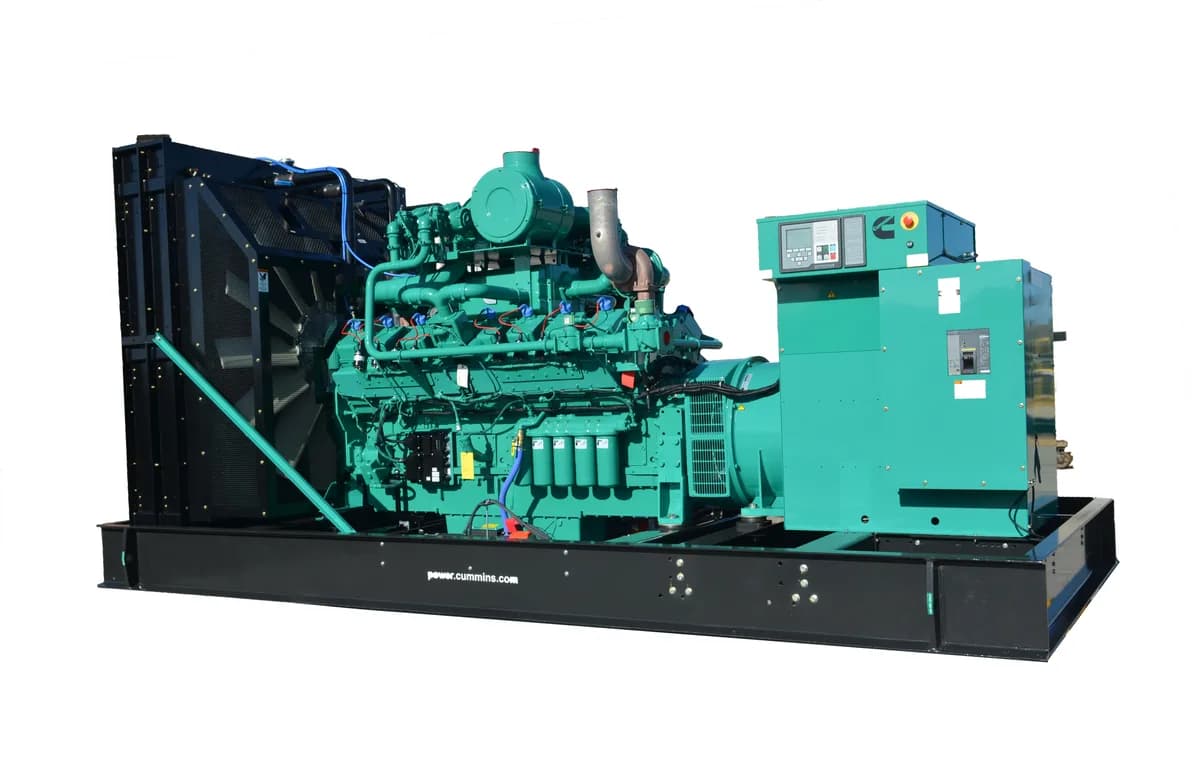

Cummins Cummins C650 N6 650 kW liquid-cooled standby generator
