Cummins · Cummins D6 Commercial Diesel

Cummins C600 D6

600 kW standby / 545 kW prime · Diesel · Liquid-cooled

600 kW diesel standby generator with QSK19 19L inline-6 engine and MCRS fuel injection. EPA Tier 2 compliant, PowerCommand control, liquid-cooled, for large commercial, industrial, and data center standby applications.

Cummins Cummins C600 D6 generator — specifications and details
Standby power
600 kW / 545 kW prime
Voltage options
277/480V, 346/600V, 4160V
Frequency / Phase
60 Hz · 3-phase
Engine
Cummins QSK19 · 19L
EPA / Emissions
Tier 2
CommercialManufacturingData CentersHealthcare
Configure & QuoteDownload spec sheet

Overview#

The Cummins C600 D6 is a 600 kW standby diesel generator set powered by the QSK19 -- a 19-liter, inline-6-cylinder diesel engine with Cummins' Modular Common Rail System (MCRS) fuel injection. Rated at 750 kVA standby and 681 kVA prime at 60 Hz, the C600 D6 serves large commercial, hospital, data center, and industrial standby applications where reliable mid-range power is required.

The QSK19 platform is a workhorse in Cummins' commercial lineup, bridging the gap between the lighter QSX15 (15L) and the heavier QSK23 (23.1L) platforms. At 600 kW, the QSK19 operates at a conservative power-to-displacement ratio, contributing to the platform's 40,000-hour major overhaul interval -- among the longest in the commercial diesel generator market. The MCRS fuel system provides precise injection timing and quantity control, reducing fuel consumption and emissions versus older mechanical injection architectures.

Medium-voltage options (4160V) are available for campus distribution and industrial switchgear applications. The C600 D6 supports PowerCommand 2.3 and 3.3 controllers for paralleling capability, enabling multi-genset configurations for sites requiring N+1 redundancy or load growth flexibility.

Engineering specifications

Physical

Length
117 in
Width
65 in
Height
77 in
Dry weight
7,600 lb

Fuel system & runtime

Fuel use @ full load
42 GPH
Fuel use @ 75% load
31 GPH
Fuel use @ 50% load
22 GPH

Ready to order this model?

Configure your Cummins C600 D6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cummins C600 D6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

6.2 hours(0.3 days)

Fuel consumption ≈ 32.40 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cummins C600 D6 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 40,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
MCRS fuel injection systemInjector fault codes, rough running, power imbalance between cylinders—moderate
CTT turbochargerReduced boost, excessive smoke, turbo bearing noise—moderate
Fuel quality / tank degradationFilter clogging, hard starting, injector fouling from stagnant fuel—moderate
Starting system (24V battery bank)Slow crank, failed start requirement on infrequently exercised units—minor

Frequently Asked Questions

What engine does the Cummins C600 D6 use?
The C600 D6 uses the Cummins QSK19 -- a 19-liter, inline-6-cylinder diesel with Modular Common Rail System (MCRS) fuel injection. The QSK19 platform is widely used across the 550-700 kW range in Cummins' commercial generator lineup.
What are the standby and prime ratings of the C600 D6?
Standby rating is 600 kW (750 kVA) at 60 Hz, 0.8 power factor. Prime rating is 545 kW (681 kVA). Both at 1800 rpm, 60 Hz, three-phase.
What are the service intervals for the C600 D6?
Oil and filter changes are due at 500 hours or 12 months. Air filter replacement at 1,000-hour intervals. Fuel filter at 500 hours. Coolant flush at 6,000 hours. Major overhaul interval is 40,000 hours, reflecting the QSK19 platform's conservative displacement-to-power ratio at 600 kW.
How does the C600 D6 compare to the C750 D6?
The C600 D6 uses the QSK19 (19L, inline-6) while the C750 D6 steps up to the QSK23 (23.1L, inline-6) platform. The QSK23 is a larger engine designed for the 750-800 kW class with a different fuel injection architecture (HPI-PT). Both share 40,000-hour major overhaul intervals.
Can OnPoint Generators service the C600 D6 in Northern California?
Yes. OnPoint Generators provides authorized Cummins service for large commercial diesel generators across the San Francisco Bay Area and Northern California. The QSK19 MCRS fuel system requires Cummins InPower or INSITE diagnostic software for injector calibration and ECM programming.

Compatible equipment

Transfer switches

Similar models

Cummins Cummins C500 D6 500 kW liquid-cooled standby generator

Cummins

Cummins C500 D6

500 kW diesel with QSX15 DOHC engine. 30% fewer parts than comparable platforms. Full Cummins vertical integration.

500 kW standby · Diesel · Liquid-cooled

500 kW diesel standby generator with QSX15 inline-6 DOHC engine. EPA NSPS certified, PowerCommand control, liquid-cooled, for large commercial, industrial, and data center standby applications.

Tier 23-phasecommercial-standbylarge-commercial

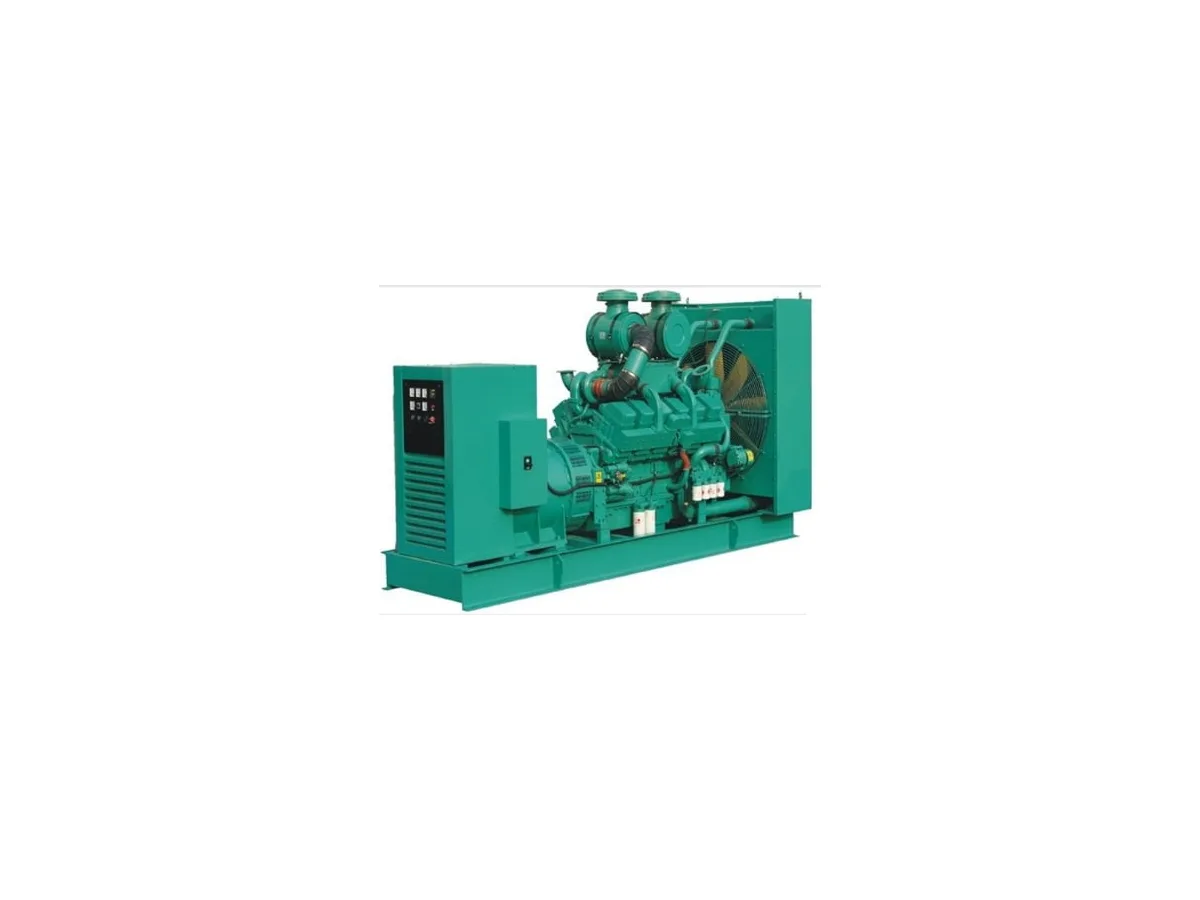

Cummins Cummins C750 D6 750 kW liquid-cooled standby generator

Cummins

Cummins C750 D6

750 kW diesel with QSK23 engine. Full Cummins vertical integration. 100% load in 10 seconds. Paralleling capable.

750 kW standby · Diesel · Liquid-cooled

750 kW diesel standby generator with QSK23-G3 23.1L inline-6 engine and HPI-PT fuel injection. PowerCommand control, liquid-cooled, for data center, hospital, and mission-critical standby applications.

Tier 23-phasecommercial-standbylarge-commercial

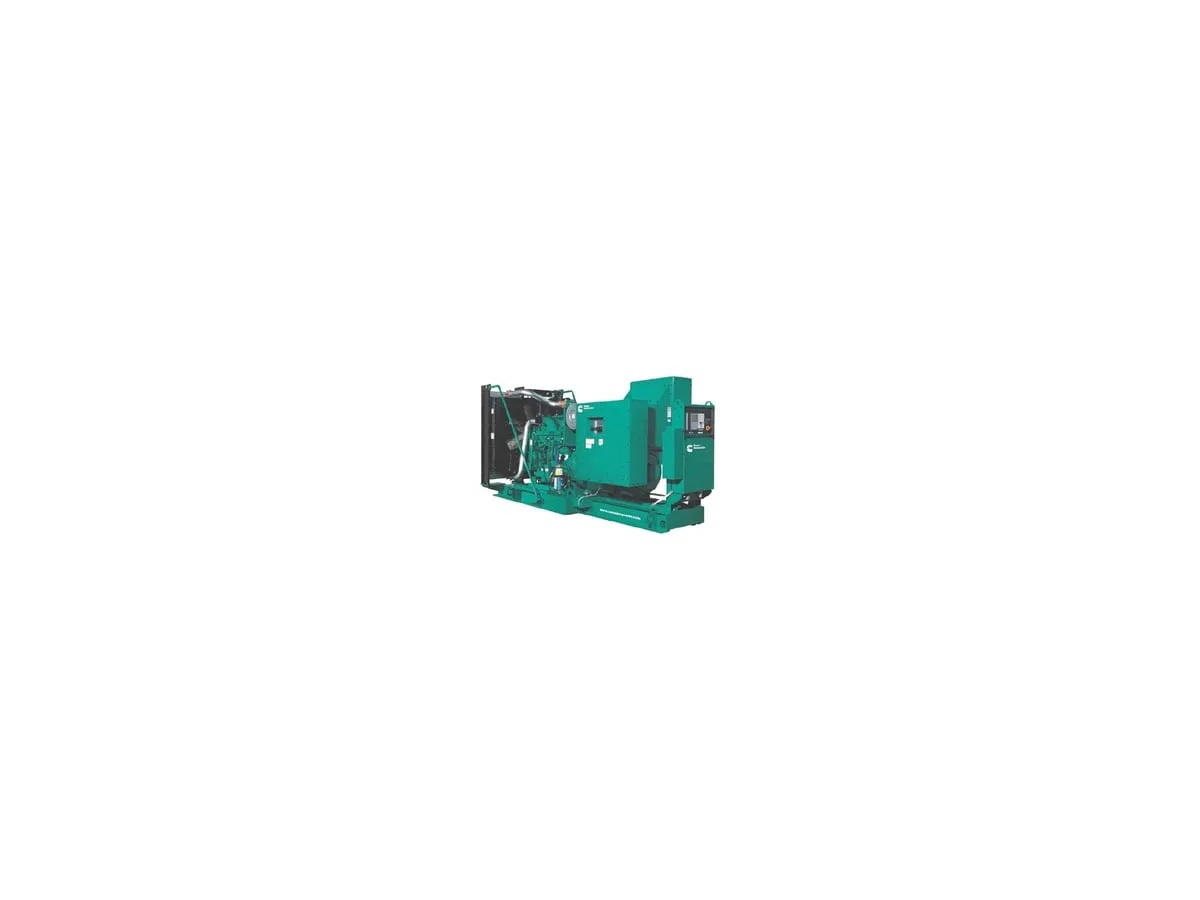

Cummins Cummins QSK19 550 kW liquid-cooled standby generator

Cummins

Cummins QSK19

550 kW diesel with QSK19 engine. Full Cummins vertical integration. Power Command controller. 10-15% below CAT.

550 kW standby · Diesel · Liquid-cooled

550 kW standby / 500 kW prime diesel generator with QSK19-G4 19L inline-6 MCRS engine. EPA Tier 2, CTT HX83 turbocharging, 24V starting. Engine dimensions 1695 x 985 x 1723 mm, dry weight 1900 kg.

Tier 23-phasehospital-mediumcampus

Need service or parts for the Cummins C600 D6?

We service every major OEM and stock genuine parts for the most common models.

Get A QuoteOr call (831) 375-1463
