The Winco DR45F4 is a 45 kW standby diesel generator powered by an FPT Industrial N45-family 4.5-liter turbocharged diesel engine with a Stamford alternator. Part of Winco's enclosed DR diesel standby series, it delivers both single-phase (120/240V) and three-phase (277/480V) output. EPA Tier 4 Final certified. 100% US-made in Le Center, Minnesota since 1927.

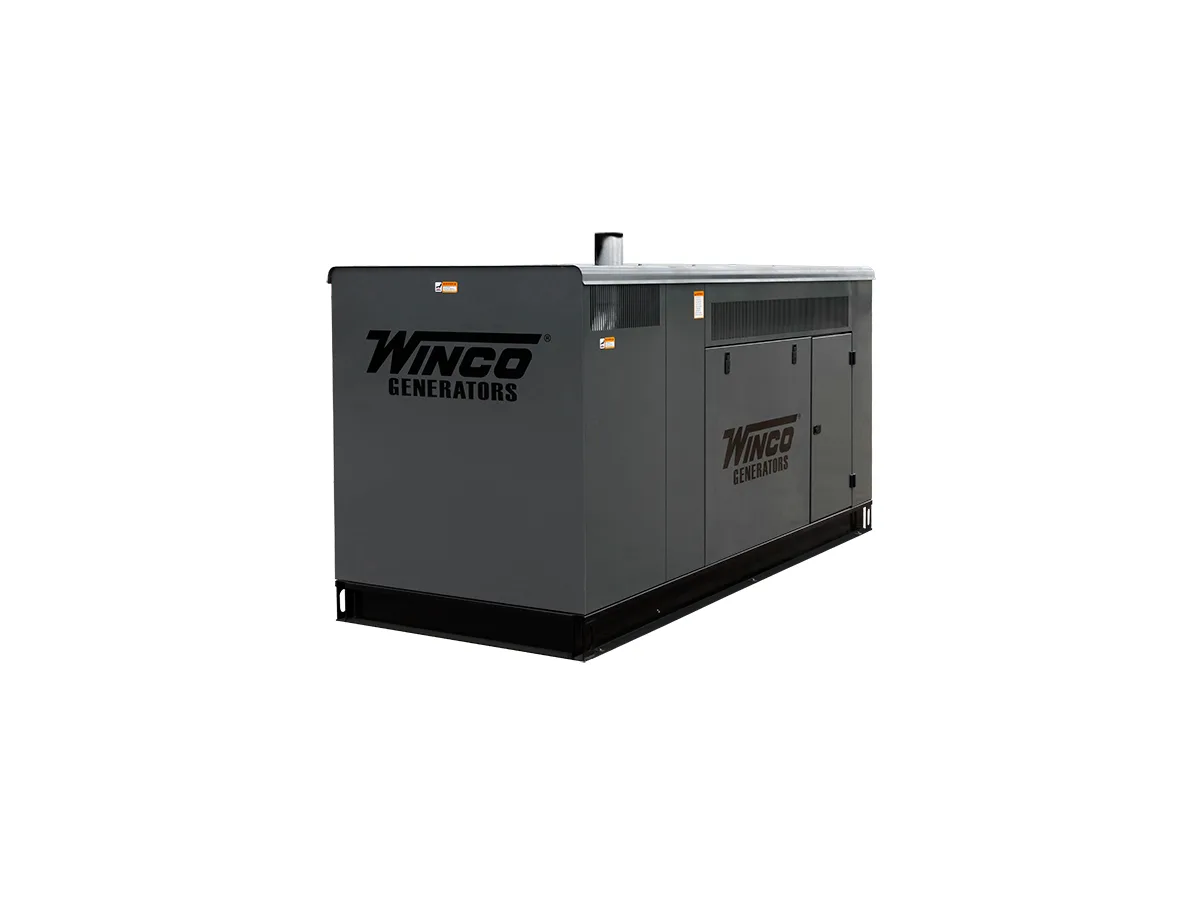

The DR45F4 is a step up from the DR35F4 within the FPT-powered DR line. Its dual voltage/phase availability makes it versatile — a single unit covers both residential-scale and commercial three-phase loads.
Since 1927, Winco has built every generator at its Le Center, Minnesota facility. The DR45F4 reflects that heritage: US assembly, US labor, and two globally non-proprietary components at its core — an FPT Industrial diesel engine and a Stamford alternator.
For facilities subject to Buy American Act or Build America Buy America requirements — federal buildings, public schools, municipal utilities — the DR45F4 qualifies. The FPT engine is serviceable at any CNH Industrial (Case IH / New Holland) dealer or independent diesel shop. Stamford alternator parts are available from dozens of suppliers worldwide. No OEM lock-in, no proprietary parts programs.
Oil and fuel filter changes every 500 hours or annually. Standby diesel fuel degrades in storage — the annual interval applies even for generators that log minimal runtime. Air filter inspection at 500 hours. FPT N45-series engine consumables are available through CNH Industrial dealers and standard diesel parts suppliers.
Transfer switch contact maintenance is critical for standby reliability: weekly exercise cycling prevents the contact oxidation that causes failed or delayed transfers during actual outages. Major overhaul at 20,000 hours.
OnPoint Generators services Winco DR units across the Bay Area and Northern California. Because the DR45F4 uses FPT Industrial and Stamford components, parts procurement goes through standard channels — not a dedicated Winco distributor. This gives us the same service responsiveness on a Winco unit as on any other diesel standby generator. For public agencies, educational institutions, and commercial clients with US manufacturing requirements, the DR45F4 is a strong and practical choice.
Request a quote
Get pricing & lead time on the Winco DR45F4
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
82.3 hours(3.4 days)
Fuel consumption ≈ 2.43 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Winco DR45F4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Extended standby fuel degradation — change annually regardless of hours
500+
minor
Starting battery
Capacity loss in standby — float charge, test annually
4,380+
minor
Transfer switch contacts
Oxidation on standby generators — exercise weekly to maintain contact quality
8,760+
minor
Frequently Asked Questions
What is the standby kW rating of the DR45F4?
The DR45F4 is rated at 45 kW standby. It is available in both single-phase (120/240V) and three-phase (277/480V) configurations.
What engine does the DR45F4 use?
The DR45F4 uses an FPT Industrial N45-family 4.5-liter four-cylinder turbocharged diesel engine from CNH Industrial. This engine family powers Case IH and New Holland agricultural equipment — parts and service expertise are widely available through CNH Industrial's global dealer network.
What makes Winco different from Generac or Kohler?
Winco generators use non-proprietary FPT Industrial engines and Stamford alternators — both globally supported components serviceable by any qualified diesel technician without OEM-specific tools. Winco has manufactured generators 100% in Le Center, Minnesota since 1927. Generac and Kohler offer proprietary engines, smart monitoring, and denser dealer networks but at the cost of component lock-in.
Is the DR45F4 EPA Tier 4 Final compliant?
Yes. The DR45F4 carries EPA Tier 4 Final certification, meeting the most stringent non-road diesel emissions standards required for new installations.
Where are Winco generators made?
Winco generators are 100% manufactured in Le Center, Minnesota. Founded in 1927 as Winpower, Winco is America's oldest generator manufacturer. Every unit is built, wired, and tested at the Le Center facility.
What are the service intervals for the DR45F4?
Oil and fuel filter changes every 500 hours or annually. Air filter inspection at 500 hours. Major overhaul at 20,000 hours. Transfer switch contacts should be exercised weekly to prevent contact oxidation during standby.
Who services Winco generators in Northern California?
OnPoint Generators services Winco DR units throughout the Bay Area and Northern California. The FPT Industrial engine and Stamford alternator are non-proprietary, so our technicians source parts through standard diesel supply chains without dependence on a dedicated Winco dealer.
