Triton Power · TP-S

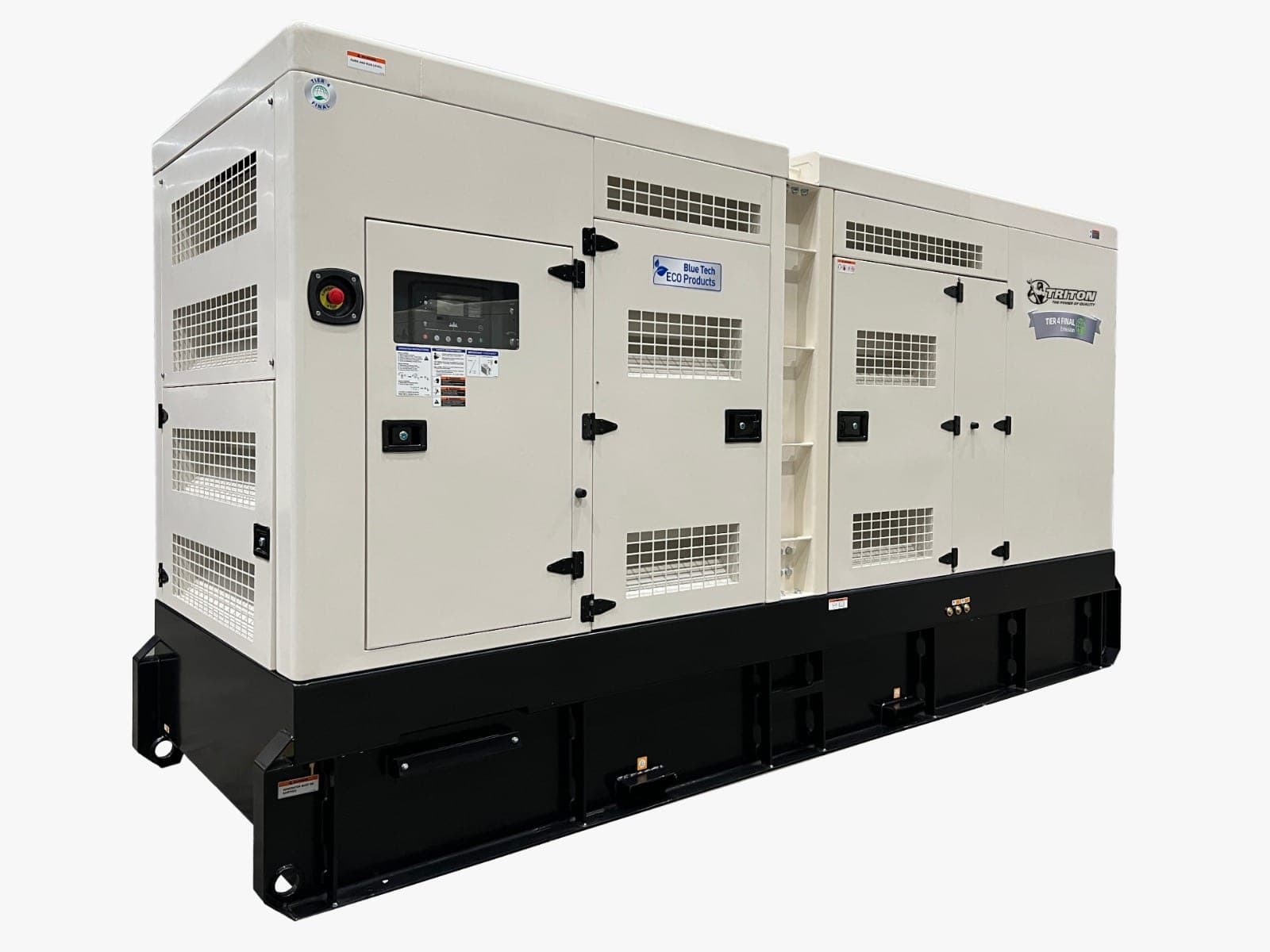

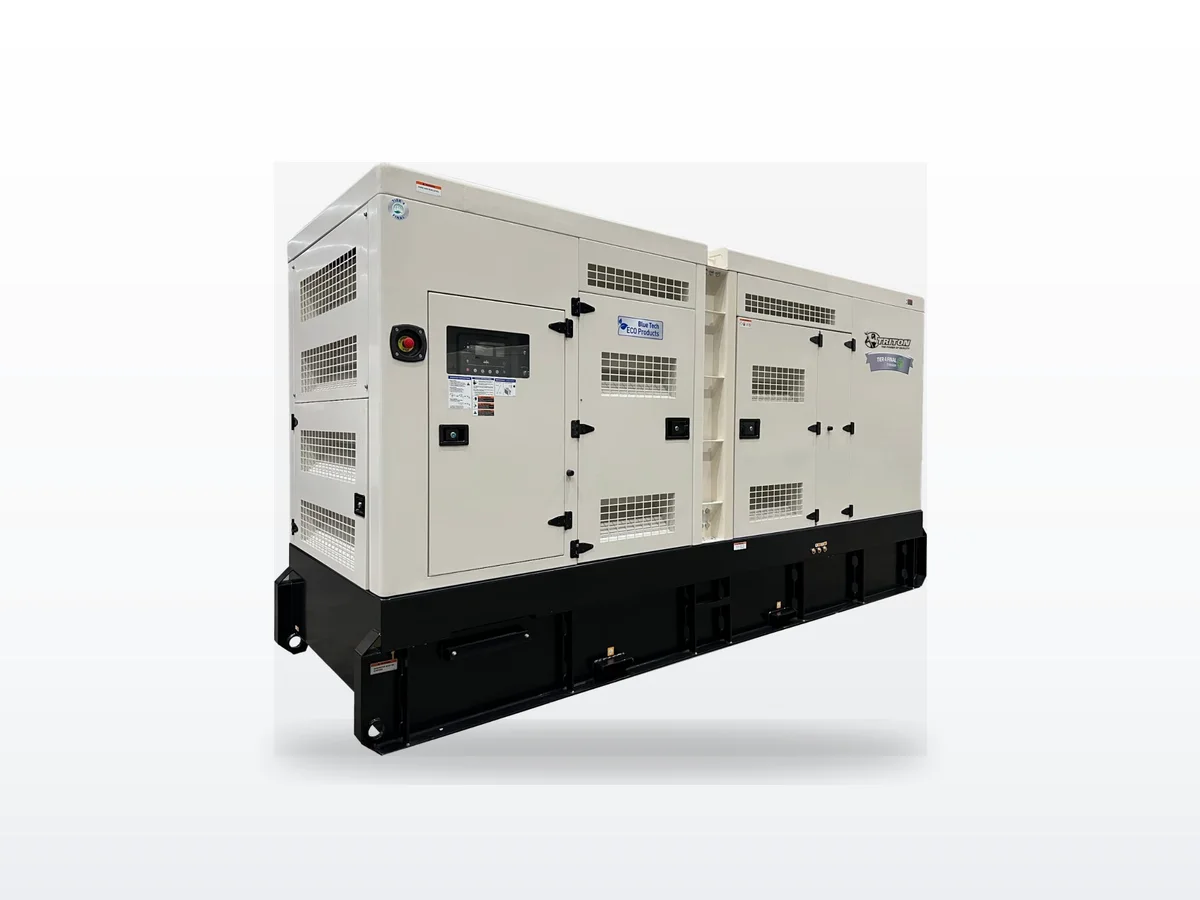

Triton Power TP-S300-T4F

300 kW standby / 280 kW prime · Diesel · Liquid-cooled

300 kW Tier 4 Final diesel generator with Scania DC13 084A engine. Triton lists 125% full containment for fluids and a sub-base tank up to 45 hours.

Triton Power Triton Power TP-S300-T4F generator — specifications and details
Standby power
300 kW / 280 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Scania DC13 084A · 12.7L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-S300-T4F is a diesel generator rated 300 kW / 385 kVA standby and 280 kW / 350 kVA prime at 60 Hz, powered by the Scania DC13 084A inline-six engine (12.7 L displacement, 331 kWm / 450 HP) and paired with a Leroy Somer alternator. The sheet lists the engine as Tier 4 Final, and lists UL2200 and CSA as available options. Triton also lists 125% full containment for fluids and a sub-base tank up to 45 hours; the enclosed unit's fuel tank is listed as 1100 L.

The sheet lists a Deep Sea 7420 digital controller, which it says monitors engine speed, oil pressure, coolant temperature, frequency, voltage, current, power and fuel level. Fuel consumption is listed as 72.3 L/hr (19.1 GPH) at full load, dropping to 37.2 L/hr (9.83 GPH) at 50% load.

Our service experience#

Before specifying the TP-S300-T4F, confirm engine parts and service support for your site, as you would for any Scania-powered unit.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
19.1 GPH
Fuel use @ 75% load
14.4 GPH
Fuel use @ 50% load
9.83 GPH

Ready to order this model?

Configure your Triton Power TP-S300-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-S300-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

13.6 hours(0.6 days)

Fuel consumption ≈ 14.73 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the TP-S300-T4F?
The TP-S300-T4F is powered by a Scania DC13 084A inline-six diesel engine with 12.7 L displacement, running at 1800 RPM with turbocharging.
What is the fuel consumption of the TP-S300-T4F?
Triton's sheet lists fuel consumption of 72.3 L/hr (19.1 GPH) at full load, 54.5 L/hr (14.4 GPH) at 75% load and 37.2 L/hr (9.83 GPH) at 50% load.
Is UL2200 available for the TP-S300-T4F, and what emissions tier does it list?
Triton's sheet lists UL2200 and CSA as available options, and lists the engine as Tier 4 Final.
What voltage configurations are available?
The TP-S300-T4F is available in 120/208V three-phase and 277/480V three-phase at 60 Hz.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

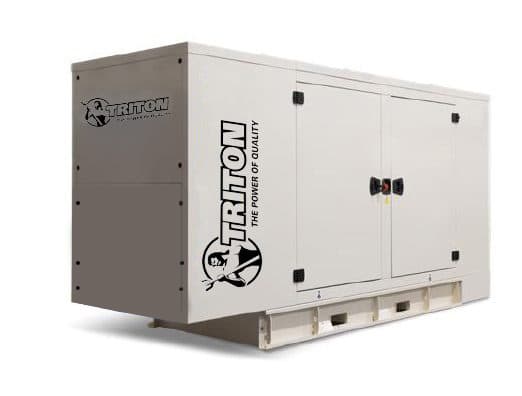

Triton Power Triton Power TP-F250-T3-UL 260 kW liquid-cooled standby generator

Triton Power

Triton Power TP-F250-T3-UL

260 kW standby · Diesel · Liquid-cooled

260 kW Tier 3 diesel generator with FPT C87TE3F.F550 engine. UL2200-listed for commercial and industrial standby applications.

Tier 33-phasecommercial-standbyhealthcare
Triton Power Triton Power TP-P200-T3-UL 200 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P200-T3-UL

200 kW standby · Diesel · Liquid-cooled

200 kW Tier 3 diesel generator with Perkins 1106D-E70TAG5 engine. UL2200-listed for commercial, healthcare, and government standby.

Tier 33-phasecommercial-standbyhealthcare

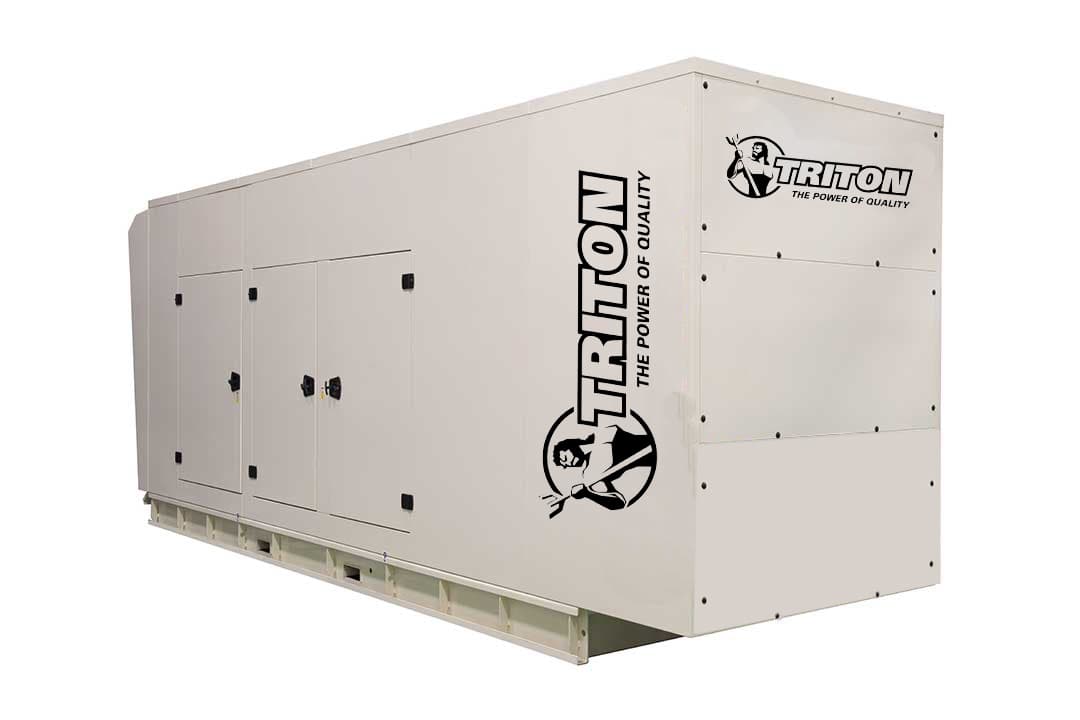

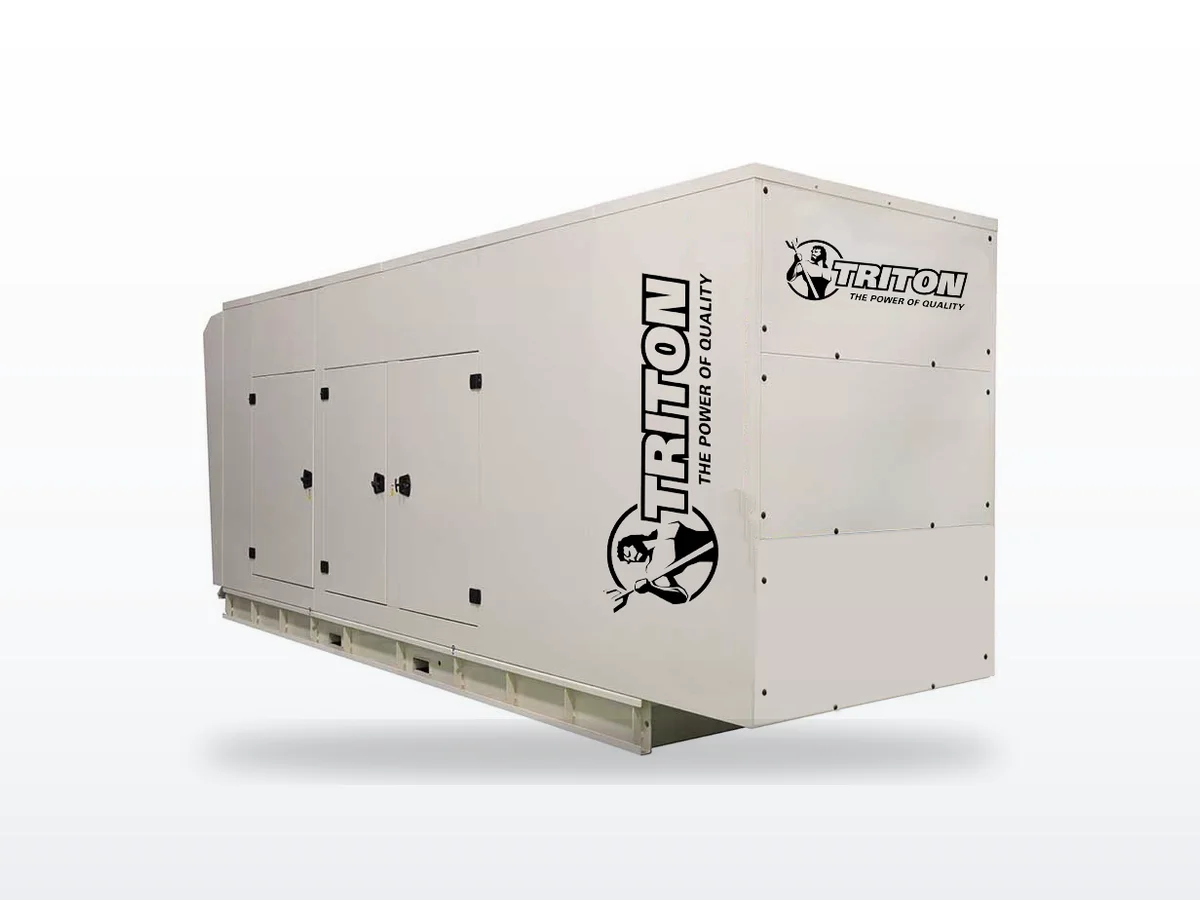

Triton Power Triton Power TP-P400-T3-UL 400 kW liquid-cooled standby generator
