Triton Power · TP-RK

Triton Power TP-RK35-T4F Rental Grade

30 kW standby / 28 kW prime · Diesel · Liquid-cooled

30 kW Tier 4 Final rental grade diesel generator with Kubota V2403-CR-TIE4BG engine. Built for rental fleet and jobsite use.

Triton Power Triton Power TP-RK35-T4F Rental Grade generator — specifications and details
Standby power
30 kW / 28 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Kubota V2403-CR-TIE4BG · 2.4L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-RK35-T4F is a 30 kW rental grade diesel generator for fleet and jobsite applications. Powered by the Kubota V2403-CR-TIE4BG four-cylinder turbocharged diesel engine (2.4 L displacement) paired with a Leroy Somer alternator, it delivers 30 kW / 38 kVA standby and 28 kW / 35 kVA prime power in three-phase at 1800 RPM. The engine is rated Tier 4 Final and uses a common rail system with direct injection and DOC + DPF aftertreatment.

The TP-RK35-T4F includes 125% full containment for fluids. Available in three-phase configurations (120/208V and 277/480V), it powers construction tool circuits, temporary building services, and mid-range event installations.

Our service experience#

In rental fleet rotation, these units handle mid-range temporary power needs such as construction site offices, tool circuits, and event infrastructure. Contact OnPoint Generators for parts and service support on rental units.

Engineering specifications

Acoustic

Sound @ 7m, full load
66 dBA

Fuel system & runtime

Fuel use @ full load
2.25 GPH
Fuel use @ 75% load
1.69 GPH
Fuel use @ 50% load
1.14 GPH

Ready to order this model?

Configure your Triton Power TP-RK35-T4F Rental Grade

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-RK35-T4F Rental Grade

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

115.2 hours(4.8 days)

Fuel consumption ≈ 1.74 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What are the power ratings of the TP-RK35-T4F?
The generator set sheet lists three-phase ratings of 30 kW / 38 kVA standby and 28 kW / 35 kVA prime at 60 Hz (120/208V and 277/480V).
What is the estimated fuel consumption for the TP-RK35-T4F?
The generator set sheet lists fuel consumption of 8.5 L/hr at full load, 6.4 L/hr at 75% load and 4.3 L/hr at 50% load. Actual consumption varies with load profile, ambient temperature, and altitude.
How noisy is the TP-RK35-T4F?
The generator set sheet lists an average of 66 dB(A) at 7 m. Actual levels vary with configuration, load and distance.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

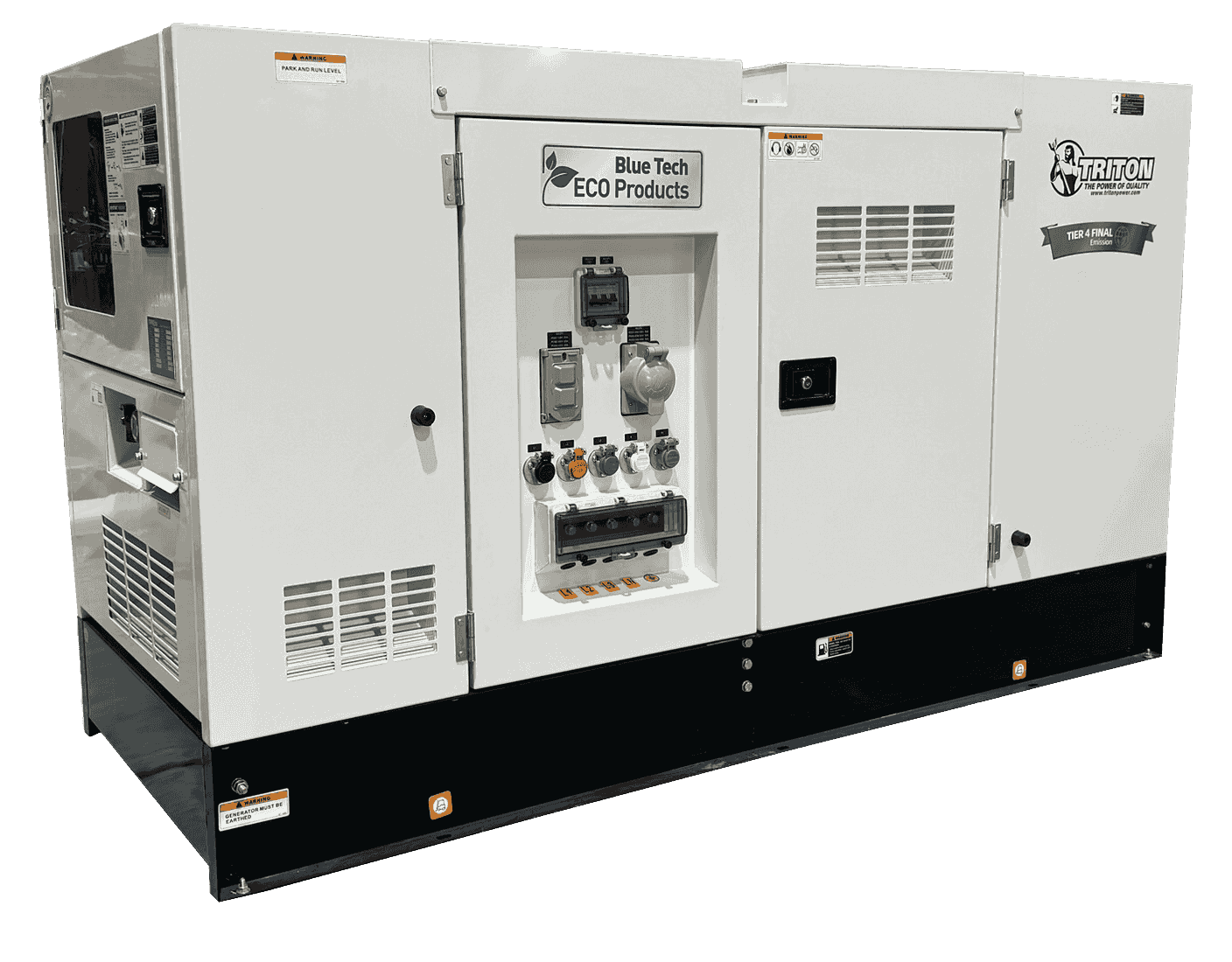

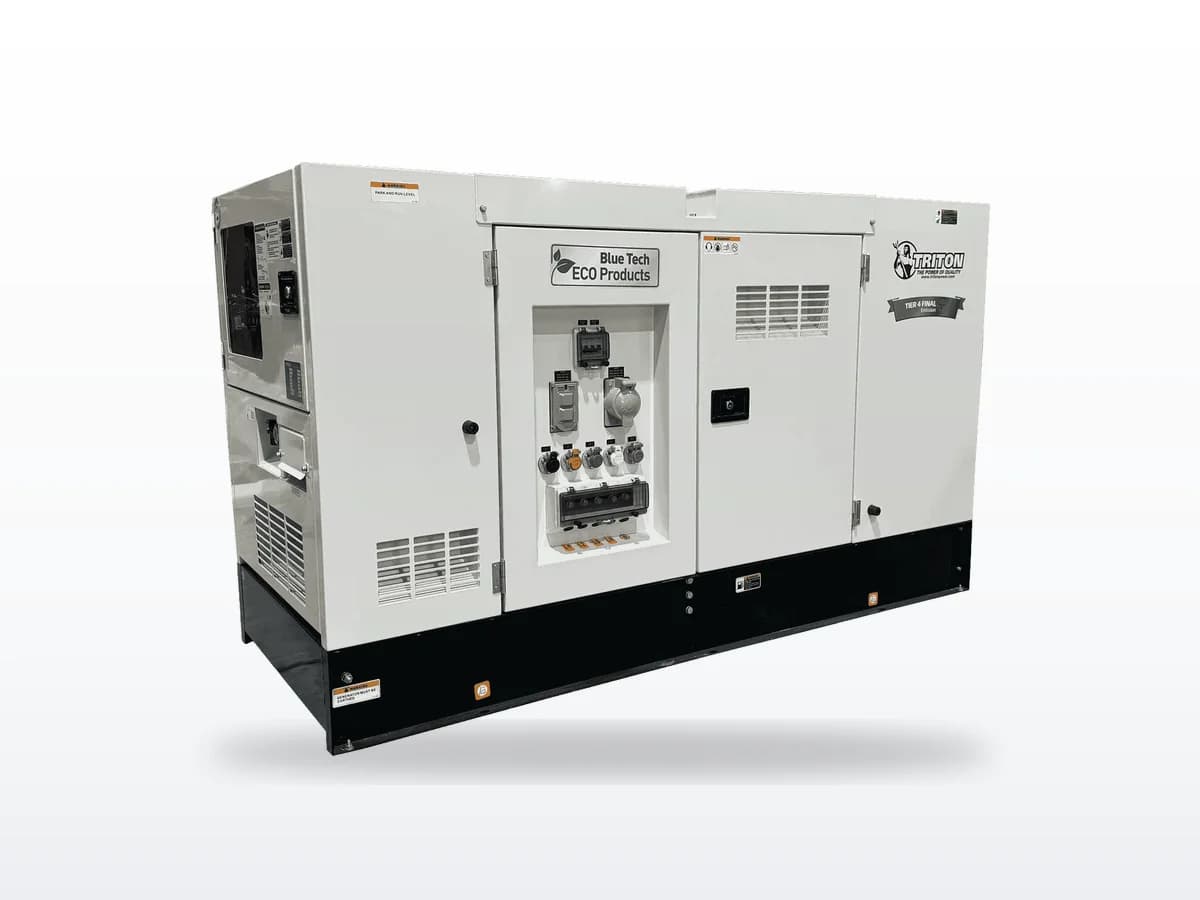

Triton Power Triton Power TP-RK25-T4F Rental Grade 22 kW liquid-cooled standby generator

Triton Power

Triton Power TP-RK25-T4F Rental Grade

22 kW standby · Diesel · Liquid-cooled

22 kW Tier 4 Final rental grade diesel generator with Kubota D1803-CR-TIE4BG engine. Built for rental fleet and jobsite use.

Tier 4 Final3-phaserentalmobile

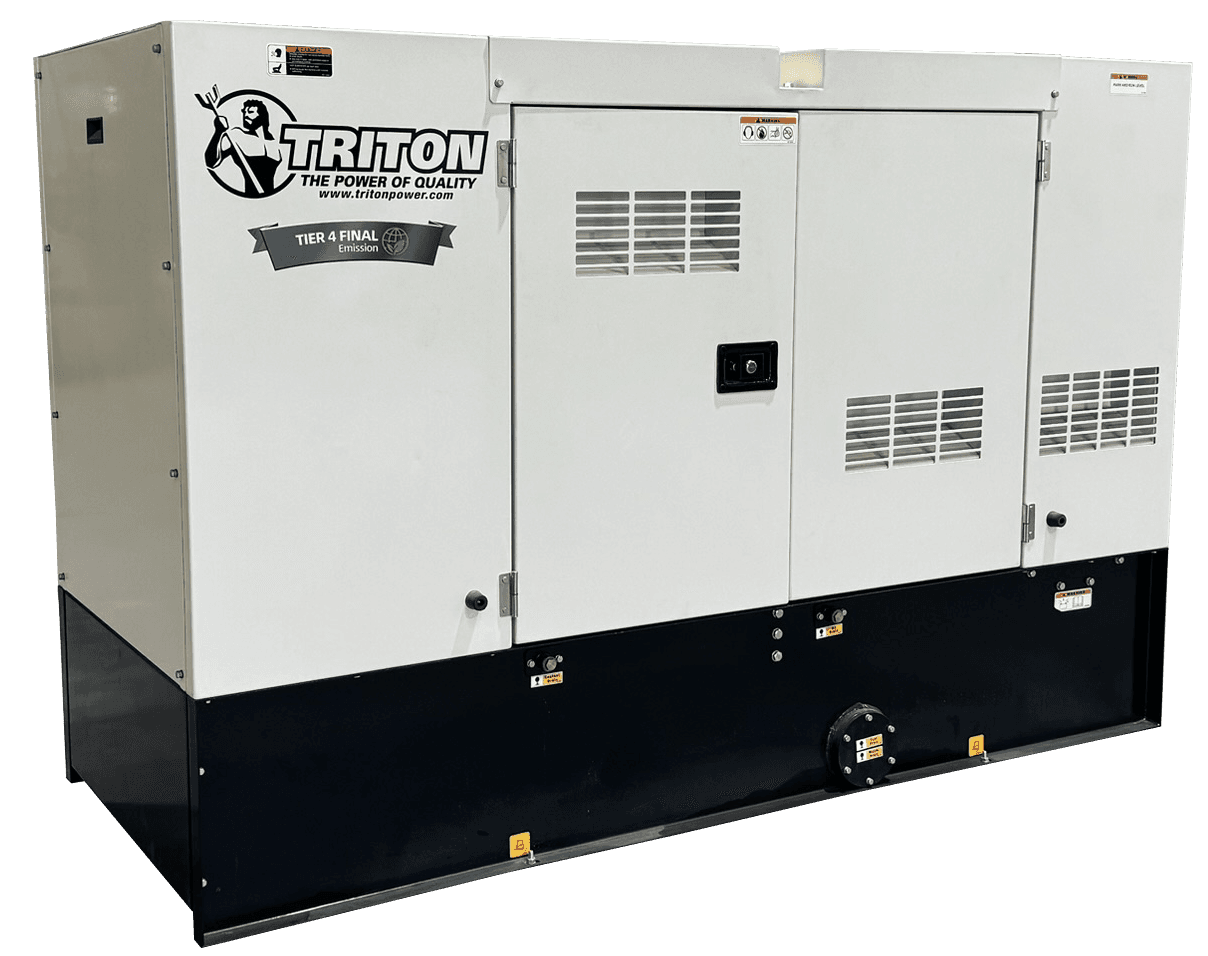

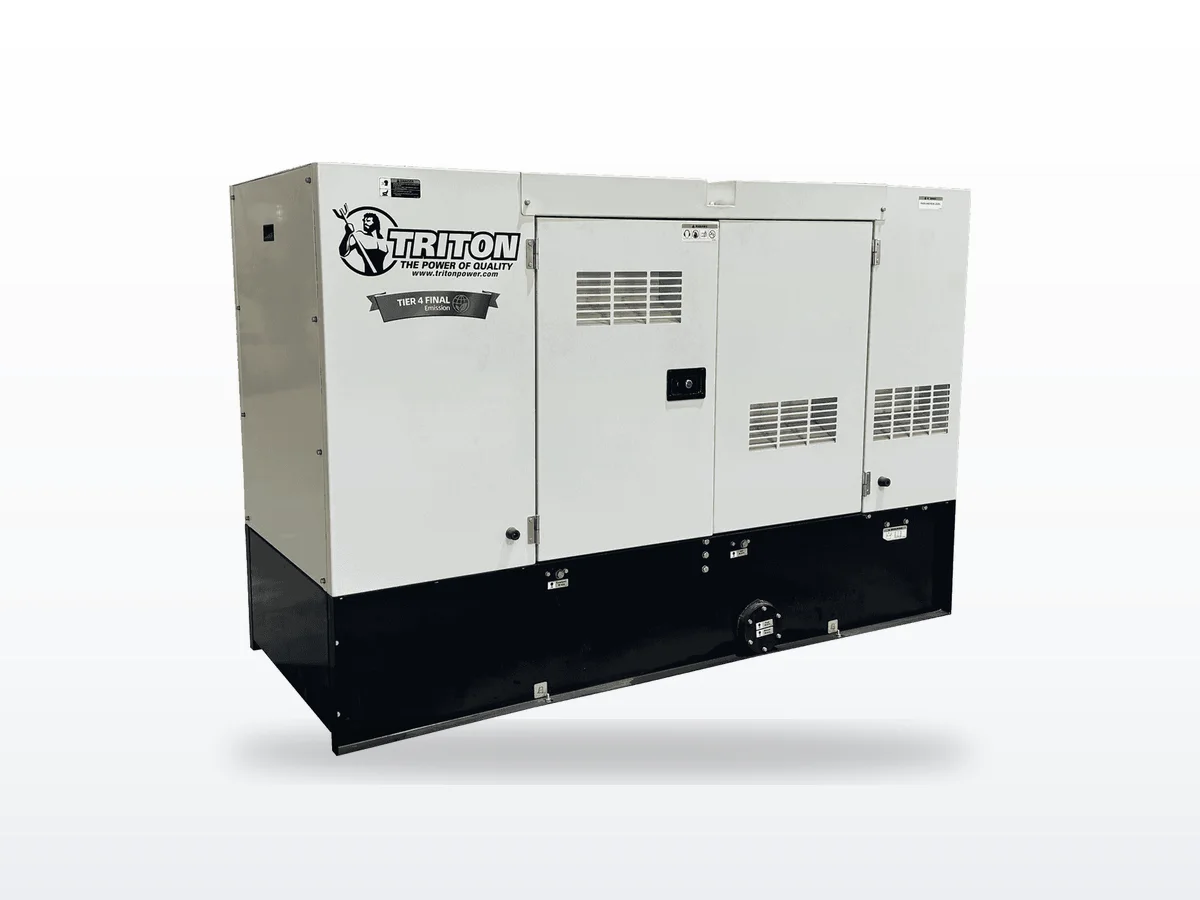

Triton Power Triton Power TP-K30-T4i-UL 30 kW liquid-cooled standby generator
