Overview#

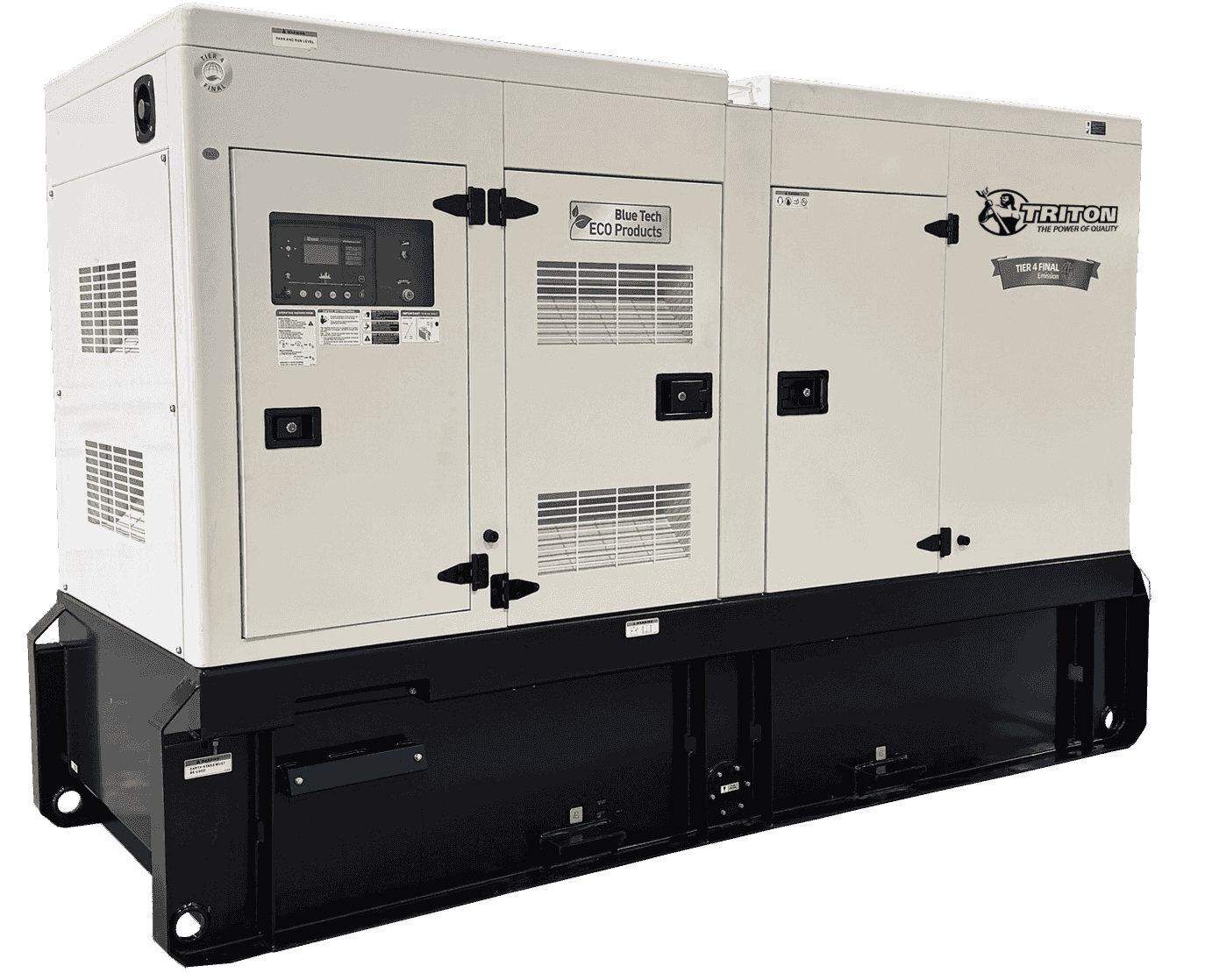

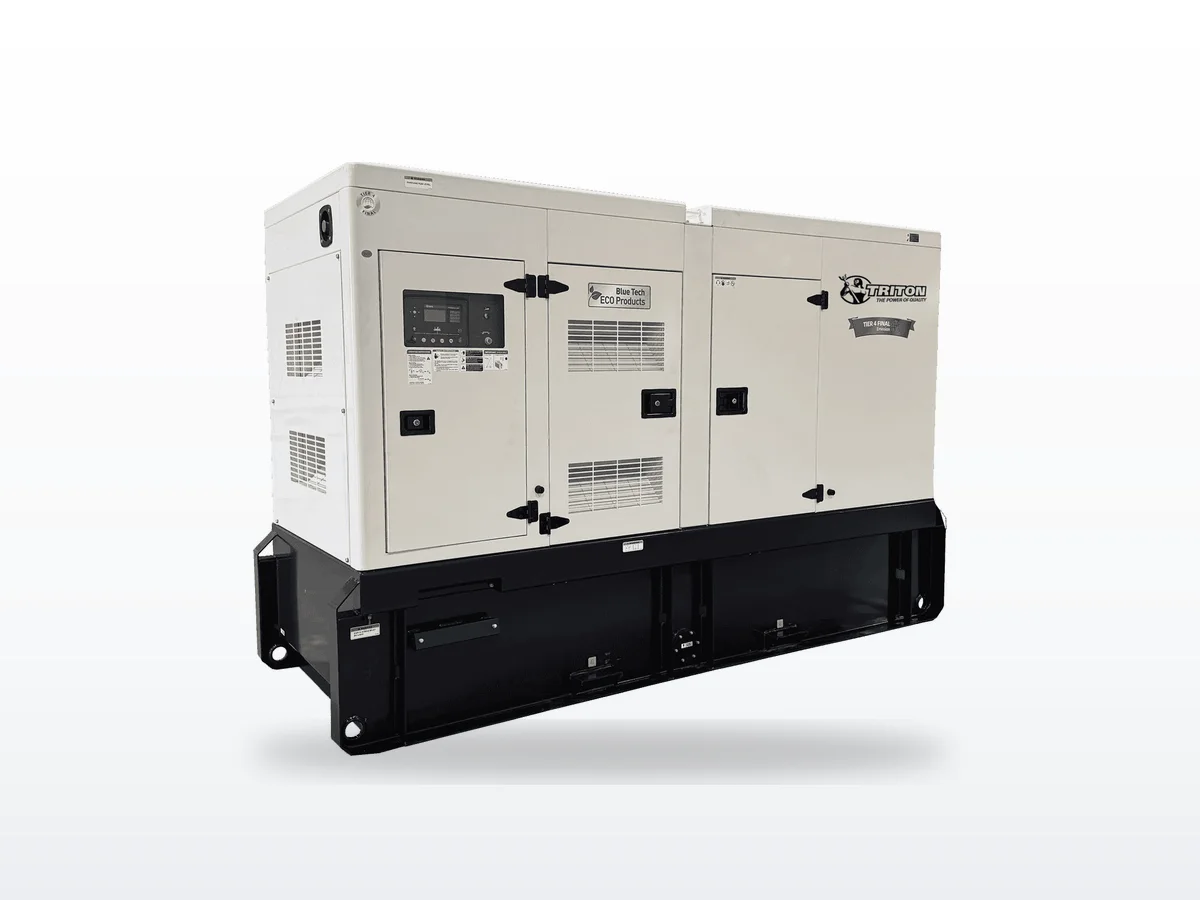

The Triton Power TP-JD70-T4F is a 70 kW diesel standby generator powered by the John Deere 4045HFG04 turbocharged four-cylinder engine with 4.5 L displacement. Paired with a Leroy Somer alternator, this unit delivers reliable three-phase power at 1800 RPM while meeting EPA Tier 4 Final emissions standards. The 680-liter (180-gallon) integral fuel tank supports extended runtime for commercial standby and industrial applications.
With a sound level of 66 dBA, the TP-JD70-T4F balances power output with noise control suitable for commercial installations. The unit is available in 120/208V and 277/480V three-phase configurations, serving the mid-range commercial market between the 50 kW and 88 kW Triton offerings.
Our service experience#
The John Deere 4045 engine platform is one of the most widely serviced four-cylinder diesel engines in the industrial generator market, with strong parts availability through John Deere's dealer network. At 70 kW standby, the TP-JD70-T4F competes directly with Kohler and Cummins units in the light commercial segment at a competitive acquisition cost. The Tier 4 Final aftertreatment system requires periodic DPF monitoring, but the 4045 platform's reputation for durability and straightforward maintenance offsets that added complexity.
