Triton Power · TP-P

Triton Power TP-P80-T3-UL

80 kW standby / 72 kW prime · Diesel · Liquid-cooled

80 kW Tier 3 diesel generator with Perkins 1104D-E44TAG1 engine. UL2200-listed for commercial standby and institutional applications.

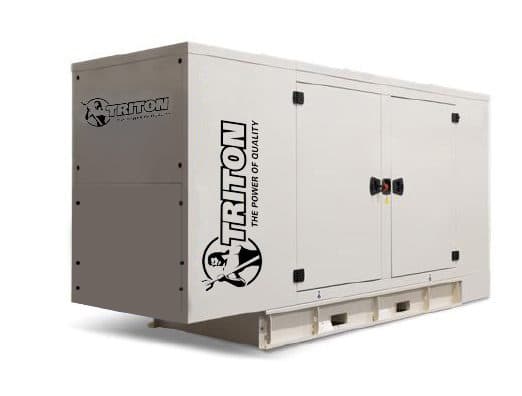

Triton Power Triton Power TP-P80-T3-UL generator — specifications and details
Standby power
80 kW / 72 kW prime
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Perkins 1104D-E44TAG1 · 4.4L
EPA / Emissions
Tier 3
Alternator
Leroy Somer

Overview#

The Triton Power TP-P80-T3-UL is an 80 kW diesel standby generator built on the Perkins 1104D-E44TAG1 turbocharged and aftercooled four-cylinder engine (4.4 L displacement). The sheet lists Leroy Somer as the alternator manufacturer. The engine has a Tier 3 rating and the sheet is headed UL2200 Listed. Ratings at 60 Hz are listed for three-phase at 120/240V, 120/208V, and 277/480V (80 kW standby).

The unit features a Deep Sea 7310 digital controller that monitors engine speed, oil pressure, coolant temperature, frequency, voltage, current, power and fuel level. Fuel consumption is 23.7 L/hr (6.26 GPH) at full load, dropping to 13.5 L/hr (3.57 GPH) at half load.

Our service experience#

Triton's value pricing is an important consideration for retail, education, and government projects where acquisition cost matters alongside lifecycle performance.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
6.26 GPH
Fuel use @ 75% load
4.94 GPH
Fuel use @ 50% load
3.57 GPH

Ready to order this model?

Configure your Triton Power TP-P80-T3-UL

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-P80-T3-UL

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

41.4 hours(1.7 days)

Fuel consumption ≈ 4.83 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the Triton TP-P80-T3-UL?
The TP-P80-T3-UL uses a Perkins 1104D-E44TAG1 turbocharged and air-to-air aftercooled four-cylinder diesel engine with 4.4 L displacement (bore and stroke 105 x 127, 16.7:1 compression ratio), producing 71.4 kWm (95.75 HP) at 1800 RPM.
What is the fuel consumption of the TP-P80-T3-UL?
Full load consumption is 6.26 GPH (23.7 L/hr), 75% load is 4.94 GPH (18.7 L/hr), and 50% load is 3.57 GPH (13.5 L/hr).
Is the TP-P80-T3-UL UL listed?
Yes, the spec sheet for the TP-P80-T3-UL is headed UL2200 Listed, and its engine has a Tier 3 rating.
What voltages are available for the TP-P80-T3-UL?
The sheet lists three-phase ratings at 120/240V, 120/208V, and 277/480V (80 kW standby, 72 kW prime), all at 60 Hz. The sheet names a Deep Sea 7310 digital controller.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.
