Triton Power · TP-JD

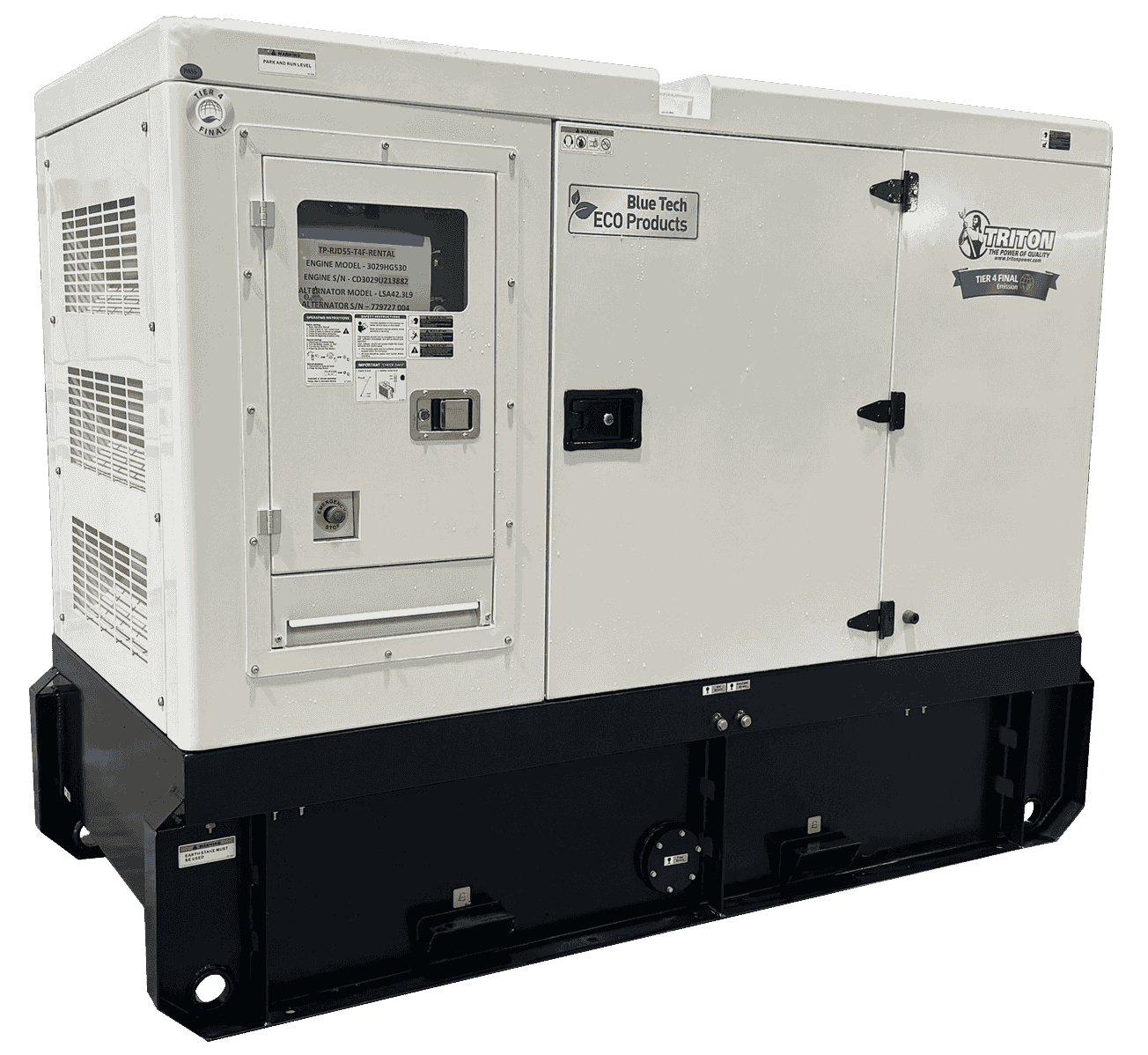

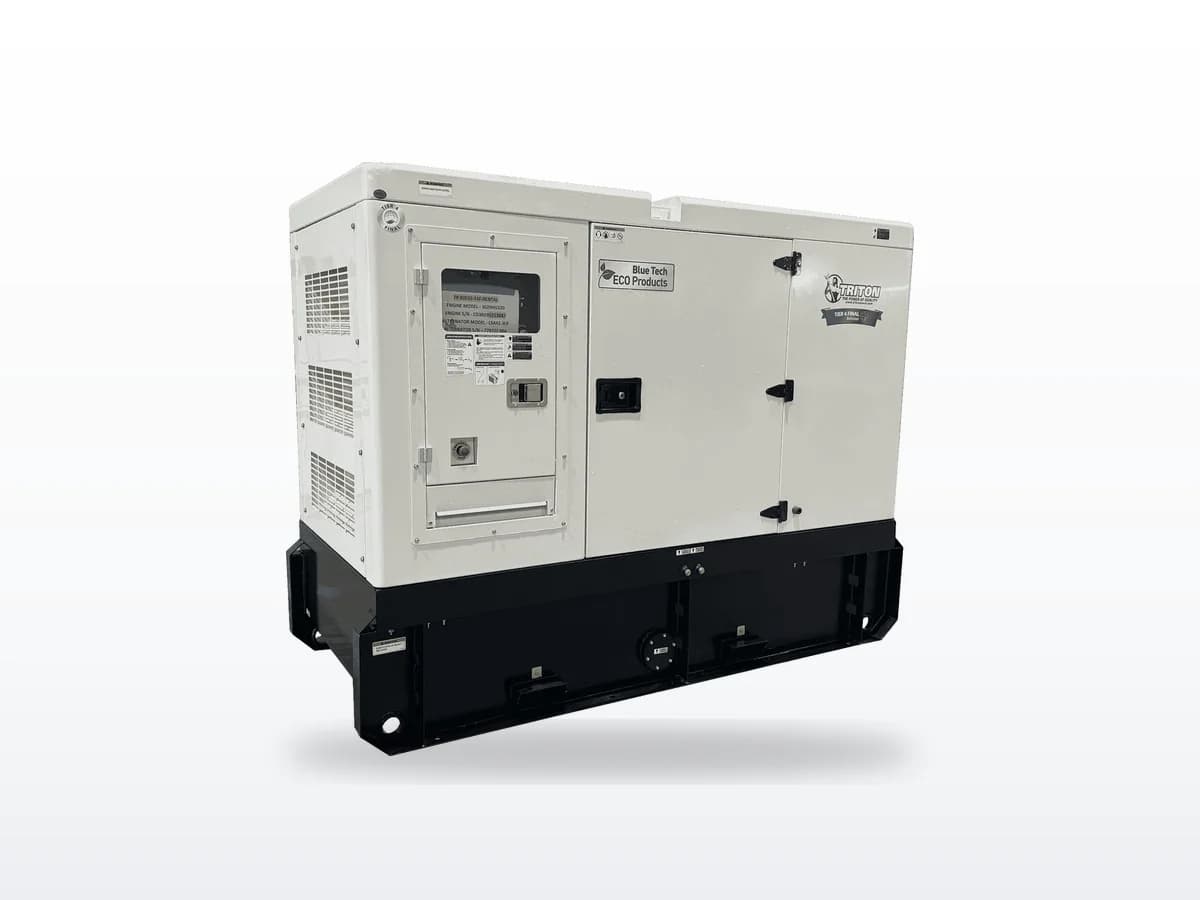

Triton Power TP-JD50-T4F

50 kW standby / 45 kW prime · Diesel · Liquid-cooled

50 kW Tier 4 Final diesel generator with John Deere 3029HG530 engine. Turbocharged 2.9L inline-3 for commercial standby, with a 350-liter fuel tank (enclosed set).

Triton Power Triton Power TP-JD50-T4F generator — specifications and details
Standby power
50 kW / 45 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 3029HG530 · 2.9L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-JD50-T4F is a 50 kW diesel standby generator powered by the John Deere 3029HG530 turbocharged three-cylinder engine (2.9 L displacement) and paired with a Leroy Somer alternator. The engine carries a Tier 4 Final rating and features PowerTech EWX direct injection and DOC/DPF aftertreatment. The enclosed set lists a 350-liter fuel tank, and the sheet lists 125% full containment for fluids.

Available in three-phase configuration (50 kW standby at 120/208V or 277/480V), the unit features a Deep Sea Electronics DSE7420 controller with comprehensive monitoring. Fuel consumption is listed at 11.2 L/hr at full load.

Our service experience#

The TP-JD50-T4F is suited to commercial standby applications where reliable backup power is essential.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
2.96 GPH
Fuel use @ 75% load
2.46 GPH
Fuel use @ 50% load
1.95 GPH

Ready to order this model?

Configure your Triton Power TP-JD50-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-JD50-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

87.6 hours(3.6 days)

Fuel consumption ≈ 2.28 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the TP-JD50-T4F?
The TP-JD50-T4F uses a John Deere 3029HG530 turbocharged three-cylinder engine with 2.9 L displacement, running at 1800 RPM.
What is the fuel consumption?
The sheet lists fuel consumption of 11.2 L/hr at full load, 9.3 L/hr at 75% load and 7.4 L/hr at 50% load.
Does the TP-JD50-T4F meet Tier 4 Final emissions requirements?
Yes. The sheet lists a Tier 4 Final tier rating, and describes the engine as featuring PowerTech EWX direct injection and DOC/DPF aftertreatment.
What voltage options are available, and does the unit include a fuel tank?
The sheet lists three-phase ratings at 120/208V and 277/480V. The sheet lists a 350-liter fuel tank for the enclosed set and 125% full containment for fluids as a feature.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

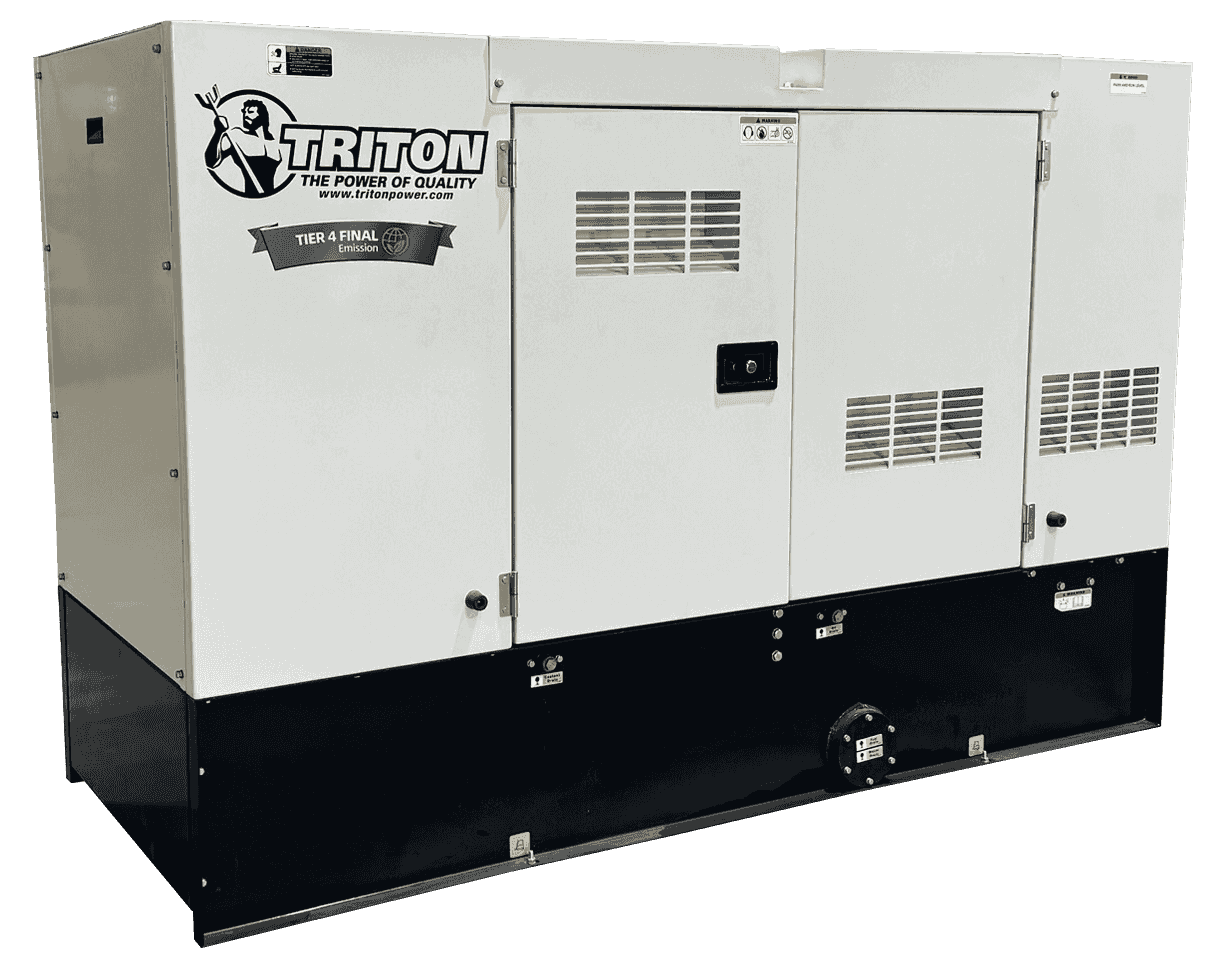

Triton Power Triton Power TP-K30-T4i-UL 30 kW liquid-cooled standby generator
