Kohler · REOZ Series (Diesel Commercial Standby)

Kohler 200REOZJF

200 kW standby / 180 kW prime · Diesel · Liquid-cooled

200 kW diesel commercial standby generator. Large commercial diesel for hospitals, data centers, and institutional facilities.

Kohler Kohler 200REOZJF generator — specifications and details
Standby power
200 kW / 180 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 6068HFG85 · 6.8L
EPA / Emissions
Tier 3

Overview#

The Kohler 200REOZJF is a 200-kilowatt diesel commercial standby generator built on John Deere's 6.8 L inline-6 platform. Per spec sheet G5-373, the unit pairs the 6068HFG85 (Tier 3, 1800 RPM) with a 4-pole brushless rotating-field alternator and a Kohler controller. Standard offerings are three-phase at 120/208 V or 277/480 V.

NFPA 110 compliance#

The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.

Our service experience#

The 200REOZJF is one of the most common commercial diesel platforms in our fleet. John Deere 6068 parts are readily available.

Engineering specifications

Physical

Length
118.1 in
Width
51.2 in
Height
65.8 in
Wet weight
4,240 lb

Documents & downloads

Ready to order this model?

Configure your Kohler 200REOZJF

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Kohler 200REOZJF

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

18.5 hours(0.8 days)

Fuel consumption ≈ 10.80 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine is in the Kohler 200REOZJF?
Per spec sheet G5-373, the 200REOZJF uses a John Deere 6068HFG85 — a 6.8 L turbocharged charge-air-cooled inline-6 PowerTech diesel at 1800 RPM, EPA Tier 3 (stationary emergency).
What voltages and phase configurations are available?
The published configurations are three-phase 120/208 V or 277/480 V at 0.8 PF. Higher-voltage three-phase configurations (e.g., 600 V) and other reconnections are available per the spec sheet.

Compatible equipment

More in the REOZ Series (Diesel Commercial Standby)

Kohler's diesel commercial standby series — 10 to 510 kW, John Deere and Kohler engines, built for life-safety loads.

Why we recommend Kohler

Kohler is our primary recommendation for commercial standby power. We sell and service the full Kohler line — RCA residential, RCL light commercial, KG industrial diesel, and REOZ large-frame — and our technicians are factory-trained on every product family.

We are an authorized Kohler dealer with factory-trained technicians. Kohler is the majority of our new generator sales today, spanning residential through large industrial. Our parts inventory is stocked for same-day Kohler service.

See all Kohler generators →

Similar models

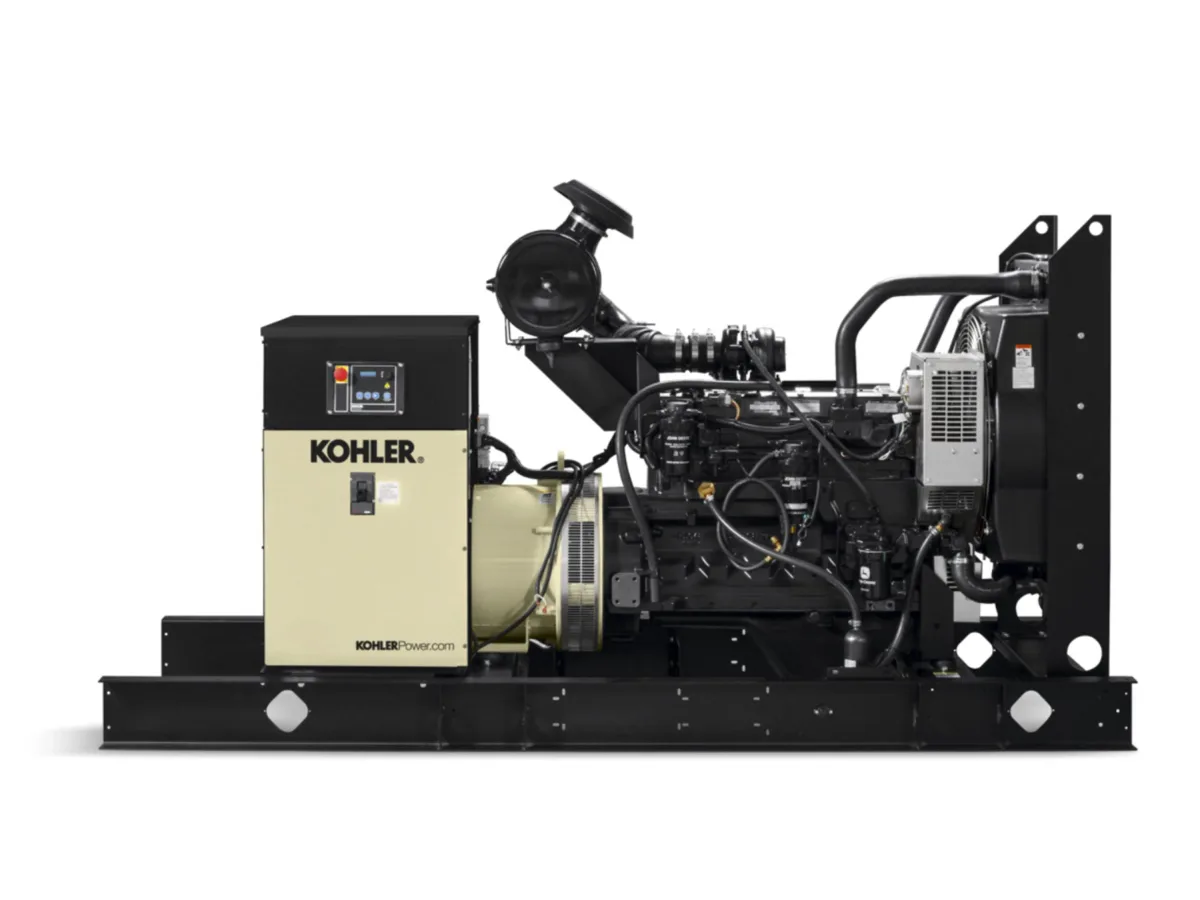

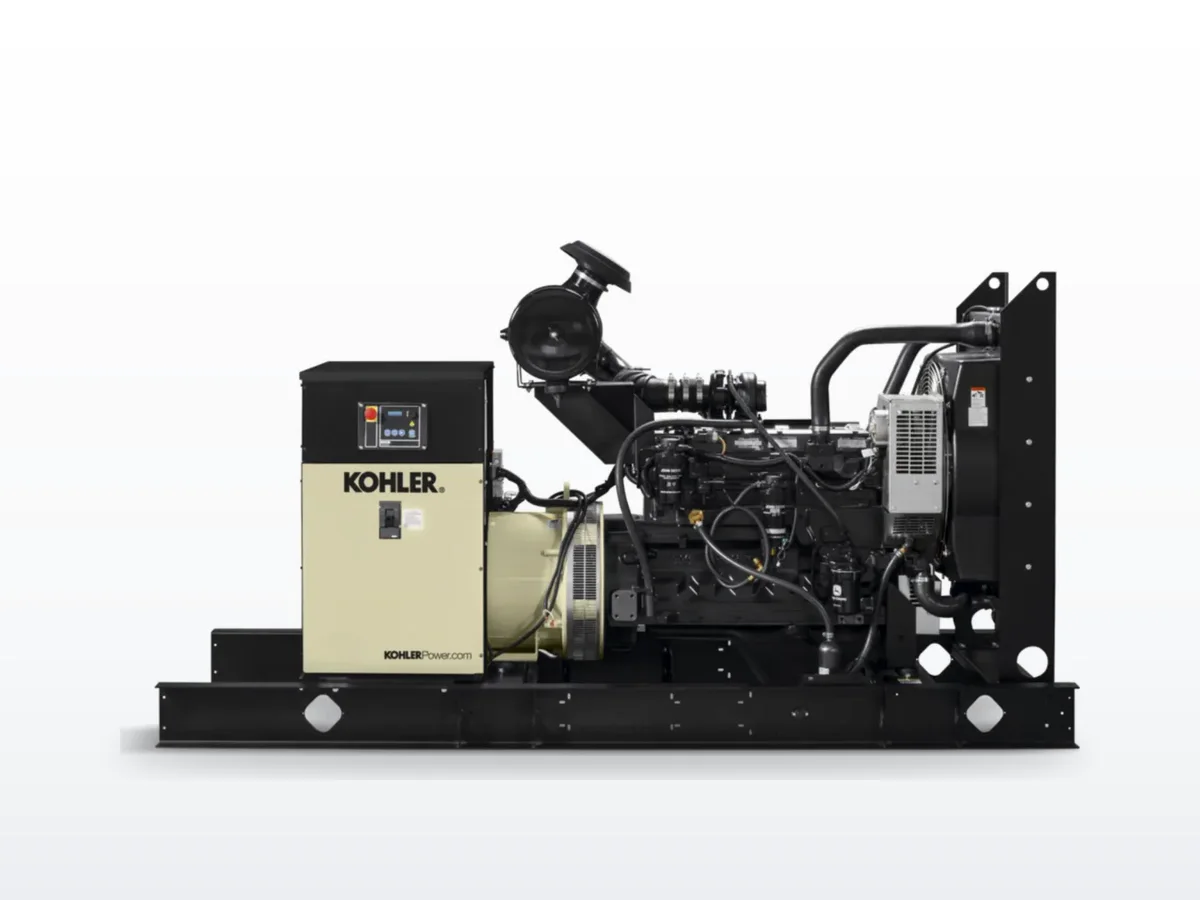

Kohler Kohler 180REOZJG 180 kW liquid-cooled standby generator

Kohler

Kohler 180REOZJG

THD below 3% at 180 kW -- the healthcare and commercial default. John Deere 6068HFG82E with Decision-Maker controller.

180 kW standby · Diesel · Liquid-cooled

180 kW diesel commercial standby generator powered by John Deere. Reliable standby power for commercial and institutional facilities.

Tier 33-phasecommercialhealthcare

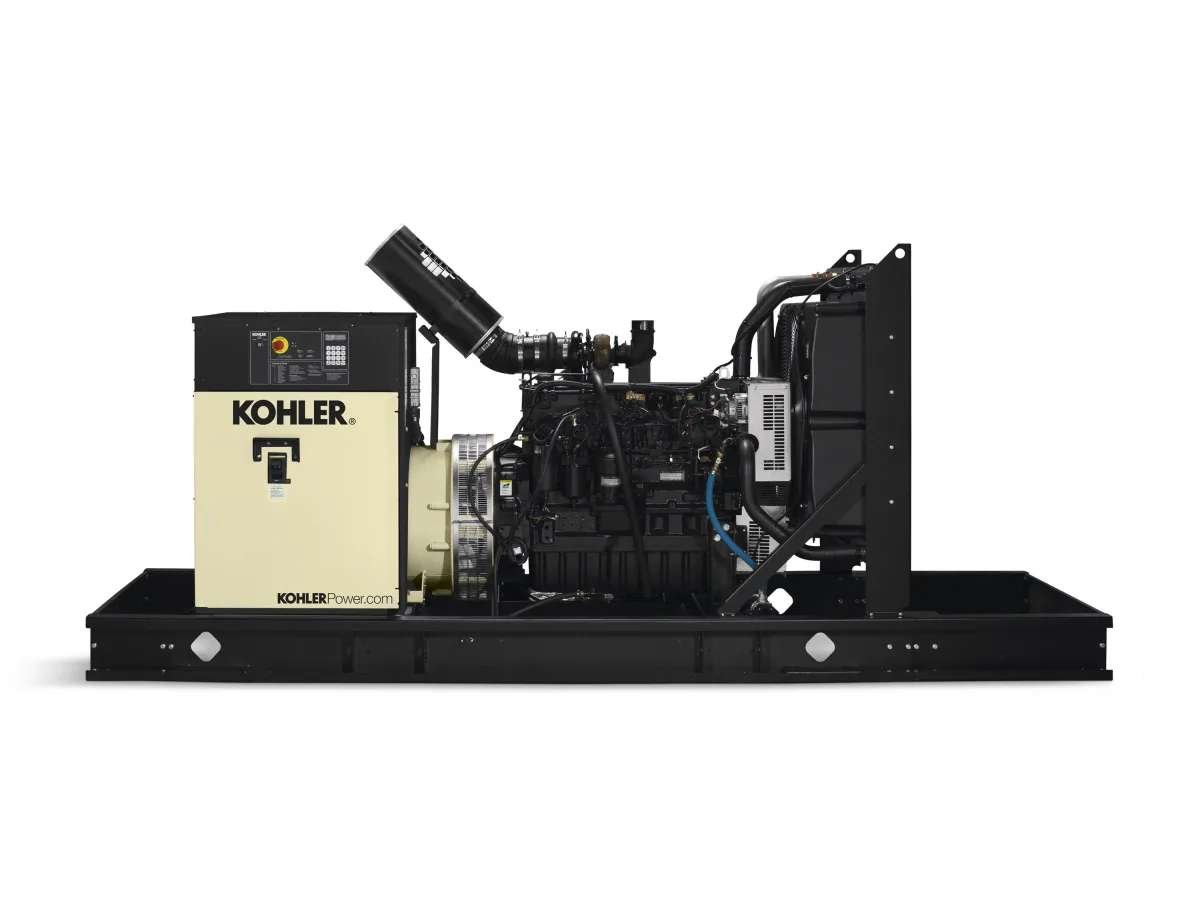

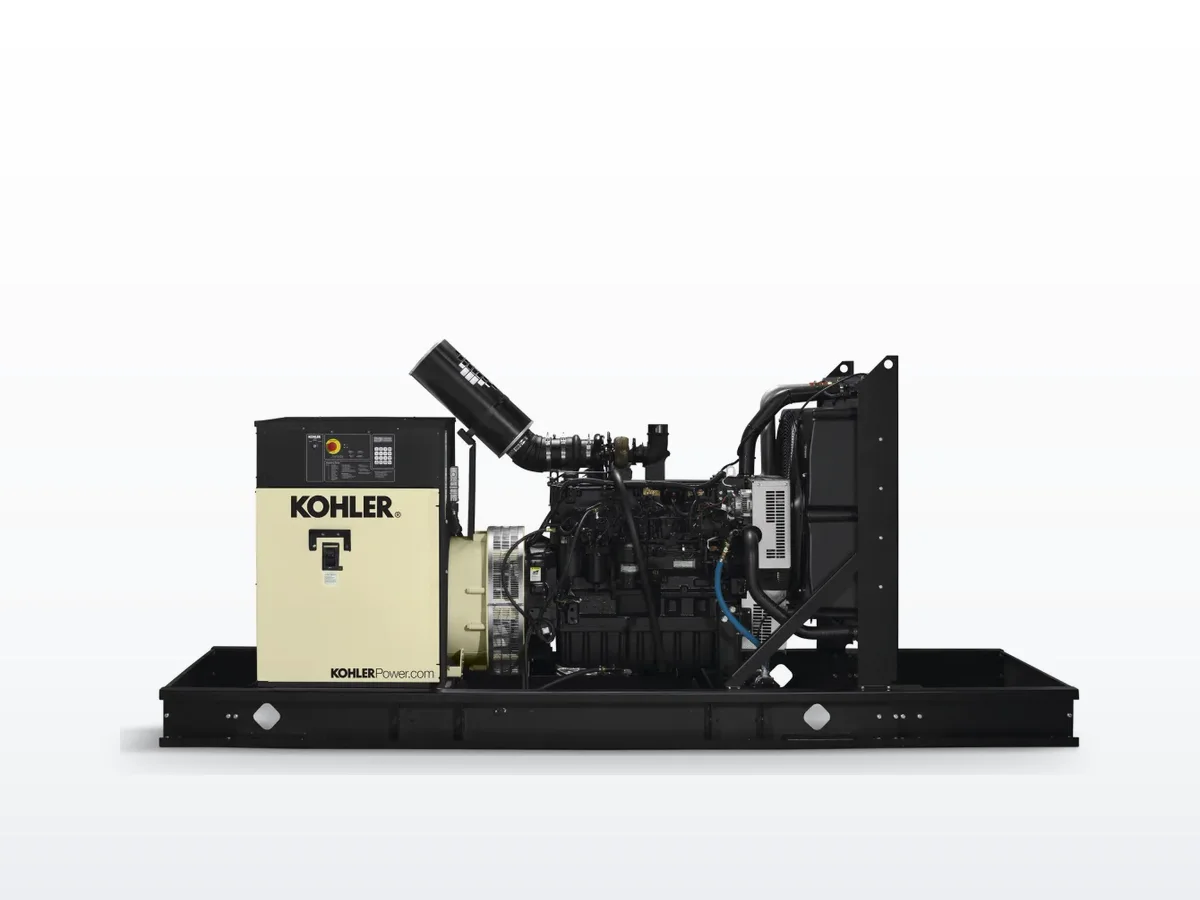

Kohler Kohler 230REOZJE 230 kW liquid-cooled standby generator

Kohler

Kohler 230REOZJE

230 kW diesel standby with sub-3% THD -- John Deere 6090HF484C. Healthcare and data center default in this power class.

230 kW standby · Diesel · Liquid-cooled

230 kW diesel commercial standby generator powered by John Deere. Reliable standby power for commercial and institutional facilities.

Tier 33-phasecommercialhealthcare

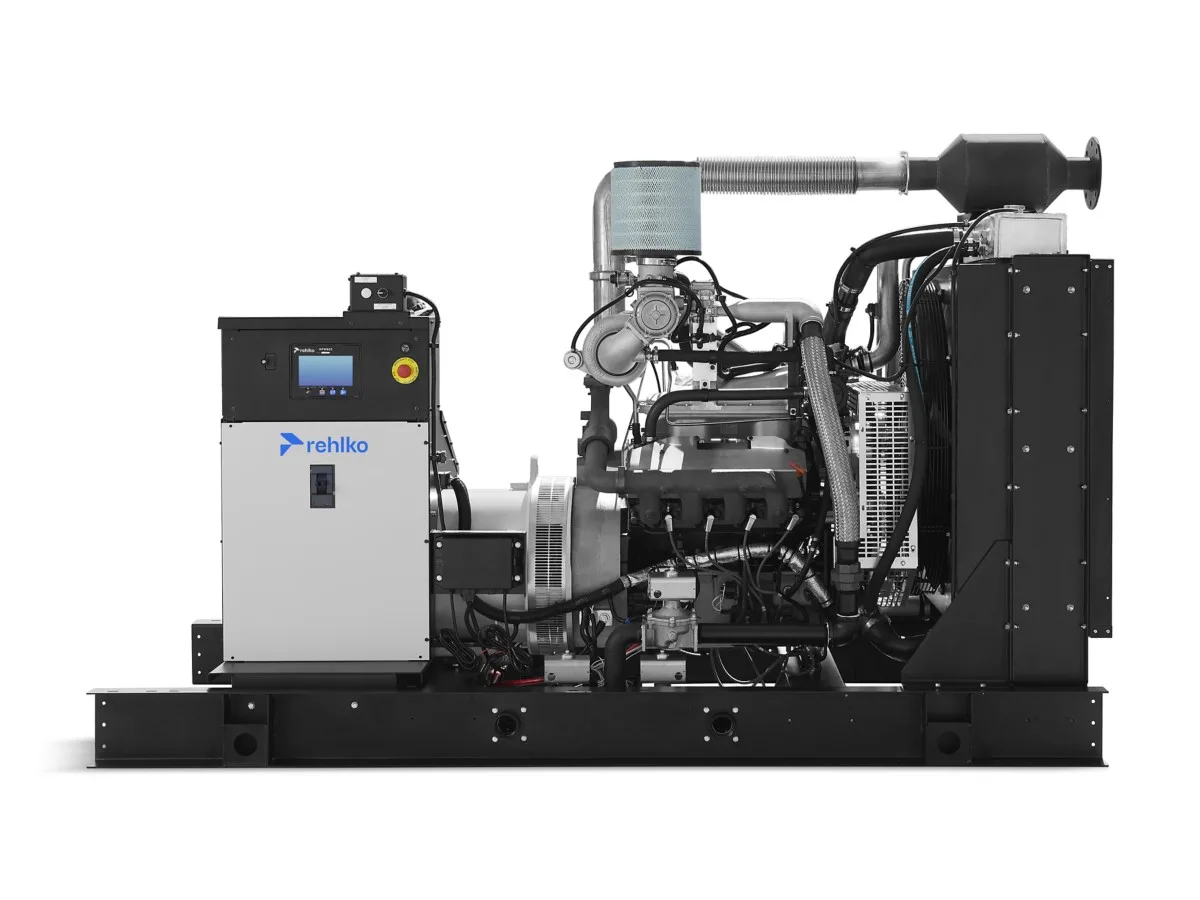

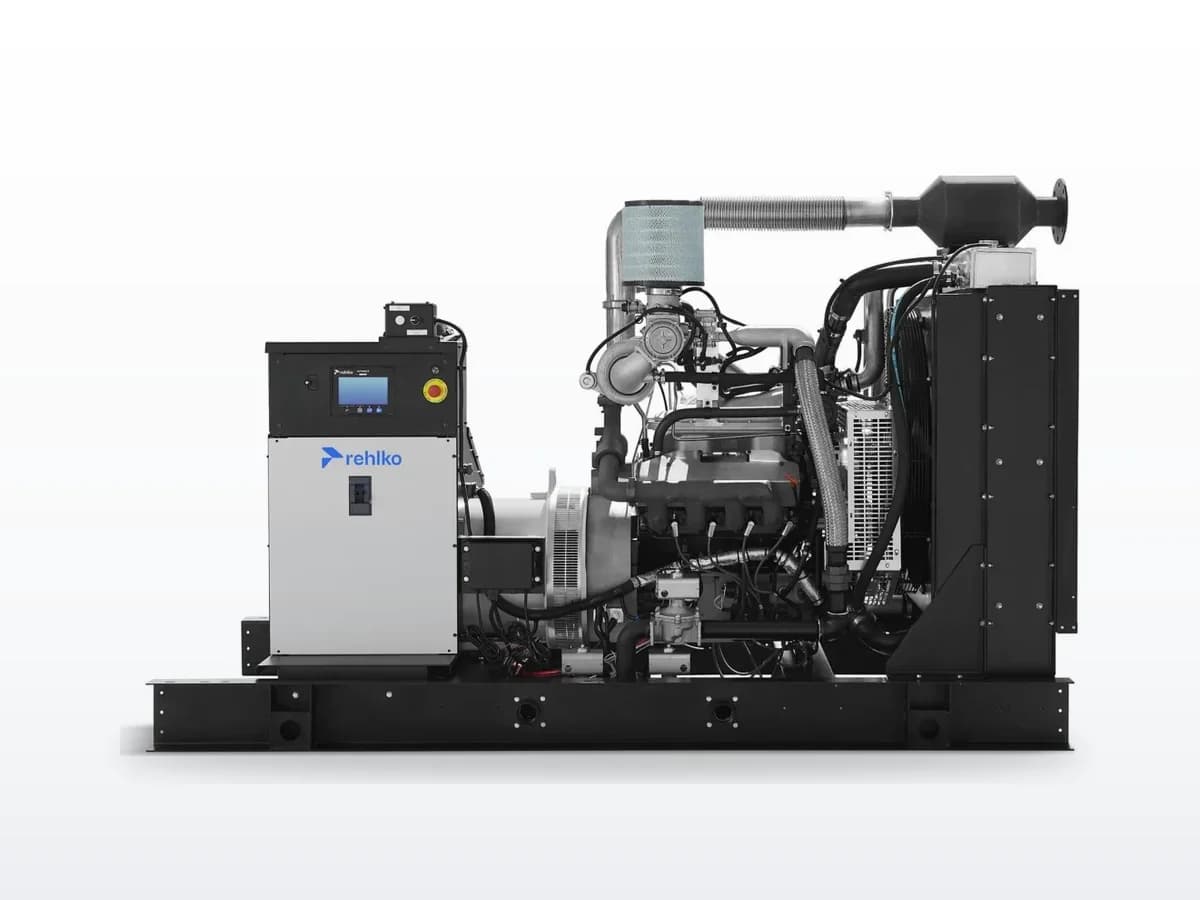

Kohler Kohler KG200 200 kW liquid-cooled standby generator
