Overview#

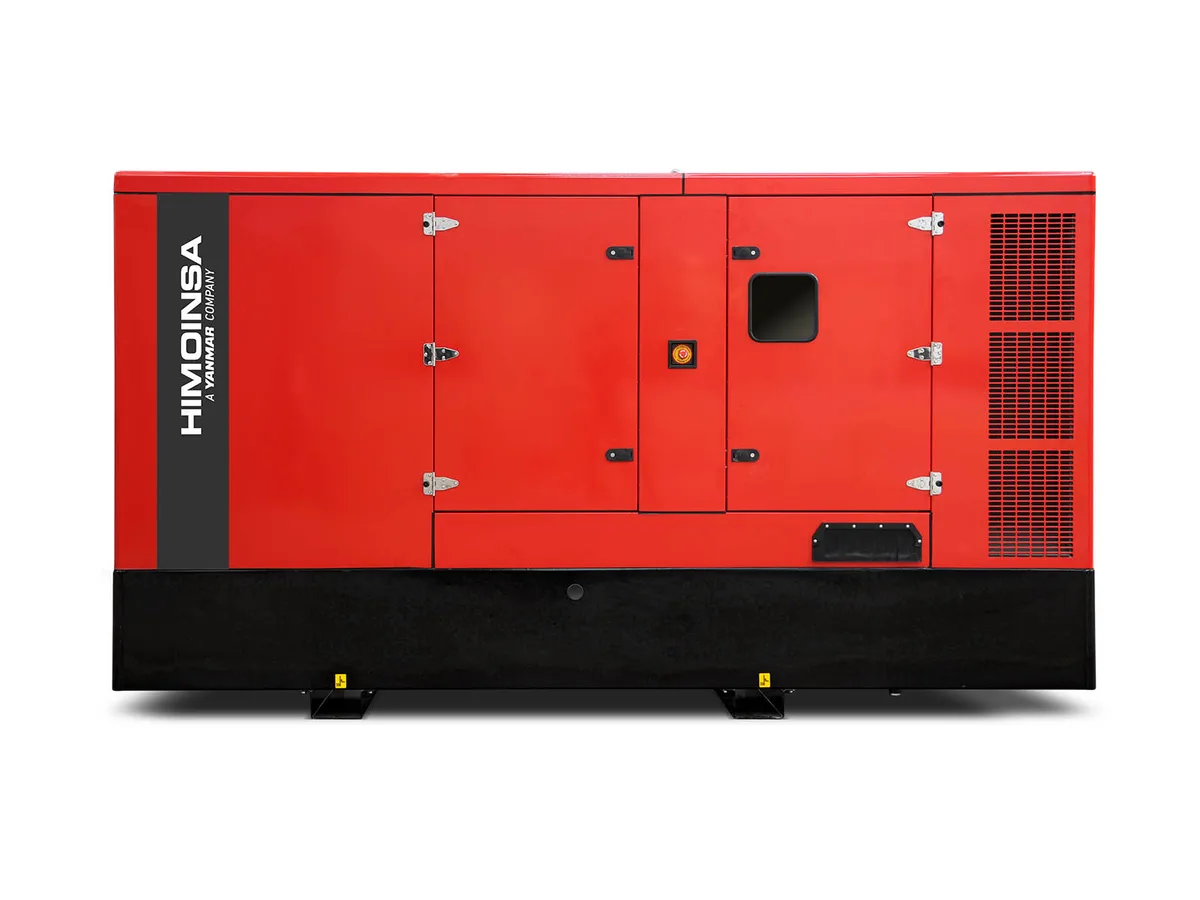

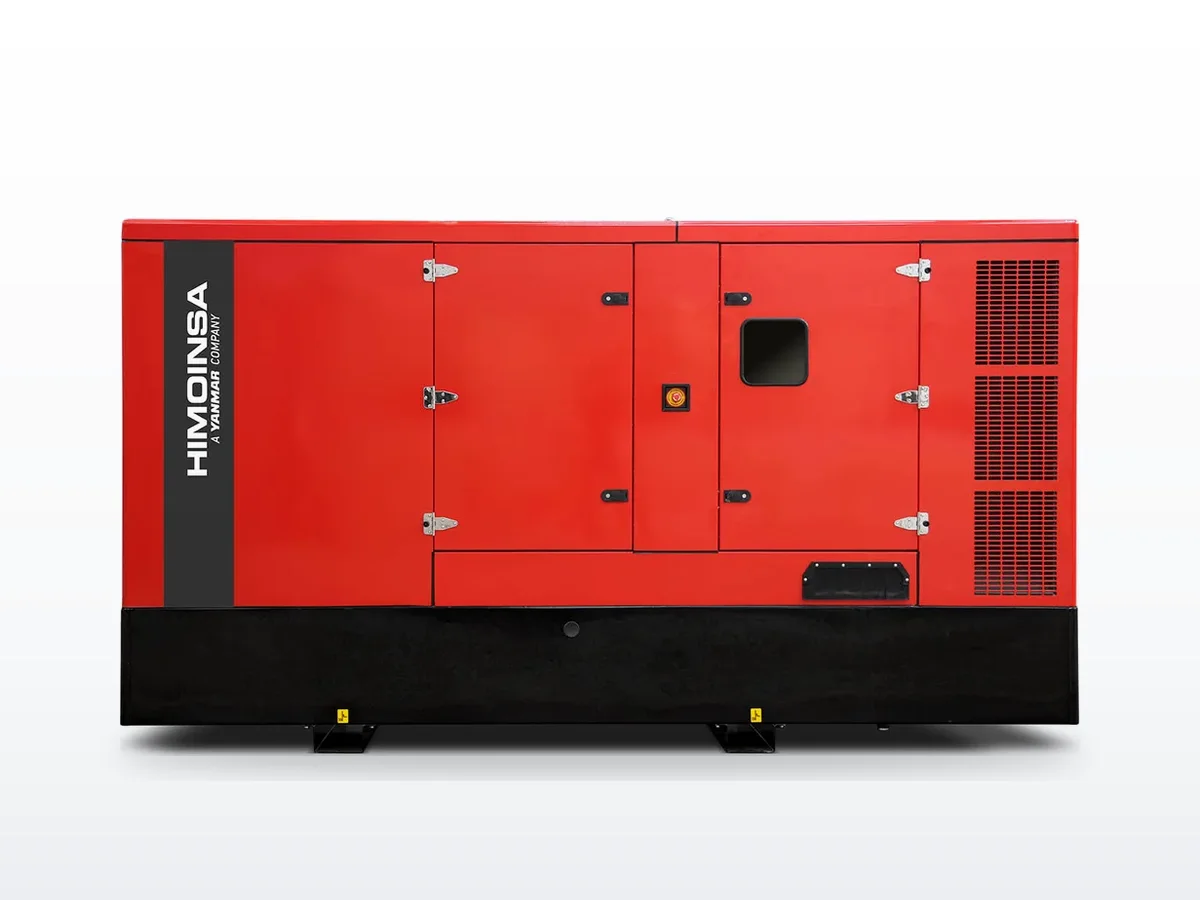

The Hipower HFW-230 is a 230 kW stationary standby diesel generator powered by the FPT Industrial C87 engine — an 8.7-liter turbocharged inline-6 — paired with a Stamford alternator. Built at Hipower's Olathe, Kansas facility, the HFW-230 carries EPA Tier 4 Final certification and bridges the gap between the HFW-200 and HFW-250 models — providing a calibrated sizing option for facilities whose load profile benefits from 230 kW headroom without the cost step to 250 kW. Industrial standby applications include large manufacturing plants, multi-story commercial buildings, and critical infrastructure where three-phase power at three voltage configurations is required.
FPT Industrial Engine Platform#
The C87 is an 8.7-liter turbocharged inline-6 produced by FPT Industrial, the power and commercial engine division of CNH Industrial. At 230 kW standby, the C87 is operating in the upper half of its rated output envelope — still within the engine's design thermal margins but demanding enough that fuel quality and maintenance adherence have a direct bearing on long-term reliability.
FPT's C87 Tier 4 Final compliance combines selective catalytic reduction for NOx with diesel particulate filter technology, producing a factory-certified emissions system that meets both EPA and CARB requirements without after-market modification. For California operators navigating air quality permitting, the factory certification status simplifies the ATC application and reduces the documentation burden compared to older Tier 3 equipment.
The C87's North American service infrastructure benefits from FPT Industrial's direct dealer presence in California's major industrial and commercial markets, supplemented by the CNH agricultural dealer channel for parts coverage in rural regions.
Hipower Design Advantages#
The HFW-230 is built to NFPA 110 Level I/II compliance, supporting the full range of emergency and standby power classifications. Three-phase output is available at 120/208V, 277/480V, and 347/600V — the 347/600V configuration serving Canadian-standard and select US industrial installations. Sound attenuation options through Level 2 meet California's strict urban noise ordinances. IBC seismic certification is available as an option, supporting hospital and government facility projects subject to OSHPD and DSA oversight.
The DSE controller's optional paralleling expansion (DSE8610) is a practical consideration at 230 kW — parallel operation of two HFW-230 units provides 460 kW with N+1 redundancy, a configuration that can be more cost-effective than a single 460 kW unit for facilities requiring high availability.
Service and Maintenance#
The FPT C87 at 230 kW warrants close adherence to the 500-hour service schedule. Annual load bank testing at full standby rating (230 kW) is strongly recommended to verify performance and identify any fuel system or turbocharger derating before it becomes a service event during an actual outage.
Fuel polishing and biocide treatment are non-negotiable at this output level. Injector fouling on an 8.7-liter inline-6 at 230 kW standby output causes immediate, noticeable power quality degradation. California coastal and Delta region installations — where temperature cycling drives tank condensation — should consider quarterly fuel quality checks in addition to annual polishing.
Stamford alternator maintenance at annual intervals includes insulation resistance measurement, connection torque verification, and bearing inspection. Class H insulation supports the thermal demands of California's hot inland climate zones.
Our Service Experience#
OnPoint Generators services HFW-230 units across the Bay Area and Northern California. The FPT C87 parts supply through FPT's dealer network and the Case/New Holland agricultural channel provides our field technicians with efficient parts access. EPA Tier 4 Final certification enables new HFW-230 installations to proceed through California's ATC and PTO process without the exemption paperwork required for older Tier 3 equipment, and OnPoint supports the permit documentation process for commercial and industrial clients.
