What is the Cat D200 GC?

The D200 GC is the largest C7.1-powered model in Cat's GC value-engineered line. At 200 kW standby, it delivers the maximum output from the 7.1L inline-6 platform in a cost-optimized standby package.

How does the D200 GC compare to the D250 GC?

The D250 GC steps up to the larger C9 engine (9.3L inline-6). If your load calculation is under 180 kW, the D200 GC on the C7.1 is the better value. If you need 200+ kW with headroom, the D250 GC provides a larger engine with more reserve capacity.

Emergency? Call (831) 375-1463 — 24/7 response

Caterpillar · Cat D-Series GC (Diesel)

Cat D200 GC

Name: Cat D200 GC
Brand: Caterpillar
SKU: d200-gc

200 kW standby / 180 kW prime · Diesel · Liquid-cooled

200 kW diesel standby generator from Cat's GC value-engineered line. C7.1 turbocharged inline-6 with simplified controls for commercial standby.

Cat D200 GC

Specifications & details

Standby power: 200 kW / 180 kW prime
Voltage options: 120/208V, 277/480V, 346/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: Caterpillar C7.1 · 7.1L
EPA / Emissions: Tier 4 Final

standbyCommercialofficeGovernmentlight-industrialProperty Mgmtassisted-living

Configure & Quote Download spec sheet

Overview#

The Cat D200 GC is a 200-kilowatt diesel standby generator — the top of Cat's C7.1 inline-6 range in the GC value-engineered product line. It delivers maximum output from the compact C7.1 platform for commercial buildings, schools, and multi-family residential complexes.

Maximum C7.1 output#

At 200 kW, the D200 GC is the highest-rated C7.1 model in the GC line. Beyond this point, Cat steps up to the C9 engine platform (D250 GC and above). The D200 GC is the right choice when 200 kW covers your standby requirement and you want the most compact, cost-effective package.

Our service perspective#

Running the C7.1 at its maximum GC rating means cooling system and air filtration maintenance become especially important. We recommend adherence to Cat's S.O.S fluid analysis program to monitor engine wear trends at this output level.

Engineering specifications

Physical

Length: 120 in
Width: 52 in
Height: 66 in
Wet weight: 5,400 lb

Fuel system & runtime

Fuel use @ full load: 14.2 GPH
Fuel use @ 75% load: 10.8 GPH

Ready to order this model?

Configure your Cat D200 GC

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cat D200 GC

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

18.3 hours(0.8 days)

Fuel consumption ≈ 10.95 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cat D200 GC under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 15,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality	Injector fouling, filter clogging	4,380+	moderate
Turbocharger	Reduced power, oil in intake, turbo noise	18,000+	moderate
Battery banks	Slow crank, failed start	8,760+	minor
Coolant heater	Cold start issues, block heater element failure	10,000+	minor

Frequently Asked Questions

What is the Cat D200 GC?: The D200 GC is the largest C7.1-powered model in Cat's GC value-engineered line. At 200 kW standby, it delivers the maximum output from the 7.1L inline-6 platform in a cost-optimized standby package.
How does the D200 GC compare to the D250 GC?: The D250 GC steps up to the larger C9 engine (9.3L inline-6). If your load calculation is under 180 kW, the D200 GC on the C7.1 is the better value. If you need 200+ kW with headroom, the D250 GC provides a larger engine with more reserve capacity.

Similar models

Caterpillar

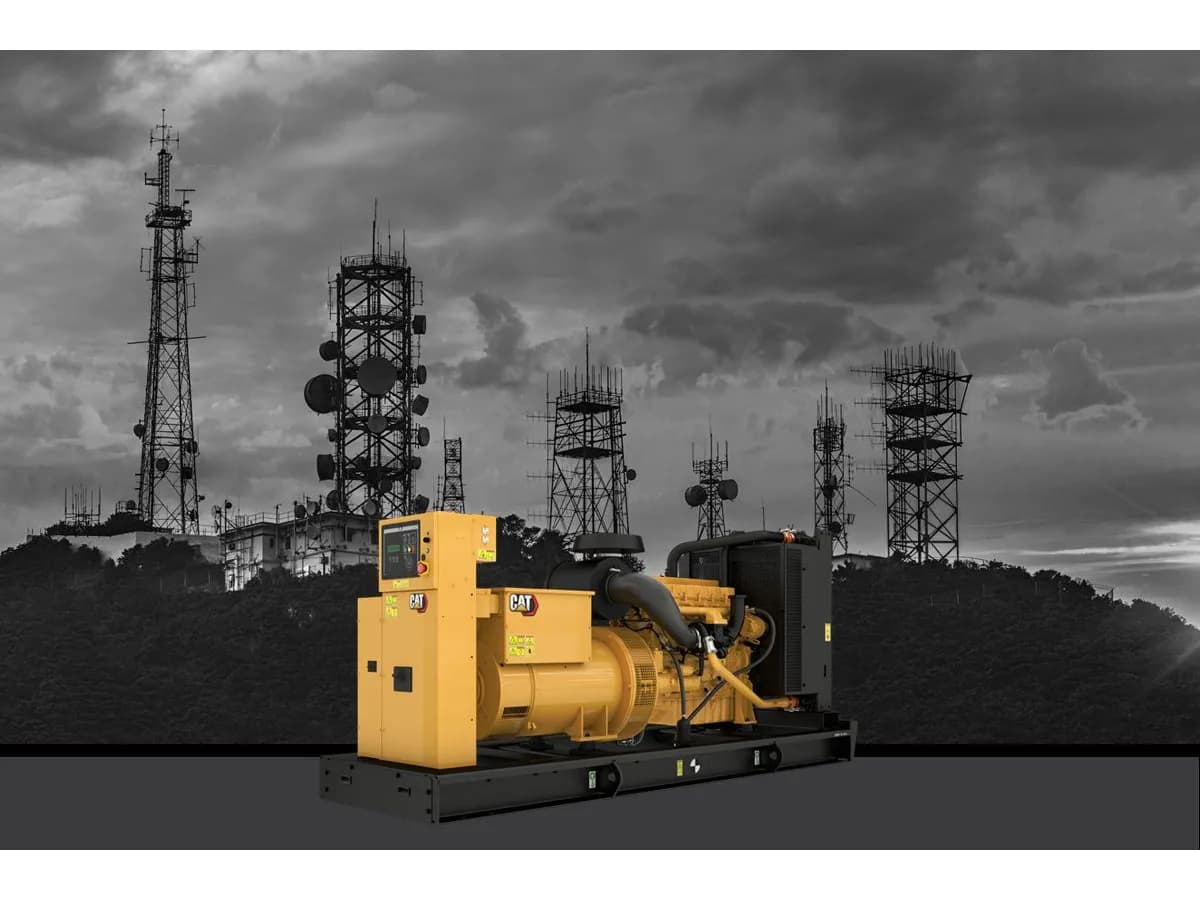

Caterpillar C7
