What is the Cat D175 GC?

The D175 GC is Cat's 175 kW value-engineered diesel generator — the top rating on the C7.1 inline-6 in the GC line. It delivers the maximum power available from this engine platform in a streamlined standby package.

Should I choose the D175 GC or step up to the D200 GC?

The D200 GC also uses the C7.1 engine at a higher rating. If your load calculation is close to 175 kW, the D200 GC provides more headroom. If you're well under 150 kW actual load, the D175 GC is the better value.

Emergency? Call (831) 375-1463 — 24/7 response

Caterpillar · Cat D-Series GC (Diesel)

Cat D175 GC

Name: Cat D175 GC
Brand: Caterpillar
SKU: d175-gc

175 kW standby / 160 kW prime · Diesel · Liquid-cooled

175 kW diesel standby generator from Cat's GC value-engineered line. C7.1 turbocharged inline-6 with simplified controls for commercial standby.

Cat D175 GC

Specifications & details

Standby power: 175 kW / 160 kW prime
Voltage options: 120/208V, 277/480V, 346/600V
Frequency / Phase: 60 Hz · 3-phase
Engine: Caterpillar C7.1 · 7.1L
EPA / Emissions: Tier 4 Final

standbyCommercialofficeGovernmentlight-industrialassisted-living

Configure & Quote Download spec sheet

Overview#

The Cat D175 GC is a 175-kilowatt diesel standby generator representing the upper range of the C7.1 inline-6 in Cat's GC value-engineered line. It delivers near-maximum output from the proven C7.1 platform for commercial buildings and institutional facilities.

Top of the C7.1 range#

At 175 kW, the D175 GC extracts near-maximum performance from the 7.1-liter inline-6. This rating suits facilities that need more than 150 kW but don't require the step up to a larger engine platform — keeping the footprint compact and maintenance costs lower.

Our service perspective#

The D175 GC runs the C7.1 at a higher output than the D125 and D150 GC models, so attention to cooling system maintenance and air filtration is important. The engine is well within its design limits at this rating, and the GC package's simplified controls keep the service experience straightforward.

Engineering specifications

Physical

Length: 116 in
Width: 50 in
Height: 64 in
Wet weight: 5,000 lb

Fuel system & runtime

Fuel use @ full load: 12.5 GPH
Fuel use @ 75% load: 9.5 GPH

Ready to order this model?

Configure your Cat D175 GC

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cat D175 GC

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

20.7 hours(0.9 days)

Fuel consumption ≈ 9.64 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cat D175 GC under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 15,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel quality	Injector fouling, filter clogging	4,380+	moderate
Turbocharger	Reduced power, oil in intake, turbo noise	18,000+	moderate
Battery banks	Slow crank, failed start	8,760+	minor
Coolant heater	Cold start issues, block heater element failure	10,000+	minor

Frequently Asked Questions

What is the Cat D175 GC?: The D175 GC is Cat's 175 kW value-engineered diesel generator — the top rating on the C7.1 inline-6 in the GC line. It delivers the maximum power available from this engine platform in a streamlined standby package.
Should I choose the D175 GC or step up to the D200 GC?: The D200 GC also uses the C7.1 engine at a higher rating. If your load calculation is close to 175 kW, the D200 GC provides more headroom. If you're well under 150 kW actual load, the D175 GC is the better value.

Similar models

Caterpillar

Cat D150 GC

150 kW Cat diesel with C7.1 inline-6. Mid-range commercial sweet spot. GC value pricing with Cat reliability.

150 kW standby · Diesel · Liquid-cooled

150 kW standby for schools, office buildings, and light-industrial facilities needing full-building backup.

150 kW diesel standby generator from Cat's GC value-engineered line. C7.1 turbocharged inline-6 with simplified controls for commercial standby.

Tier 4 Final3-phasestandbycommercial

Caterpillar

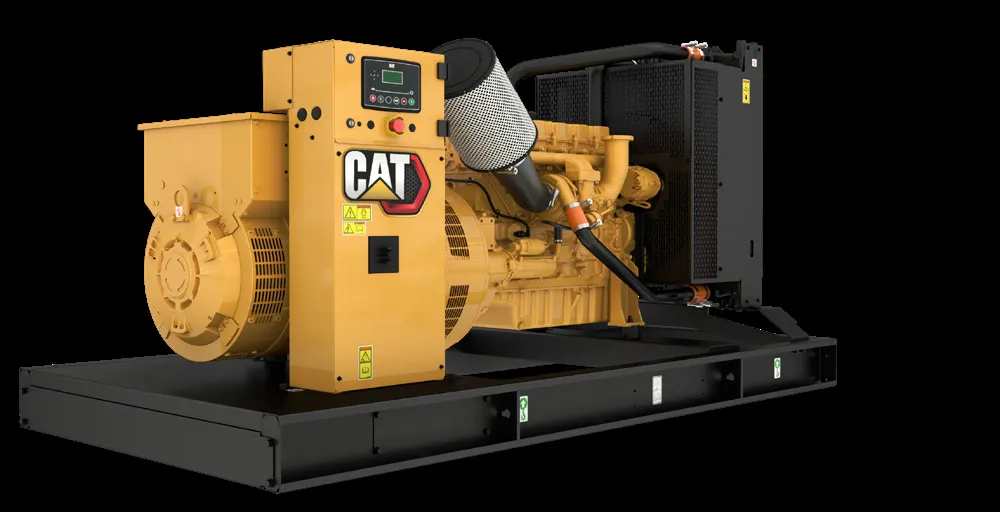

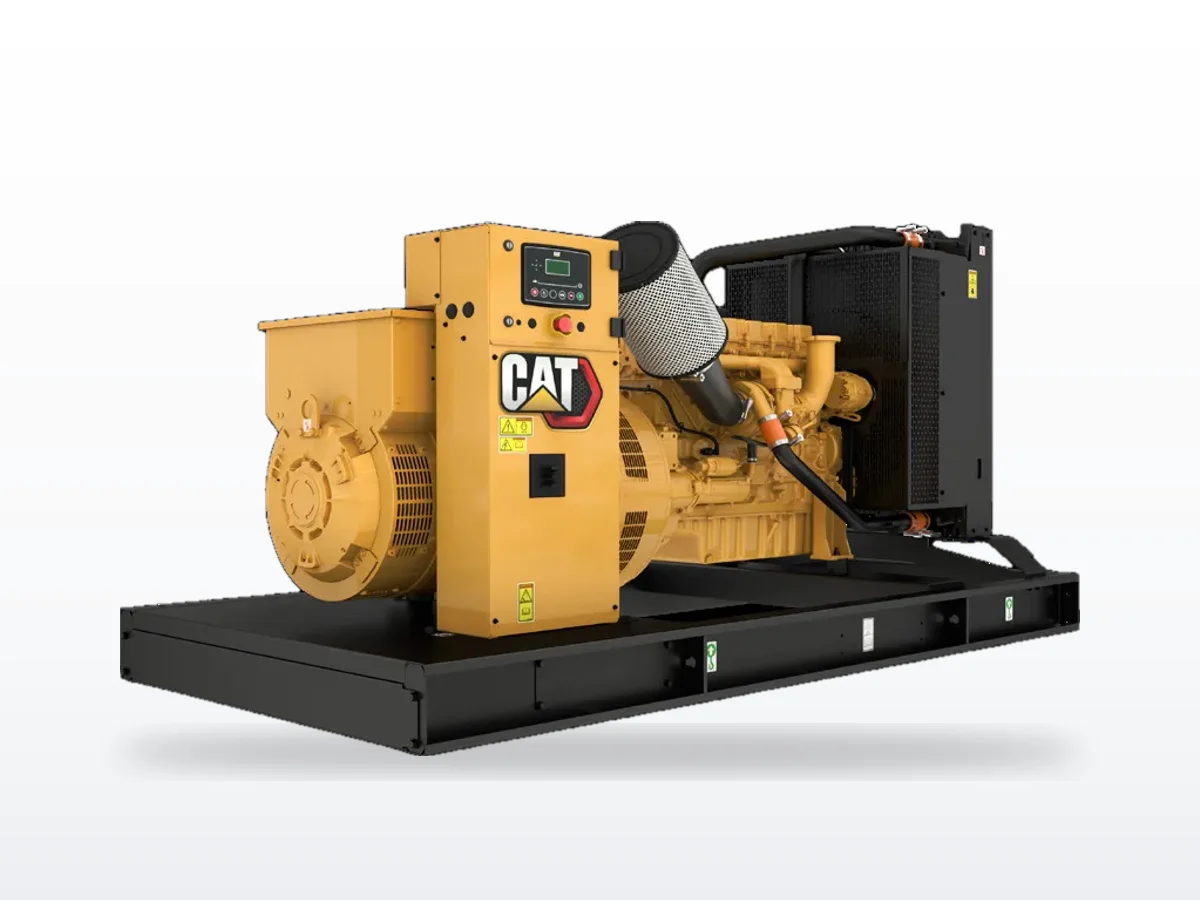

Cat D200 GC

200 kW Cat diesel with C7.1 inline-6. Maximum C7.1 output in GC package. Compact footprint for the power class.

200 kW standby · Diesel · Liquid-cooled

200 kW standby for schools, multi-family residential, and offices at the top of the C7.1 range.

200 kW diesel standby generator from Cat's GC value-engineered line. C7.1 turbocharged inline-6 with simplified controls for commercial standby.

Tier 4 Final3-phasestandbycommercial

Caterpillar

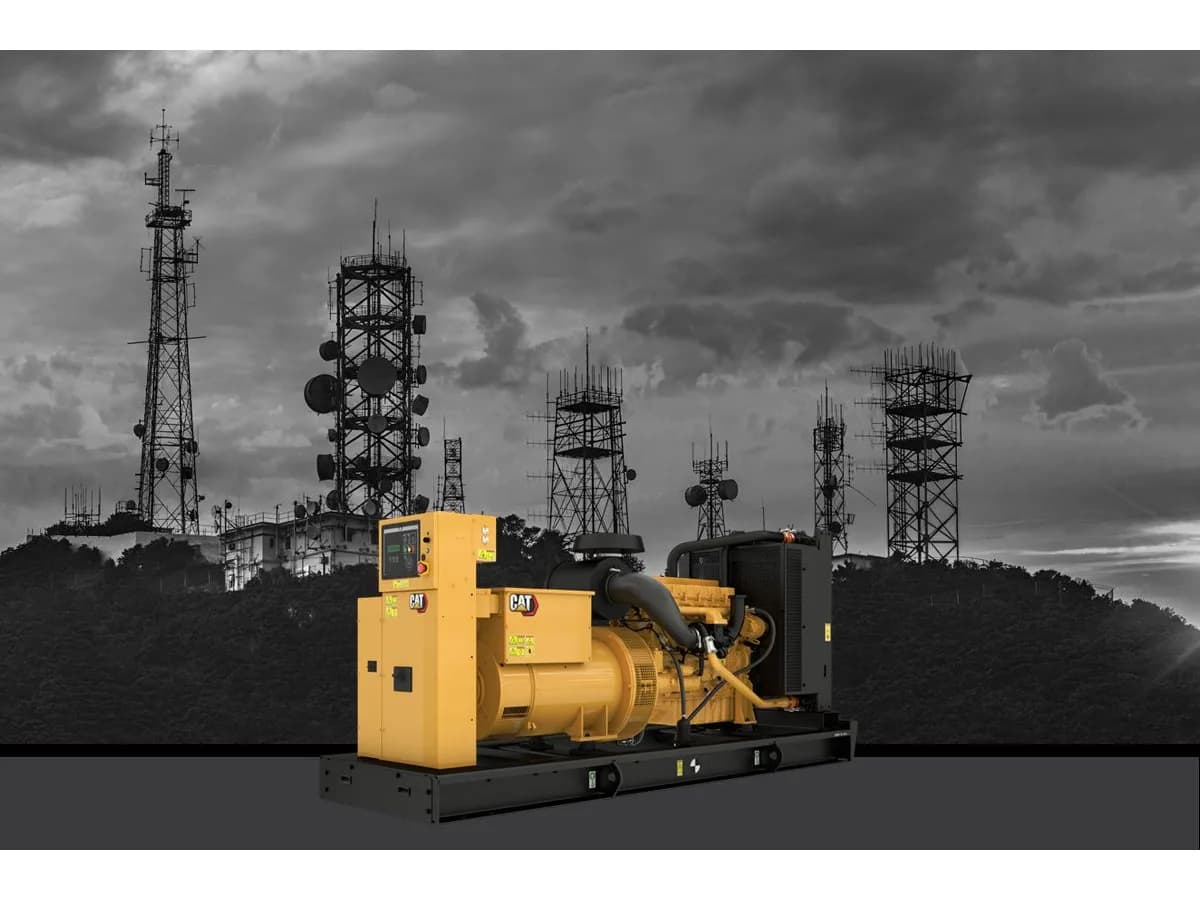

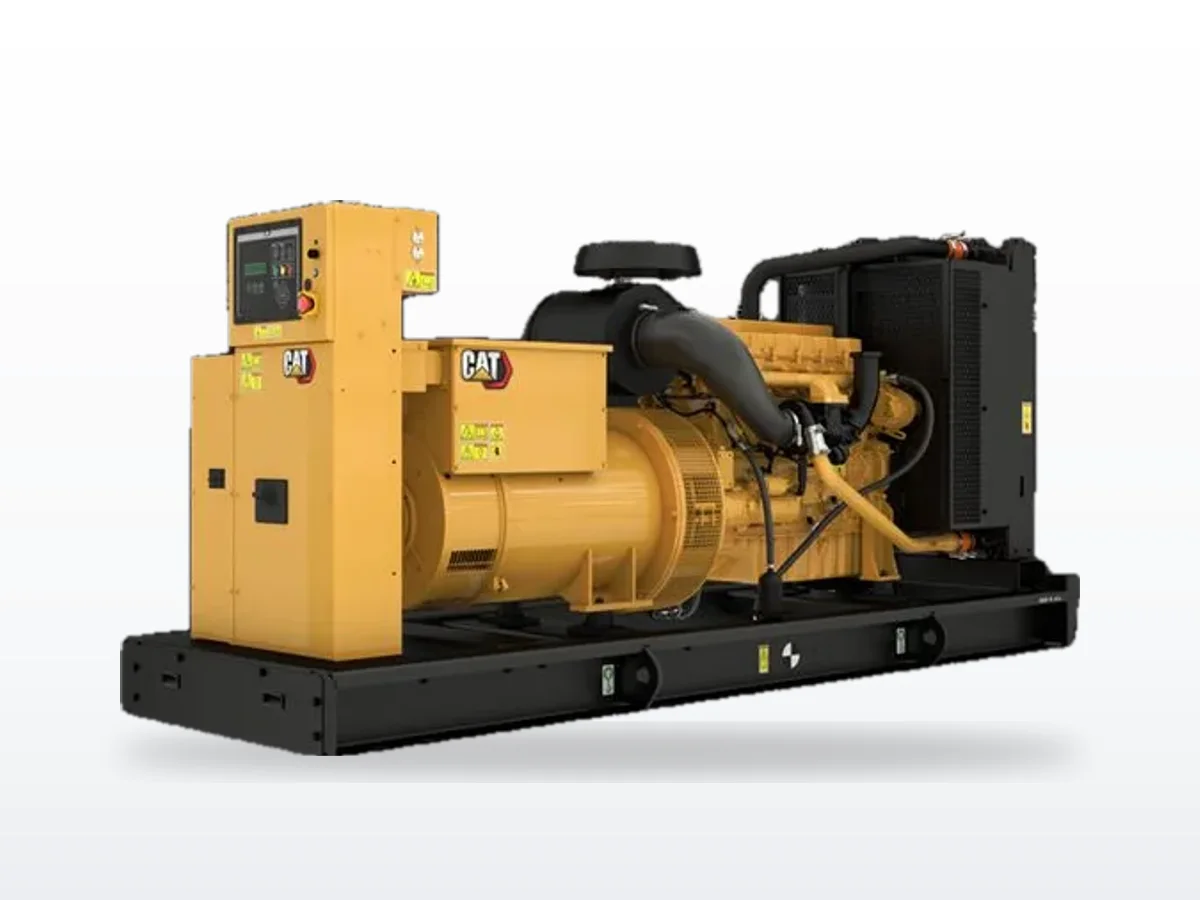

Caterpillar C7

200 kW diesel with CAT C7 ACERT inline-6. Best resale value in class. ~200 US dealers. Compact footprint.

200 kW standby · Diesel · Liquid-cooled

200 kW diesel standby for retail, telecom, and small commercial with CAT fleet standardization.

The Caterpillar C7.1 ACERT is a 200 kW standby diesel generator with EPA Tier 3 certification. 7.01L inline-6 with MEUI fuel injection. Compact standby power for small commercial and retail applications.

Tier 33-phasecommercial-standbyretail

Need service or parts for the Cat D175 GC?

We service every major OEM and stock genuine parts for the most common models.

Get A Quote Or call (831) 375-1463
