Caterpillar · Cat 3400 Series (Diesel)

Caterpillar 3406

350 kW standby / 275 kW prime · Diesel · Liquid-cooled

The Caterpillar 3406C is a 275-400 kW diesel generator built on the 14.64L inline-6. Legacy platform with broad parts availability. Specs from OEM data sheet.

Caterpillar Caterpillar 3406 generator — specifications and details
Standby power
350 kW / 275 kW prime
Voltage options
277/480V
Frequency / Phase
50, 60 Hz · 3-phase
Engine
Caterpillar 3406C TA · 14.64L

Overview#

The Caterpillar 3406 is a diesel generator built on the legendary 3406C TA -- a 14.64-liter inline-6 engine for stationary power applications. The generator set is available in ratings from 275 ekW to 400 ekW across both 50 Hz and 60 Hz configurations, serving commercial standby, industrial, and municipal applications worldwide.

As a legacy platform, the 3406 benefits from broad parts availability. The hydra-mechanical governor and pump-and-lines fuel system are straightforward to service and rebuild without proprietary diagnostic software.

The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response requirements. Standard equipment includes the EMCP 4 controller, package-mounted radiator, 24V electric starting motor, and rubber vibration isolators. Optional sound-attenuated and weather-protective enclosures are available.

Technical Specifications#

ParameterValue
Minimum rating275 ekW
Maximum rating400 ekW
Frequency50 or 60 Hz
Speed1500 or 1800 rpm
Engine modelCat 3406C TA
Displacement14.64 L (893.39 in³)
Bore x stroke137.2 mm x 165.1 mm (5.4 in x 6.5 in)
Compression ratio14.5:1
AspirationTurbocharged-aftercooled
Fuel systemPump and lines
GovernorHydra-mechanical
Fuel consumption @ 100% (275 ekW prime)21.0 gal/hr (79.6 L/hr)
Fuel consumption @ 75% (275 ekW prime)16.3 gal/hr (61.6 L/hr)
Fuel consumption @ 50% (275 ekW prime)11.8 gal/hr (44.7 L/hr)
ControllerEMCP 4 (4.2/4.3/4.4 optional)
Alternator excitationAR (PM or internally excited optional)

Our Service Experience#

The 3406C is a service-friendly engine with broad parts availability. Our technicians can source injectors, heads, and governors through Cat dealers and multiple aftermarket channels.

We work with many municipalities and commercial properties that have 3406-based systems in their critical infrastructure. For facilities evaluating a platform upgrade, we can conduct a life assessment and provide a cost/benefit analysis comparing continued 3406 maintenance against a C13 or C15 ACERT replacement.

Frequently Asked Questions#

What are the power ratings for the Caterpillar 3406 generator? The Cat 3406C generator set is available from 275 ekW to 400 ekW across 50 Hz and 60 Hz configurations. The sheet details a 60 Hz / 1800 rpm prime rating of 275 ekW (344 kVA) at 480V.

What engine does the 3406 generator use? The 3406C TA -- a 14.64-liter inline-6 with a 137.2 mm bore, 165.1 mm stroke, 14.5:1 compression, hydra-mechanical governor, and pump-and-lines fuel system.

What is the fuel consumption of the Cat 3406 generator? At the 275 ekW prime rating (60 Hz, 480V), the 3406C consumes approximately 21.0 gal/hr at 100% load, 16.3 gal/hr at 75% load, and 11.8 gal/hr at 50% load.

Is the 3406 a good choice for a new installation today? The 3406C is a legacy platform with broad parts availability. For new installations, we can compare current Cat platforms against the 3406C. We support both existing 3406 installations and upgrade assessments.

What applications is the 3406 well-suited for? The 3406C is well-matched to commercial buildings, municipal facilities, and industrial sites needing reliable standby or prime power. Its inline-6 architecture and broad parts availability support ongoing maintenance.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
21 GPH
Fuel use @ 75% load
16.3 GPH
Fuel use @ 50% load
11.8 GPH

Documents & downloads

Ready to order this model?

Configure your Caterpillar 3406

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Caterpillar 3406

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

12.3 hours(0.5 days)

Fuel consumption ≈ 16.20 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What are the power ratings for the Caterpillar 3406 generator?
The Cat 3406C generator set is available from 275 ekW to 400 ekW across 50 Hz and 60 Hz configurations. The sheet details a 60 Hz / 1800 rpm prime rating of 275 ekW (344 kVA) at 480V.
What engine does the 3406 generator use?
The 3406C TA -- a 14.64-liter (893.39 in³) inline-6, four-stroke water-cooled diesel with a 137.2 mm bore and 165.1 mm stroke, 14.5:1 compression ratio, and hydra-mechanical governor. The engine uses a pump-and-lines fuel system.
What is the fuel consumption of the Cat 3406 generator?
At the 275 ekW prime rating (60 Hz, 480V), the 3406C consumes approximately 21.0 gal/hr (79.6 L/hr) at 100% load, 16.3 gal/hr (61.6 L/hr) at 75% load, and 11.8 gal/hr (44.7 L/hr) at 50% load.
Is the 3406 a good choice for a new installation today?
The 3406C is a legacy platform with broad parts availability. For new installations, we can compare current Cat platforms against the 3406C. We can service and support existing 3406 installations and advise on life extension versus upgrade decisions.
What applications is the 3406 well-suited for?
The 3406C is well-matched to commercial buildings, municipal facilities, and industrial sites that need reliable standby or prime power. Its inline-6 architecture simplifies service access compared to V-configuration engines, and broad parts availability supports ongoing maintenance.

Compatible equipment

More in the Cat 3400 Series (Diesel)

Legacy CAT diesel workhorses on proven inline-6 and V-12 platforms with a deep parts ecosystem.

Similar models

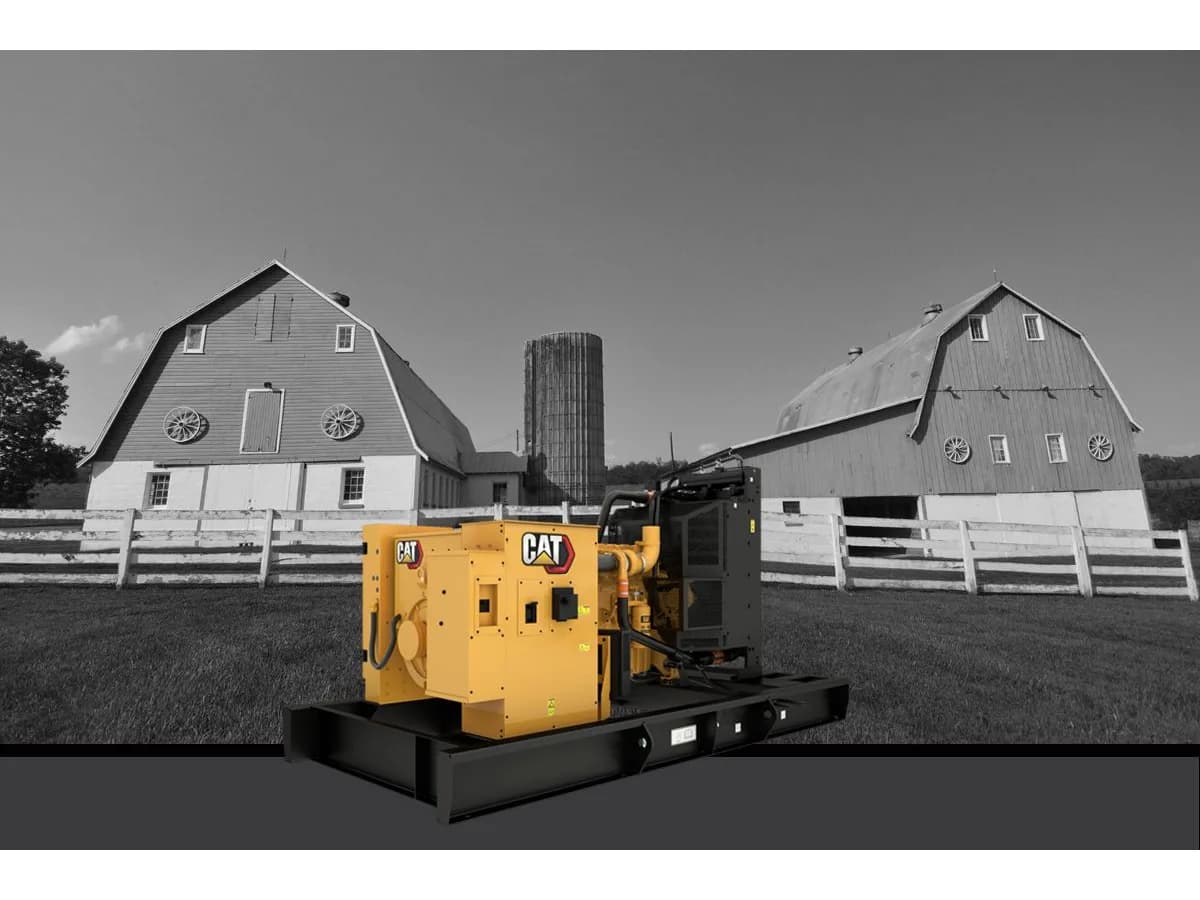

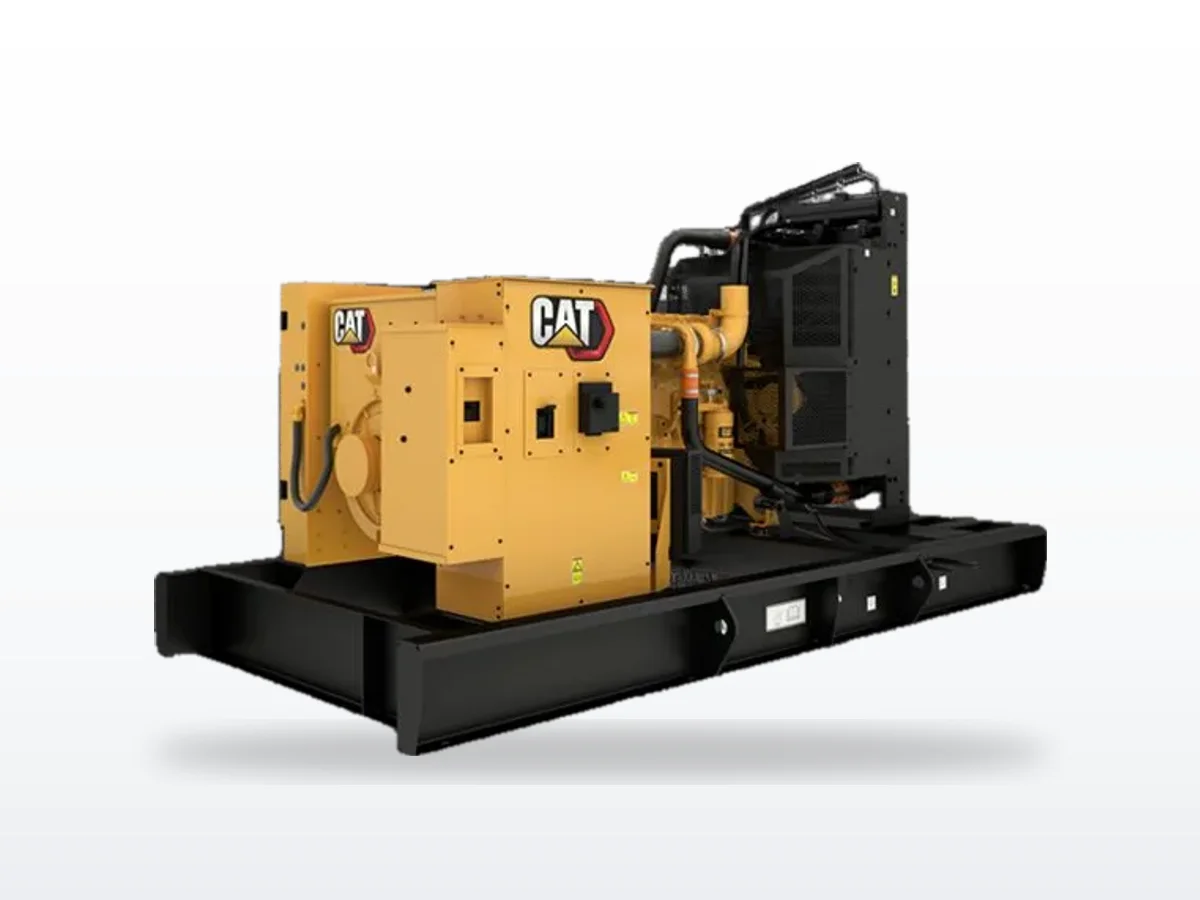

Caterpillar Caterpillar C9 250 kW liquid-cooled standby generator

Caterpillar

Caterpillar C9

250 kW diesel with CAT C9 ACERT inline-6. Best resale. ~200 US dealers.

250 kW standby · Diesel · Liquid-cooled

The Caterpillar C9 ACERT is a 250 kW standby diesel generator with EPA Tier 3 emissions certification. 8.8L inline-6 with MEUI fuel injection. Ideal for retail, telecom, and light-industrial standby applications.

Tier 33-phasecommercial-standbyretail

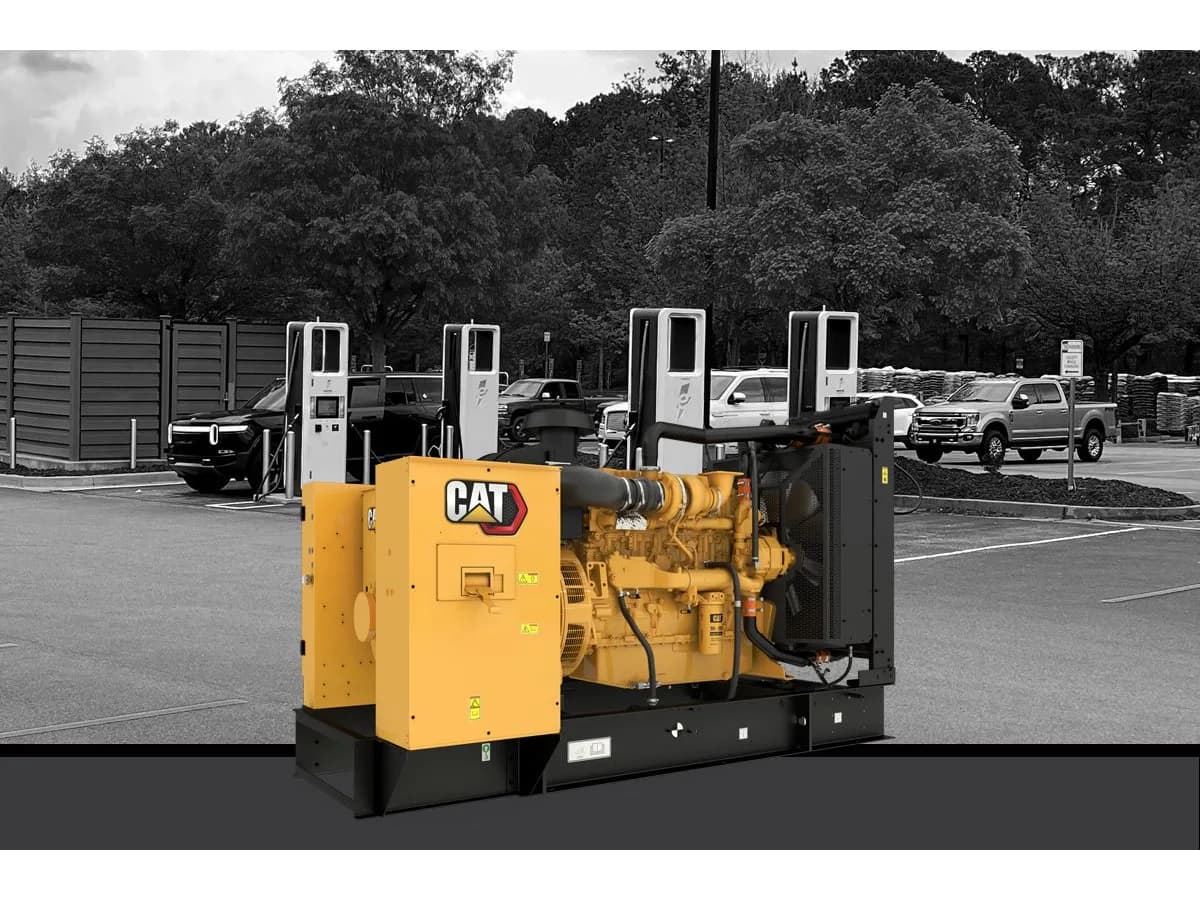

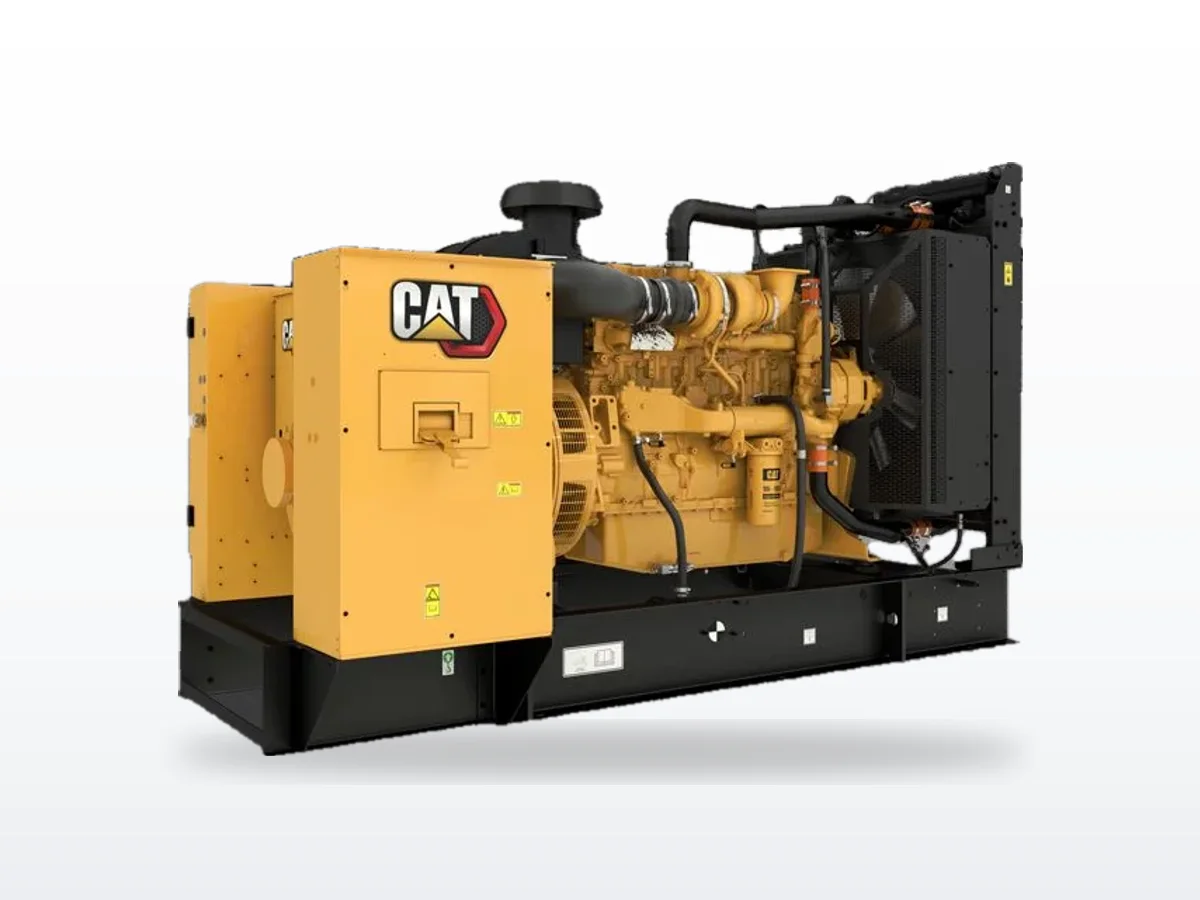

Caterpillar Cat C15 500 kW liquid-cooled standby generator

Caterpillar

Cat C15

500 kW diesel with CAT C15 ACERT inline-6. Best resale value in class. ~200 US dealers with deep parts inventory.

500 kW standby · Diesel · Liquid-cooled

500 kW diesel standby generator with Cat C15 ACERT engine. Large commercial standby for hospitals, high-rises, and municipal infrastructure.

Tier 23-phasehospitalhigh-rise

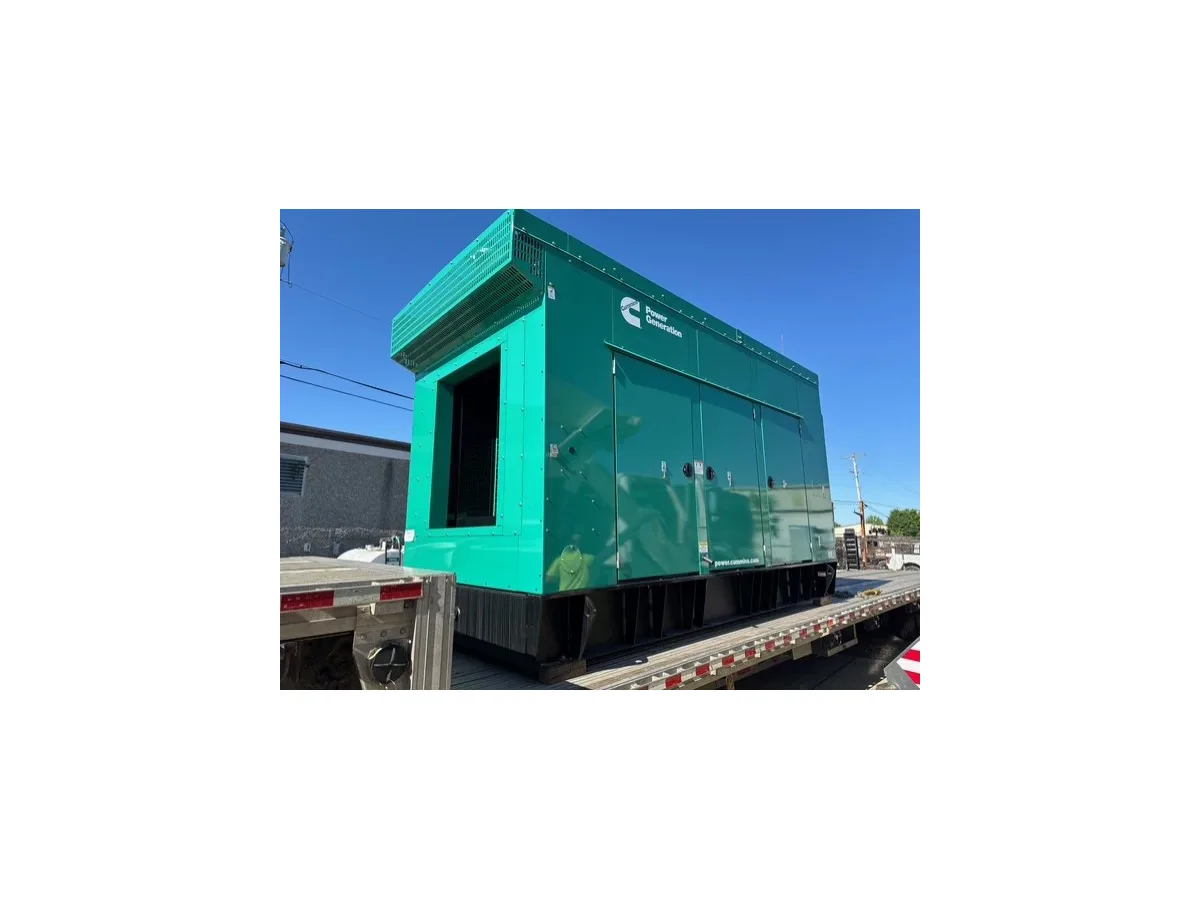

Cummins Cummins C350 D6 350 kW liquid-cooled standby generator
