What is the standby rating of the Airman SDG220S?

The Airman SDG220S delivers 194 kW standby / 176 kW prime at 60 Hz (220 kVA). It provides three-phase output at 277/480V and is one of the largest portable diesel generators in Airman's US lineup.

What engine does the Airman SDG220S use?

The SDG220S is powered by a John Deere 6068 — a 6.8-liter turbocharged inline-six diesel running at 1,800 RPM with EPA Tier 4 Final compliance. The 6068 family is one of the most widely deployed industrial diesel platforms in North America, with extensive dealer support and parts availability.

What is Airman's warranty claim rate?

Airman generators are built by Hokuetsu Industries in Japan and carry a documented 0.001% warranty claim rate — the lowest in the portable generator industry. This figure reflects the precision manufacturing standards applied to every unit built at the Hokuetsu facility.

What are the service intervals for the SDG220S?

The John Deere 6068 engine in the SDG220S requires oil and filter changes every 500 hours or 12 months (whichever comes first), air filter replacement at 500 hours, fuel filter replacement at 500 hours, and is rated for major overhaul at 20,000 hours.

Is the SDG220S EPA compliant?

Yes. The Airman SDG220S meets EPA Tier 4 Final emissions standards through its John Deere 6068 turbocharged engine. The unit is California-compliant for large commercial construction, infrastructure, and rental fleet applications.

What fluid containment does the SDG220S have?

All Airman generators, including the SDG220S, feature 110% fluid containment as standard. The integrated drip tray holds more than the total volume of all engine fluids, eliminating the need for separate secondary containment on California job sites.

Who services Airman generators in Northern California?

OnPoint Generators is the authorized Airman service provider for Northern California. We stock parts, perform warranty service, and offer maintenance contracts for the full Airman SDG lineup including the SDG220S.

Airman · SDG Series

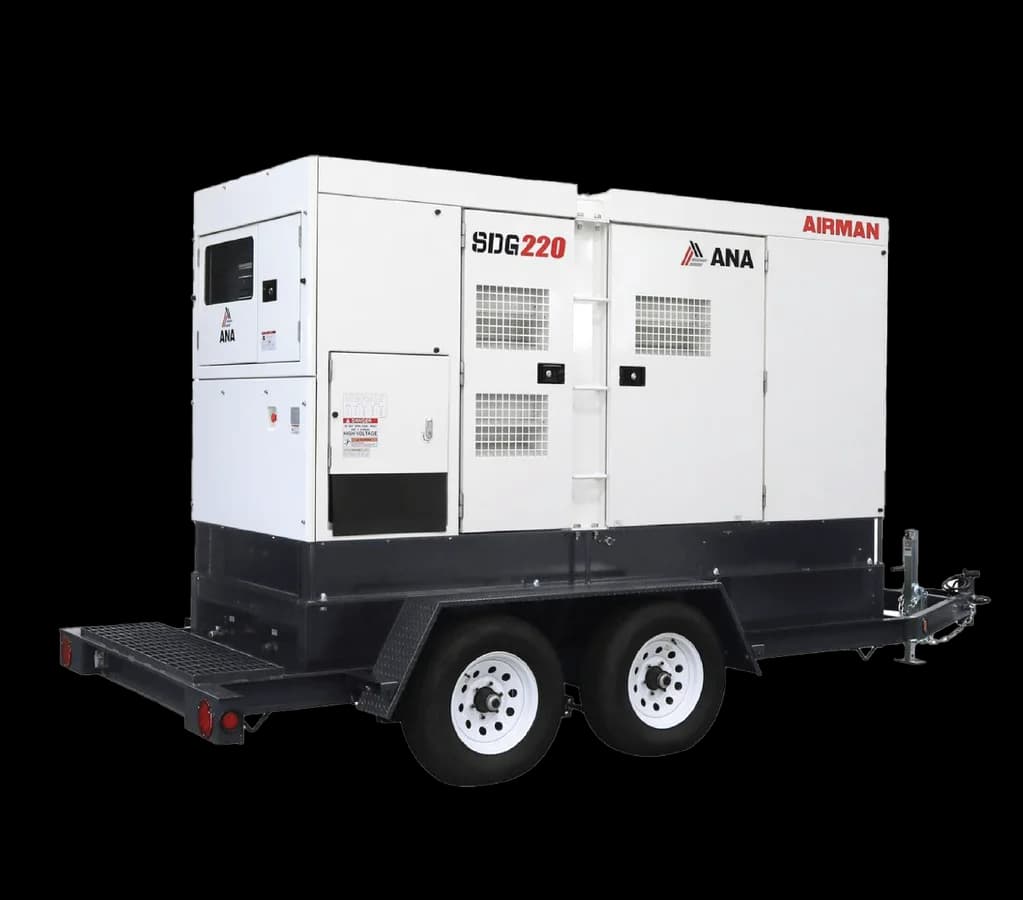

Airman SDG220S

Name: Airman SDG220S
Brand: Airman
Availability: PreOrder

194 kW standby / 176 kW prime · Diesel · Liquid-cooled

220 kVA (176 kW prime) portable diesel generator with 110% fluid containment and John Deere engine.

Standby power: 194 kW / 176 kW prime
Voltage options: 277/480V
Frequency / Phase: 60 Hz · 3-phase
Engine: John Deere 6068 · 6.8L
EPA / Emissions: Tier 4 Final

Commercialrental-fleettemporary-power

Configure & Quote Download spec sheet

Overview#

The Airman SDG220S-8E1 is a 220 kVA portable diesel generator powered by a John Deere 6068 engine. Delivering 176 kW prime / 194 kW standby, it is the second-largest unit in Airman's US lineup. Like all Airman generators, it features 110% fluid containment as standard — a critical advantage for environmentally sensitive California job sites. Built by Hokuetsu Industries in Japan with an industry-leading reliability record. The SDG220S serves as the workhorse for large commercial construction, infrastructure projects, and rental fleet operations where downtime is not an option.

The John Deere 6068 Platform#

The John Deere 6068 is a 6.8-liter inline six-cylinder diesel engine running at 1,800 RPM with EPA Tier 4 Final emissions compliance. This engine family is one of the most widely deployed industrial diesel platforms in North America, powering everything from agricultural equipment to construction machinery. In the SDG220S application, the 6068 delivers 176 kW prime at a moderate specific output, leaving ample headroom for transient loads and hot-day derating. The engine's extensive dealer network and parts availability across North America make it an excellent choice for fleet operators who need fast turnaround on maintenance and repairs.

Our Service Experience#

The SDG220S is the large-frame workhorse in our Northern California Airman fleet. We deploy it on major commercial construction — multi-story office buildings, hospital expansion phases, and large infrastructure projects across the Bay Area. At 176 kW prime, it handles full building-scale temporary power requirements: HVAC systems, elevator testing, fire alarm commissioning, and multi-floor lighting all run comfortably within the SDG220S's capacity.

At 9,656 lbs operating weight, the SDG220S requires trailer mounting for transport between sites. The 285-gallon integral tank provides extended runtime for multi-day deployments. For units on extended rental periods, we follow the standard 250-hour oil change interval and recommend a mid-deployment coolant level check. The John Deere 6068 has been exceptionally reliable in our fleet, with the primary maintenance focus being fuel quality management and battery health during storage periods between projects. The 110% fluid containment has saved us significant compliance cost on California job sites where secondary containment would otherwise be required.

Engineering specifications

Physical

Length: 137.8 in
Width: 51.2 in
Height: 87.4 in
Dry weight: 7,452 lb
Wet weight: 9,656 lb

Acoustic

Enclosure: Sound-attenuated

Fuel system & runtime

Integral fuel tank: 285 gal

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Airman SDG220S

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Airman SDG220S

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

27.2 hours(1.1 days)

Fuel consumption ≈ 10.48 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Airman SDG220S under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Air filter: Every 500 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel filter	Clogging from contaminated or stale diesel causes hard starting and power loss — replace at 500-hour intervals or sooner if fuel quality is suspect	500+	minor
Starting battery	Capacity degradation during extended storage without a maintainer — test under load at every service visit and replace proactively at 36 months	4,380+	minor
Coolant hoses	Weeping at clamp points from thermal cycling — inspect during every oil change and replace at first sign of swelling or seepage	5,000+	minor

Frequently Asked Questions

What is the standby rating of the Airman SDG220S?: The Airman SDG220S delivers 194 kW standby / 176 kW prime at 60 Hz (220 kVA). It provides three-phase output at 277/480V and is one of the largest portable diesel generators in Airman's US lineup.
What engine does the Airman SDG220S use?: The SDG220S is powered by a John Deere 6068 — a 6.8-liter turbocharged inline-six diesel running at 1,800 RPM with EPA Tier 4 Final compliance. The 6068 family is one of the most widely deployed industrial diesel platforms in North America, with extensive dealer support and parts availability.
What is Airman's warranty claim rate?: Airman generators are built by Hokuetsu Industries in Japan and carry a documented 0.001% warranty claim rate — the lowest in the portable generator industry. This figure reflects the precision manufacturing standards applied to every unit built at the Hokuetsu facility.
What are the service intervals for the SDG220S?: The John Deere 6068 engine in the SDG220S requires oil and filter changes every 500 hours or 12 months (whichever comes first), air filter replacement at 500 hours, fuel filter replacement at 500 hours, and is rated for major overhaul at 20,000 hours.
Is the SDG220S EPA compliant?: Yes. The Airman SDG220S meets EPA Tier 4 Final emissions standards through its John Deere 6068 turbocharged engine. The unit is California-compliant for large commercial construction, infrastructure, and rental fleet applications.
What fluid containment does the SDG220S have?: All Airman generators, including the SDG220S, feature 110% fluid containment as standard. The integrated drip tray holds more than the total volume of all engine fluids, eliminating the need for separate secondary containment on California job sites.
Who services Airman generators in Northern California?: OnPoint Generators is the authorized Airman service provider for Northern California. We stock parts, perform warranty service, and offer maintenance contracts for the full Airman SDG lineup including the SDG220S.

More in the SDG Series

Tier 4 Final portable diesel from 11 to 336 kW — Isuzu, Kubota, and John Deere engines with 110% fluid containment standard.

View all 9models in this series →

Similar models

Airman

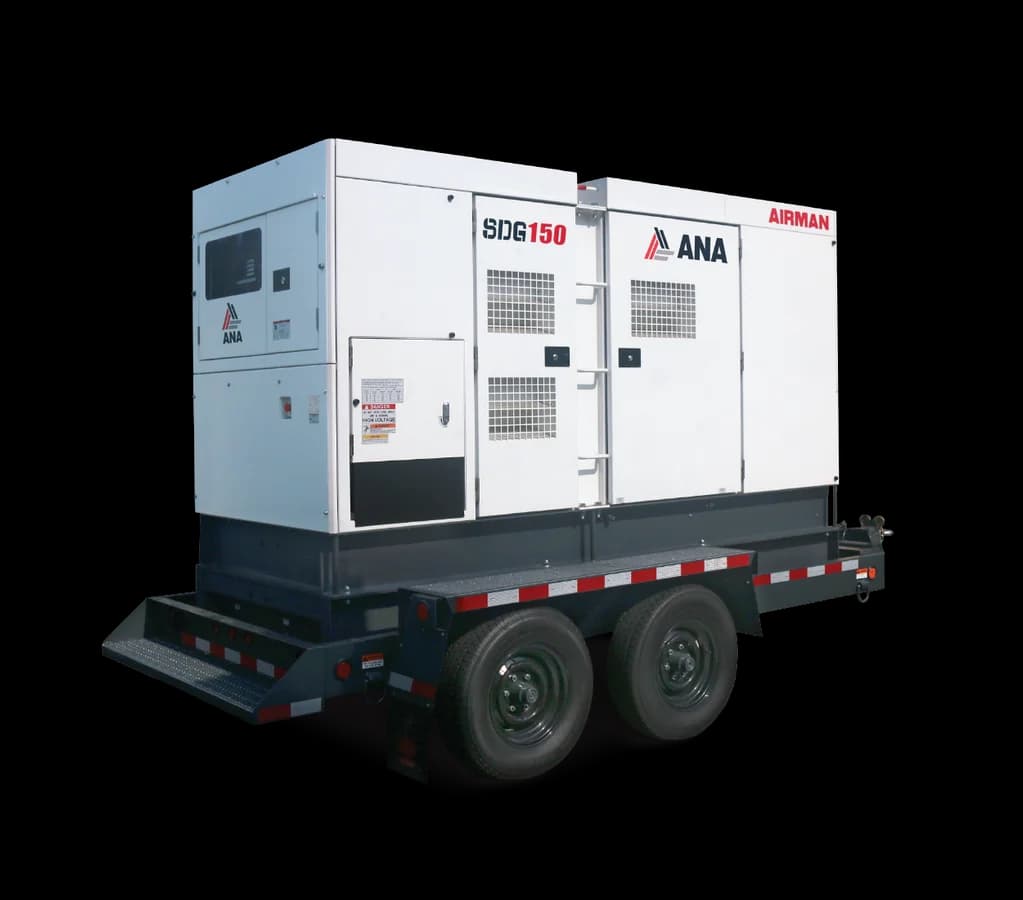

Airman SDG150

0.001% warranty claim rate, 110% fluid containment standard, 66 dBA at 7m, 24-hr runtime at 120 kW — John Deere 6068 reliability with Hokuetsu precision engineering.

132 kW standby · Diesel · Liquid-cooled

Full-size 120 kW portable for large commercial construction, emergency standby, and noise-sensitive urban applications where the 66 dBA rating and environmental compliance are required.

120 kW prime diesel portable generator. John Deere 6068-powered with 24-hour runtime, 66 dBA operation, and 110% fluid containment.

Tier 4 Final3-phaseconstructionrental-fleet

Airman

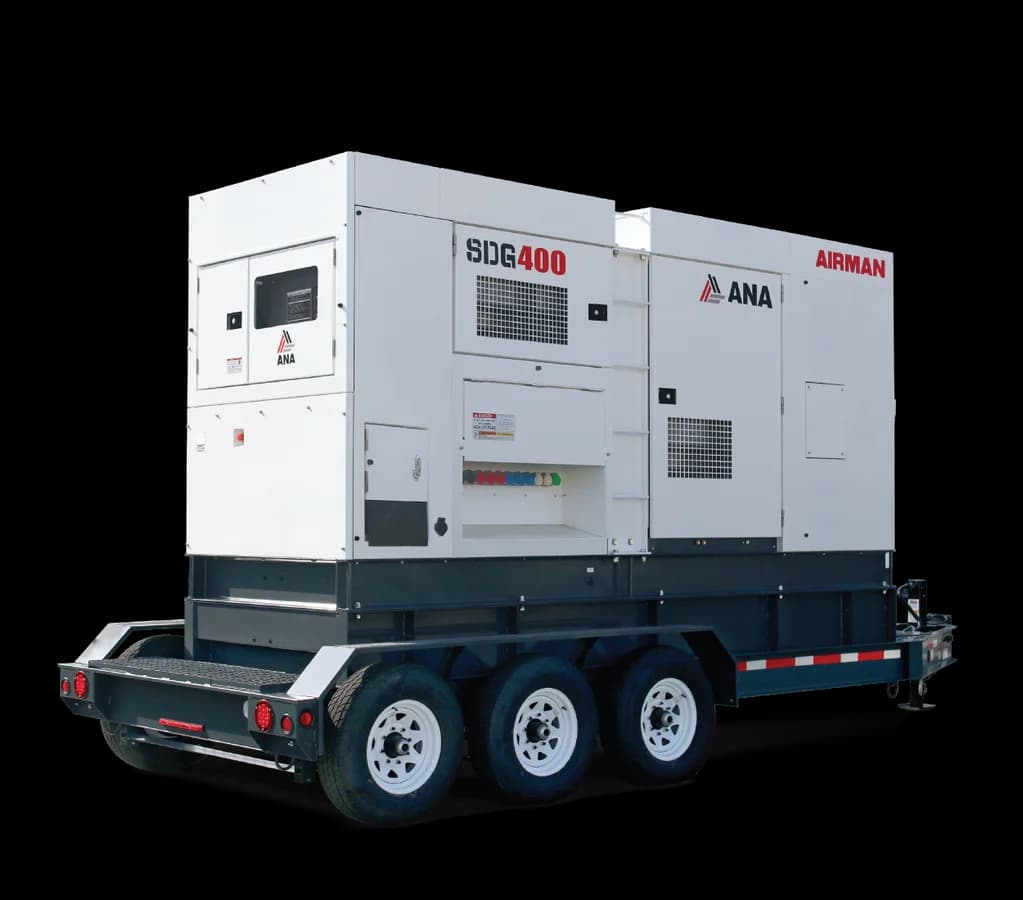

Airman SDG400
