Triton Power · TP-V

Triton Power TP-V550-T4F

550 kW standby / 500 kW prime · Diesel · Liquid-cooled

550 kW Tier 4 Final diesel generator with Volvo TWD1672GE engine. For commercial, industrial, and data center standby applications.

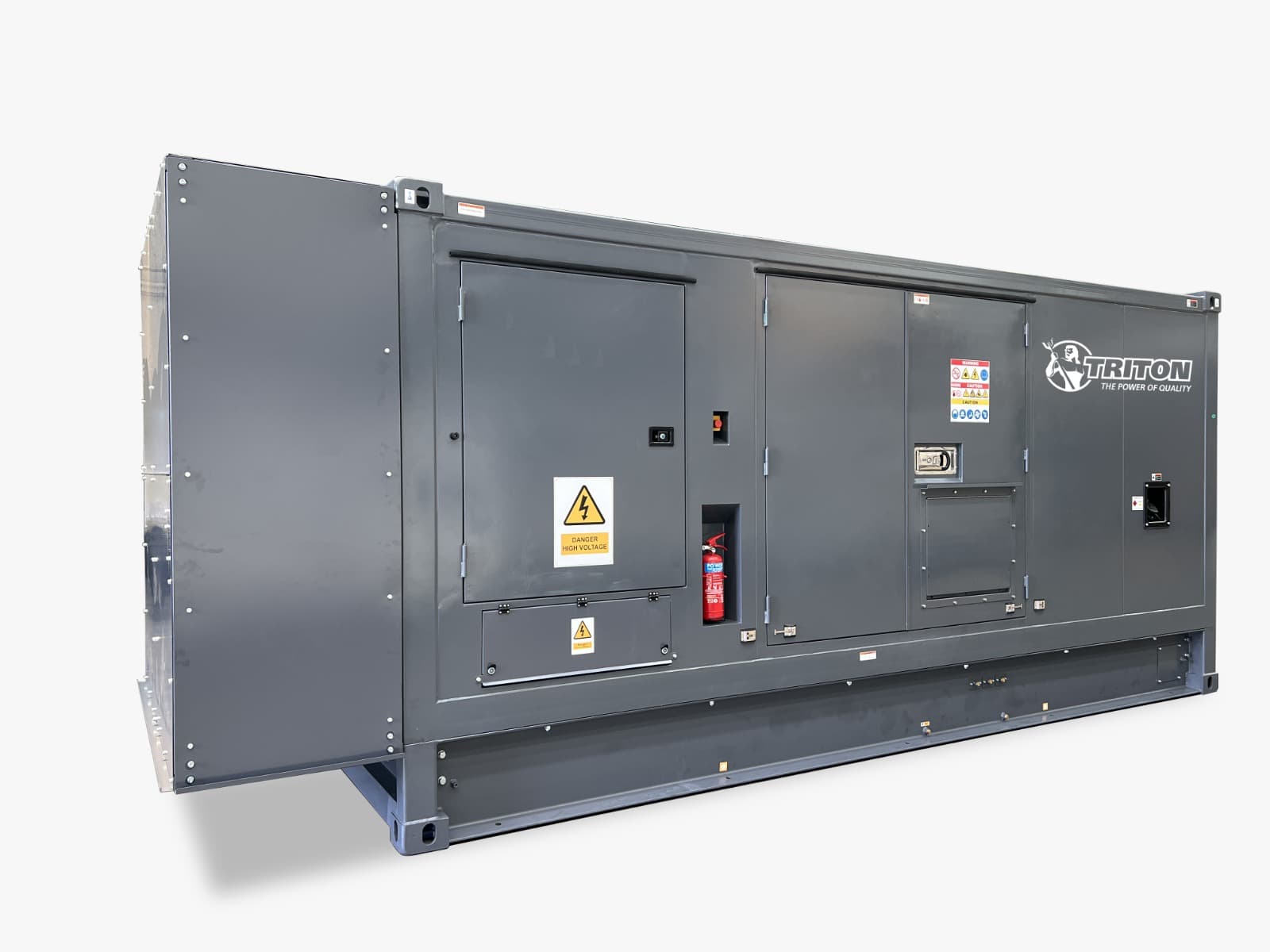

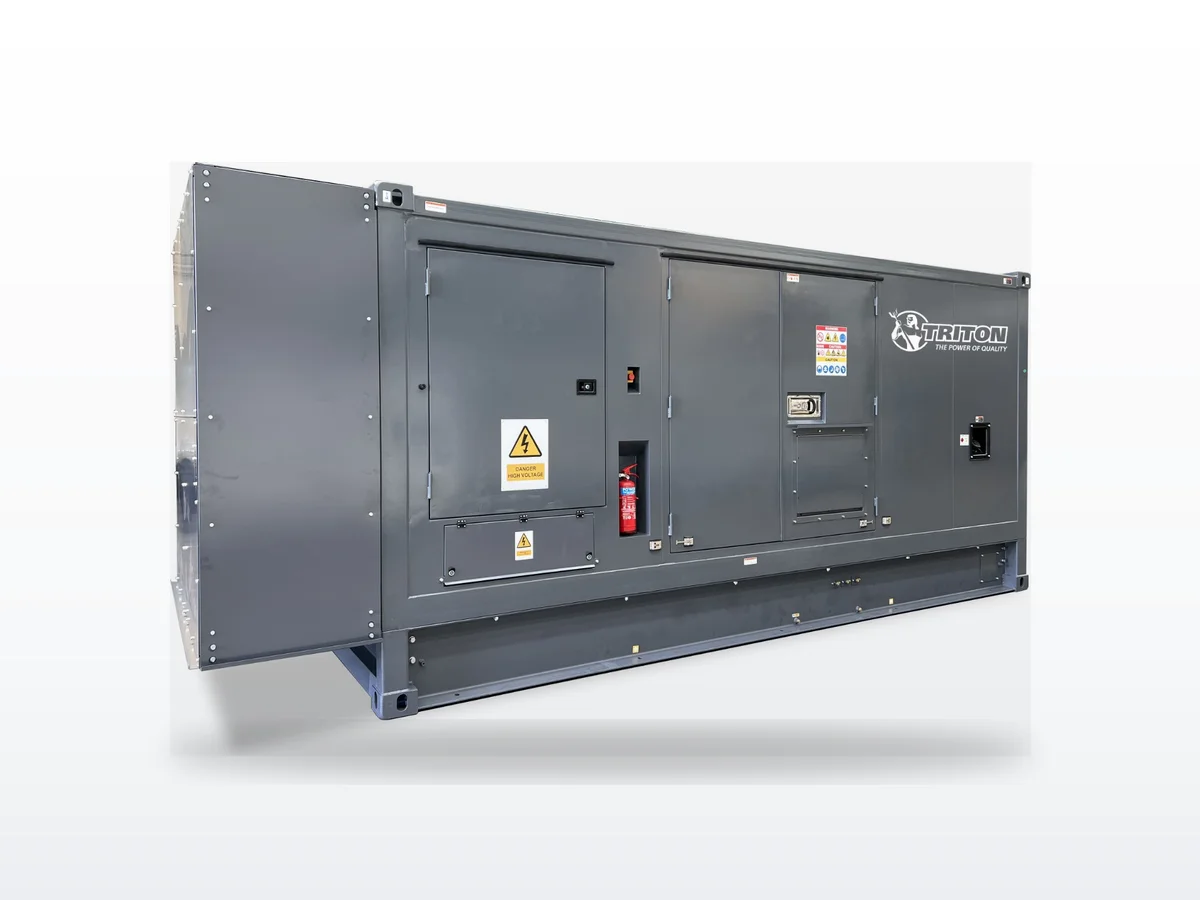

Triton Power Triton Power TP-V550-T4F generator — specifications and details
Standby power
550 kW / 500 kW prime
Voltage options
120/208V, 277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
Volvo TWD1672GE · 16.1L
EPA / Emissions
Tier 4 Final
Alternator
Leroy Somer

Overview#

The Triton Power TP-V550-T4F is a diesel generator rated 550 kW / 688 kVA standby and 500 kW / 625 kVA prime at 60 Hz, powered by the Volvo TWD1672GE turbocharged engine (16.1 L displacement), listed as Tier 4 Final and paired with a Leroy Somer alternator. Three-phase output is listed at 120/208 and 277/480 V, and the enclosed unit's fuel tank is listed as 1000 L.

The Volvo TWD1672GE is listed at 585 kWm (784 HP) at 1800 RPM. Fuel consumption is listed as 99.1 L/hr (26.18 GPH) at full load, dropping to 51.2 L/hr (13.53 GPH) at 50% load. The sheet lists a Deep Sea 7420 digital controller, and Triton lists the unit as available in open, enclosed and mobile versions with 125% full containment for fluids and a sub-base tank up to 45 hours.

Our service experience#

Before specifying the TP-V550-T4F, confirm engine parts and service support for your site, as you would for any Volvo-powered unit.

Engineering specifications

Fuel system & runtime

Fuel use @ full load
26.18 GPH
Fuel use @ 75% load
18.62 GPH
Fuel use @ 50% load
13.53 GPH

Ready to order this model?

Configure your Triton Power TP-V550-T4F

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Triton Power TP-V550-T4F

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

9.9 hours(0.4 days)

Fuel consumption ≈ 20.20 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What engine powers the Triton TP-V550-T4F?
Triton's sheet lists a Volvo TWD1672GE turbocharged diesel engine with 16.1 L displacement, Tier 4 Final, producing 585 kWm (784 HP) at 1800 RPM.
What are the dimensions and weight of the TP-V550-T4F?
Triton's sheet gives dimensions and weight for the enclosed unit only: 5200 mm long x 1900 mm wide x 2500 mm high, with a dry weight of 8394 kg. The sheet gives no figures for the open (skid-mounted) set.
What is the fuel tank capacity of the TP-V550-T4F?
Triton's sheet lists a fuel tank of 1000 L for the enclosed unit. It also lists 125% full containment for fluids and a sub-base tank up to 45 hours.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Power generators →

Similar models

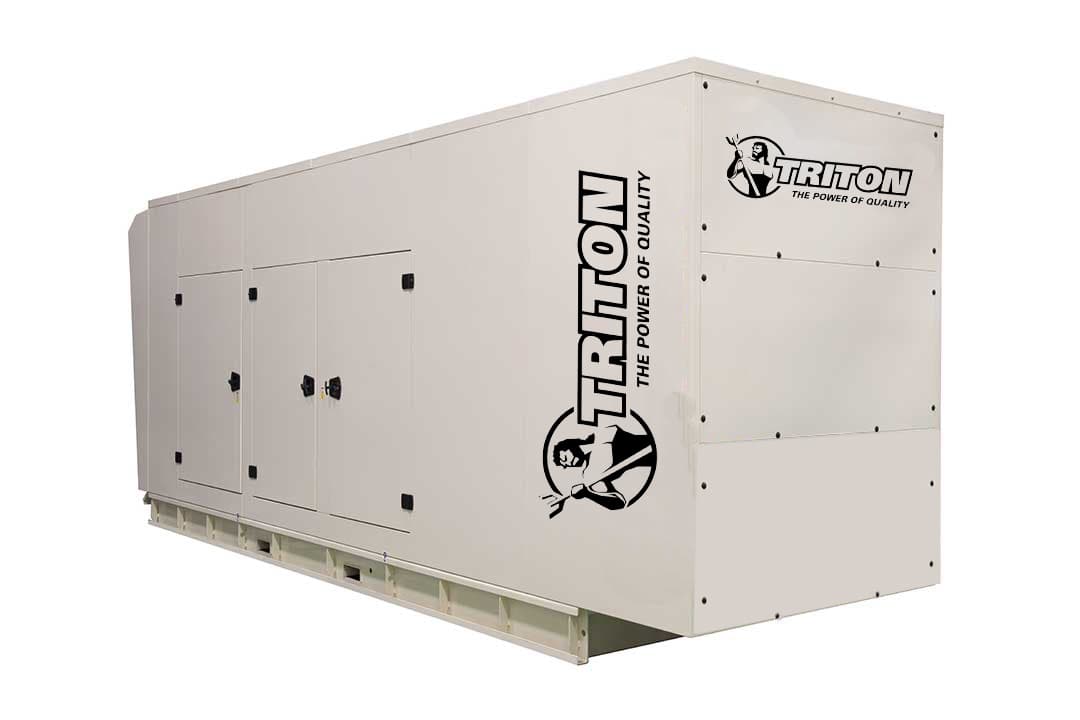

Triton Power Triton Power TP-P500-T2-UL 500 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P500-T2-UL

500 kW standby · Diesel · Liquid-cooled

500 kW Tier 2 diesel generator with Perkins 2506D-E15TAG3 engine. UL2200-listed for commercial and industrial standby applications.

Tier 23-phasecommercial-standbyindustrial-light

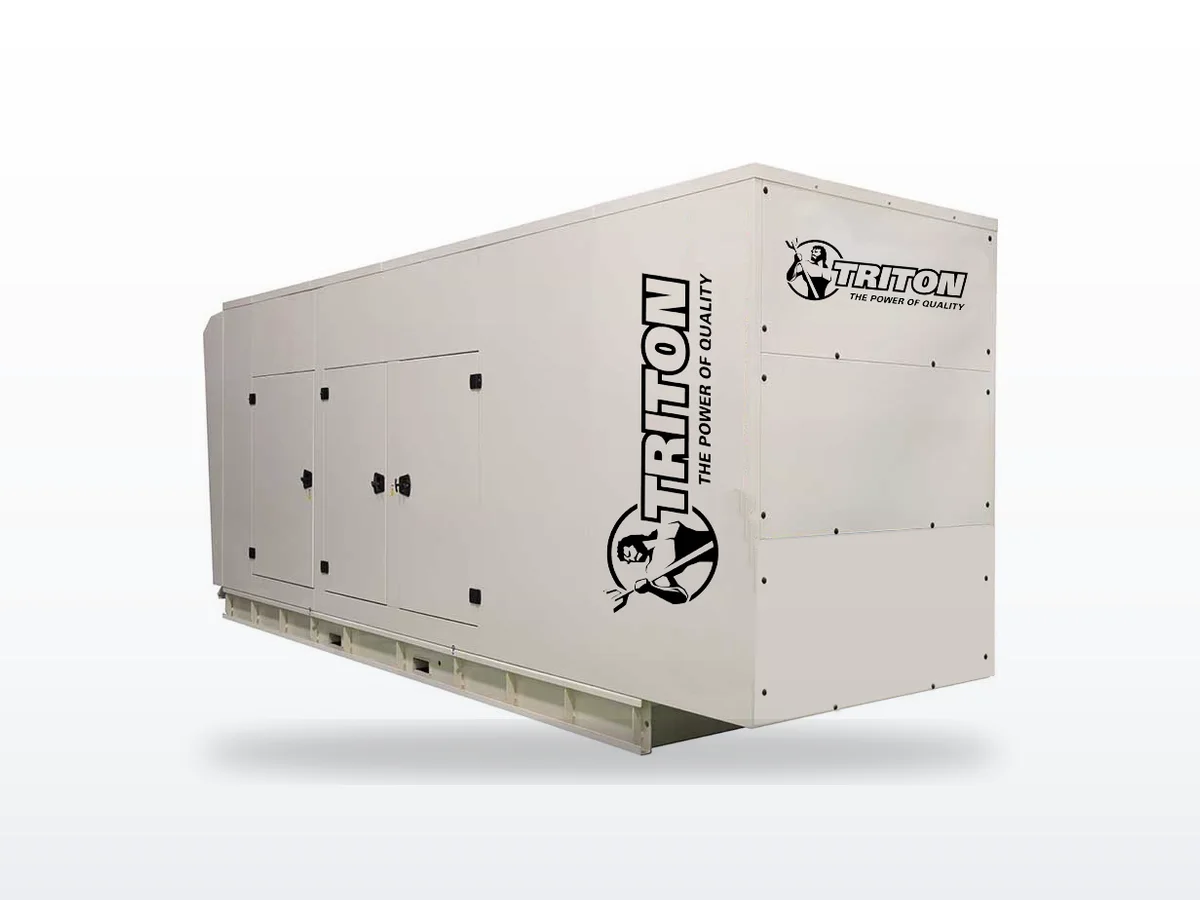

Triton Power Triton Power TP-P600-T2-UL 600 kW liquid-cooled standby generator
