Triton Power · TP-P

Triton Power TP-P13-T1

11.6 kW standby / 10.4 kW prime · Diesel · Liquid-cooled

11.6 kW diesel generator with Perkins 403D-15G engine. For commercial and standby applications.

Triton Power Triton Power TP-P13-T1 generator — specifications and details
Standby power
11.6 kW / 10.4 kW prime
Voltage options
277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Perkins 403D-15G
Alternator
Leroy Somer LSA40VS2
Commercialretail-smallresidential
Configure & QuoteDownload spec sheet

Overview#

The Triton Power TP-P13-T1 is a 11.6 kW diesel standby generator powered by a Perkins 403D-15G engine. Paired with a Leroy Somer alternator (LSA40VS2), this unit is available in single and three-phase configurations at 277/480V.

Our service experience#

Perkins engines are well-supported in the power generation market with broad parts availability and factory-trained service networks. The TP-P13-T1 is suitable for commercial standby applications where reliable backup power is essential.

Engineering specifications

Physical

Length
35.4 in
Width
51.5 in
Height
28.6 in
Dry weight
221 lb

Ready to order this model?

Configure your Triton Power TP-P13-T1

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Triton Power TP-P13-T1

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

319.3 hours(13.3 days)

Fuel consumption ≈ 0.63 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Why we recommend Triton Power

Triton Power is our value brand for mobile and portable diesel generators, and an emerging option for industrial standby. When MQ Power's pricing is a stretch or lead times are too long, Triton delivers comparable capability at a lower price point with faster availability.

We are developing our Triton Power sales relationship and building fleet experience. Every engine platform Triton uses — Perkins, John Deere, Kubota, Scania, Volvo — is one we already service daily across other brands. Triton's open architecture means our technicians can maintain these units with standard tooling and widely available parts.

See all Triton Powergenerators →

Similar models

Triton Power Triton Power TP-P16-T1 13 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P16-T1

13 kW standby · Diesel · Liquid-cooled

13 kW diesel generator with Perkins 403A-15G2 engine. For commercial and standby applications.

3-phasecommercial-standbyretail-small
Triton Power Triton Power TP-P10-T4I 10 kW liquid-cooled standby generator

Triton Power

Triton Power TP-P10-T4I

10 kW standby · Diesel · Liquid-cooled

10 kW Tier 4 Interim diesel generator with Perkins 403D-11G engine. For commercial and standby applications.

Tier 4 Interim3-phasecommercial-standbyretail-small

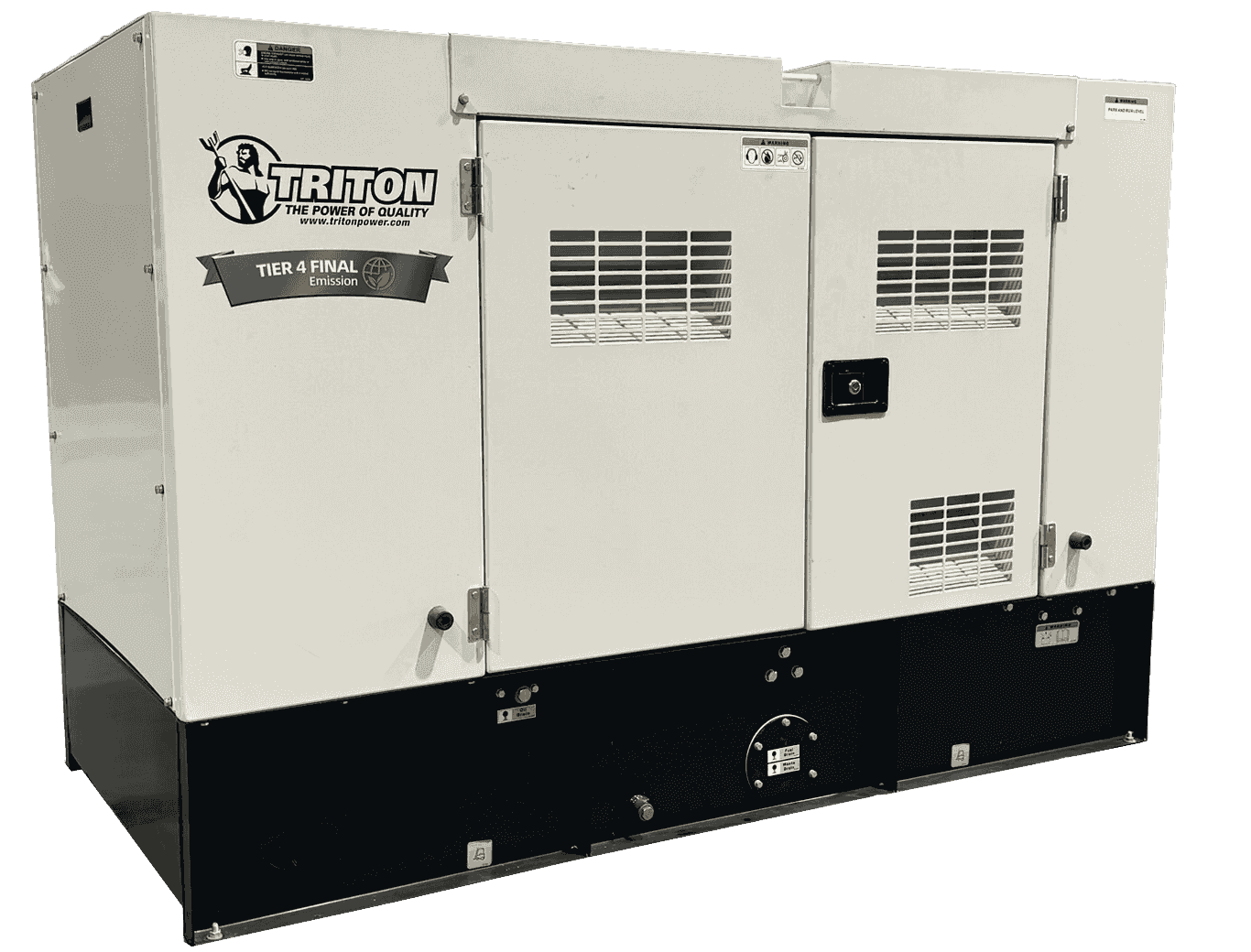

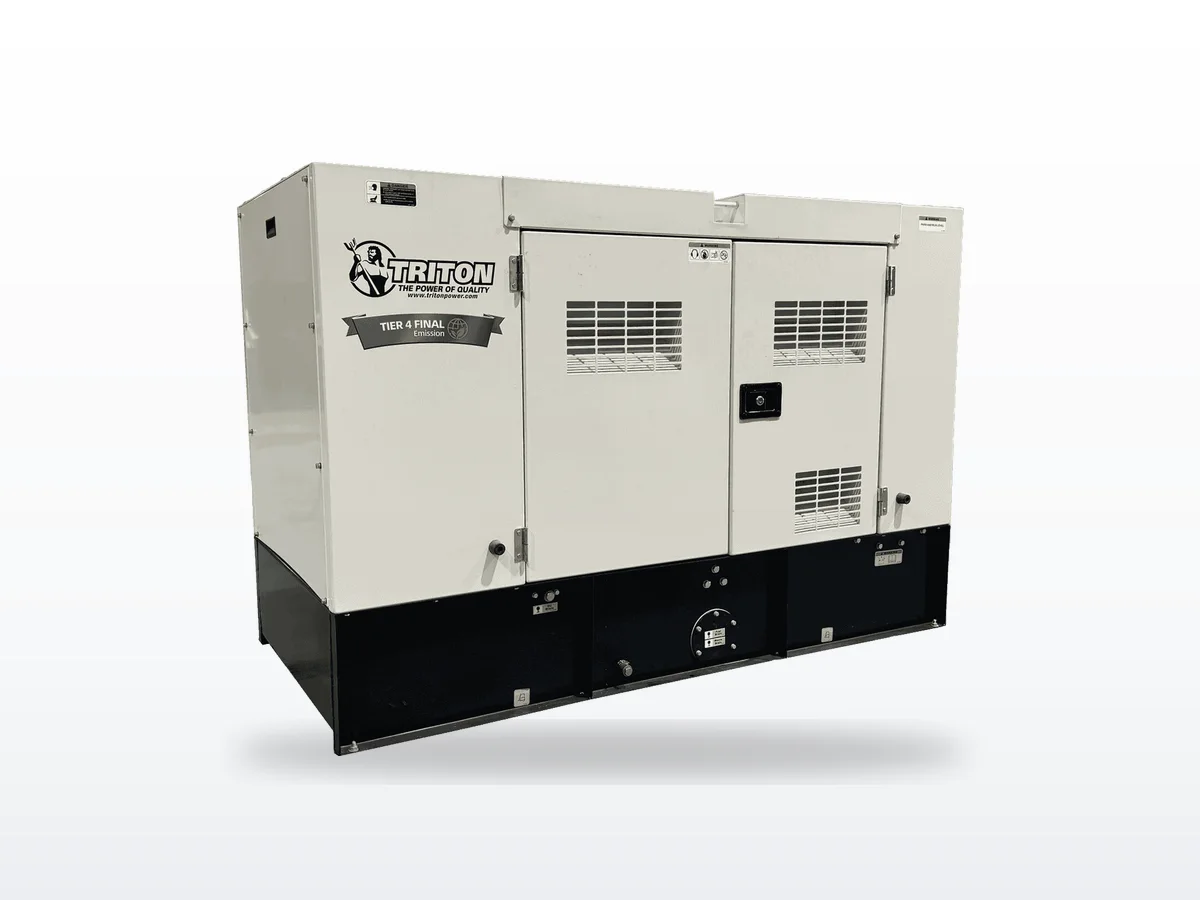

Triton Power Triton Power TP-P10-T4i-UL 10 kW liquid-cooled standby generator
