SDMO

SDMO J200

160 kW standby · Diesel · Liquid-cooled

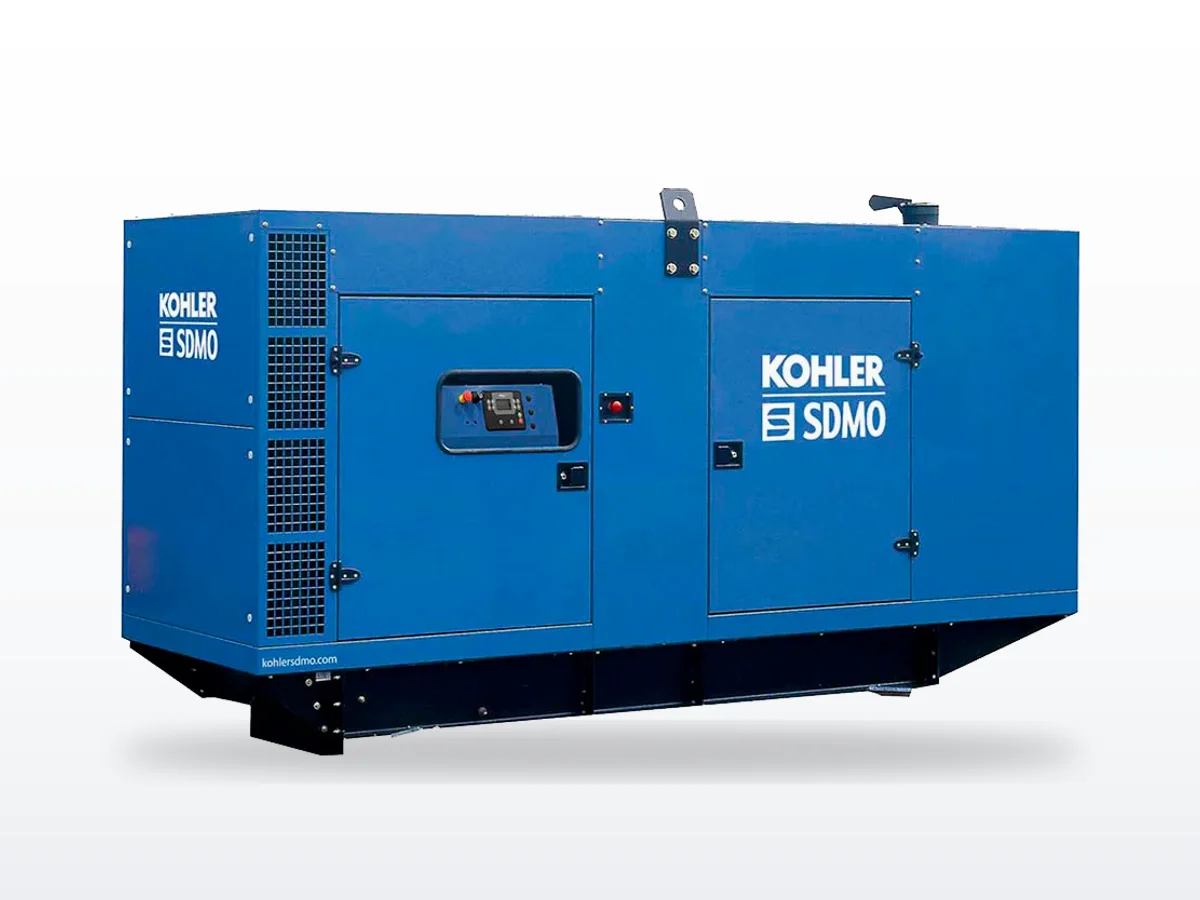

SDMO J200 diesel generator — 160 kW standby power with John Deere 6068HF120 engine. Specs, features, and service information.

Standby power
160 kW
Voltage options
277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 6068HF120 · 6.8L
Commercial
Configure & Quote

Overview#

The SDMO J200 is a commercial diesel generator rated at 200 kVA (160 kW) standby, powered by the John Deere 6068HF120 inline-six engine. The 6.8-liter PowerTech engine moves up to six cylinders from the four-cylinder J-Series models, delivering substantially more power for larger commercial and light industrial loads. The 6068 platform is one of John Deere's most widely deployed industrial engines with deep parts availability.

SDMO packages the J200 with a four-pole brushless alternator, digital controller with paralleling readiness, and optional sound-attenuated enclosure. The unit delivers three-phase power at 277/480V and 60 Hz. With its combination of proven engine technology and SDMO's integrated packaging, the J200 serves as a reliable standby solution for facilities in the 150-200 kW range.

Ready to order this model?

Configure your SDMO J200

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the SDMO J200

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

23.1 hours(1.0 days)

Fuel consumption ≈ 8.64 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the SDMO J200 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / degradationHard starting, filter clogging, reduced power4,380+moderate
TurbochargerPower loss, excessive smoke under load12,000+moderate
BatteryFailed to start, slow crank8,760+minor

Frequently Asked Questions

What engine does the SDMO J200 use?
The J200 uses the John Deere 6068HF120, a 6.8-liter inline-6 diesel from the PowerTech platform. The 6068 is one of John Deere's most widely deployed industrial engines with deep parts availability through dealer and aftermarket channels.
Can the SDMO J200 be paralleled with other generators?
Yes. The J200 comes equipped with a digital controller that includes paralleling readiness, enabling multi-unit configurations for facilities requiring additional capacity or redundancy beyond the 160 kW single-unit rating.

More in the SDMO J-Series (John Deere)

John Deere-powered diesel gensets from 33 to 275 kW

View all 3models in this series →

Similar models

SDMO

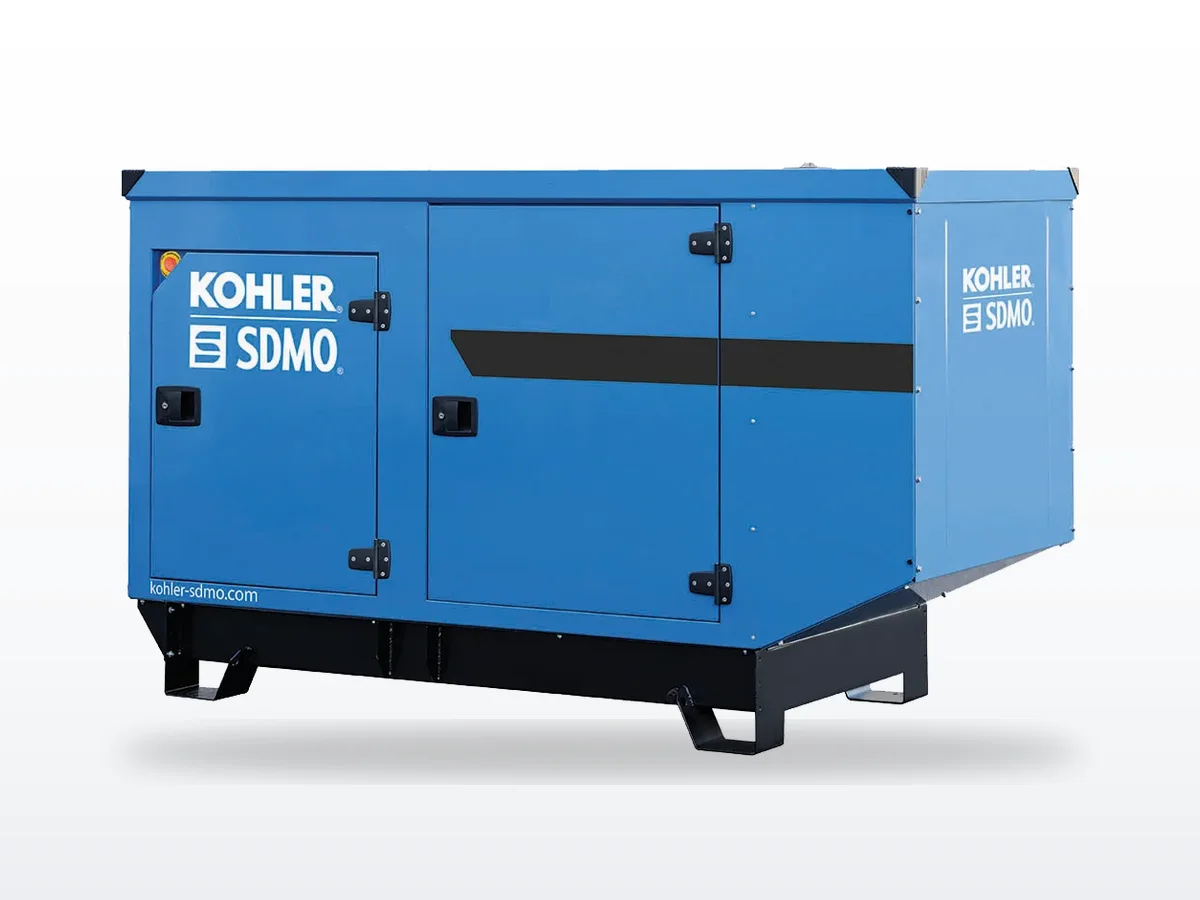

SDMO J130

104 kW standby · Diesel · Liquid-cooled

SDMO J130 diesel generator — 104 kW standby power with John Deere 4045TF120 engine. Specs, features, and service information.

3-phasecommercial-standby

SDMO

SDMO D275

220 kW standby · Diesel · Liquid-cooled

SDMO D275 diesel generator — 220 kW standby power with Doosan P086TI engine. Specs, features, and service information.

3-phasecommercial-standby

SDMO

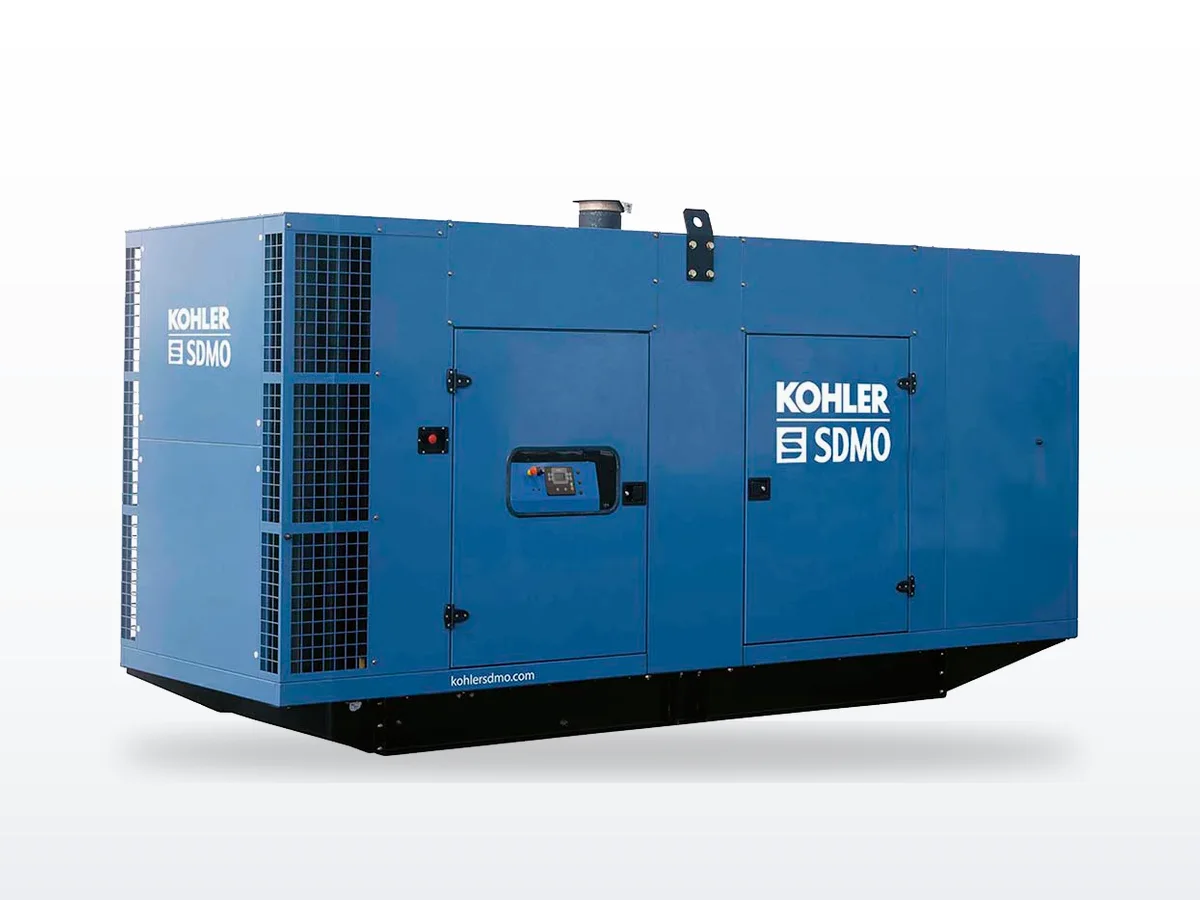

SDMO D550
