SDMO

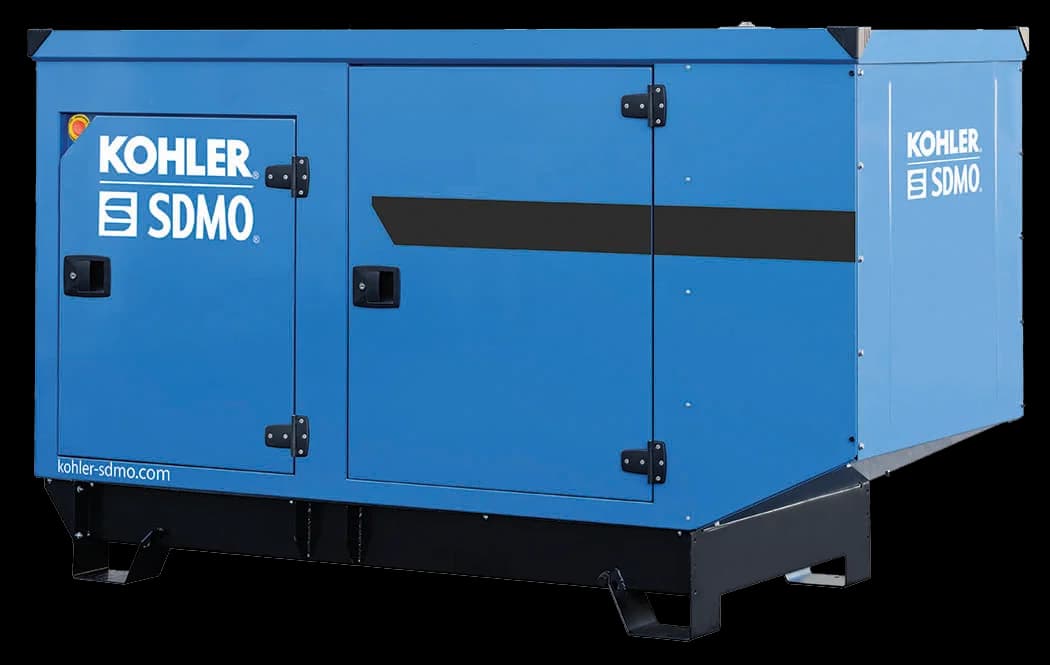

SDMO J130

104 kW standby · Diesel · Liquid-cooled

SDMO J130 diesel generator — 104 kW standby power with John Deere 4045TF120 engine. Specs, features, and service information.

Standby power
104 kW
Voltage options
277/480V
Frequency / Phase
60 Hz · 3-phase
Engine
John Deere 4045TF120 · 4.5L
Commercial
Configure & Quote

Overview#

The SDMO J130 is a mid-range diesel generator rated at 130 kVA (104 kW) standby, powered by the John Deere 4045TF120 turbocharged four-cylinder engine. Built on the same proven 4.5-liter PowerTech platform as the smaller J88, the J130 delivers more power through turbocharging while maintaining the compact inline-four layout. It is a strong fit for mid-size commercial buildings, office complexes, and light manufacturing facilities.

SDMO equips the J130 with a brushless alternator, digital controller with automatic transfer capability, and weatherproof enclosure options. The generator produces three-phase power at 277/480V and 60 Hz. John Deere's extensive parts and service network across North America ensures straightforward long-term maintenance.

Ready to order this model?

Configure your SDMO J130

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the SDMO J130

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

35.6 hours(1.5 days)

Fuel consumption ≈ 5.62 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the SDMO J130 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / degradationHard starting, filter clogging, reduced power4,380+moderate
TurbochargerPower loss, excessive smoke under load12,000+moderate
BatteryFailed to start, slow crank8,760+minor

Frequently Asked Questions

What is the difference between the SDMO J88 and J130?
Both use the same John Deere 4045 4.5-liter inline-4 engine block. The J130 adds turbocharging (4045TF120 vs 4045HF120) to achieve 104 kW versus 70 kW. Many service parts and procedures are shared between the two models.
What are the maintenance intervals for the SDMO J130?
The J130 requires oil and filter changes every 500 hours or 12 months. Fuel filters at 500 hours, air filters at 1,000 hours, and coolant every 6,000 hours or 5 years. Annual load bank testing is recommended for standby units.

More in the SDMO J-Series (John Deere)

John Deere-powered diesel gensets from 33 to 275 kW

View all 3models in this series →

Similar models

SDMO

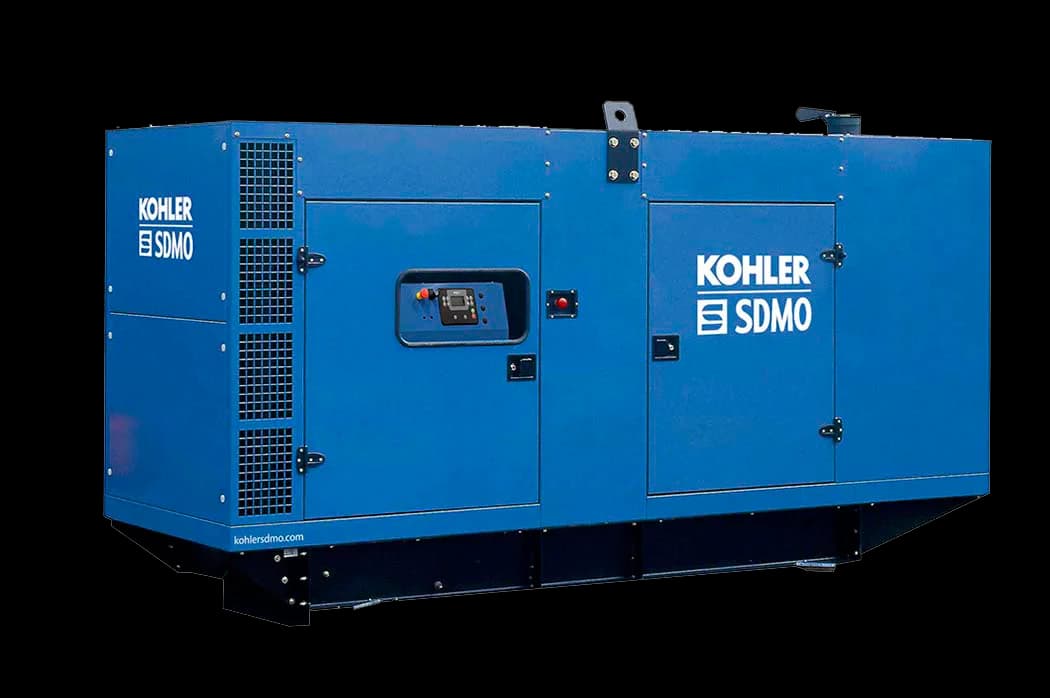

SDMO J200

160 kW standby · Diesel · Liquid-cooled

SDMO J200 diesel generator — 160 kW standby power with John Deere 6068HF120 engine. Specs, features, and service information.

3-phasecommercial-standby

SDMO

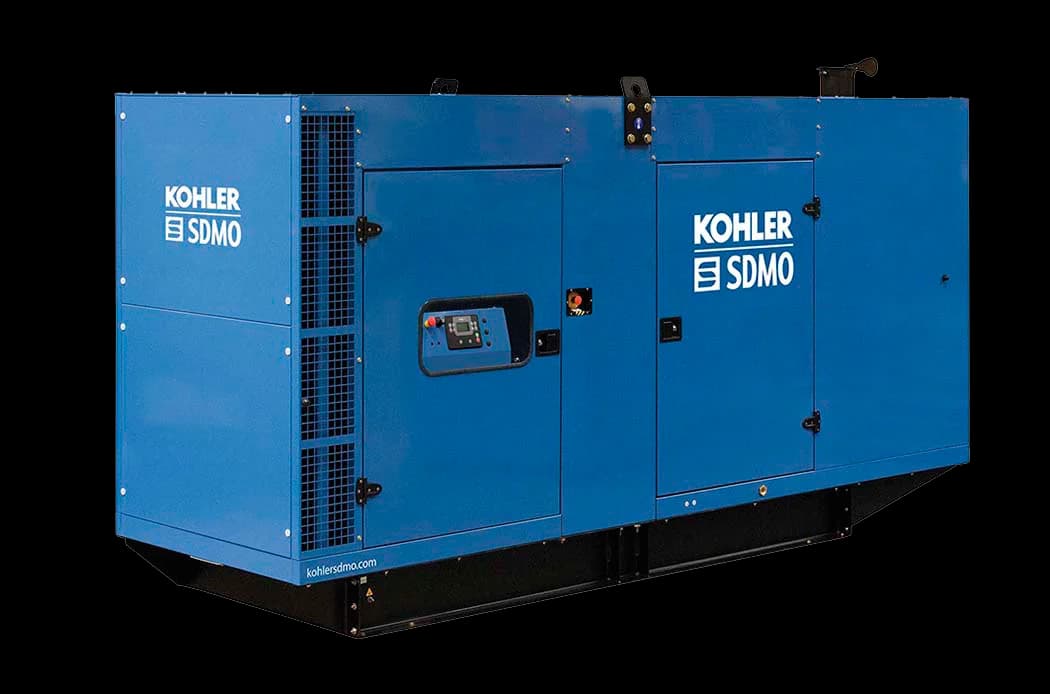

SDMO D275

220 kW standby · Diesel · Liquid-cooled

SDMO D275 diesel generator — 220 kW standby power with Doosan P086TI engine. Specs, features, and service information.

3-phasecommercial-standby

SDMO

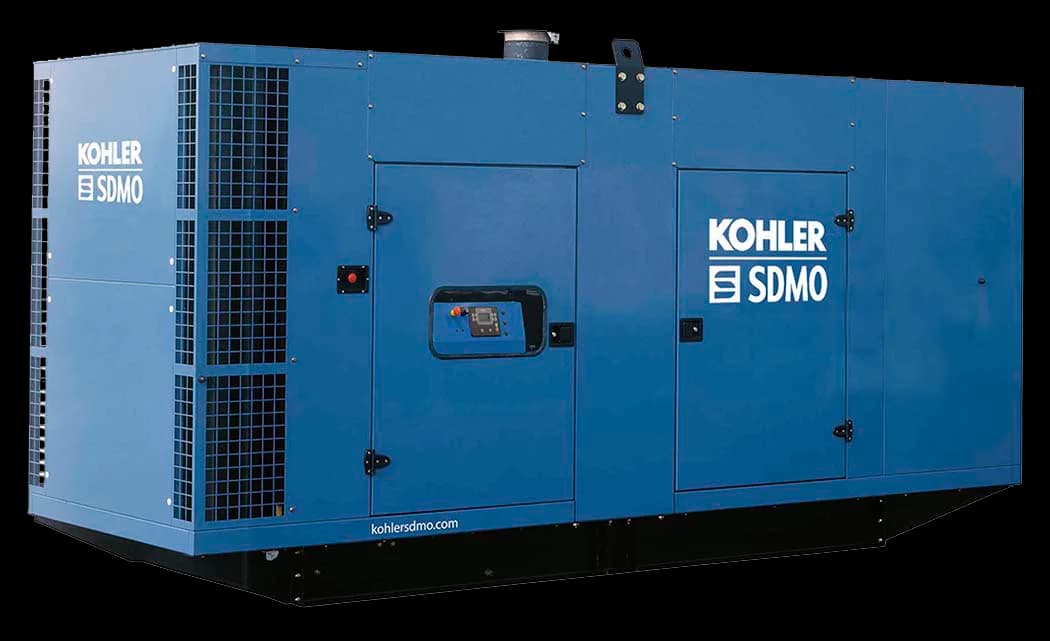

SDMO D550
