MQ Power · WhisperWatt Super-Silent

MQ Power DCA-25 WhisperWatt

22 kW standby / 20 kW prime · Diesel · Liquid-cooled

25 kVA (20 kW prime) portable diesel generator. WhisperWatt Super-Silent for rental fleets, job sites and temporary power.

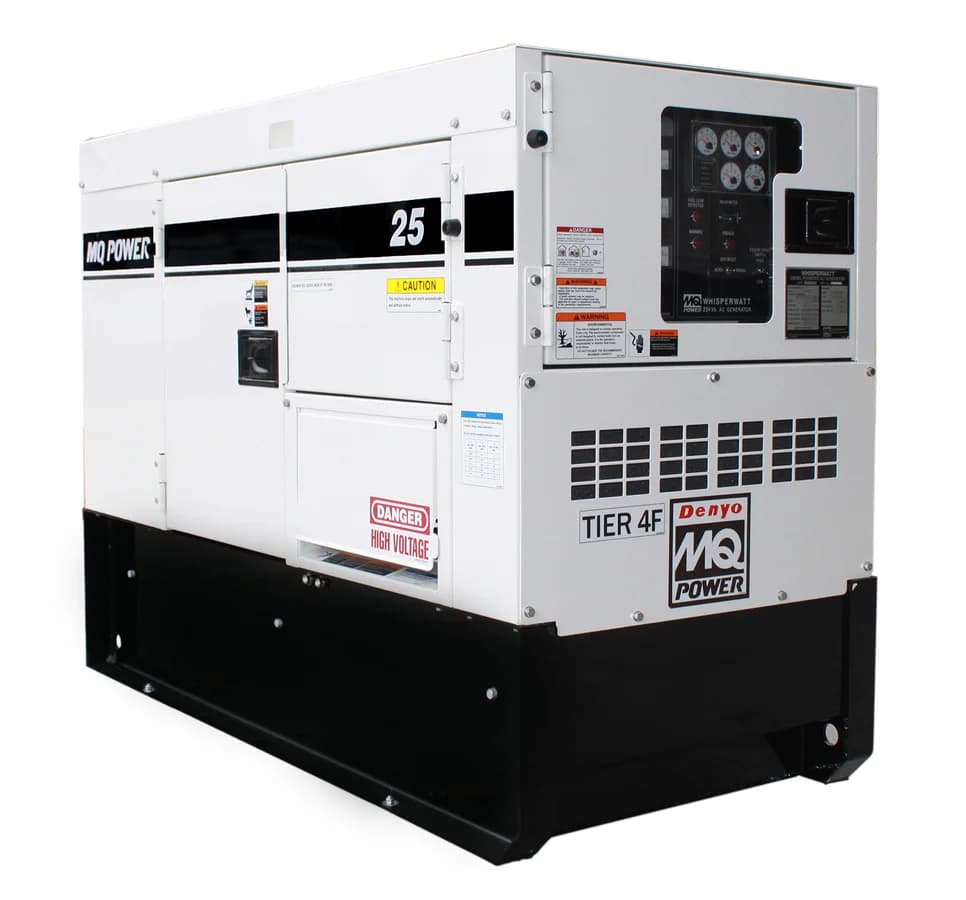

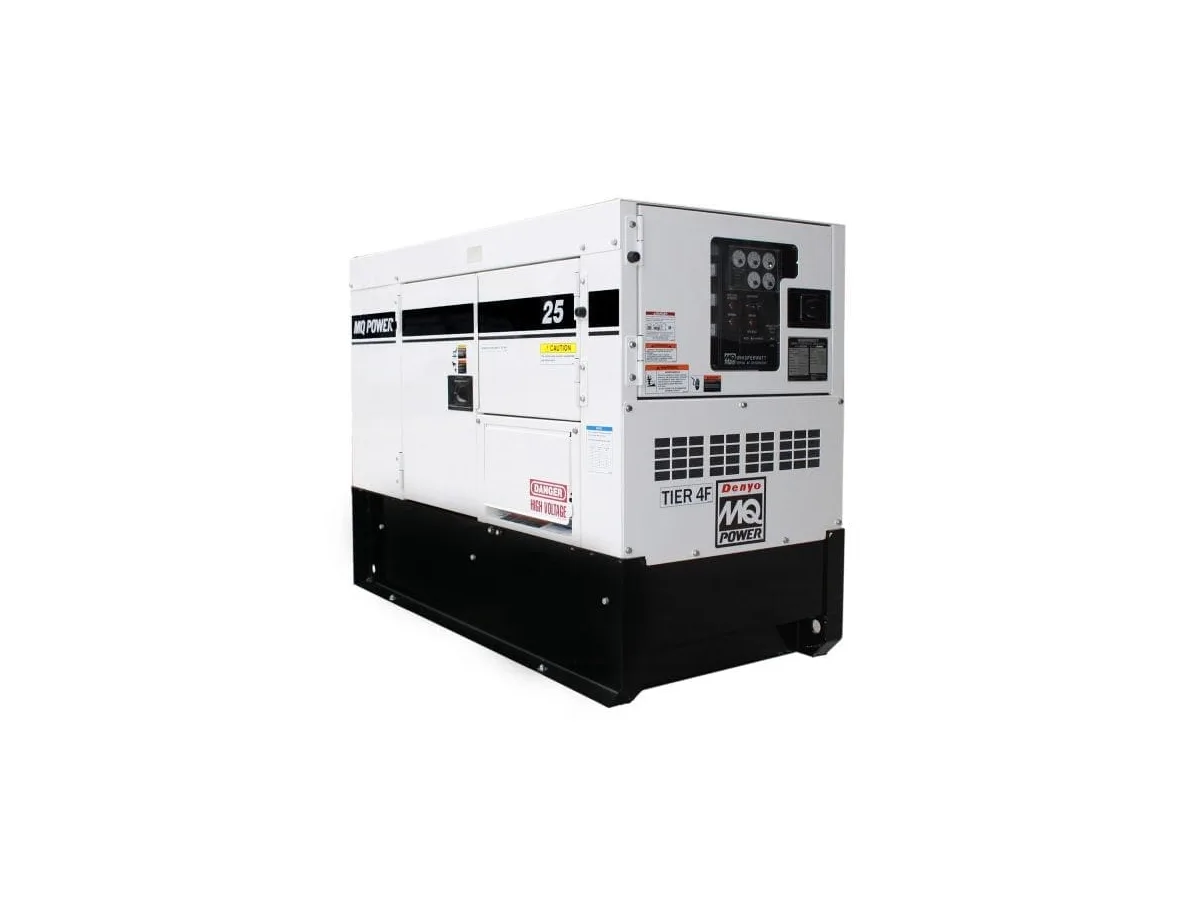

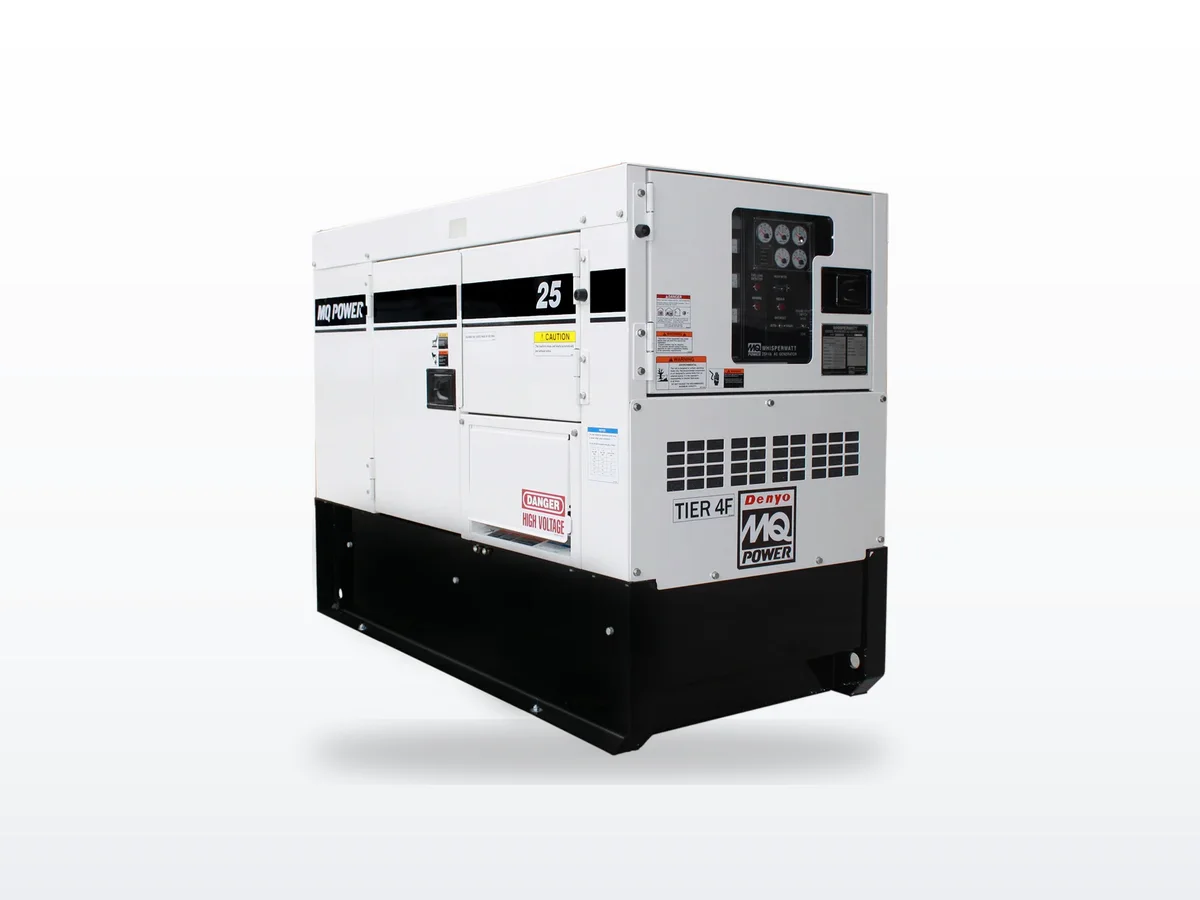

MQ Power MQ Power DCA-25 WhisperWatt generator — specifications and details
Standby power
22 kW / 20 kW prime
Voltage options
120/240V, 208V, 220V, 240V, 480V, 127V, 139V, 254V, 277V, 416V, 440V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Isuzu 4LE2T · 2.179L
EPA / Emissions
Tier 4 Final
Commercialrental-fleeteventstemporary-poweremergency-standbyfilm-production
Configure & QuoteDownload spec sheet

Overview#

The MQ Power DCA-25 WhisperWatt is a 25 kVA (20 kW prime / 22 kW standby) portable diesel generator powered by an Isuzu 4LE2T 2.179L turbocharged engine (40.2 hp gross). The sheet states 65 dB(A) at 23 feet at full load and lists a 41.7-gallon (158 L) fuel tank.

Fuel and engine#

Fuel consumption is 1.62 gal/h at full load, 1.26 at 3/4 load and 0.94 at 1/2 load. The sheet lists bunded spill containment and does not mention DEF.

Common applications#

  • Construction job trailers
  • Power tools on sites without utility connection
  • Outdoor events and festivals
  • Film and television production
  • Emergency backup for small businesses

Our service experience#

OnPoint services MQ Power units and provides temporary power support for construction sites across our territory, including the Isuzu 4LE2T.

Engineering specifications

Physical

Length
72 in
Width
31 in
Height
50 in
Dry weight
1,795 lb

Acoustic

Sound @ 7m, full load
65 dBA
Enclosure
Sound-attenuated

Fuel system & runtime

Integral fuel tank
41.7 gal
Fuel use @ full load
1.62 GPH
Fuel use @ 75% load
1.26 GPH

Documents & downloads

Ready to order this model?

Configure your MQ Power DCA-25 WhisperWatt

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the MQ Power DCA-25 WhisperWatt

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

33.4 hours(1.4 days)

Fuel consumption ≈ 1.25 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

How quiet is the DCA-25?
The data sheet states 65 dBA at 23 feet (7 meters) at full load.
Can the DCA-25 run single-phase and three-phase?
The sheet lists three-phase output at 20 kW prime (25 kVA) and single-phase output at 14.4 kW prime, with 120/240V single-phase and 480V three-phase connections listed.
How long does the DCA-25 run on a tank?
The data sheet lists a 41.7-gallon (158 L) fuel tank and fuel consumption of 1.62 gal/h at full load and 0.94 at 1/2 load.

Compatible equipment

More in the WhisperWatt Super-Silent

Sound-attenuated MQ Power portables, 65-72 dBA at 23 ft.

Why we recommend MQ Power

MQ Power is our go-to recommendation for portable diesel generators. The WhisperWatt line is the industry standard for quiet temporary power — if you need a portable diesel for construction, events, or emergency deployment, this is what we spec.

We are growing our MQ Power sales and have increasing fleet experience with WhisperWatt units. Our technicians service Isuzu and Kubota engines across multiple brands, so MQ Power units get the same expert attention as any unit in our service territory.

See all MQ Power generators →

Similar models

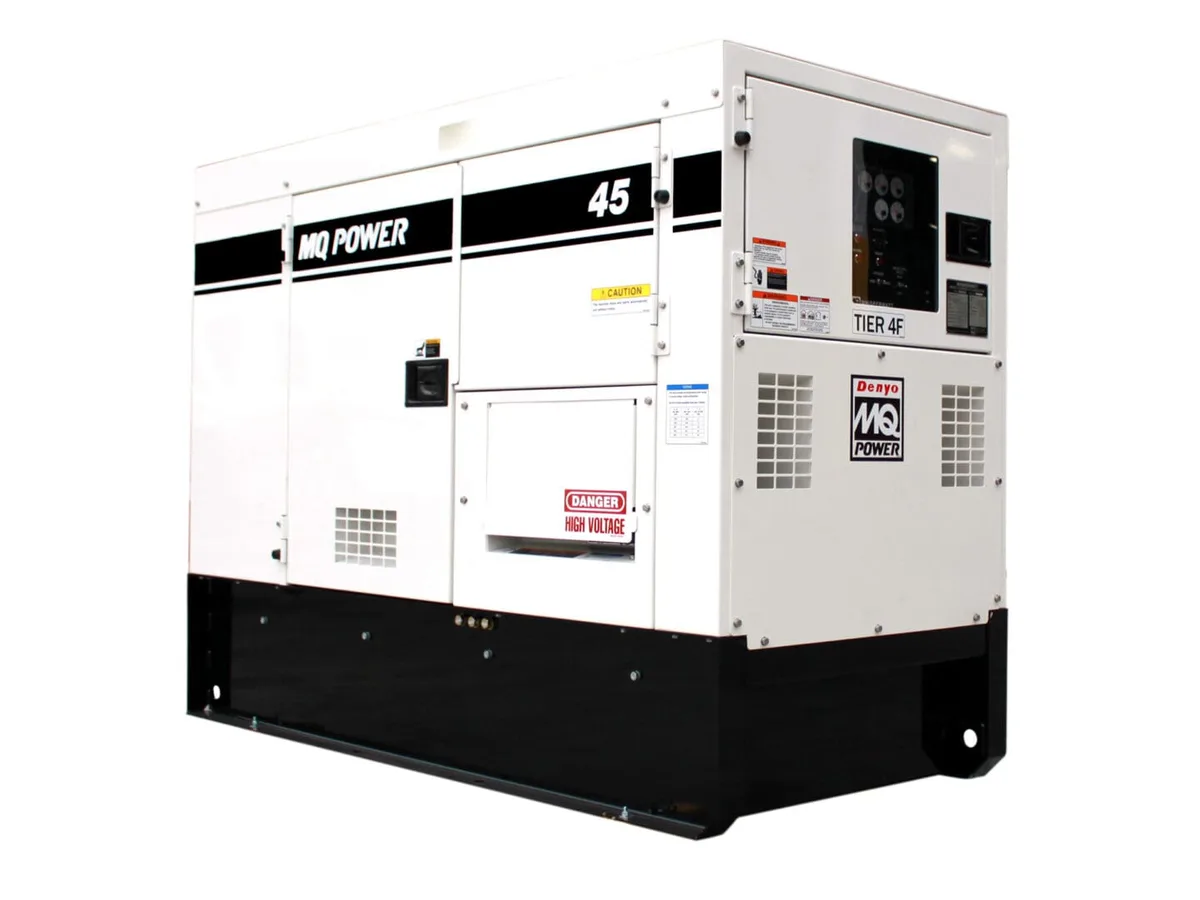

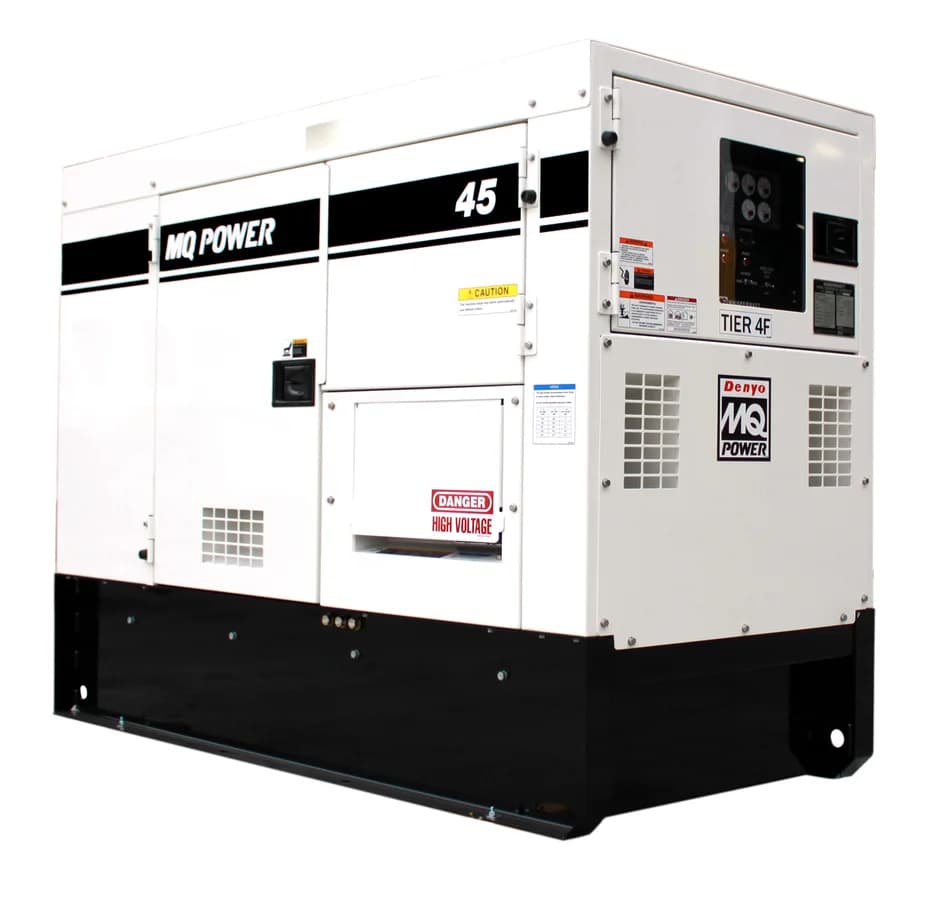

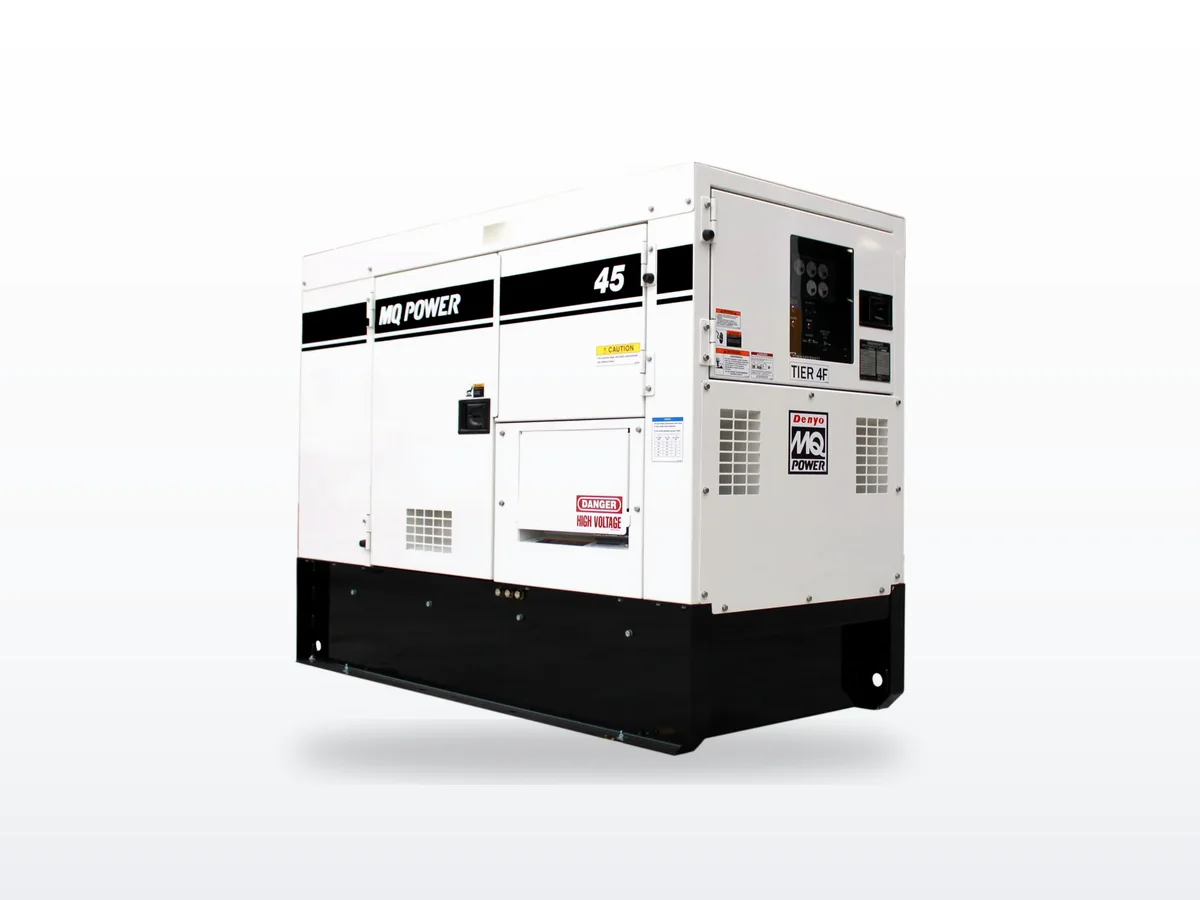

MQ Power MQ Power DCA-45 WhisperWatt 40 kW liquid-cooled standby generator

MQ Power

MQ Power DCA-45 WhisperWatt

WhisperWatt 45 kVA - 66 dBA at 23 ft, Isuzu 4LE2X 2.179L, single- and three-phase output, 79.2-gal tank.

40 kW standby · Diesel · Liquid-cooled

45 kVA (36 kW prime) portable diesel generator. Compact WhisperWatt Super-Silent for construction sites, events, and commercial temporary power.

Tier 4 Final3-phaseconstruction-largerental-fleet

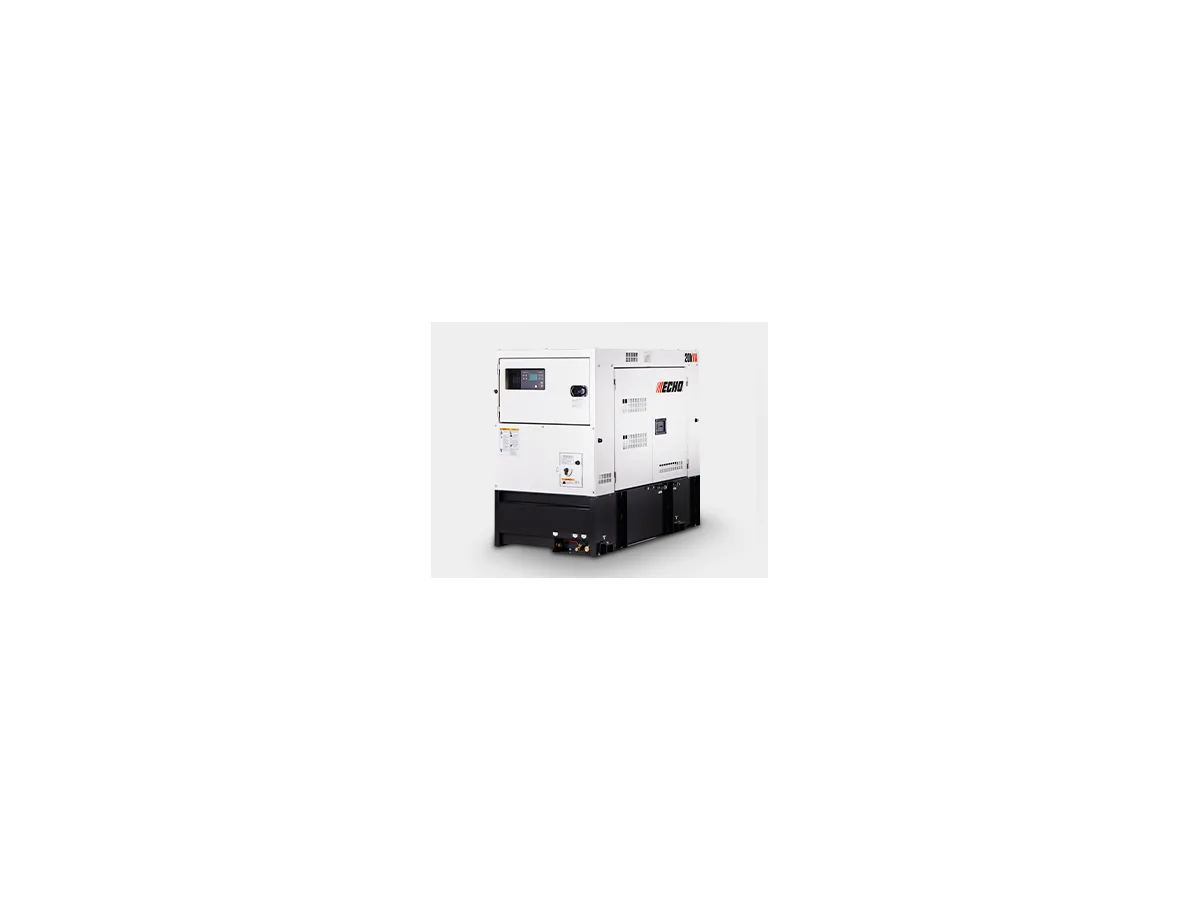

Echo Echo DGK20FS 22 kW liquid-cooled standby generator
