Generac · MG Series (Modular Gaseous)

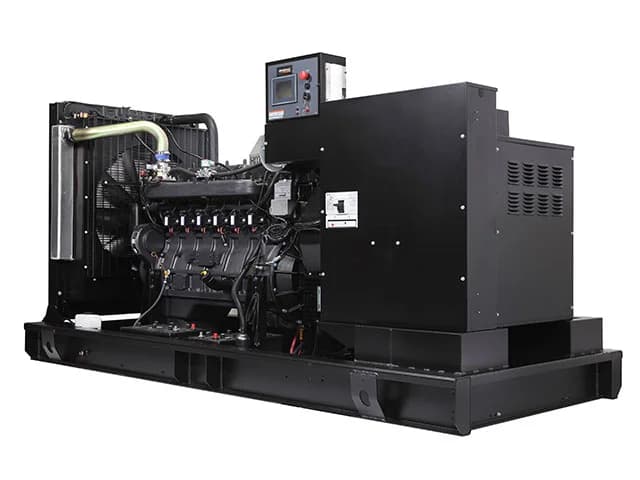

Generac MG200

200 kW standby / 180 kW prime · Natural Gas / LPG · Liquid-cooled

200 kW modular natural gas standby generator system. Factory-paralleled for N+1 redundancy.

Standby power
200 kW / 180 kW prime
Voltage options
120/208V, 277/480V, 346/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Generac 14.2L Inline-6 SI · 14.2L
Alternator
Generac K0200124Y21
CommercialManufacturingHealthcareData CentersGovernment
Configure & QuoteDownload spec sheet

Overview#

The Generac MG200 is a 200 kW modular natural gas generator rated at 200 kW / 250 kVA standby (180 kW / 225 kVA prime) at 60 Hz. It uses a Generac turbocharged 14.2L inline-6 spark-ignited engine and is built on the Modular Power System (MPS) platform with a Power Zone Pro Sync controller for factory-integrated paralleling capability. The MPS architecture enables N+1 redundancy configurations where multiple MG units operate in parallel. Natural gas fuel eliminates on-site diesel storage requirements and associated permitting.

Our Service Experience#

The MG200 uses the proven Generac 14.2L inline-6 turbocharged engine at 200 kW (155 psi BMEP per the spec sheet), a moderate loading for this platform. Exhaust temperatures reach 1,378 F at rated output. The Power Zone Pro Sync controller manages paralleling and load sharing when multiple MG units are deployed. With 6 spark plugs per unit, ignition maintenance is straightforward. Gas supply sizing must account for the 2,460 CFH demand at full load.

Engineering specifications

Physical

Length
128 in
Width
52.9 in
Height
62.3 in
Dry weight
5,281 lb

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Generac MG200

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Generac MG200

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

2,100,000 BTU/hr≈ 2100.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Generac MG200 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Air filter
Every 1000 hours
Spark plugs
Every 2000 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Spark plugsMisfiring, rough running, reduced power output2,000+minor
Gas regulator / fuel trainUnstable speed, hard starting, fuel pressure faults15,000+moderate
Paralleling controller synchronizationFailed sync, load sharing imbalance, hunting20,000+moderate
BatteryFailed to start, slow cranking8,760+minor

Frequently Asked Questions

What is the difference between the MG200 and the SG200?
The MG200 is a 200 kW gaseous generator built on Generac's Modular Power System (MPS) platform using a turbocharged 14.2L inline-6 engine with factory-integrated paralleling capability. The SG200 uses the same 14.2L engine platform but is configured as a standalone unit. The MG200's MPS architecture enables N+1 redundancy configurations and the ability to service one unit while others continue operating.
What fuel types does the MG200 support?
The MG200 supports both natural gas and liquid propane (LP/LPG). Natural gas is the most common fuel choice as it eliminates fuel storage requirements and provides unlimited runtime with utility gas service.
What voltages are available?
The MG200 supports three-phase configurations: 120/208V, 277/480V, and 346/600V at 60 Hz.

Compatible equipment

Transfer switches

Similar models

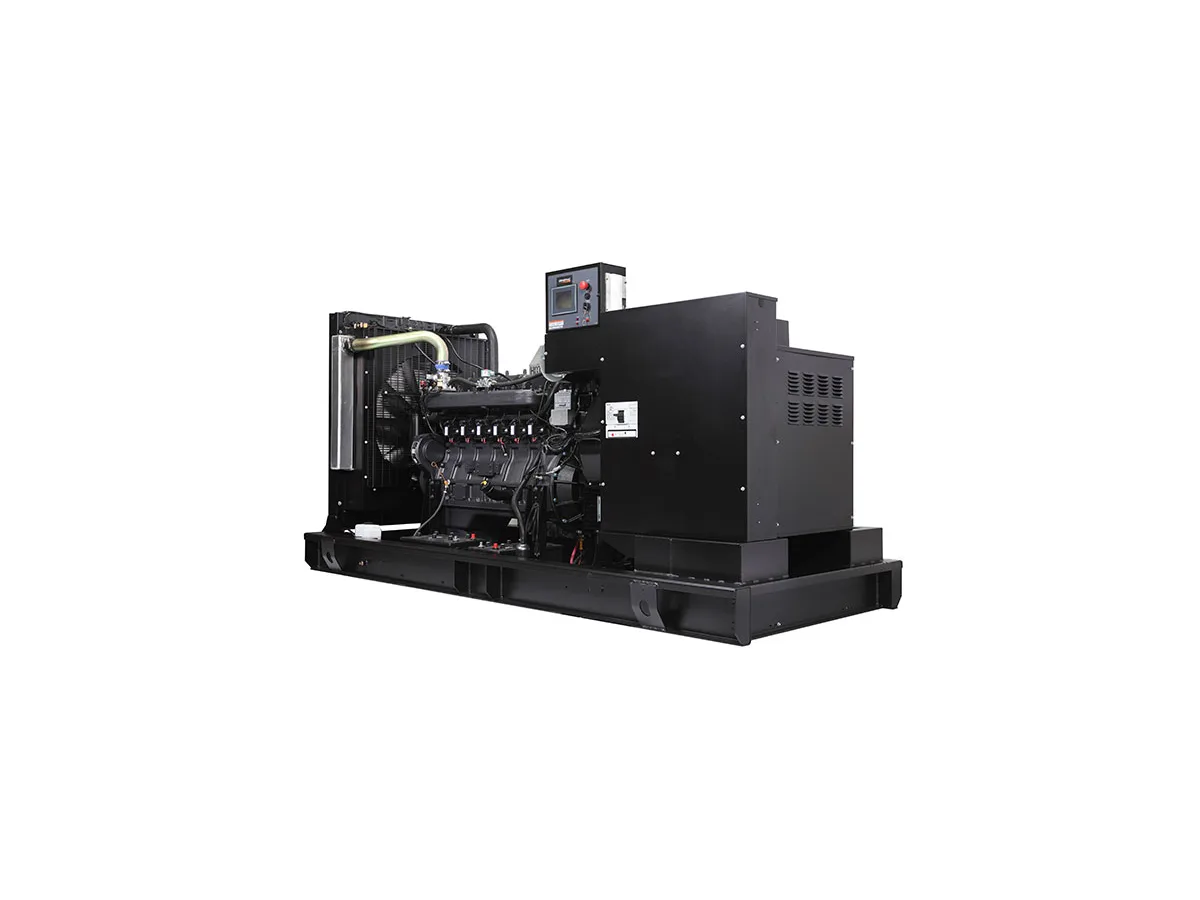

Generac Generac SG200 200 kW liquid-cooled standby generator

Generac

Generac SG200

200 kW natural gas standby. Eliminates diesel logistics. Paralleling-ready for larger installations.

200 kW standby · Natural Gas / LPG · Liquid-cooled

200 kW industrial gaseous standby generator. Generac's large-frame commercial natural gas platform competing with Kohler KG200 and Cummins C200 N6.

EPA Stationary Spark Ignition3-phaselarge-commercialhospital-non-critical

Generac

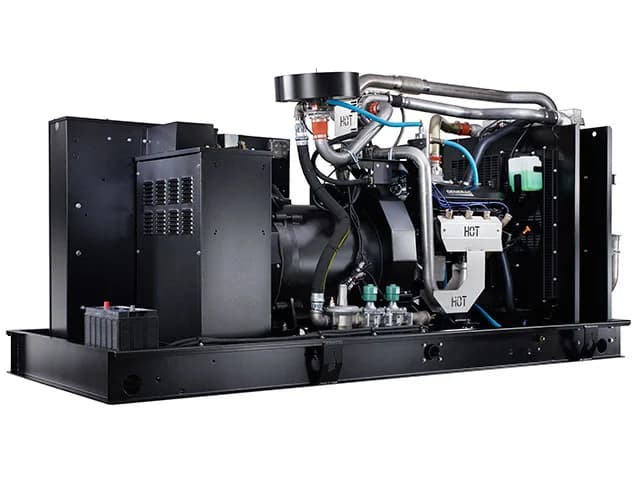

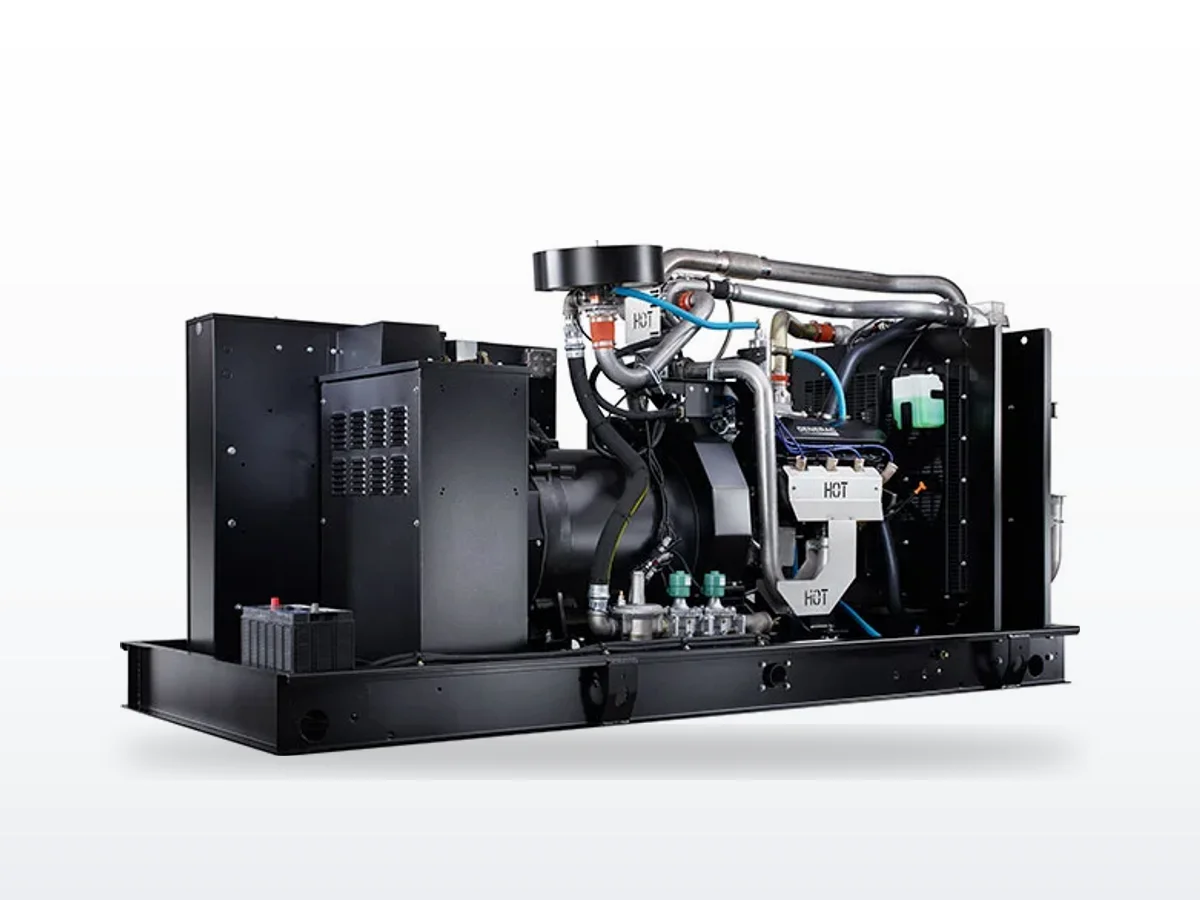

Generac MG150

150 kW modular natural gas with factory paralleling. N+1 redundancy, no fuel storage required.

150 kW standby · Natural Gas / LPG · Liquid-cooled

150 kW modular natural gas standby generator system. Factory-paralleled for N+1 redundancy.

3-phasecommercial-standbyindustrial

Generac

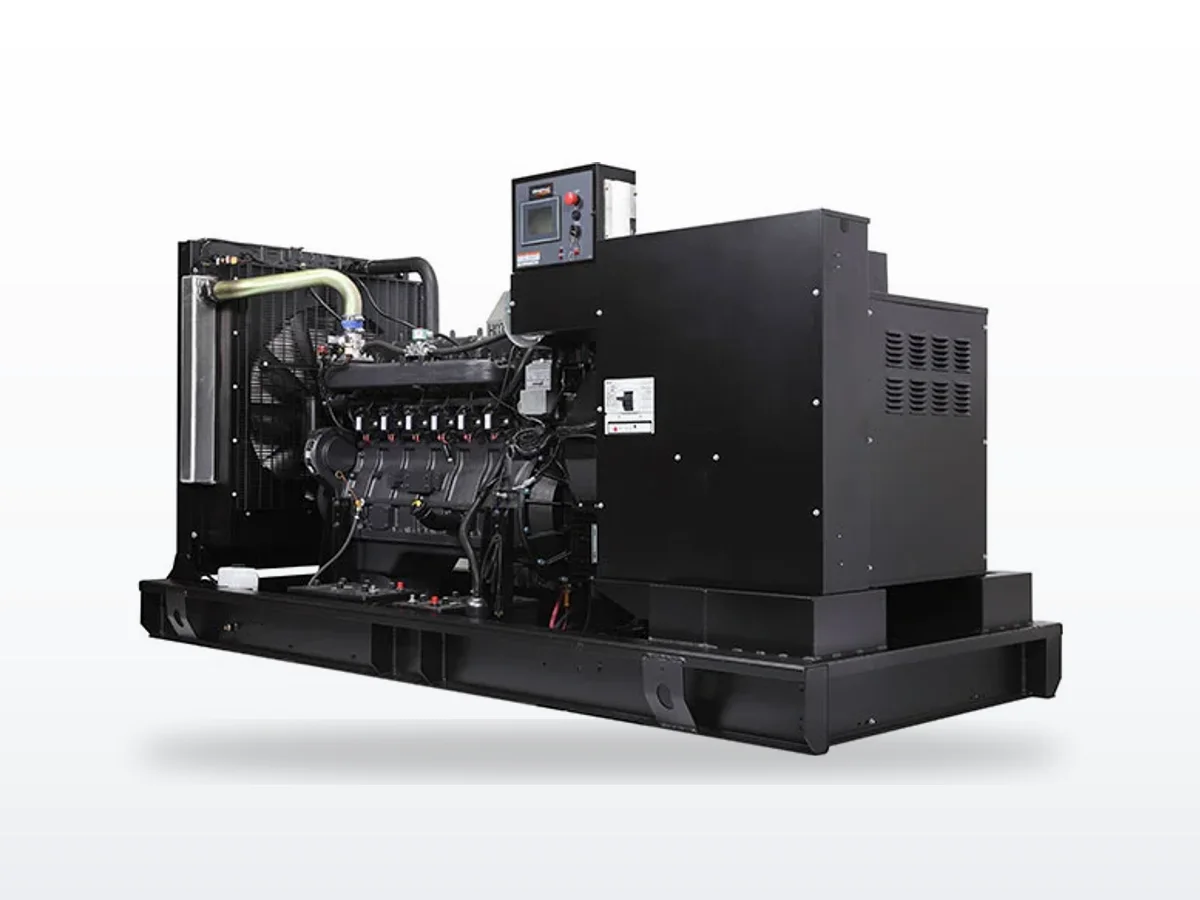

Generac MG250
