What engine does the Cummins C450 D6 use?

The C450 D6 uses the Cummins QSX15 -- a 15-liter, inline-6-cylinder DOHC diesel with 24-valve head design. The QSX15 was the first heavy-duty diesel with dual overhead camshaft technology, delivering more power from 30% fewer parts than comparable engines.

What are the standby and prime ratings of the C450 D6?

Standby rating is 450 kW (563 kVA) at 60 Hz, 0.8 power factor. Prime rating is 410 kW (513 kVA). Both at 1800 rpm, 60 Hz, three-phase.

What are the service intervals for the C450 D6?

Oil and filter changes are due at 500 hours or 12 months. Air filter replacement at 1,000-hour intervals. Fuel filter replacement at 500 hours. Coolant flush at 4,000 hours. Major overhaul interval is 20,000 hours under standard standby duty conditions.

How does the C450 D6 compare to the C500 D6?

Both use the QSX15 engine platform (15L, DOHC). The C450 D6 is a lower output calibration at 450 kW standby vs 500 kW for the C500 D6. Service intervals and maintenance procedures are identical. The C450 D6 runs at a more conservative power-to-displacement ratio, which may extend component life in continuous-duty applications.

Can {company} service the C450 D6 in Northern California?

Yes. OnPoint Generators provides authorized Cummins service for large commercial diesel generators across the San Francisco Bay Area and Northern California. The QSX15 DOHC design simplifies valve adjustment and top-end service compared to pushrod engines in this power class.

Cummins · Cummins D6 Commercial Diesel

Cummins C450 D6

Name: Cummins C450 D6
Brand: Cummins
SKU: c450-d6

450 kW standby / 410 kW prime · Diesel · Liquid-cooled

450 kW diesel standby generator with QSX15 inline-6 DOHC engine. EPA NSPS certified, PowerCommand control, liquid-cooled, for large commercial and industrial standby applications.

Standby power: 450 kW / 410 kW prime
Voltage options: 277/480V, 120/208V
Frequency / Phase: 60 Hz · 3-phase
Engine: Cummins QSX15 · 15L
EPA / Emissions: Tier 2

Commercial Manufacturing Data Centers Healthcare

Configure & Quote Download spec sheet

Overview#

The Cummins C450 D6 is a 450 kW standby diesel generator set powered by the QSX15 -- a 15-liter, inline-6-cylinder DOHC diesel engine. The QSX15 was a landmark platform in heavy-duty power generation: the first diesel to feature 24-valve dual overhead camshaft technology, delivering more power from 30% fewer parts while eliminating external fluid lines that are common failure points on traditional engines.

Rated at 563 kVA standby and 513 kVA prime at 60 Hz, the C450 D6 targets large commercial, hospital, and industrial standby applications. The integrated Coolpac cooling package and PowerCommand controller are standard. The QSX15's simplified top-end design -- no pushrods, no rocker arms -- means valve adjustment is straightforward and the valve train is inherently more reliable than pushrod engines in this power class.

The C450 D6 sits in the middle of the QSX15 power band, between the QSG12-powered C400 D6 below and the QSX15-powered C500 D6 above. For sites that need more than 400 kW but want to stay on a single genset without stepping up to the larger QSK19 platform, the C450 D6 is the right fit.

Engineering specifications

Physical

Length: 89 in
Width: 52 in
Height: 66 in
Dry weight: 5,800 lb

Fuel system & runtime

Fuel use @ full load: 31.5 GPH
Fuel use @ 75% load: 23.5 GPH
Fuel use @ 50% load: 17 GPH

Ready to order this model?

Configure your Cummins C450 D6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote

Estimate runtime for the Cummins C450 D6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

8.2 hours(0.3 days)

Fuel consumption ≈ 24.30 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Cummins C450 D6 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
High-pressure fuel injection system	Rough running, smoke, power loss, hard starting	—	moderate
Holset HX82 turbocharger	Reduced power, oil in intake, excessive smoke	—	moderate
Fuel quality degradation	Filter clogging, injector fouling from stagnant fuel	—	moderate
Battery banks (24V)	Slow crank, failed start on standby units with low exercise	—	minor

Frequently Asked Questions

What engine does the Cummins C450 D6 use?: The C450 D6 uses the Cummins QSX15 -- a 15-liter, inline-6-cylinder DOHC diesel with 24-valve head design. The QSX15 was the first heavy-duty diesel with dual overhead camshaft technology, delivering more power from 30% fewer parts than comparable engines.
What are the standby and prime ratings of the C450 D6?: Standby rating is 450 kW (563 kVA) at 60 Hz, 0.8 power factor. Prime rating is 410 kW (513 kVA). Both at 1800 rpm, 60 Hz, three-phase.
What are the service intervals for the C450 D6?: Oil and filter changes are due at 500 hours or 12 months. Air filter replacement at 1,000-hour intervals. Fuel filter replacement at 500 hours. Coolant flush at 4,000 hours. Major overhaul interval is 20,000 hours under standard standby duty conditions.
How does the C450 D6 compare to the C500 D6?: Both use the QSX15 engine platform (15L, DOHC). The C450 D6 is a lower output calibration at 450 kW standby vs 500 kW for the C500 D6. Service intervals and maintenance procedures are identical. The C450 D6 runs at a more conservative power-to-displacement ratio, which may extend component life in continuous-duty applications.
Can OnPoint Generators service the C450 D6 in Northern California?: Yes. OnPoint Generators provides authorized Cummins service for large commercial diesel generators across the San Francisco Bay Area and Northern California. The QSX15 DOHC design simplifies valve adjustment and top-end service compared to pushrod engines in this power class.

Compatible equipment

Transfer switches

Similar models

Cummins

Cummins C400 D6

400 kW diesel with full Cummins vertical integration. 100% load in 10 seconds. 10-15% below CAT at comparable kW.

400 kW standby · Diesel · Liquid-cooled

400 kW diesel standby for large hospitals, industrial plants, and data centers with critical loads.

400 kW diesel standby generator with QSG12-G4 inline-6 engine and HPCR fuel system. EPA Tier 3 compliant, PowerCommand control, liquid-cooled, for large commercial and industrial standby applications.

Tier 33-phasecommercial-standbylarge-commercial

Cummins

Cummins C500 D6

500 kW diesel with QSX15 DOHC engine. 30% fewer parts than comparable platforms. Full Cummins vertical integration.

500 kW standby · Diesel · Liquid-cooled

500 kW diesel standby for Tier III data centers, major hospitals, and large industrial facilities.

500 kW diesel standby generator with QSX15 inline-6 DOHC engine. EPA NSPS certified, PowerCommand control, liquid-cooled, for large commercial, industrial, and data center standby applications.

Tier 23-phasecommercial-standbylarge-commercial

Cummins

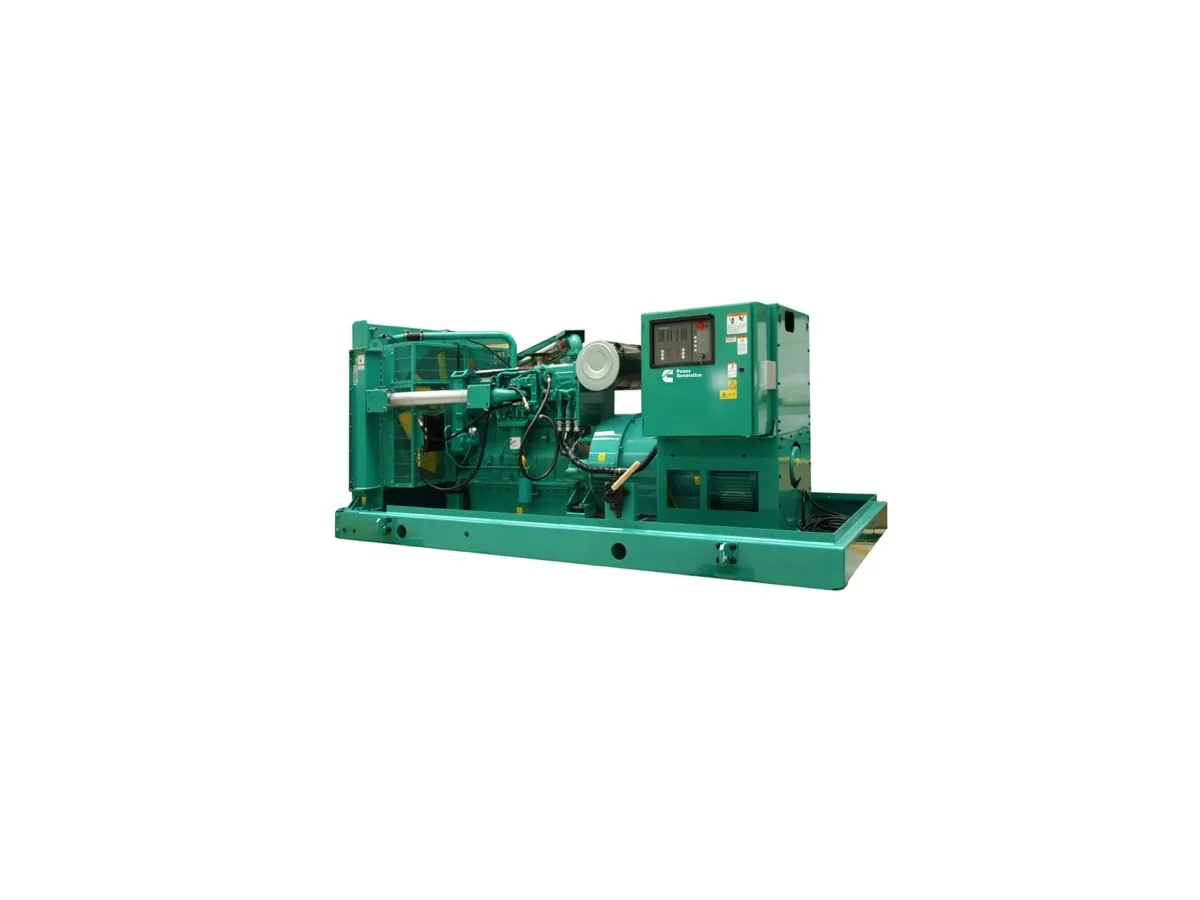

Cummins QSX15
