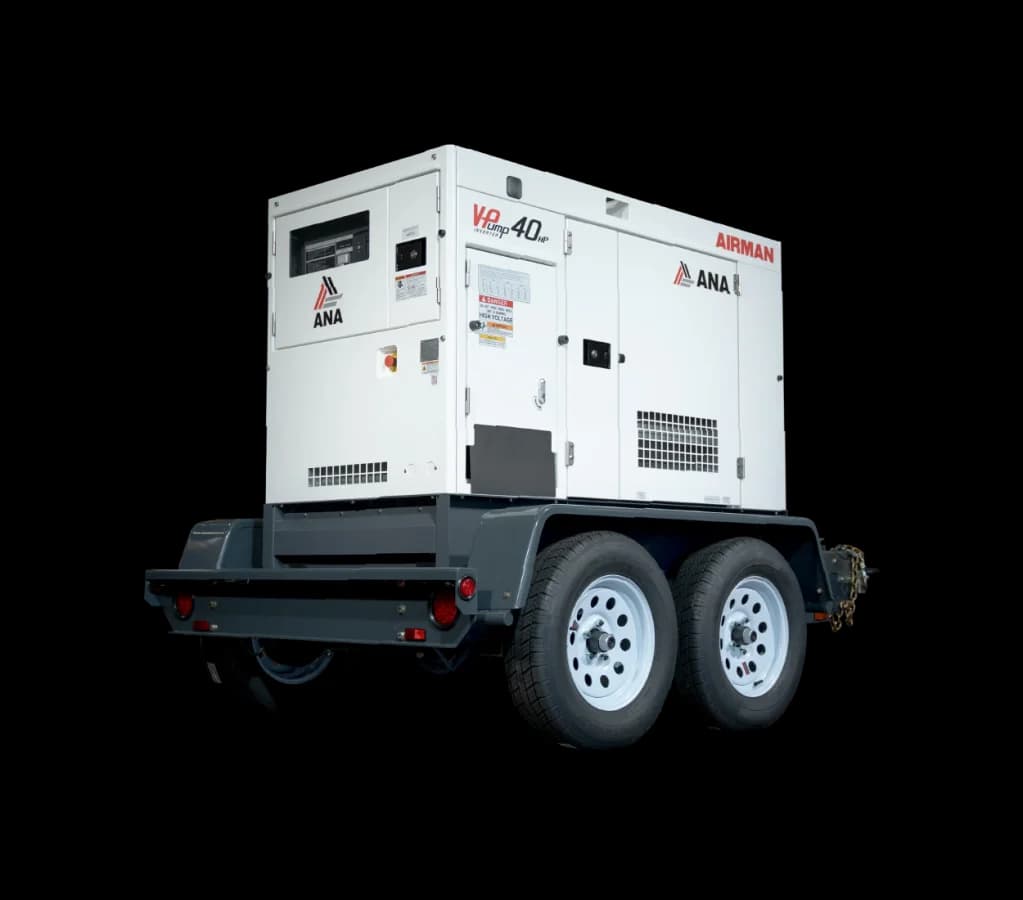

The Airman SDG45SV-8E1 is a 45 kVA V-Pump variant featuring an integrated Mitsubishi FR-F800 variable frequency drive for motor starting and dewatering applications. Based on the SDG45S platform with an Isuzu 4LE2X engine, the V-Pump variant enables direct pump motor control without external VFD equipment. Standard 110% fluid containment and EPA Tier 4 Final compliance. Built by Hokuetsu Industries in Japan. At 36 kW prime, the SDG45SV provides nearly double the capacity of the smaller SDG25SV, making it the choice for larger dewatering operations and sites that need to run pumps alongside other construction loads.
Like the smaller SDG25SV, the SDG45SV features a factory-integrated Mitsubishi FR-F800 variable frequency drive. The larger 36 kW prime rating allows the SDG45SV to drive bigger submersible and trash pump motors while still leaving capacity for auxiliary loads — site lighting, power tools, or temporary office trailers. The VFD provides soft-start capability that reduces inrush current and mechanical stress on pump impellers, precise speed control for matching pump output to actual dewatering demand, and the elimination of a separate VFD rental and its associated cabling. The Isuzu 4LE2X engine delivers reliable power at a moderate specific output, and the 80.5-gallon fuel tank extends unattended operation for continuous dewatering through overnight excavation phases.
The SDG45SV is our mid-range dewatering solution for sites that need more capacity than the SDG25SV can deliver. We deploy it on larger excavation projects — parking structure foundations, basement dig-outs for mixed-use buildings, and utility trench work in areas with high water tables. The 36 kW prime rating gives contractors enough headroom to run a large submersible pump at variable speed while powering site lighting or a small compressor.
At 3,337 lbs operating weight, the SDG45SV still fits on a standard trailer for single-truck mobilization. The 80.5-gallon tank provides extended runtime for continuous pump operation — a meaningful advantage over the SDG25SV's 52-gallon tank during multi-day dewatering runs. Maintenance follows the same 250-hour oil change schedule as the standard SDG45S platform. The VFD cooling system and drive connections receive additional inspection during scheduled service visits, but the Mitsubishi FR-F800 drive has proven very reliable in our fleet with minimal drive-specific issues.
Engineering specifications
Physical
Length
74.8 in
Width
38.2 in
Height
61.4 in
Dry weight
2,954 lb
Wet weight
3,337 lb
Fuel system & runtime
Integral fuel tank
80.5 gal
Request a quote
Get pricing & lead time on the Airman SDG45SV V-Pump
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
38.2 hours(1.6 days)
Fuel consumption ≈ 2.11 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Airman SDG45SV V-Pump under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Clogging from contaminated or stale diesel causes hard starting and power loss — replace at 500-hour intervals or sooner if fuel quality is suspect
500+
minor
Starting battery
Capacity degradation during extended storage without a maintainer — test under load at every service visit and replace proactively at 36 months
4,380+
minor
Coolant hoses
Weeping at clamp points from thermal cycling — inspect during every oil change and replace at first sign of swelling or seepage
5,000+
minor
Frequently Asked Questions
What is the standby rating of the Airman SDG45SV?
The Airman SDG45SV delivers 39 kW standby / 36 kW prime at 60 Hz (45 kVA) — the same power rating as the standard SDG45S platform, with the addition of an integrated Mitsubishi FR-F800 variable frequency drive for direct pump motor control.
What engine does the Airman SDG45SV use?
The SDG45SV is powered by an Isuzu 4LE2X — a turbocharged diesel running at 1,800 RPM with EPA Tier 4 Final compliance. It is the same proven engine platform used in the standard SDG45S.
What is Airman's warranty claim rate?
Airman generators are built by Hokuetsu Industries in Japan and carry a documented 0.001% warranty claim rate — the lowest in the portable generator industry. This figure reflects the precision manufacturing standards applied to every unit built at the Hokuetsu facility.
What are the service intervals for the SDG45SV?
The Isuzu 4LE2X engine in the SDG45SV requires oil and filter changes every 500 hours or 12 months (whichever comes first), air filter replacement at 500 hours, fuel filter replacement at 500 hours, and is rated for major overhaul at 20,000 hours. The integrated VFD cooling system and drive connections should be inspected at each oil change service.
Is the SDG45SV EPA compliant?
Yes. The Airman SDG45SV meets EPA Tier 4 Final emissions standards through its Isuzu 4LE2X engine. The unit is California-compliant for construction and dewatering applications.
What fluid containment does the SDG45SV have?
All Airman generators, including the SDG45SV, feature 110% fluid containment as standard. The integrated drip tray holds more than the total volume of all engine fluids, eliminating the need for separate secondary containment on California job sites.
Who services Airman generators in Northern California?
OnPoint Generators is the authorized Airman service provider for Northern California. We stock parts, perform warranty service, and offer maintenance contracts for the full Airman SDG V-Pump lineup including the SDG45SV.
Similar models
Airman

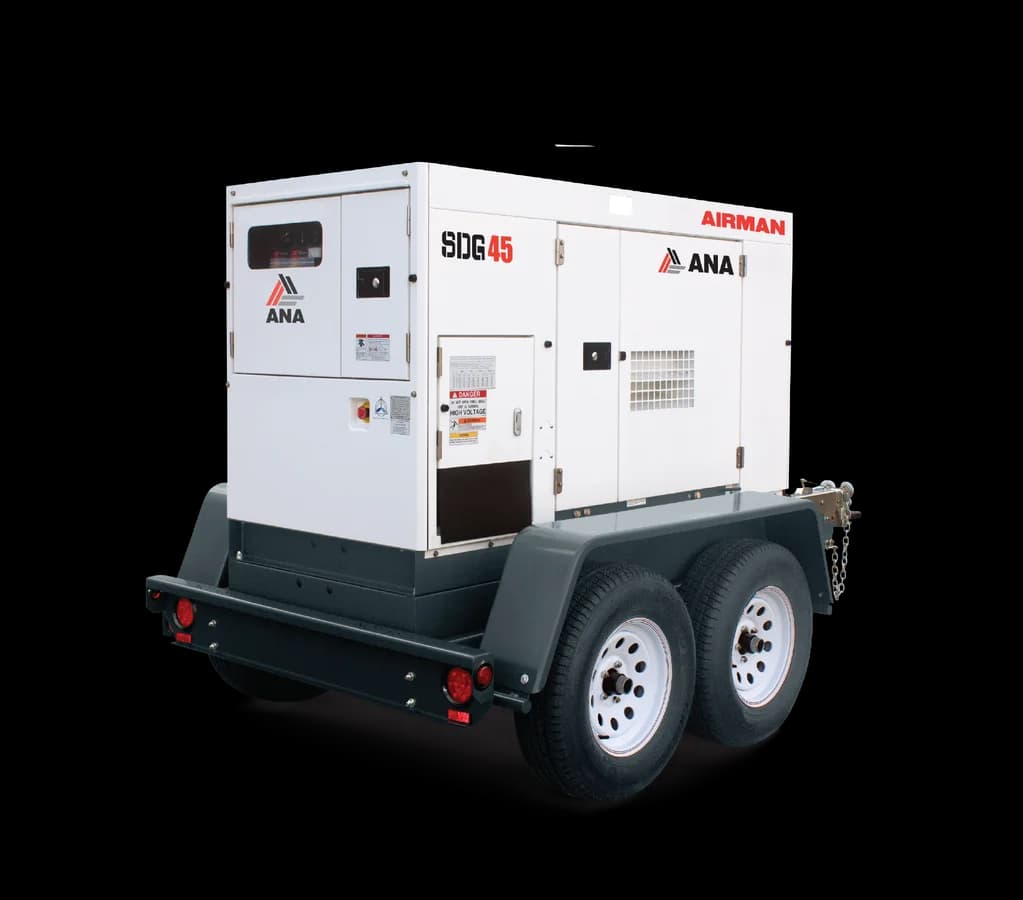

Airman SDG45
