Stamford UCI224

Frequently Asked Questions

What is the kW range of the Stamford UCI224?

Approximately 22-77 kW depending on the specific winding. The series spans four common variants — UCI224D (~22-32 kW), UCI224E (~33-46 kW), UCI224F (~47-60 kW), and UCI224G (~60-77 kW) — at 1800 RPM 60 Hz with three-phase 208V/480V outputs. Single-phase windings (e.g., UCI224D-311-1P) are also available at lower kW.

Is the UCI224 brushless?

Yes. The UCI224 is a four-pole, brushless, self-excited alternator. Excitation is via the SX460 AVR which feeds the exciter stator from the main stator output, with a rotating rectifier in the rotor assembly transferring DC to the main field. No brushes or slip rings to wear.

What AVR comes standard on the UCI224?

The Stamford SX460 AVR. It is a self-excited (shunt-derived) AVR with frequency rolloff protection (drops voltage at low engine speed to prevent over-excitation during start). For tighter voltage regulation under nonlinear loads, the AS440 or MX341 AVR can be retrofitted.

What is the difference between single-bearing and double-bearing UCI224?

Single-bearing alternators couple directly to the engine flywheel via a SAE flange and disc. Double-bearing alternators have their own drive-end bearing and couple to the engine via a flexible coupling. Single-bearing is more common in genset packaging (less length, lower cost). Double-bearing is used when the engine flywheel can't support the alternator weight or when isolation between engine and alternator is required.

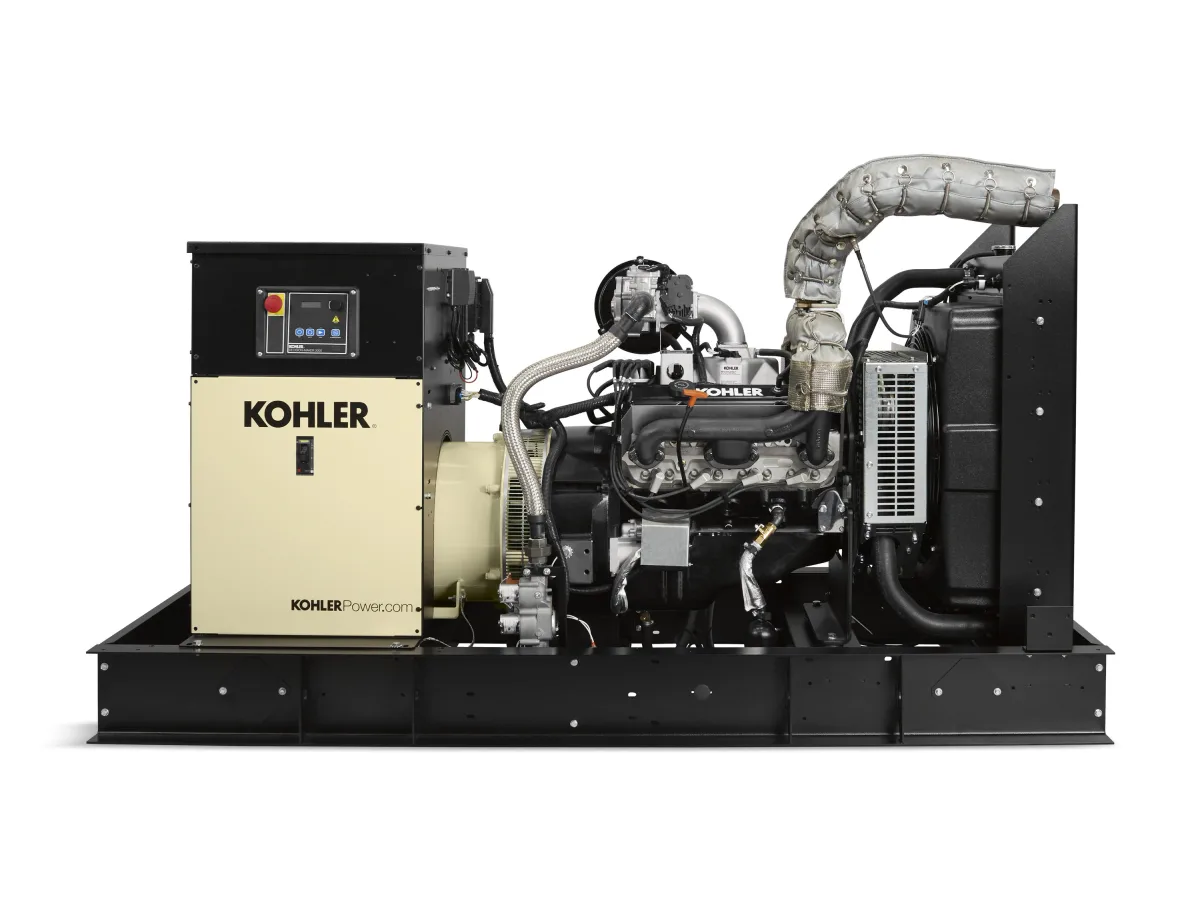

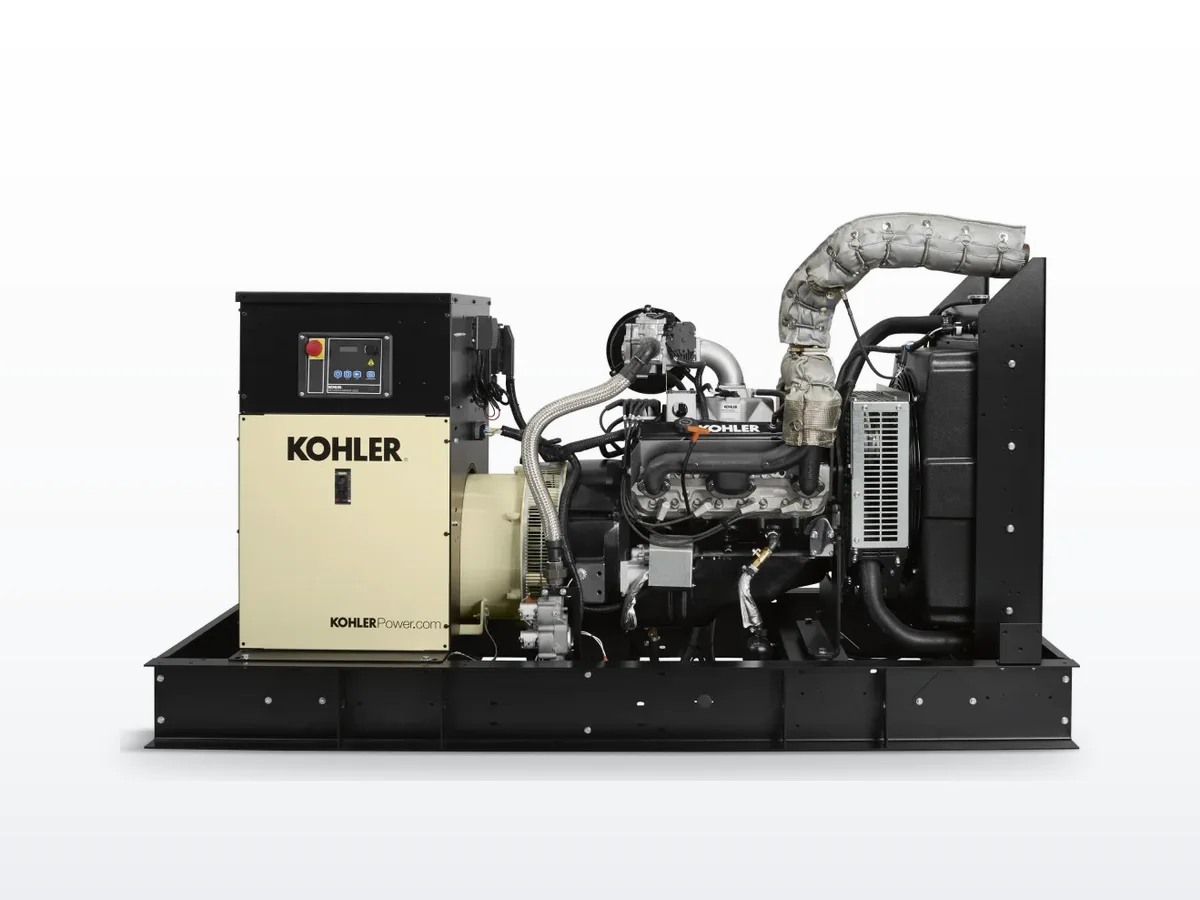

Which gensets typically use the UCI224?

Many 30-80 kW gensets, both gaseous and diesel. The UCI224 is one of the highest-volume Stamford alternator frames in commercial standby and appears on private-label and OEM packaged gensets across the 30-80 kW class. For any specific OEM platform, confirm against the published bill of materials rather than assuming compatibility.

Does the UCI224 work with electronic loads (UPS rectifiers, VFDs)?

Yes, but with caveats. The standard SX460 AVR has limited harmonic compensation. For applications with significant nonlinear load (>20% of capacity), upgrade to the AS440 or MX341 AVR for better voltage regulation. The PMG-excited Stamford alternators (different model series) handle nonlinear loads better, but the UCI224 base architecture is shunt-excited.

How long does a UCI224 typically last?

30+ years of service life under normal commercial standby duty. The most common service item is bearing replacement at 50,000-100,000 hours (which most standby units never reach). AVR failures occur occasionally — typically tied to lightning surge or overspeed events, not normal wear.

Service Specifications

Key Terms

Self-excited (shunt) AVR

AVR draws excitation power from the main stator output. Simple, cheap, but sensitive to large step loads. The SX460 falls in this category.

PMG (Permanent Magnet Generator) excitation

AVR draws excitation from a separate small permanent-magnet generator on the alternator shaft. More stable under nonlinear loads, larger short-circuit support, but adds cost. UCI224 base does NOT have PMG.

Class H insulation

Winding insulation system rated for 180°C operation. Industry standard for industrial alternators since the late 1990s.

Frequency rolloff (V/Hz)

AVR feature that reduces voltage at low engine speed to prevent over-excitation during start/stop transients. Standard on the SX460.
