Overview#
The Triton Power TP-JD110-T4F is a 110 kW (138 kVA) diesel standby generator powered by the John Deere 4045HFG09 turbocharged four-cylinder engine with 4.5 L displacement. This engine extracts maximum output from the proven 4045 platform while maintaining EPA Tier 4 Final emissions compliance. The Leroy Somer LSA44.3 alternator delivers reliable three-phase power, and the 680-liter (180-gallon) integral fuel tank supports extended runtime.
At 66 dBA, the TP-JD110-T4F maintains commercial-grade noise levels while stepping into the 100+ kW class that serves larger retail, education, and light industrial facilities. The unit is available in 120/208V and 277/480V three-phase configurations at 60 Hz.
Our service experience#

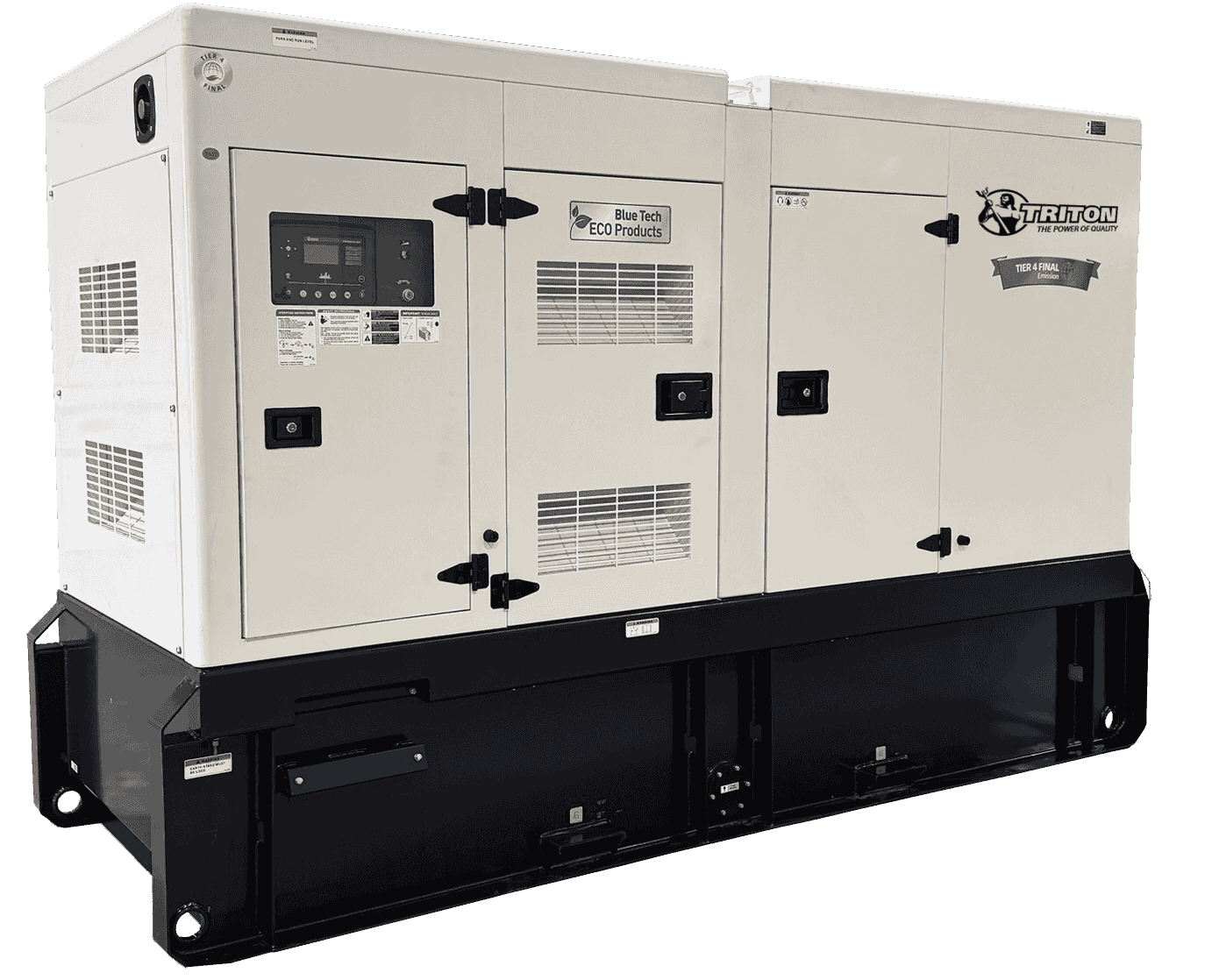

The 110 kW rating represents the upper limit of the John Deere 4045 four-cylinder platform, offering a compact footprint compared to six-cylinder competitors at the same power level. Parts commonality with the 70 kW and 88 kW Triton JD models (all sharing the 4045 block) simplifies fleet maintenance. At this power class, the TP-JD110-T4F competes directly with the Cummins C100 D6 and Generac SD100, offering Tier 4 Final compliance at a competitive acquisition price.
