Overview#

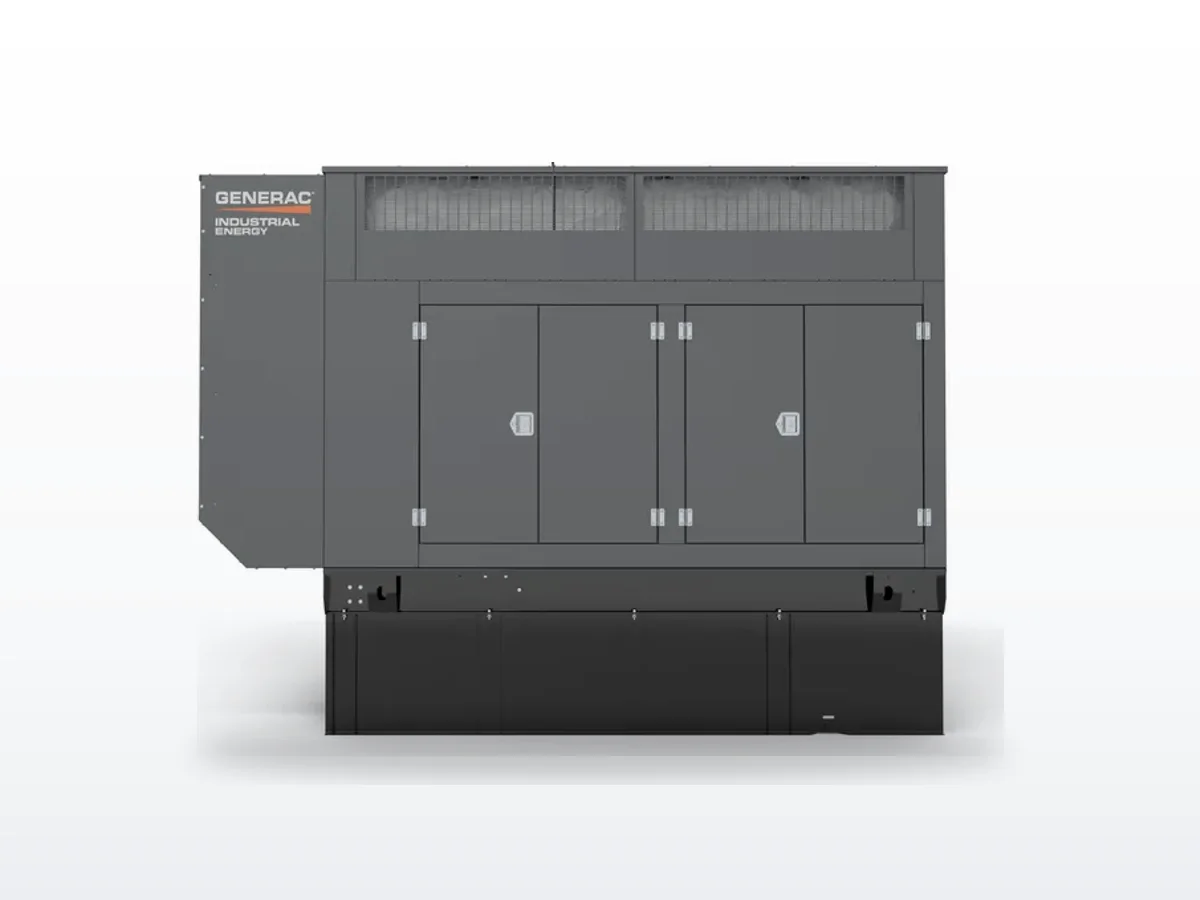

The Generac SD200 is a 200-kilowatt diesel standby generator powered by an Iveco/FPT 8.7-liter turbocharged and aftercooled inline-six engine. Rated at 200 kW standby and 180 kW prime, it sits in the mid-range of Generac's SD Series industrial diesel lineup and serves commercial, healthcare, and light-industrial standby applications.
Generac pairs the 8.7L Iveco with their 520 mm alternator featuring Class H insulation, permanent magnet excitation, and sealed bearings. The Digital H control panel includes full system monitoring, NFPA 110 Level I and II programmability, Modbus communications, RS-232/485, and a predictive maintenance algorithm. The 200 kW class is one of the most commonly specified power levels for commercial standby applications.
Stepping up from the 6.7L to the 8.7L#
The SD200 moves from the 6.7L engine in the SD100 to the 8.7L platform, gaining two liters of displacement and jumping from 152 hp to 320 hp at rated kW. Despite the significant power increase, the genset footprint remains identical at 128 x 54 inches, making the SD200 a direct upgrade path for sites that outgrow a 100 kW unit without requiring a larger equipment pad. The 8.7L uses electronic common rail fuel injection (versus mechanical injection on the 6.7L), providing improved fuel efficiency at partial loads and quieter combustion.
Our service experience#
The SD200 is among the most commonly deployed Generac diesel units we service in Northern California. At 14.8 gph full load, it provides good fuel economy for the 200 kW class. The permanent magnet excitation system on the 520 mm alternator eliminates the need for exciter windings, reducing one potential failure mode. We recommend exercising the unit weekly and verifying the 120 VAC coolant heater function at every service visit. Heat rejection to coolant at 545,646 BTU/hr requires proper ventilation -- verify inlet air capacity of at least 8,872 CFM when sizing the generator room.
