SENS · MicroGenius (Engine Start Battery Chargers)

New

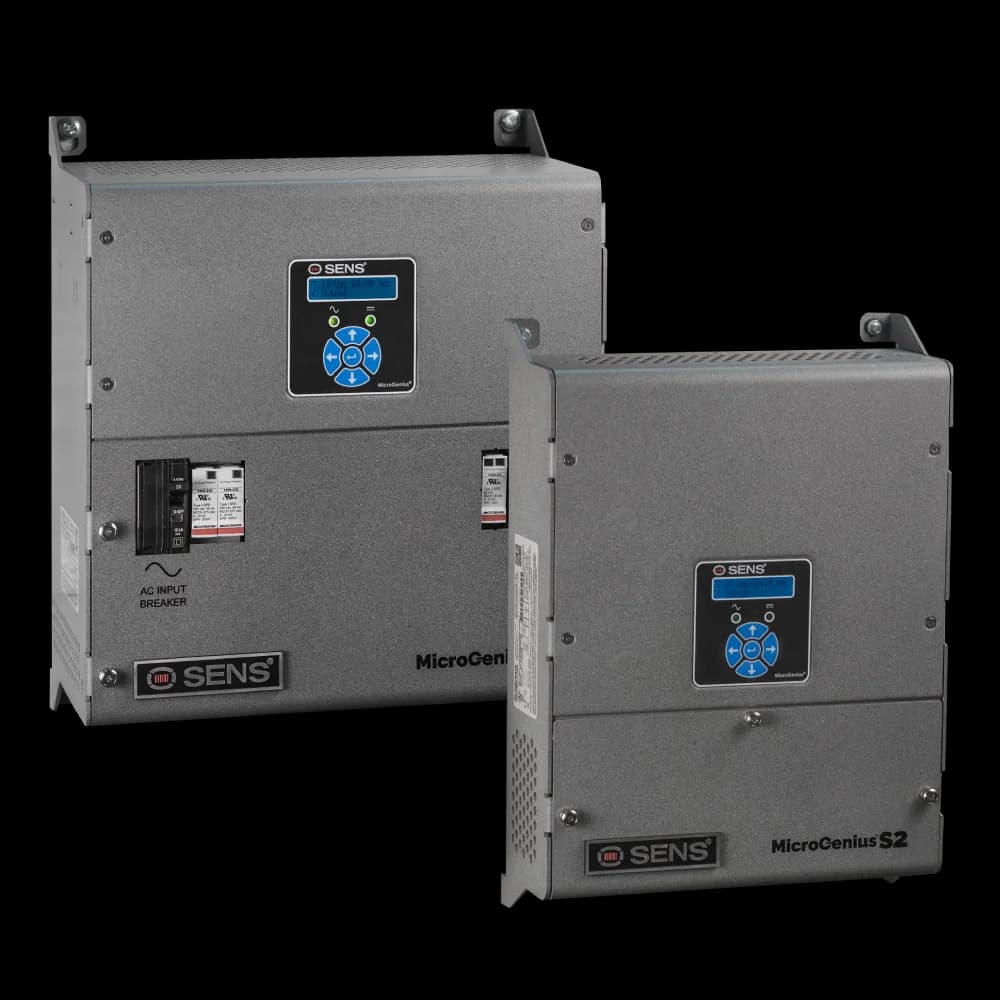

SENS MicroGenius S2 Battery Charger

Batteries & Chargers

12-120VDC mid-range switchmode battery charger system. 20-50A output using paralleled MicroGenius 2 modules. Optional redundancy, dual outputs, circuit breakers. For mid-size to large generators.

Overview#

The SENS MicroGenius S2 fills the gap between the standalone MicroGenius 2 (6-25A) and the high-current S4 (25-100A). It uses the same proven MicroGenius 2 switchmode modules in a paralleled configuration, delivering 20 to 50 amps at 12-120VDC with integrated circuit breakers and optional redundancy.

The S2 is the right choice for mid-size generators (500-1000 kW) where the starting battery demands exceed what a single MicroGenius 2 can deliver, but the full S4 system would be oversized.

Our service experience#

We spec the S2 for mid-size commercial generators where dual independent outputs or circuit breakers are needed. The modular architecture means field service is straightforward — if a module needs replacement, it's a MicroGenius 2 swap, the same unit we carry on every service truck.

Frequently Asked Questions

What is the MicroGenius S2 and when should I choose it?
The S2 is a multi-module system using paralleled MicroGenius 2 chargers, delivering 20-50A output. Choose the S2 when your DC current needs exceed 25A (the MicroGenius 2 maximum) but stay at or below 50A. It also adds circuit breakers and supports redundant or dual independent outputs — features the standalone MicroGenius 2 doesn't offer.
How does the S2 compare to the S4?
The S2 handles 20-50A, the S4 handles 25-100A. Choose the S4 when you need more than 50A, aided surge suppression, or 2+ independent battery banks. For mid-size generators in the 500-1000 kW range, the S2 is typically the right fit. For large-frame generators above 1000 kW, step up to the S4.
Does the S2 support redundancy?
Yes — the S2 can be configured with redundant outputs or dual independent 25A outputs. Because it uses independent MicroGenius 2 modules internally, a single module failure doesn't take the entire charger offline.

Need service for the SENS MicroGenius S2 Battery Charger?

Our technicians work on every major component OEM. We stock common parts and source rare ones.
