Overview#

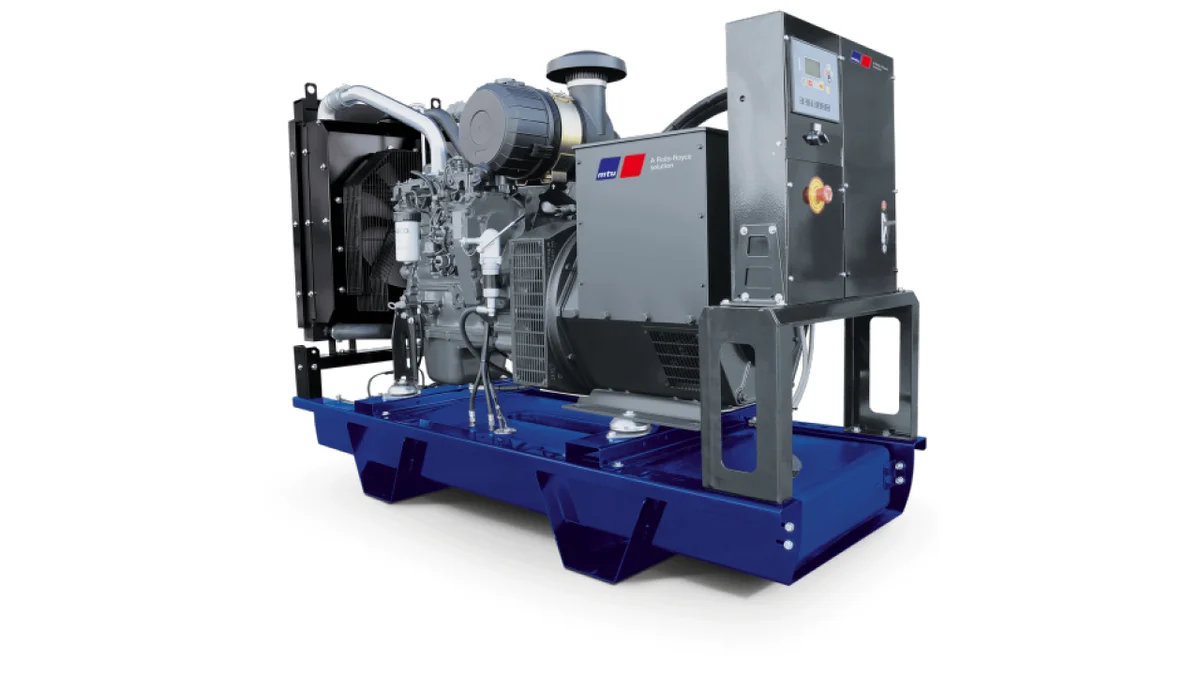

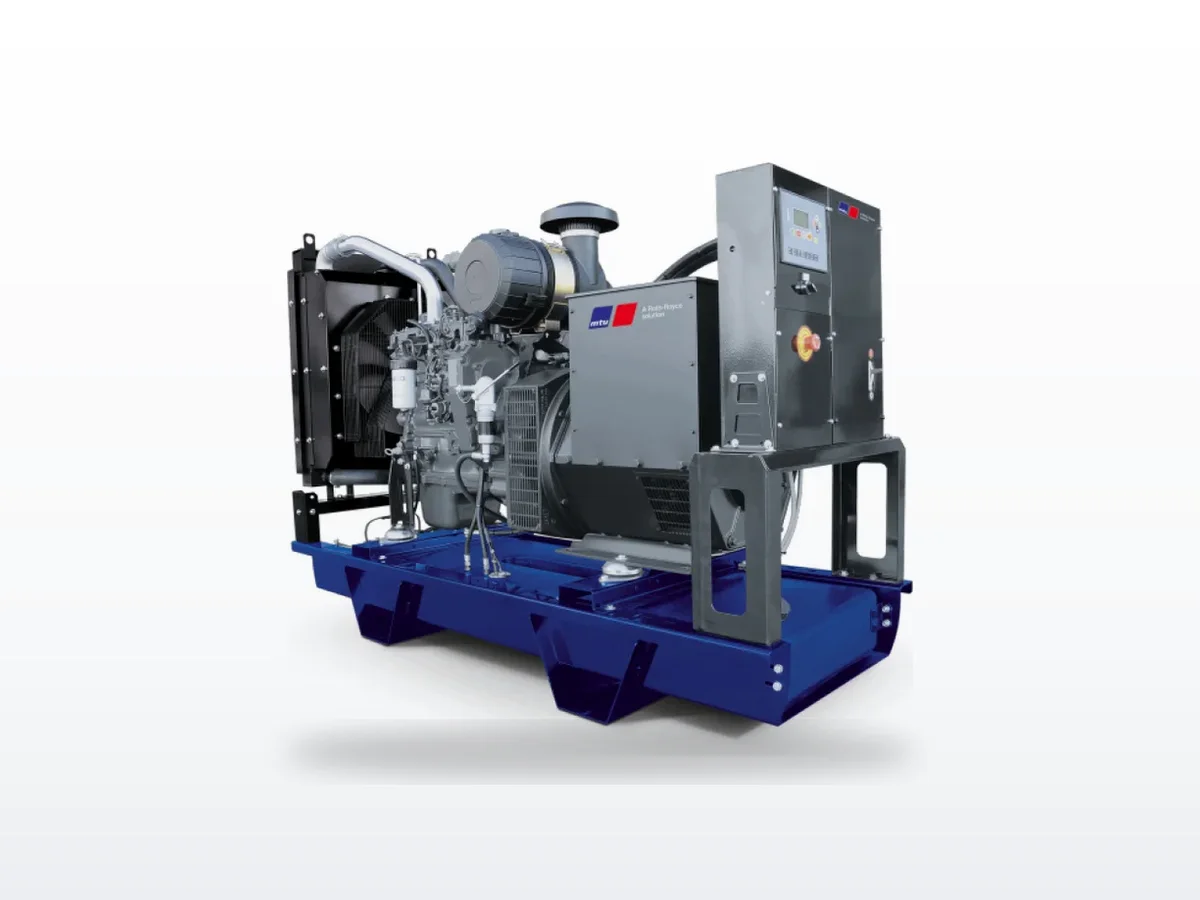

The MTU 6R0225 DS400 is a 400 kW standby diesel generator set powered by a John Deere 6135HFG84 engine — a 13.5-liter, inline six-cylinder diesel with turbocharging and aftercooling that produces up to 460 kWm (617 bhp) at 1800 RPM. The genset is rated at 400 kW (500 kVA) standby, with output voltage configurations spanning 208V through 600V in three-phase arrangements. The unit carries EPA Tier 3 and SCAQMD certifications for stationary emergency operation.
The DS400 pairs the 6135HFG84 engine with a 433CSL6220 alternator — a 4-pole, Class H unit. The complete package measures 137 x 80.5 x 95.2 inches and weighs 7,637 lb dry. Like the DS300, the Tier 3 emissions compliance avoids exhaust aftertreatment hardware, keeping the installation and maintenance profile straightforward.
The John Deere 6135 platform#
The John Deere 6135 is the larger sibling of the 6090, stepping from 9.0 liters to 13.5 liters while retaining the inline-6 layout. The 5.2-inch bore and 6.5-inch stroke with a 16:1 compression ratio and common-rail fuel injection deliver strong low-end torque and responsive transient behavior for facilities with large motor starting loads or variable demand profiles. At the DS400 rating, exhaust flow is 2,606 CFM at 981 degrees F, and combustion air demand is 996 SCFM.

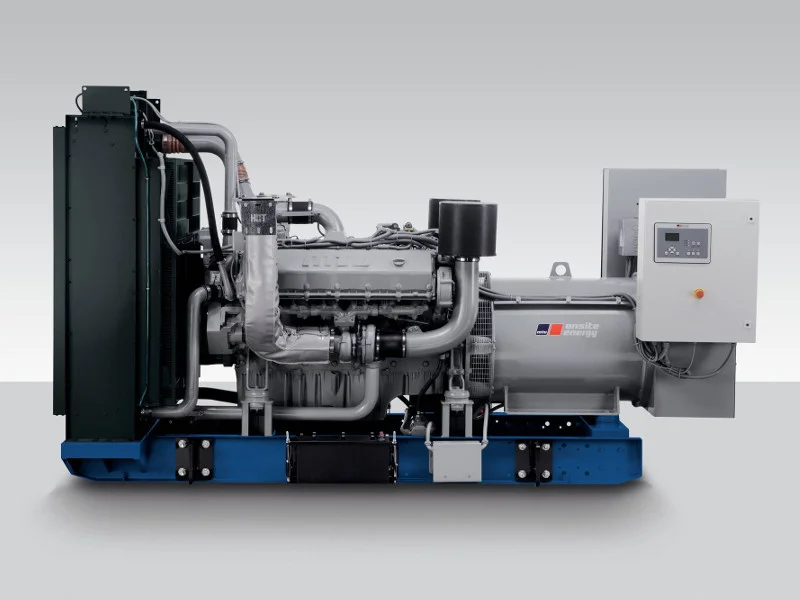

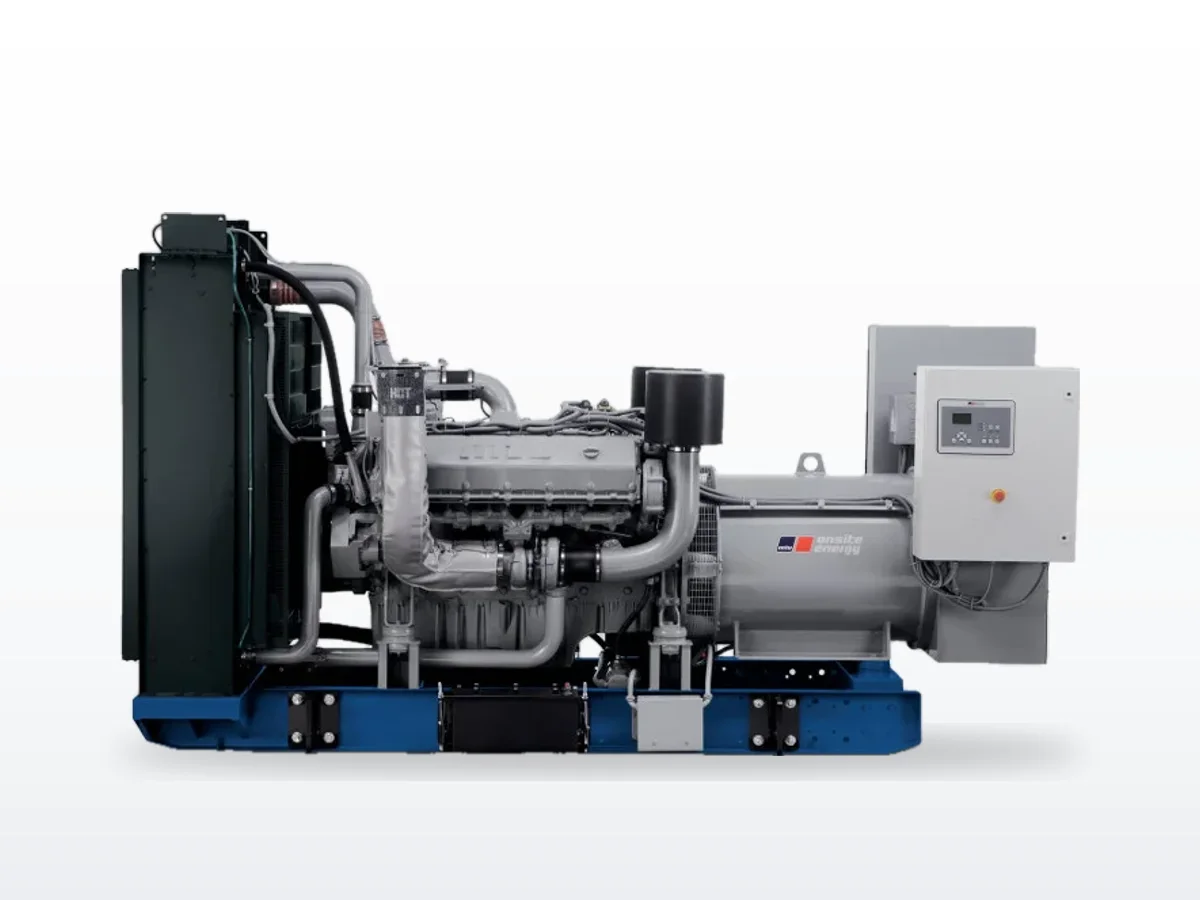

The 6135 platform bridges the gap between the lighter 6090-based units (200–300 kW) and the mtu-engineered V-configuration engines that begin at the 8V1600 DS350. While the 8V1600 uses a proprietary mtu engine, the DS400's John Deere powerplant offers the same parts availability and dealer network advantages as the DS300 — a meaningful consideration for facilities that prioritize ease of long-term maintenance over brand uniformity.
Our service experience#
We deploy the 6R0225 DS400 in applications where 300 kW is insufficient but stepping to the mtu V-engine platform is unnecessary or undesirable due to budget or maintenance considerations. Typical installations include mid-size healthcare facilities, commercial high-rises, and industrial sites across the Bay Area and Northern California. The 400 kW rating covers the emergency load for most buildings in the 100,000–200,000 square foot range.
The John Deere 6135 engine provides the same excellent parts availability as the smaller 6090 — filters, belts, and injectors are well-stocked across the Northern California John Deere dealer network. Sound output at 89.2 dBA (open unit at 7 meters) is moderate for the 400 kW class and can be addressed with standard sound-attenuated enclosures where noise ordinances apply. For fuel system planning, the 29 gph full-load consumption means a standard 500-gallon sub-base tank provides approximately 17 hours of runtime at full load — adequate for most utility outage scenarios but worth verifying against site-specific code requirements for extended runtime.
