650 kW natural gas stationary standby generator. PSI 31.8L V12 turbocharged engine, Stamford HCI634 alternator, DSE 7420 MKII. Natural gas only. Made in USA.
The Gillette SP-6500 is a 650-kilowatt natural gas stationary standby generator — natural gas only, three-phase, built on PSI's 31.8L turbocharged V12. It is the largest PSI platform below the SP-8000 (39.2L V12) and delivers 966 bhp at standby. Stamford HCI534F alternator, DSE 7420 MKII controller.
At 650 kW, this is a large-facility standby unit: major data centers, large hospital buildings, industrial plants, or large campus distributions. At 15,950 lbs open, it requires structural engineering and a crane installation.
The PSI 31.8L V12 — PSI's large industrial platform#
The 31.8L V12 is a distinct displacement from the 21.9L V12 used in the SP-4000/5000. Key differences:
31.8L vs. 21.9L — 45% more displacement, square bore-and-stroke configuration (5.91" × 5.91")
Dual 6" exhaust outlets vs. dual 5" on the smaller models — larger exhaust volume demands larger-diameter runs
68" diameter pusher fan vs. 52" — significantly larger cooling system for 650 kW heat rejection
95 qt oil capacity (119 qt with 6 filters) — large oil system requiring 6 spin-on filters per oil change
1,400 CCA batteries — higher cranking current for the larger displacement at cold start
The HO (high-output) engine produces 966 bhp NG mechanical — the spec sheet also lists an LPG-configured variant at 637 bhp but no LPG standby kW rating is published, making this unit functionally NG-only.
The SP-6500 pushes 65,100 cfm of airflow through the radiator, rejecting 34,074 BTU/min (599 kW) from the cooling system. The radiator ambient temperature limit is 125°F (51.6°C). For enclosed generator rooms, the airflow clearances and supplemental ventilation design are engineering-critical — get a licensed mechanical engineer involved in the site design for this unit.
Exhaust temperature at standby: 1,183°F (639°C) — exhaust routing through conditioned spaces requires rated thimbles and clearances per NFPA 37.
The PSI 31.8L V12 is among the largest commercial spark-ignition engines we service. At this output level, we emphasize annual full-load commissioning tests — monthly no-load runs reveal very little about a 650 kW unit's actual capability. Ignition service at 12 cylinders requires planning: we allocate a full-day service window. The 6-filter oil change is time-consuming but the large oil capacity provides good oil stability between intervals. Annual paralleling system and ATS testing are non-negotiable at this power class.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Fuel demand at 75% load
6,825,000 BTU/hr≈ 6825.0 cf/min @ 1,000 BTU/cf
On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.
Service intervals
Manufacturer-recommended intervals for the Gillette SP-6500 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 12 months
Coolant change
Every 4000 hours
Air filter
Every 1000 hours
Spark plugs
Every 1500 hours
Major overhaul
≈ 15,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Turbocharger(s)
Significant power loss, heavy exhaust smoke
12,000+
moderate
Ignition system (12 cylinders)
Misfires, rough running, output derating
1,500+
moderate
Charge air cooler
Reduced output, high intake manifold temperature
10,000+
moderate
Exhaust system connections (dual 6" outlets)
Exhaust leaks, elevated compartment temperature
8,000+
minor
Frequently Asked Questions
Why is the SP-6500 natural gas only — no LPG option?
At 650 kW, the fuel demand (7,259,000 BTU/hr at full load) requires a dedicated dual 3" NPTF gas connection. LPG vapor withdrawal cannot sustain this flow rate from practical tank configurations — liquid withdrawal vaporizer systems become necessary at this scale, and Gillette does not configure the SP-6500 for LPG. At this power class, NG utility supply is the standard design basis.
What engine does the SP-6500 use?
PSI's 31.8L V12 turbocharged high-output (HO) engine — 1,941 cu in, 5.91" bore × 5.91" stroke. This is PSI's next displacement tier above the 21.9L V12 used in the SP-4000 and SP-5000. Mechanical output: 966 bhp NG at standby.
What are the fuel inlet requirements?
Dual 3" NPTF inlets at 11-14" water column pressure. Full-load consumption: 7,259 ft³/hr (7,259,000 BTU/hr). This is a high-volume installation typically requiring a 4" or larger dedicated gas main from the utility service point.
How large is the SP-6500 physically?
Open skid: 186 x 92 x 98 inches, 15,950 lbs. Level 2 enclosure: 246 x 92 x 116 inches. This is a significant footprint requiring a purpose-engineered concrete pad and a crane for placement. Plan site access and foundation engineering as early-phase design activities.
What battery system does the SP-6500 use?
24 VDC system with two BCI#31 batteries (minimum 1,400 CCA each) — higher CCA requirement than the smaller SP models to handle the higher cranking demand of the 31.8L engine.

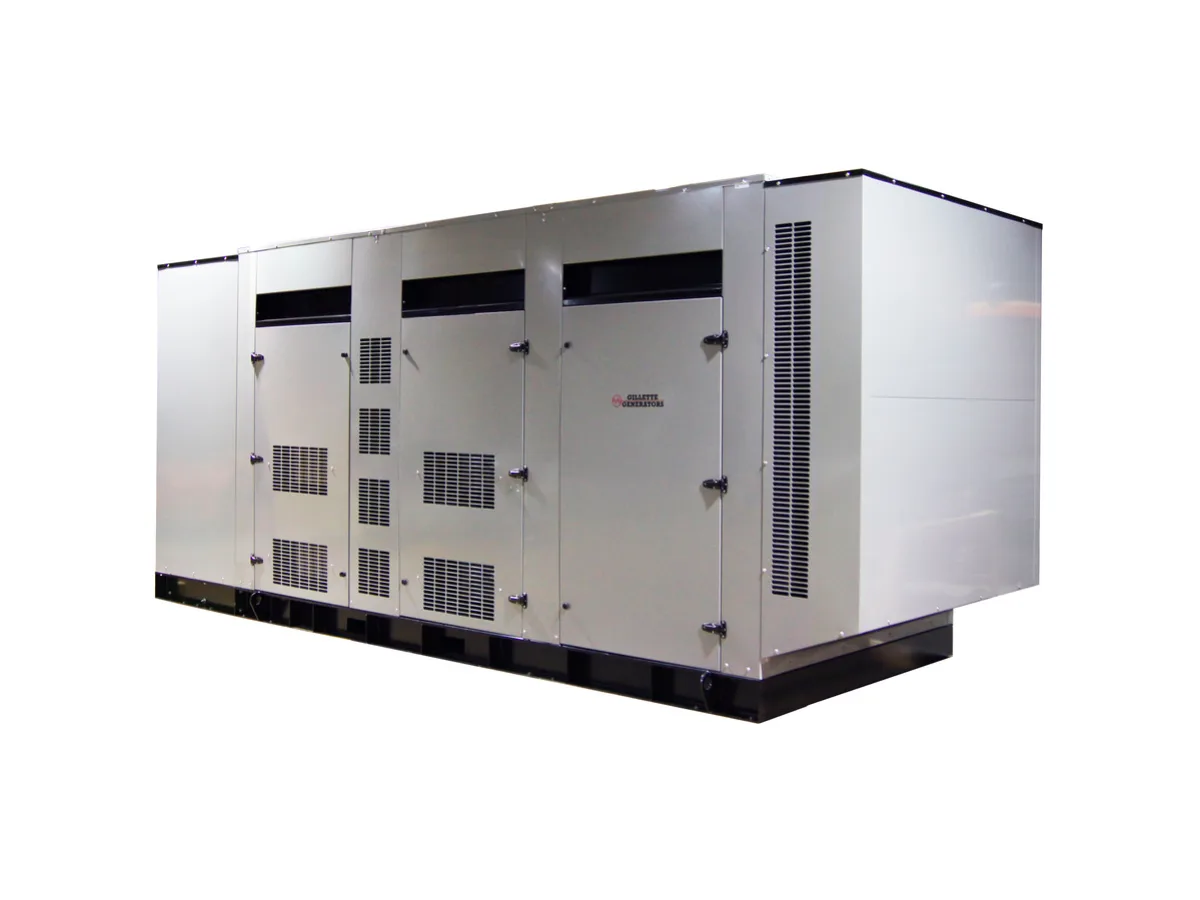

540 kW prime-rated natural gas generator. PSI 31.8L V12 turbocharged, Stamford HCI534 alternator, DSE 7420. Continuous duty, 3-phase only. Gillette's largest prime gas unit.
