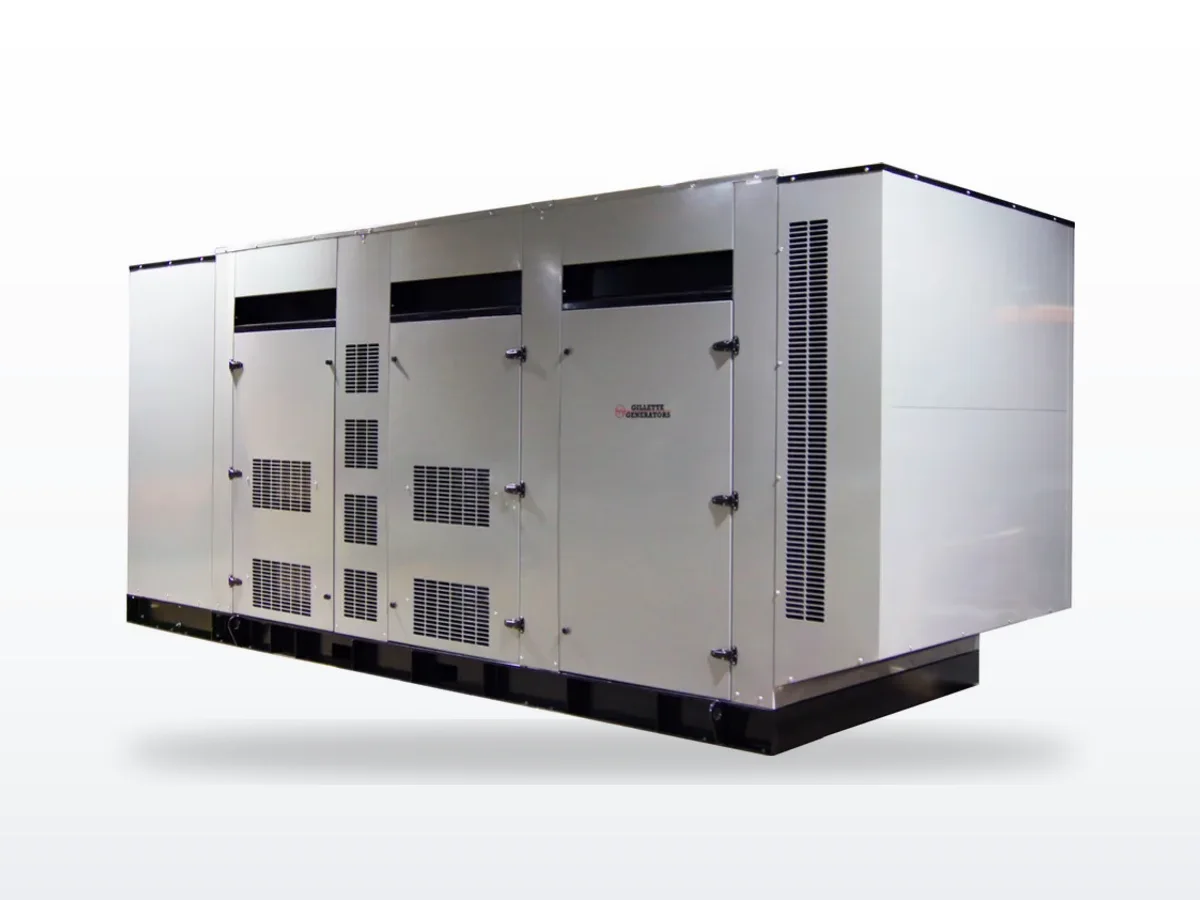

The Gillette SP-5000 is a 500-kilowatt natural gas / 300-kilowatt LPG stationary standby generator — the maximum output of the PSI 21.9L V12 platform. It shares the physical footprint with the SP-4000 but extracts 100 kW more NG output through PSI's high-output (HO) calibration. Stamford HCI534 alternator (larger frame than SP-4000's S4L1 series), DSE 7420 MKII controller, three-phase only.
At 500 kW, this is a large commercial or institutional standby unit: full-building backup for hospitals, large hotels, data center pods, and industrial facilities.

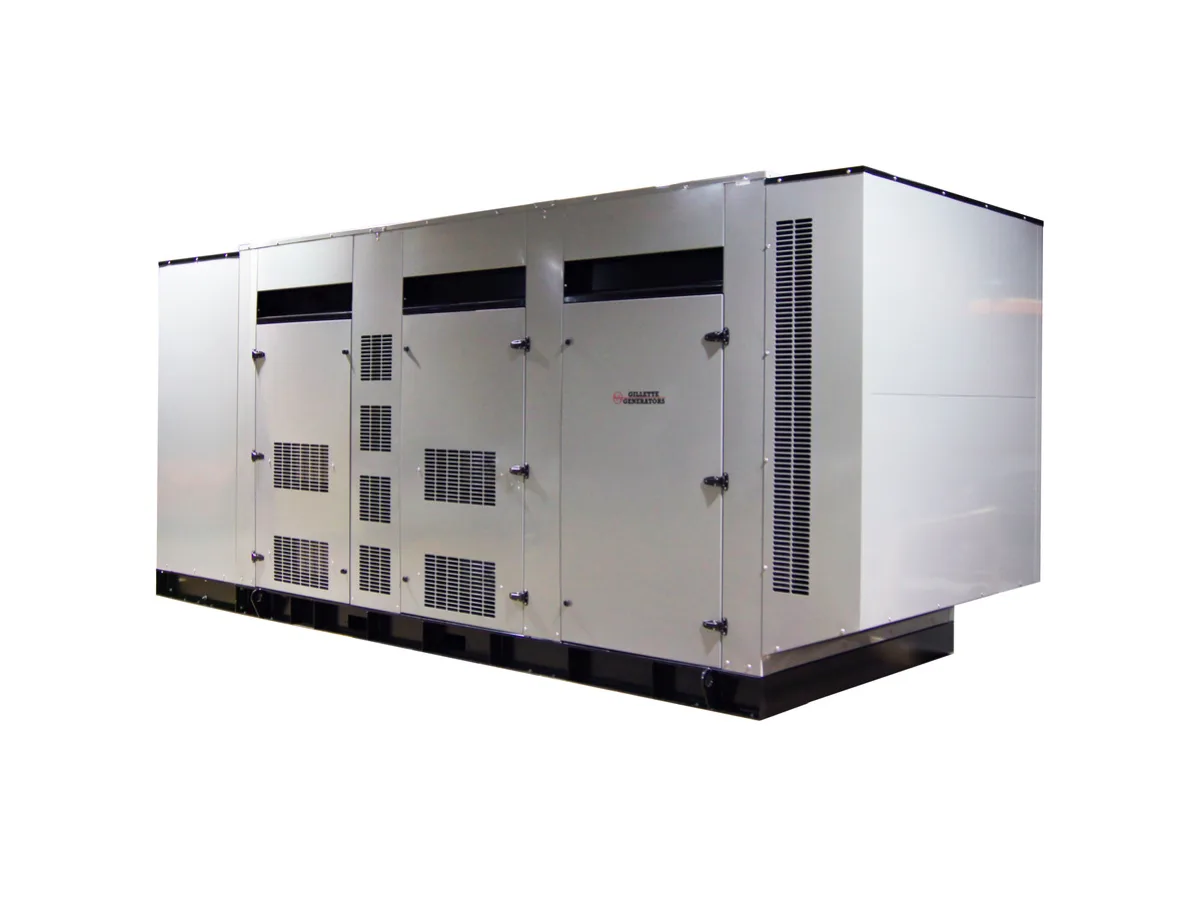

SP-4000 vs SP-5000: same engine, two output tiers#
The SP-4000 and SP-5000 are the best illustration of how PSI extracts different output levels from the same displacement:
Spec
SP-4000
SP-5000
Engine
21.9L V12 TCAC
21.9L V12 TCAC HO
NG standby kW
400
500
LPG standby kW
300
300
Mechanical output (NG)
684 bhp
764 bhp
Open footprint
168 x 82 x 92 in
168 x 82 x 92 in
Open weight
9,550 lbs
10,225 lbs
Alternator frame
Stamford S4L1
Stamford HCI534
The HCI534 alternator step-up is significant — the larger frame handles the higher current demands at 500 kW and provides greater motor starting kVA, which matters for facilities with large HVAC compressors or elevator motors on the standby bus.
An interesting data point from the SP-5000 spec sheet: full-load NG consumption is 5,346,000 BTU/hr vs. 5,916,000 BTU/hr for the SP-4000. The HO calibration delivers 25% more output with 10% less fuel consumption — a meaningful efficiency gain that results from optimized combustion at the higher output state rather than simply pushing more fuel through the same calibration.
The PSI 21.9L V12 at 500 kW is a well-understood engine for large commercial standby applications. Ignition maintenance is the dominant service consideration — 12-cylinder ignition service requires 12 spark plugs, 12 wires, and distributor inspection. We schedule this as a standalone service event at 1,500 hours separate from routine oil service. Annual load bank testing at full rated load is essential — at 500 kW, part-load operation during monthly tests does not sufficiently exercise the turbochargers or reveal cooling system limitations.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Fuel demand at 75% load
5,250,000 BTU/hr≈ 5250.0 cf/min @ 1,000 BTU/cf
On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.
Service intervals
Manufacturer-recommended intervals for the Gillette SP-5000 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 12 months
Coolant change
Every 4000 hours
Air filter
Every 1000 hours
Spark plugs
Every 1500 hours
Major overhaul
≈ 15,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Turbocharger
Power loss, excessive black smoke
12,000+
moderate
Ignition system (12 cylinders)
Misfires, rough running, reduced output
1,500+
moderate
Charge air cooler
Reduced output, elevated intake temperatures
10,000+
moderate
Battery bank (24V)
Failed start, slow cranking
8,760+
minor
Frequently Asked Questions
How does the SP-5000 differ from the SP-4000?
Both use PSI's 21.9L V12 in the same physical enclosure. The SP-5000 is the high-output (HO) variant: 500 kW NG vs. 400 kW NG from identical displacement. Mechanical output: 764 bhp (SP-5000) vs. 684 bhp (SP-4000). LPG rating is the same at 300 kW — the HO gains are NG-specific. Open weight difference: 10,225 lbs (SP-5000) vs. 9,550 lbs (SP-4000).
What alternator does the SP-5000 use?
The SP-5000 steps up to the Stamford HCI534 frame — larger than the S4L1 series used on the SP-4000. HCI534D-311 for 480V, HCI534E-311 for 208/240V. Motor starting at 30% voltage dip: 1,340 kVA (208-240V), 1,750 kVA (480V), 1,520 kVA (600V) — high motor starting for a 500 kW unit.
What is the fuel consumption of the SP-5000 vs. SP-4000?
SP-5000 at full load: 5,346,000 BTU/hr NG. SP-4000: 5,916,000 BTU/hr NG. The SP-5000 actually consumes fewer BTU/hr for 100 kW more output — the HO calibration is thermally more efficient at 500 kW than the standard calibration at 400 kW. At 75% load (375 kW): 4,350,000 BTU/hr.
Is this unit suitable for paralleling?
The SP-5000 can be configured for paralleling with the optional synchronization module. Multiple units in parallel provide N+1 redundancy or scalable capacity for data centers and large campuses. Contact Gillette or your dealer for paralleling controller configuration.
What is the maximum ambient temperature for the SP-5000 radiator?
125°F (51.6°C) — same as the SP-4000. The radiator moves 39,995 cfm (significantly more than the SP-4000's 29,000 cfm) to handle the higher heat rejection at 500 kW.
