Overview#

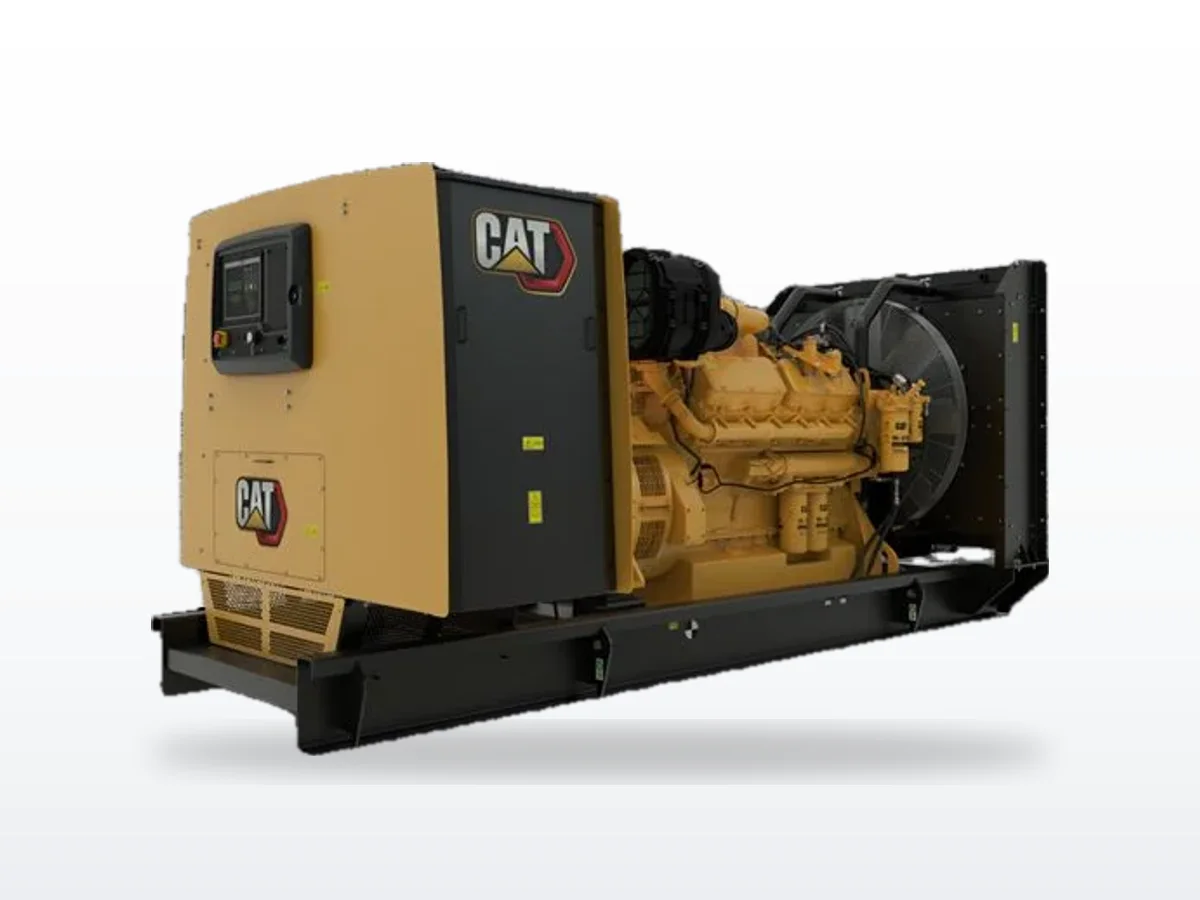

The Cat 3412C is an 800-kilowatt standby diesel generator — the current and most refined version of Caterpillar's 3400 Series V12 platform. Where the original 3412 established the platform's reputation for durability in the 700-750 kW class, the 3412C lifts the ceiling to 800 kW standby with improved controls, better fuel efficiency at partial load, and the EMCP 4 controller series that brings modern data logging and remote monitoring to the 3400 Series.
The 3400 Series is a medium-displacement industrial line: 27.0 liters across 12 cylinders, producing power through displacement and proven mechanical engineering rather than high-boost forced induction. The result is an engine that has accumulated decades of field hours in data centers, hospitals, and campus installations with a well-understood maintenance profile.
The C revision: what changed#
The "C" suffix in the 3412C marks meaningful upgrades over earlier production runs:
- EMCP 4 controls: The EMCP 4 series replaces older analog panels with a digital controller supporting paralleling, load demand management, and Ethernet-based remote monitoring
- Power rating: 800 kW standby is higher than earlier 3412 variants — the C calibration extracts more from the same displacement
- Fuel efficiency: Revised injection calibration improves part-load fuel consumption, which matters for standby units that spend most of their life at 50-75% load during testing
- Emissions: Tier 2 certification with improved combustion calibration
For operators with existing 3412 installations, the 3412C represents a compatible upgrade path with high core parts interchangeability and the same service tooling.
Our service perspective#
The 3412C's V12 configuration means 12 cylinders, 12 fuel injectors, and two turbocharger banks to keep in balance. Cylinder balance testing during major service intervals is important — uneven fuel delivery across the bank produces hot spots and accelerates wear asymmetrically. The EMCP 4 controller's data logging makes this easier than on older analog-panel units: exhaust temperature per-cylinder and per-bank boost pressure are visible in the controller history.
We find the 3412C particularly common in hospital installations that were built in the 1990s and early 2000s around the 3400 Series platform. These sites have 3412C units that are well past 15,000 hours and are making the evaluation between major overhaul and replacement with modern C27 or C32 equipment. The 3412C's overhaul cost is well-understood and the rebuilt engine typically delivers another 20,000+ hours — many hospital facilities opt to overhaul rather than replace when the distribution system was designed around the 3412's physical footprint.
