Blue Star Power Systems · Diesel Product Line (John Deere)
New

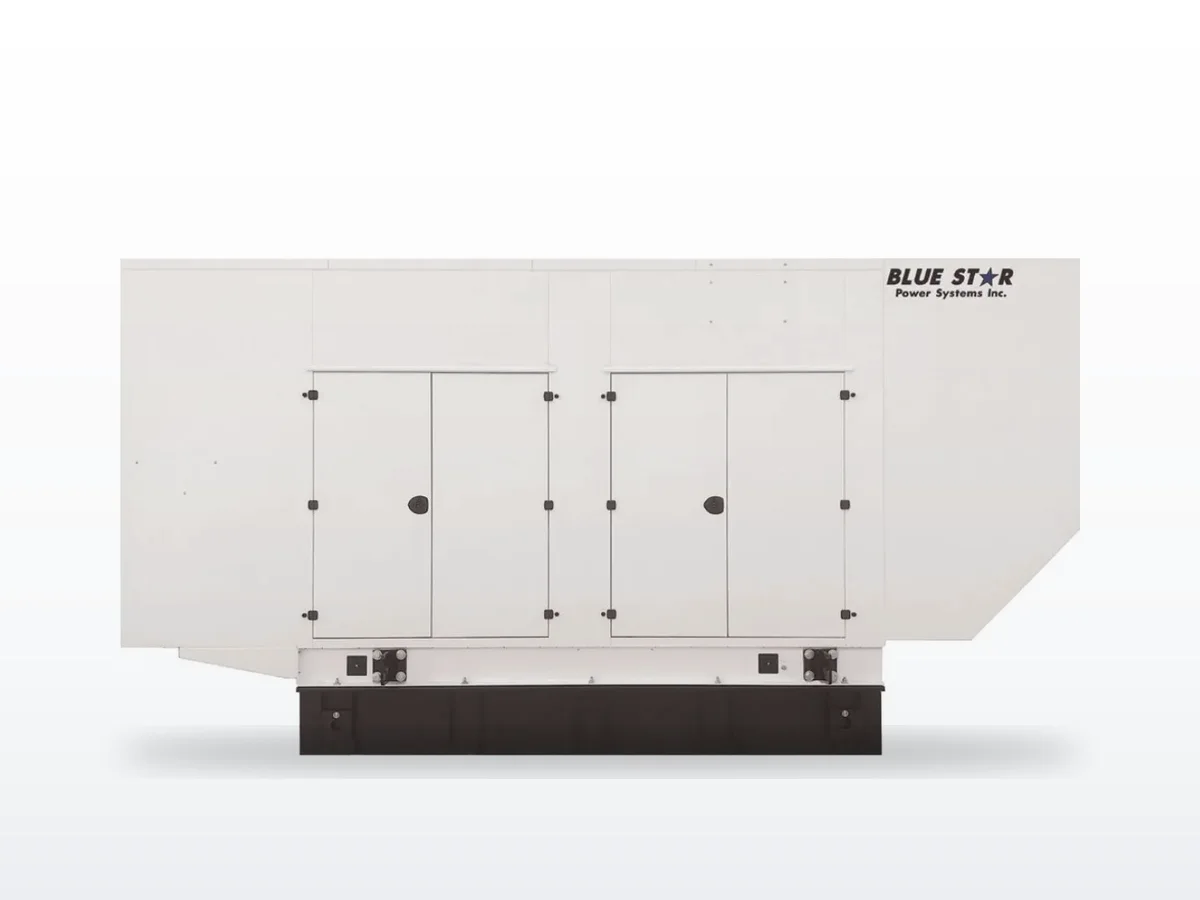

Blue Star JD80-02
80 kW standby · Diesel · Liquid-cooled
80 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 4045HF285 engine with charge air cooling, Stamford UCI274/UCI224 alternator, DSE DCP7310 controller.
The Blue Star JD80-02 is an 80-kilowatt Tier 3 diesel standby generator built around a John Deere 4045HF285 four-cylinder engine with charge air cooling. It marks a step up within Blue Star's John Deere diesel lineup — moving from the naturally turbocharged 4045TF280 used in the JD40–JD60 range to an intercooled high-output variant, and from the 80×38 in footprint to a larger 90×44 in skid.
Assembled in North Mankato, Minnesota by Blue Star Power Systems (a DEUTZ AG company since 2024), the JD80-02 pairs the 4045HF285 with a Stamford UCI274 alternator and DSE DCP7310 controller — all from established open-architecture supply chains.
The 4045HF285 uses the same 4.5-liter, four-cylinder block as the 4045TF280 but adds a charge air cooler between the turbocharger and intake manifold. This intercooling increases air density, allowing the engine to produce 126 HP at 1800 RPM — nearly 50% more than the turbocharged-only 4045TF280. The HF designator in John Deere nomenclature signals the heavy-duty fuel system and higher cylinder pressures suited for high-output applications.
The 4045HF285 shares its service infrastructure with the entire 4045 family — parts are available through John Deere dealers nationwide. The charge air cooler adds one additional service point (periodic inspection of the CAC core for debris and efficiency loss), but does not materially change the maintenance schedule versus the standard 4045.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
40.9 hours(1.7 days)
Fuel consumption ≈ 4.89 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Blue Star JD80-02 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / tank contamination
Hard starting, filter clogging, injector fouling
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Coolant hoses
Slow coolant loss, weeping at clamps
8,000+
minor
Frequently Asked Questions
What makes the JD80-02 engine different from the JD50-03 and JD60-02?
The JD80-02 uses the John Deere 4045HF285 — a higher-output variant of the same 4.5-liter four-cylinder PowerTech block, distinguished by its charge air cooler (CAC). Intercooling reduces intake air temperature, allowing the engine to produce 126 HP at 1800 RPM versus 75–85 HP for the turbocharged-only 4045TF280 in the JD40–JD60 range. The HF285 designation also reflects a heavier-duty fuel system and higher injection pressure.
What controller does the JD80-02 use?
The DSE DCP7310 Digital Control Panel, featuring CAN Bus J1939 engine communication, digital metering, RS-485 interface, and NFPA 110 Level 1 compatibility. It supports remote communications via the DSE2548 annunciator and is cULus Listed and CE Approved.
How does the JD80-02 fit into Blue Star's John Deere lineup?
The JD80-02 sits between the 60 kWe JD60-02 and the 100 kWe JD100-01. It shares the 4045 engine platform with the JD100-01 but at a lower power output and lighter weight (2,650 lbs OPU vs 2,750 lbs). The JD80 is the entry point for the 90×44 in footprint — larger than the 80×38 in units below it, but meaningfully more compact than the 6-cylinder 150–300 kWe range.
What are the ventilation requirements for the JD80-02?
The JD80-02 requires 6,541 CFM of radiator cooling airflow for the unit-mounted radiator configuration. Combustion air demand is 234 CFM. For indoor installations, the room ventilation design must account for both the radiator airflow (which is provided by the unit's blower fan) and heat rejected to the room: 97,920 BTU/hr radiated plus 179,400 BTU/hr to the coolant circuit (handled by the radiator). Consult the Blue Star application data sheet for remote radiator configurations.
