Overview#

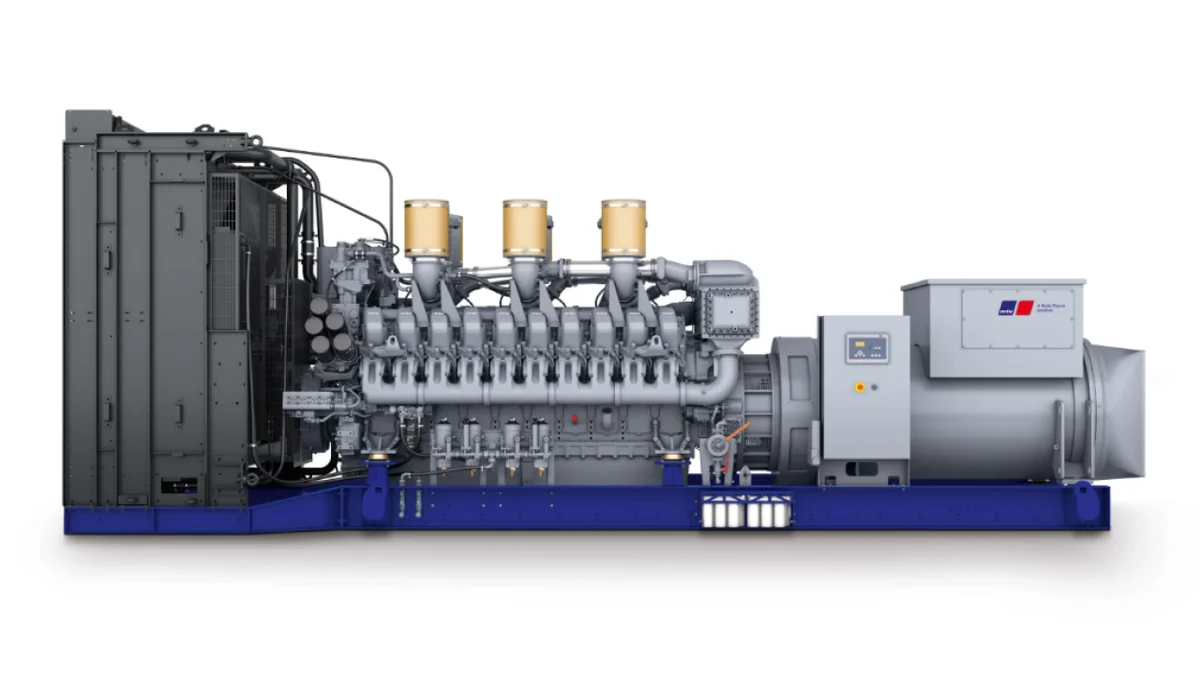

The MTU 12V4000 DS1250 is the entry point to the Series 4000 diesel generator lineup from Rolls-Royce Power Systems. Rated at 1,250 kWe standby and 1,135 kWe Data Center Continuous Power (DCCP), it targets mission-critical facilities where unlimited runtime at full load is non-negotiable. The DCCP rating — compliant with Uptime Institute Tier III and IV requirements — allows 100% load factor operation with a 10% overload margin, a specification that distinguishes it from conventional standby-rated units in this power class.
The genset is built around the MTU 12V4000G14S engine, a 57.2-liter V12 diesel with common rail fuel injection and ADEC electronic governing. It holds EPA Tier 2 certification along with SCAQMD compliance, making it deployable in Southern California's stringent air quality district — a relevant consideration for Northern California specifiers watching Bay Area AQMD trends. HVO and GtL renewable diesel compatibility (EN15940) positions it for facilities with decarbonization targets.
Voltage flexibility is a standout feature: nine configurations from 380V through 13,800V cover everything from low-voltage distribution to medium-voltage campus feeders. UL 2200 listing, CSA certification, and optional IBC seismic and HCAI pre-approval round out the compliance package for hospital, data center, and high-rise applications.
The Series 4000 platform#

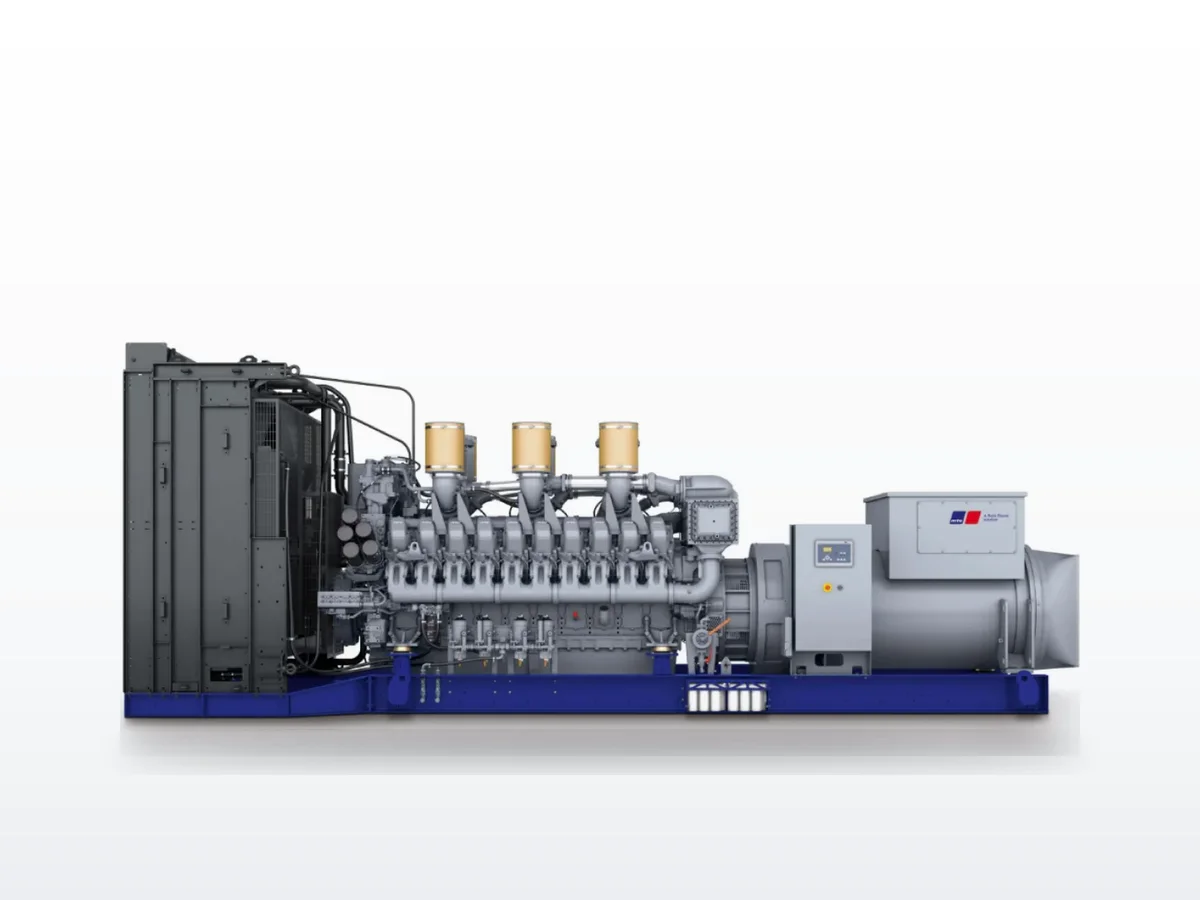

The 12V4000 engine family shares a common architecture across the DS1250, DS1500, and DS1750 generator sets — same 57.2-liter displacement, same bore and stroke (170mm x 210mm), same 1,800 RPM operating speed. What changes between models is the engine tune and rating philosophy: the DS1250 is optimized for data center continuous duty, the DS1500 for fuel-consumption-optimized standby, and the DS1750 pushes the platform to its peak DCCP output.
This commonality simplifies fleet maintenance for operators running multiple Series 4000 units. Oil filters, fuel filters, coolant circuits, and turbo assemblies share part numbers across the sub-family. The ADEC electronic governing system is common to all three, supporting load acceptance of rated load in one step per NFPA 110 — critical for life-safety applications.
Competitive landscape at 1,250 kW#
At the 1,250 kW standby class, the DS1250 competes directly with the Kohler 1250REOZMD (1,280 kW standby) and the Blue Star MD1250-01 (1,250 kW standby, Mitsubishi S12R engine). The MTU's differentiator is DCCP certification — neither the Kohler nor Blue Star carries Uptime Institute compliance out of the box, which matters for data center bid specs. The nine-voltage range extending to 13,800V also exceeds most competitors, which typically top out at 4,160V.

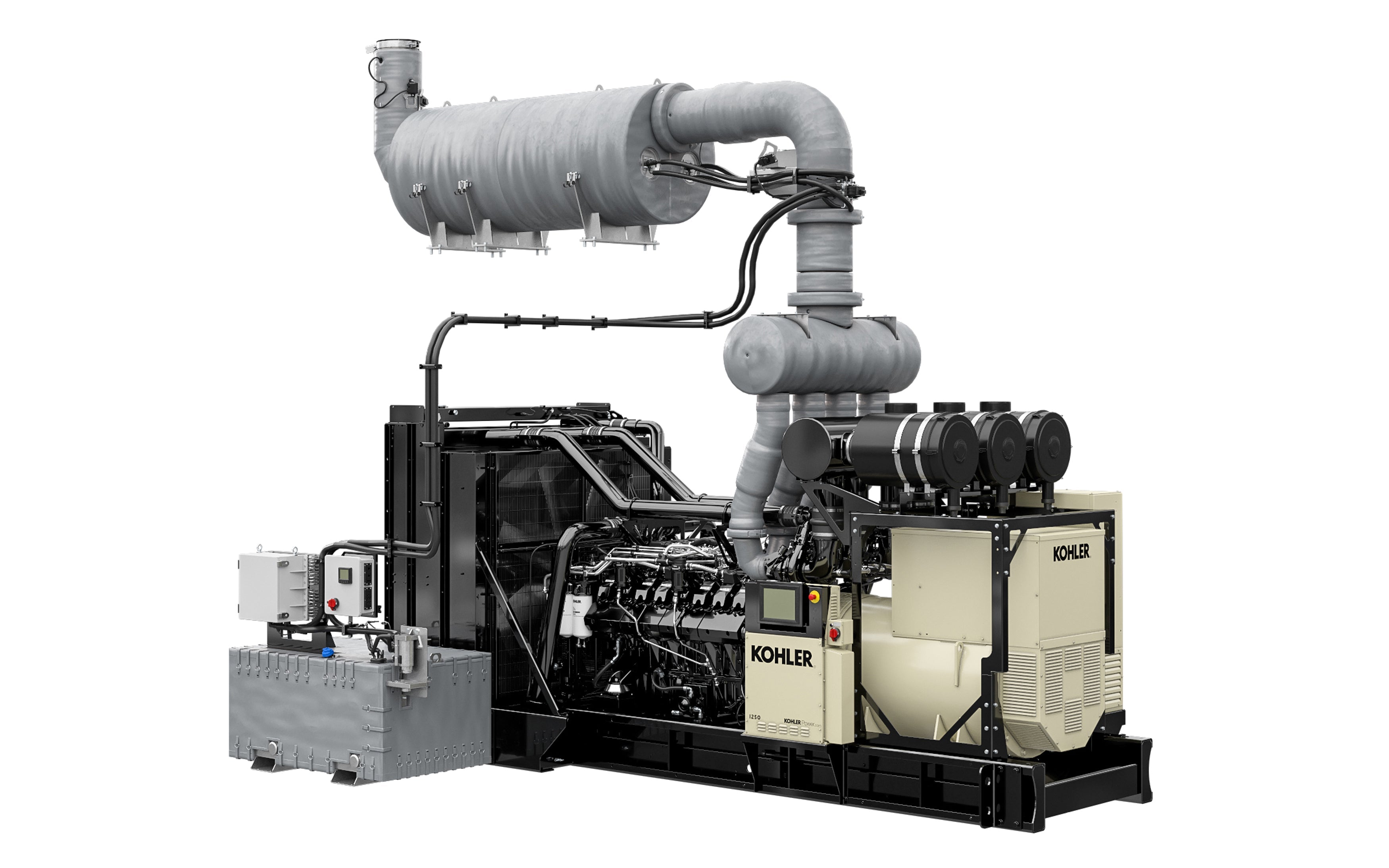

On the other hand, the Kohler KD series (KD1250-4 at 1,180 kW, KD1350 at 1,180 kW) offers a broader enclosure ecosystem and a deeper North American dealer network. Facilities choosing between these platforms should weigh data center certification requirements against local service availability and lead times.
Our service experience#
We see the MTU Series 4000 platform in Northern California data centers, hospital campuses, and large commercial complexes where the combination of medium-voltage output, DCCP rating, and SCAQMD compliance makes it the natural choice above the 1 MW class. The 57.2-liter V12 is a proven powerplant — these units routinely reach major overhaul intervals with proper oil analysis and coolant management.
Common maintenance points we track include the centrifugal oil filtration system (unique to MTU — requires periodic cleaning rather than cartridge replacement) and the intercooler water circuit, which runs a separate pump and thermostat loop. Coolant capacity is 154 gallons system-wide, so water treatment and inhibitor levels need attention at scale. Battery systems use four Group 8D batteries at 24VDC — we recommend load-testing quarterly given the high CCA demands of the 57-liter engine.
