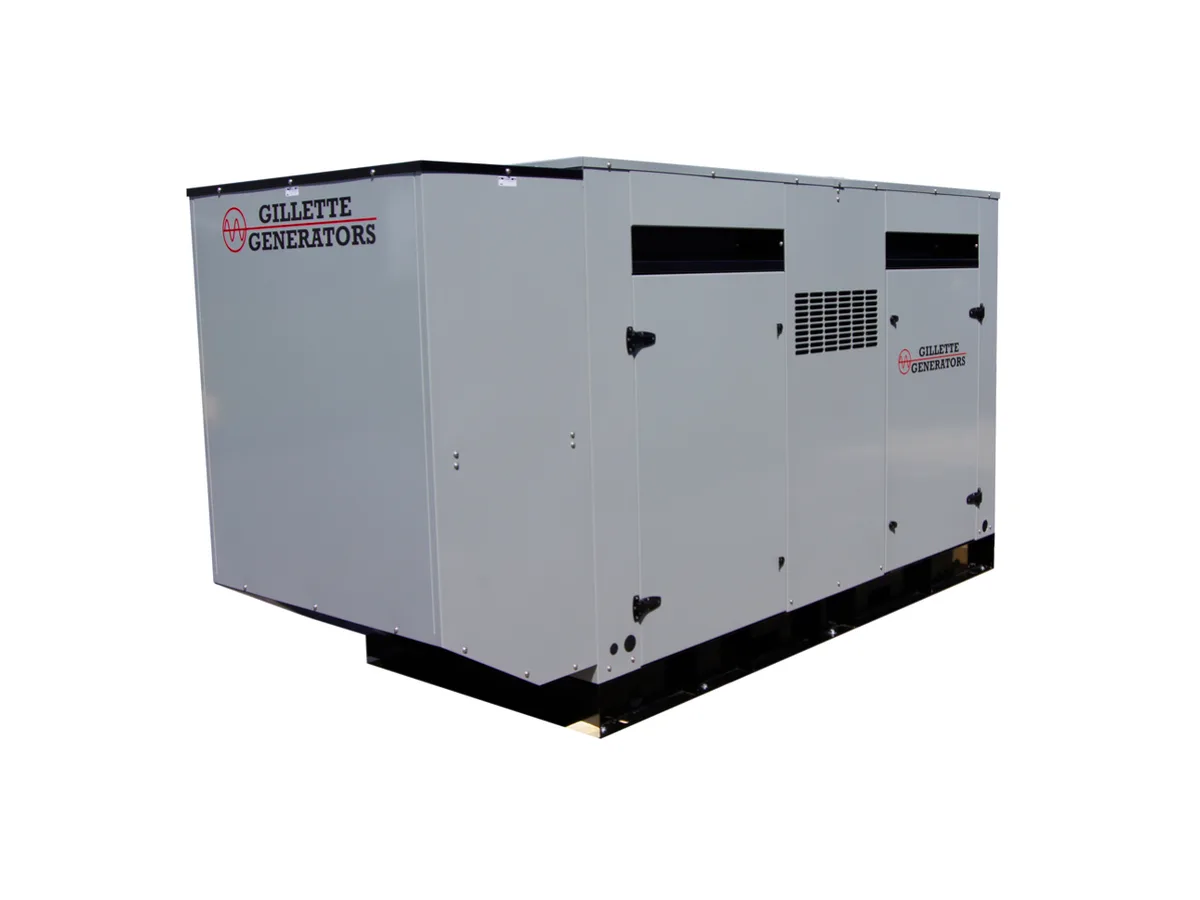

The Gillette SPJD-2100 is a 210-kilowatt stationary diesel standby generator — the largest John Deere model in the Gillette lineup and the output ceiling of the 6068 platform. It uses the HF485 high-output variant of the 6.8L inline-6, producing 315 bhp at standby from the same displacement and enclosure as the 155 kW SPJD-1550. Stamford UCID274J alternator, DSE 7420 MKII controller.
Above 210 kW, Gillette transitions to Volvo engines (SPVD series starting at 250 kW). The SPJD-2100 represents the practical ceiling of John Deere's PowerTech 6068 for standby generator service.
SPJD-1550 vs. SPJD-2100: same engine, different calibration#
Spec
SPJD-1550
SPJD-2100
Engine
6068HF285
6068HF485
Compression ratio
19.0:1
17.0:1
Standby kW
155
210
Mechanical bhp
237
315
Main bearings
Standard
7 replaceable inserts
Fuel (100%)
12.1 gal/hr
15.5 gal/hr
Dimensions/weight
Identical
Identical
The lower compression ratio on the HF485 compensates for higher boost pressure — the engine runs more boost and more fuel at lower base compression, achieving 35% more output. The reinforced main bearings handle the higher cylinder pressures.
210 kW is where both John Deere (SPJD) and Perkins (SPD at 200 kW) reach their practical output limits for standby duty. The next step — Gillette's SPVD-2500 at 250 kW — uses a Volvo TAD series engine. This is a different:
Engine architecture — Volvo TAD vs. John Deere PowerTech
Parts ecosystem — Volvo Penta dealer network vs. John Deere
Physical footprint — larger enclosure at 250 kW+
For facilities that may need to grow beyond 210 kW, consider whether to start with Volvo at 250 kW to avoid a future engine platform change.
The John Deere 6068HF485 at 210 kW runs at the upper end of this platform's thermal envelope — the turbocharger operates at higher boost, and the charge air cooler handles more heat rejection than the 155 kW variant. We inspect these components carefully at each service interval. At this power level, annual full-load bank testing is essential — standby generators at 200+ kW that only run monthly at no-load will not reveal turbocharger, cooling, or fuel system issues until an actual outage demands full output.
Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
16.7 hours(0.7 days)
Fuel consumption ≈ 11.96 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Gillette SPJD-2100 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality / degradation
Hard starting, filter clogging, reduced power
4,380+
moderate
Turbocharger
Power loss, excessive smoke under load
12,000+
moderate
Charge air cooler
Reduced output, elevated intake temperatures
10,000+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Frequently Asked Questions
How does the SPJD-2100 differ from the SPJD-1550?
Both use John Deere's 6068 6.8L inline-6 in the same enclosure. The SPJD-2100 uses the HF485 variant (17.0:1 compression, 315 bhp, 7 replaceable main bearing inserts) vs. the HF285 (19.0:1 compression, 237 bhp). Different compression ratio and calibration — 55 kW more output from the same displacement and dimensions.
Is the SPJD-2100 the largest John Deere model Gillette offers?
Yes — at 210 kW, the SPJD-2100 is the top of the John Deere diesel lineup. Above 210 kW, Gillette transitions to Volvo engines (SPVD-2500 at 250 kW). This mirrors the Perkins ceiling at SPD-2000 (200 kW) — both engine families reach their output limit in the 200-210 kW range for standby generator duty.
What are the main bearing differences from the SPJD-1550?
The spec sheet explicitly lists 7 replaceable main bearing inserts for the 6068HF485. The HF285 variant does not highlight this specification, suggesting the HF485 may use a reinforced bearing configuration to handle the higher cylinder pressures at 315 bhp. This is consistent with a lower compression ratio (17.0 vs 19.0) paired with higher boost.
What fuel consumption at 210 kW full load?
15.5 gal/hr at full load. At 75%: 11.3 gal/hr. At 50%: 7.9 gal/hr. Comparable to the Perkins SPD-2000 (15.6 gal/hr at 200 kW) — for 10 kW more output, essentially the same fuel consumption.
The SPJD-2100 and SPD-2000 share identical dimensions and weight — can I swap one for the other?
Yes, they share the same open footprint (110 x 48 x 55 in) and the same weight (3,404 lbs open). The Level 2 enclosure is also identical (134 x 48 x 72.5 in). A foundation pad designed for one will accommodate the other — useful if you need to change engine brands during replacement.
Factory-direct at 15-30% below major brands. John Deere 6068 engine + DSE controller — no proprietary lock-in. 3-7 day lead times.

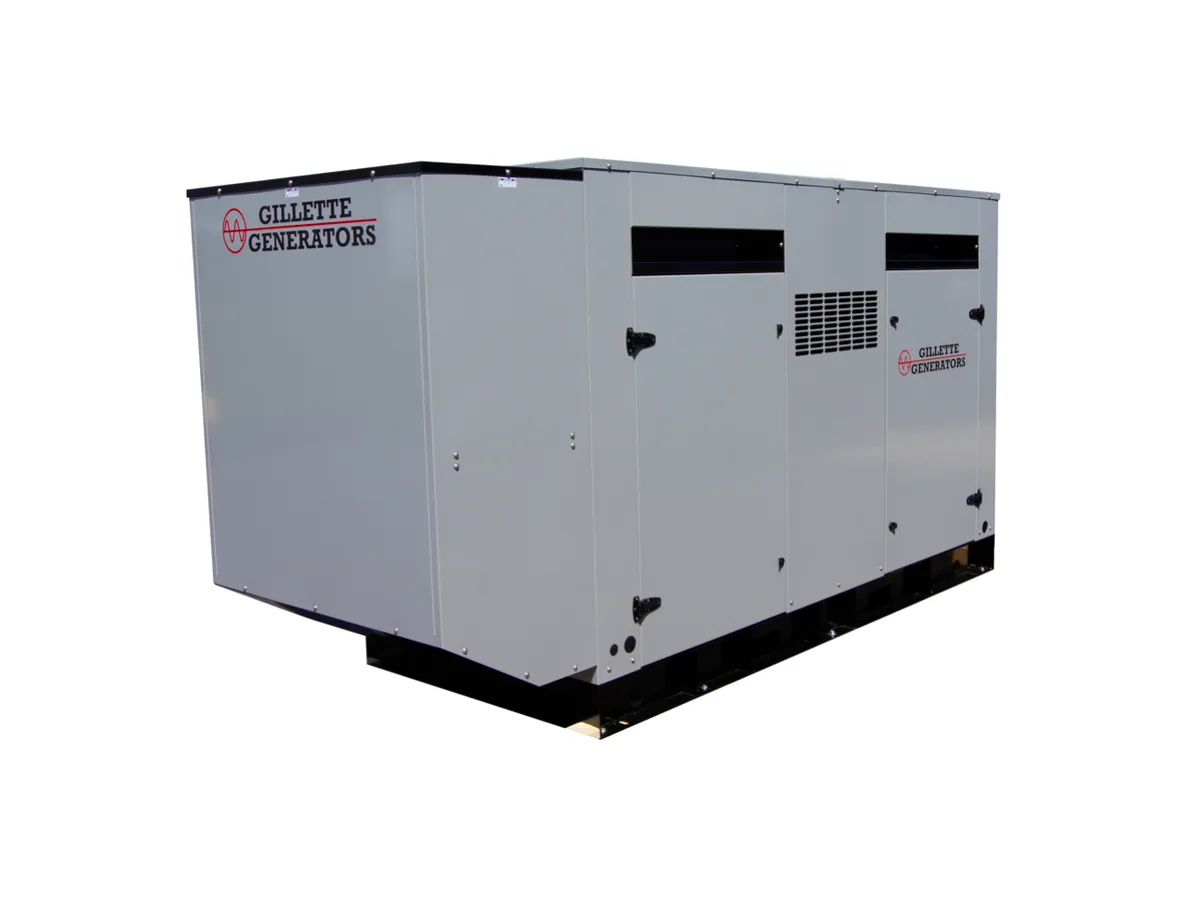

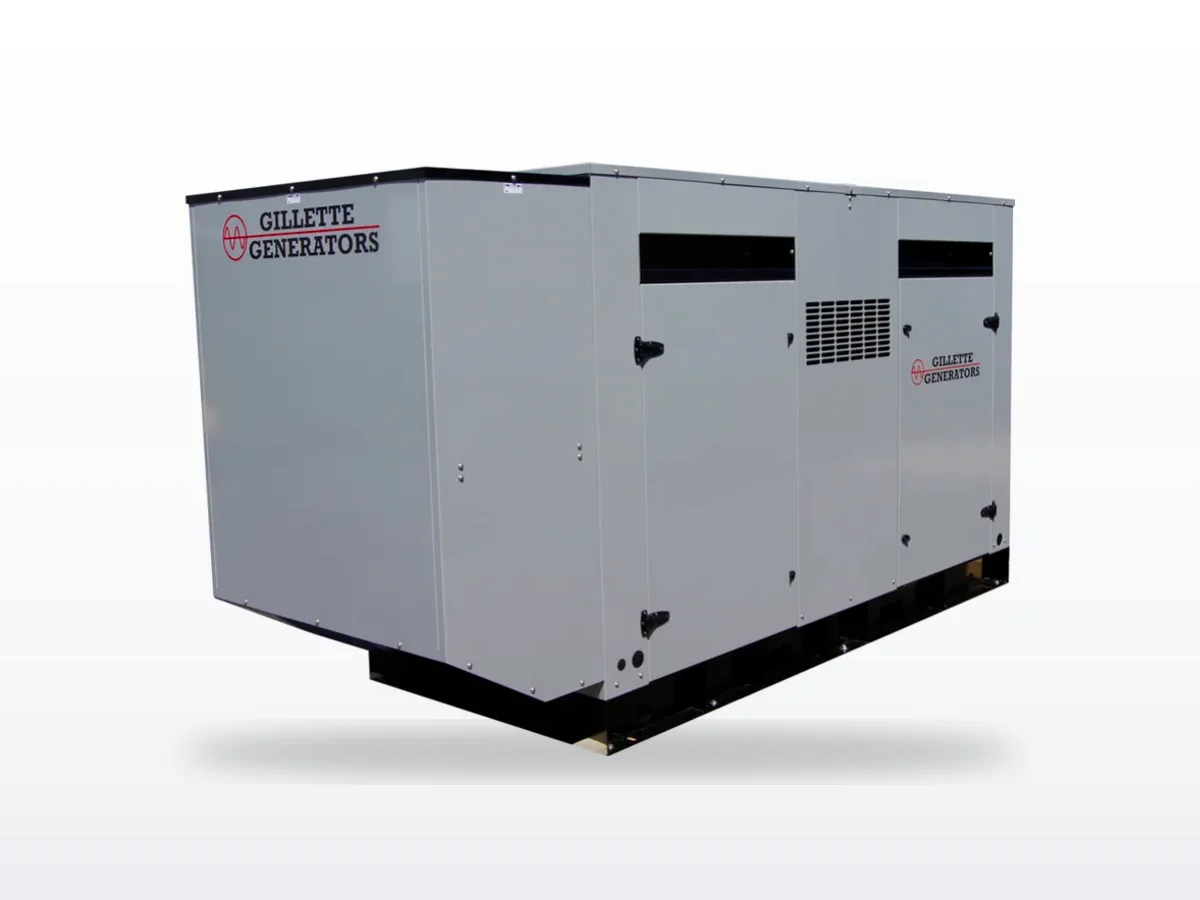

155 kW standby · Diesel · Liquid-cooled
155 kW diesel standby for hospitals, hotels, commercial buildings, and municipal infrastructure. Buy American compliant.
155 kW stationary diesel standby generator with John Deere 6068HF285 engine. Made-in-USA with Stamford UCI274G alternator and DSE 7420 MKII controller.
Tier 33-phasecommercialhospital
Gillette

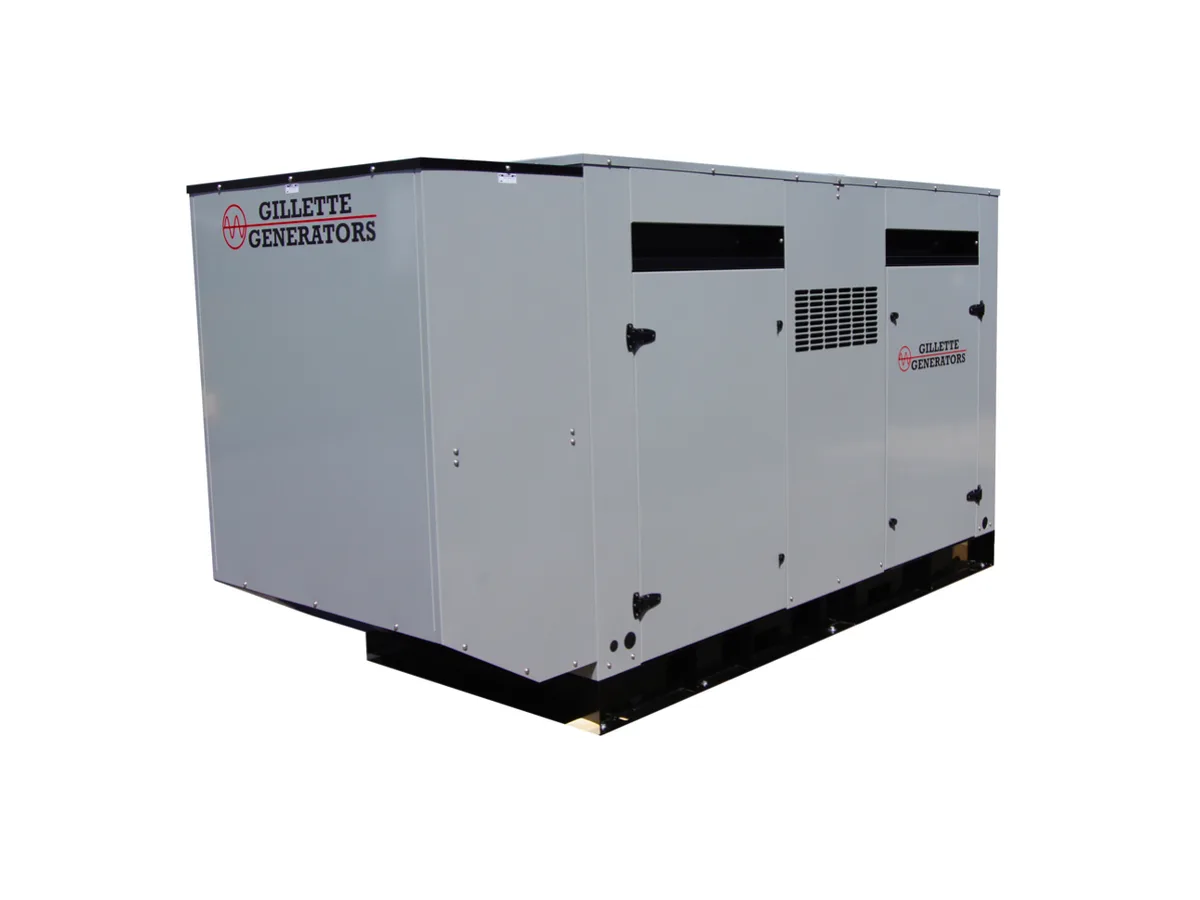

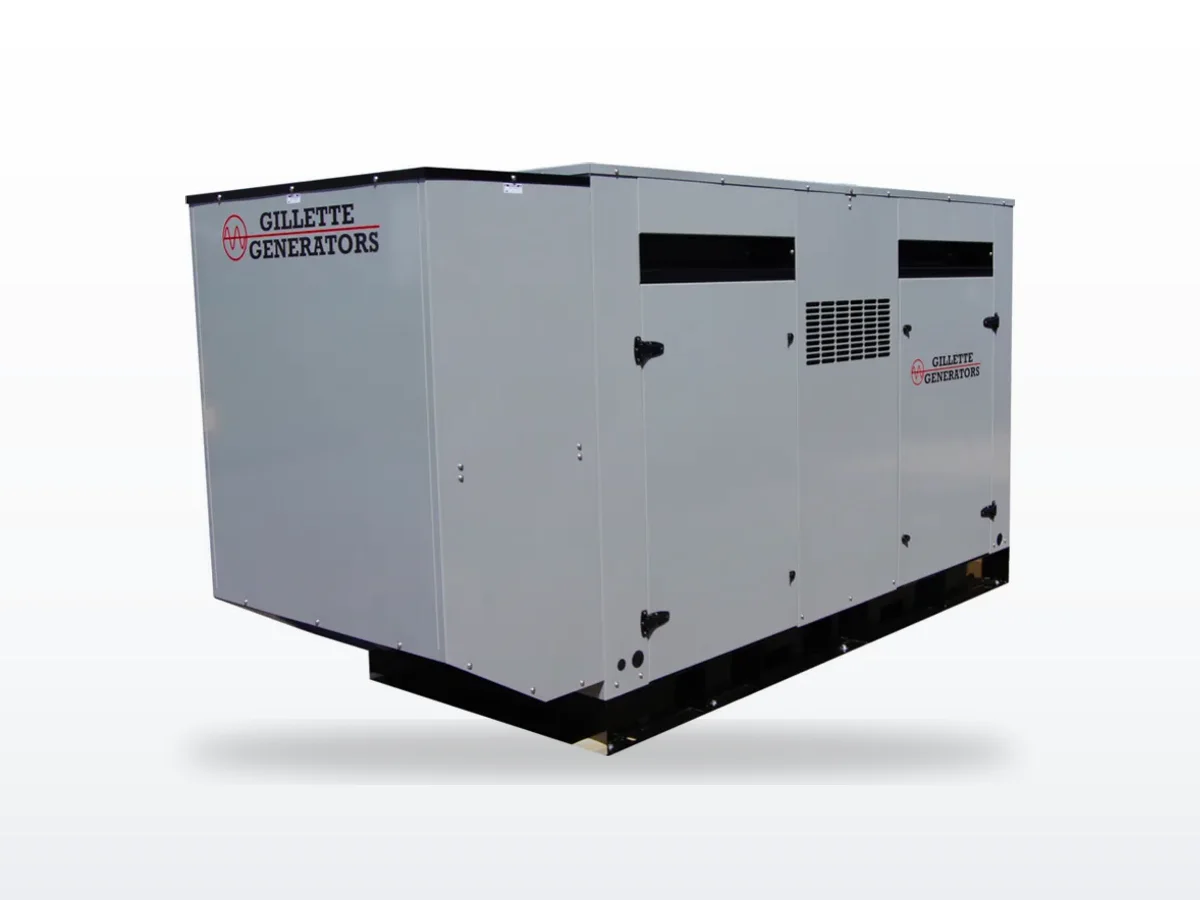

Gillette SPD-2000
