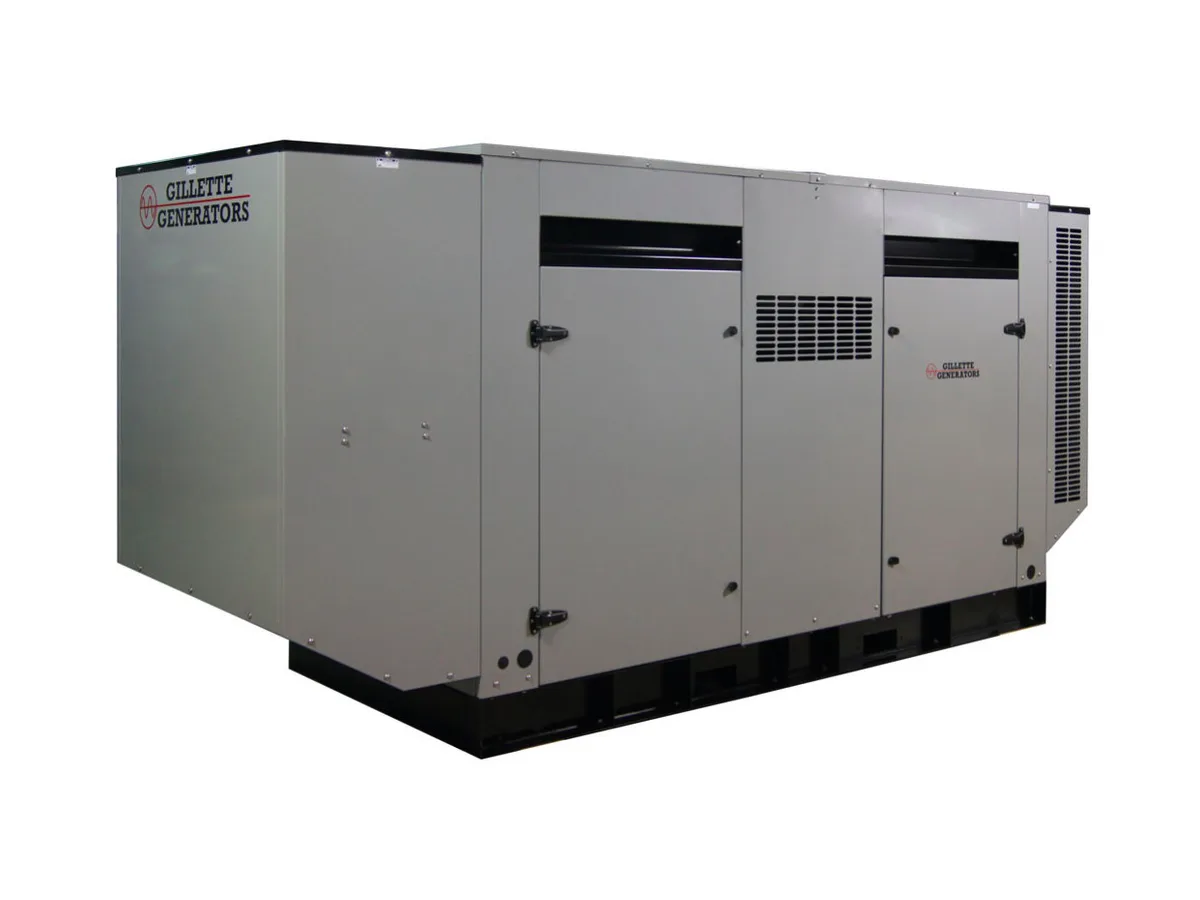

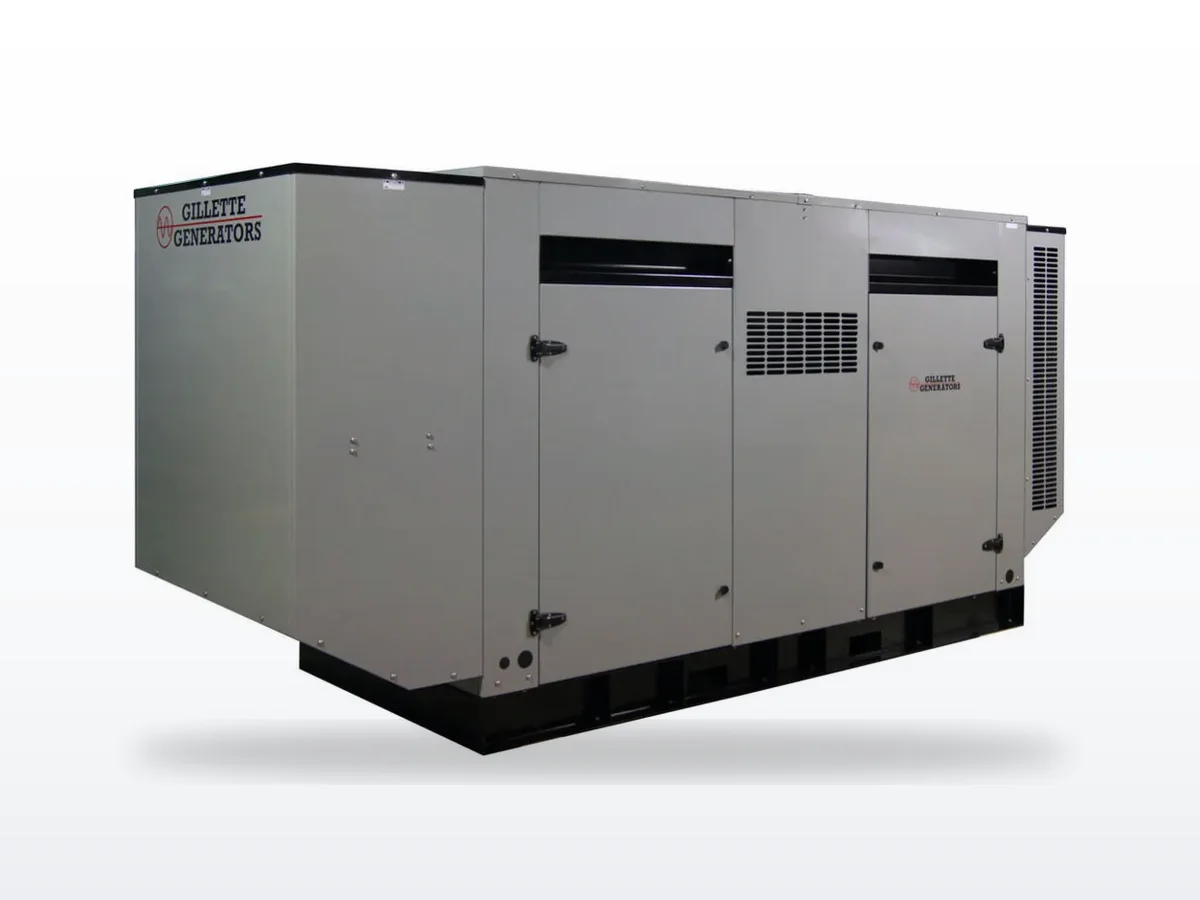

The Gillette PR-1300 is a 130-kilowatt prime-rated natural gas generator — the high-output variant of the PSI 8.1L inline-6 platform shared with the PR-1000. Same engine, same enclosure (132 x 52 x 65 in), 30% more output through a higher BMEP calibration. Stamford UCI274F alternator, DSE 7420 MKII controller.

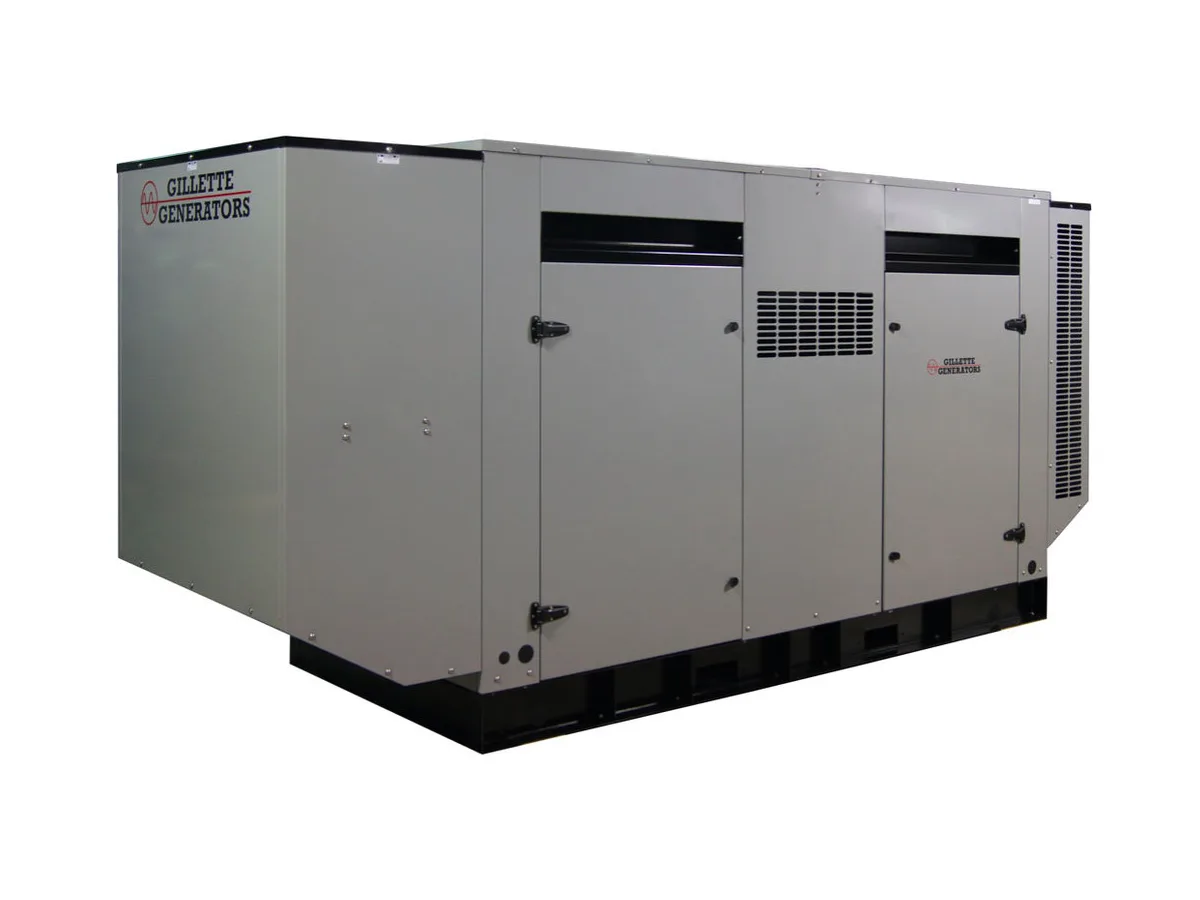

PR-1000 vs. PR-1300: same platform, different output#
If load growth is possible, specifying the PR-1300 on the same foundation as the PR-1000 provides 30 kW of headroom at minimal cost. Both models share identical physical dimensions and enclosure options.
At 130 kW continuous from 8.1L, the PR-1300 runs at higher thermal loading than the 100 kW PR-1000. The turbocharger and charge air cooler work harder at this calibration — we inspect these components more carefully during service on the PR-1300 than on its lower-output sibling.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Fuel demand at 75% load
1,365,000 BTU/hr≈ 1365.0 cf/min @ 1,000 BTU/cf
On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.
Service intervals
Manufacturer-recommended intervals for the Gillette PR-1300 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 250 hours or 6 months
Coolant change
Every 4000 hours
Air filter
Every 500 hours
Spark plugs
Every 1000 hours
Major overhaul
≈ 15,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Turbocharger
Power loss from continuous high-output duty
10,000+
moderate
Spark plugs / ignition
Misfire, rough running
1,000+
moderate
Charge air cooler
Elevated intake temps, reduced output
8,000+
moderate
Frequently Asked Questions
How does the PR-1300 differ from the PR-1000?
Same PSI 8.1L I6 TCAC engine, same enclosure. The PR-1300 is the high-output calibration: 130 kW / 200 bhp (vs 100 kW / 199 bhp). The alternator steps from UCI274E to UCI274F for the higher current demand. Fuel consumption increases modestly: 1,400 ft3/hr vs 1,330 ft3/hr at full load.
What hospital-grade sound options are available?
The PR-1300 offers hospital-grade silencer options achieving 84 dBA open / 71 dBA in Level 2 enclosure — among the quietest prime-rated generators available. This makes the PR-1300 suitable for continuous-duty installations near occupied spaces.
