Blue Star Power Systems · Diesel Product Line (Perkins)
New
Blue Star PD500-01
500 kW standby · Diesel · Liquid-cooled
500 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2506C-E15TAG3 six-cylinder engine with charge air cooling, Stamford HCI534D alternator, DSE DCP7310 controller.
The Blue Star PD500-01 is a 500-kilowatt EPA Tier 2 diesel standby generator powered by the Perkins 2506C-E15TAG3 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled engine. The PD500-01 shares the 150×78 in structural steel base footprint with the PD450-01, stepping from Tier 3 (2506D) to Tier 2 (2506C) certification. At 500 kWe, it is the entry point of Blue Star's Tier 2 Perkins lineup.
Blue Star Power Systems (North Mankato, Minnesota) pairs the 2506C-E15TAG3 with a Stamford HCI534D alternator and DSE DCP7310 controller. At 9,525 lbs and 94 dBA full load, the PD500-01 is one of the louder models in the Perkins lineup at this output level. The ambient temperature deration limit tightens to 86°F (30°C) — compared to 104°F (40°C) for the Tier 3 models. Deration: rated power is available to 3,281 ft (1,000 m) at 86°F (30°C).
The 2506C series represents the Tier 2 calibration of the 2506 platform — a distinction from the 2506D (Tier 3) used in the PD450. Both displace 15.2 liters from the same six-cylinder block, but the 'C' variant's fuel and combustion calibration targets Tier 2 emissions rather than Tier 3. In practice, the two models differ primarily in emissions certification and ambient temperature rating; the physical footprint, base structure, and alternator frame are similar. Specifiers should confirm project emissions requirements before selecting between the PD450 (Tier 3) and PD500 (Tier 2).
The PD500-01 operates at the upper end of the 2506C platform. Annual full-load testing is strongly recommended. The ambient temperature limit of 86°F (30°C) should be verified against site conditions — sites in warm climates or with restricted generator room ventilation may experience thermal deration. Fuel planning: the 30,600 CFM ventilation requirement is essentially identical to the PD450, so infrastructure sized for the PD450 is compatible with the PD500. Follow the Perkins 2500C generator series maintenance schedule.
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
8.0 hours(0.3 days)
Fuel consumption ≈ 24.92 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Blue Star PD500-01 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Turbocharger(s)
Major power loss, heavy exhaust smoke
12,000+
severe
Fuel quality / degradation
Injector fouling, hard starting
4,380+
moderate
Battery bank (24V)
Failed start, slow cranking
8,760+
minor
Frequently Asked Questions
What engine does the PD500-01 use?
The Perkins 2506C-E15TAG3 — a 15.2-liter, six-cylinder turbocharged and charge-air-cooled diesel. Note the 'C' designation (vs 'D' in the PD450-01's 2506D-E15TAG1): the 2506C series meets EPA Tier 2 for stationary emergency use. Rated power is available up to 3,281 ft (1,000 m) at ambient temperatures to 86°F (30°C) — a tighter temperature limit than the Tier 3 models above it in the lineup.
What controller does the PD500-01 use?
The DSE DCP7310 Digital Control Panel, with CAN Bus J1939 engine communication, digital metering, RS-485 interface, 8 programmable contact inputs, 10 contact outputs, and NFPA 110 Level 1 compatibility. The panel is cULus Listed and CE Approved with IP 65 ingress protection (with supplied gasket). A 24V battery system and 24V 5 Amp battery charger are standard.
How does the PD500-01 compare to the PD450-01 and PD550-01?
The PD450-01 (Tier 3, 2506D-E15TAG1) and PD500-01 (Tier 2, 2506C-E15TAG3) share the same 150×78 in footprint and structural steel base. The PD500 weighs 200 lbs more (9,525 vs 9,325 lbs) and burns 32.3 gph at full load vs 32.7 gph for the PD450 — nearly identical consumption. The key differences are EPA tier (Tier 2 vs Tier 3) and the tighter ambient temperature limit (86°F vs 104°F). The PD550-01 uses the TAG4 calibration of the same 2506C platform on the identical footprint.
What are the ventilation and thermal requirements for the PD500-01?
The PD500-01 requires 30,600 CFM of radiator cooling airflow. Combustion air draw is 1,484 CFM. Heat rejected to the coolant circuit is 644,580 BTU/hr; heat radiated to ambient is 589,500 BTU/hr. Exhaust exits at 1,022°F at 3,958 CFM. For fuel planning: at full load (32.3 gph), a 900-gallon sub-base tank provides approximately 28 hours of runtime. The 24-hour fuel tank option provides 900 gallons.

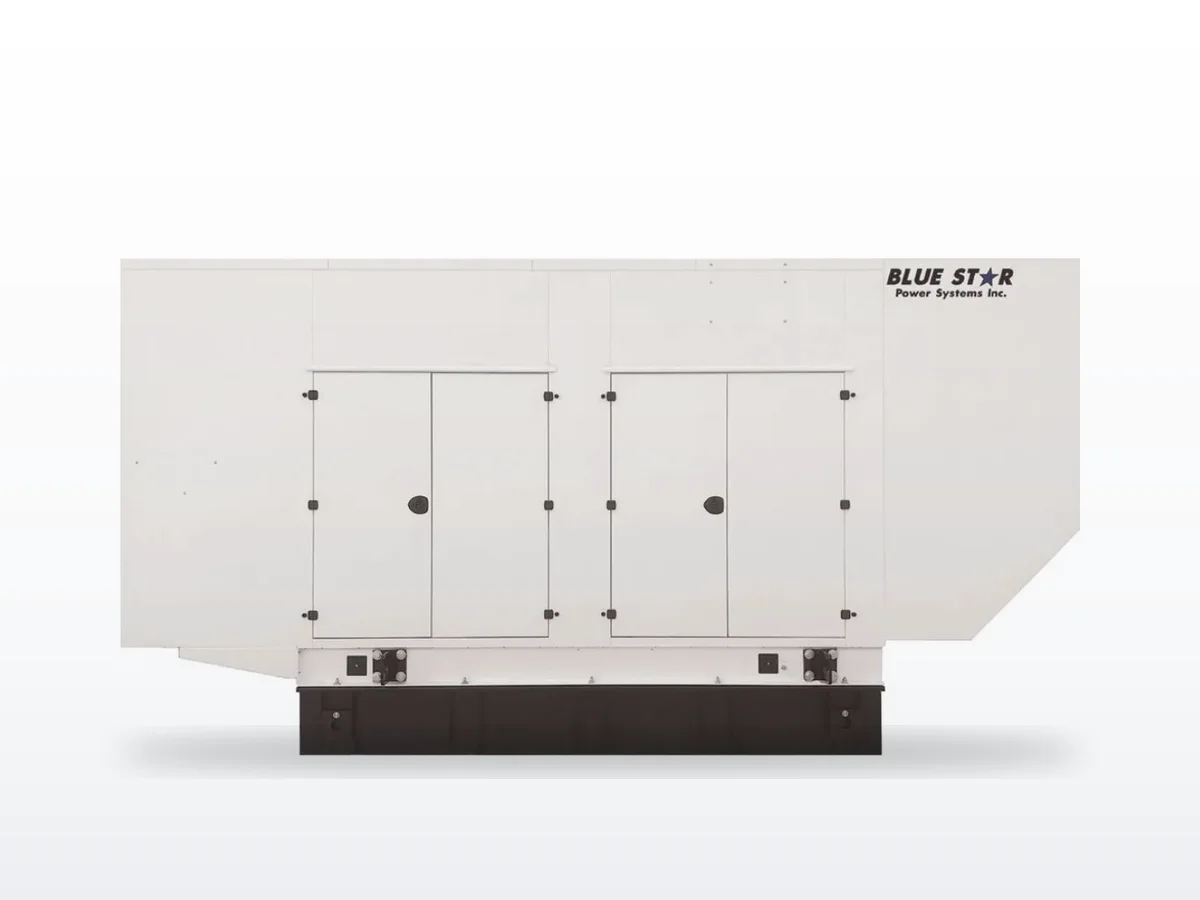

450 kW Tier 3 diesel standby generator built by Blue Star Power Systems. Perkins 2506D-E15TAG1 six-cylinder engine with charge air cooling, Stamford HCI534C alternator, DSE DCP7310 controller.
Tier 33-phasecommercialindustrial
B
Blue Star Power Systems
New

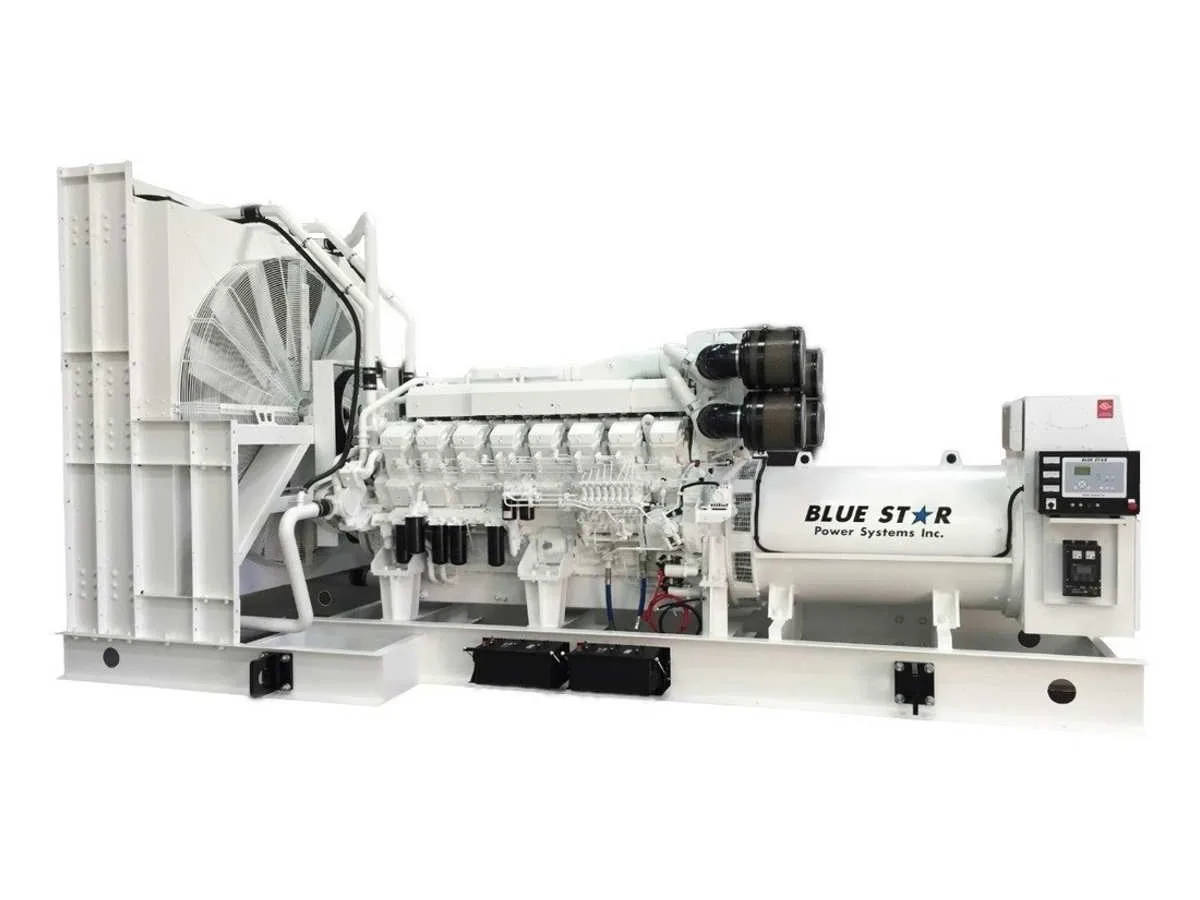

Blue Star PD550-01
550 kW standby · Diesel · Liquid-cooled
550 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Perkins 2506C-E15TAG4 six-cylinder engine with charge air cooling, Stamford HCI534E alternator, DSE DCP7310 controller.
Tier 23-phasecommercialindustrial
B
Blue Star Power Systems
New

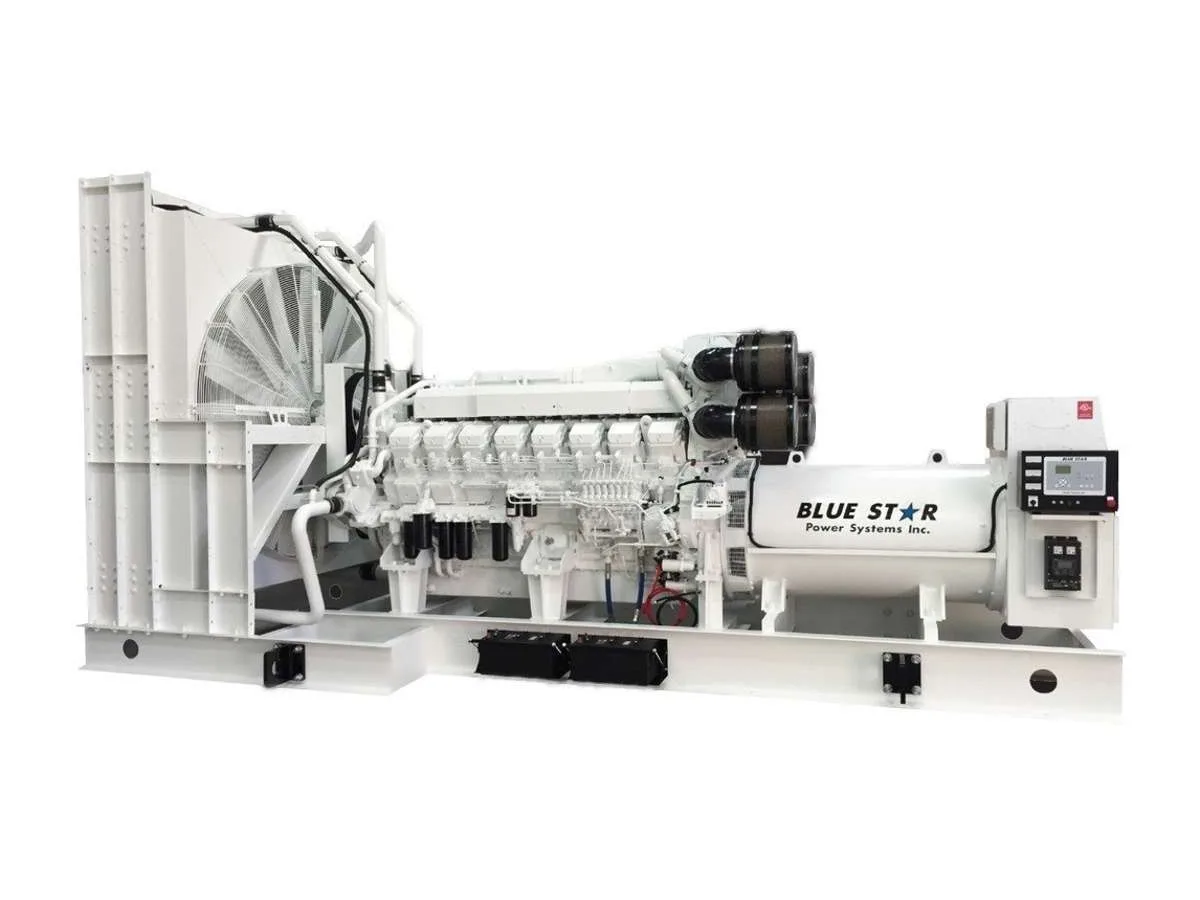

Blue Star VD500-01
