Hipower Systems · HGM Series (Stationary Natural Gas)

Hipower HGM-55

52 kW standby / 42.5 kW prime · Natural Gas / LPG · Liquid-cooled

52 kW stationary natural gas generator. CARB certified. Built in Olathe, Kansas.

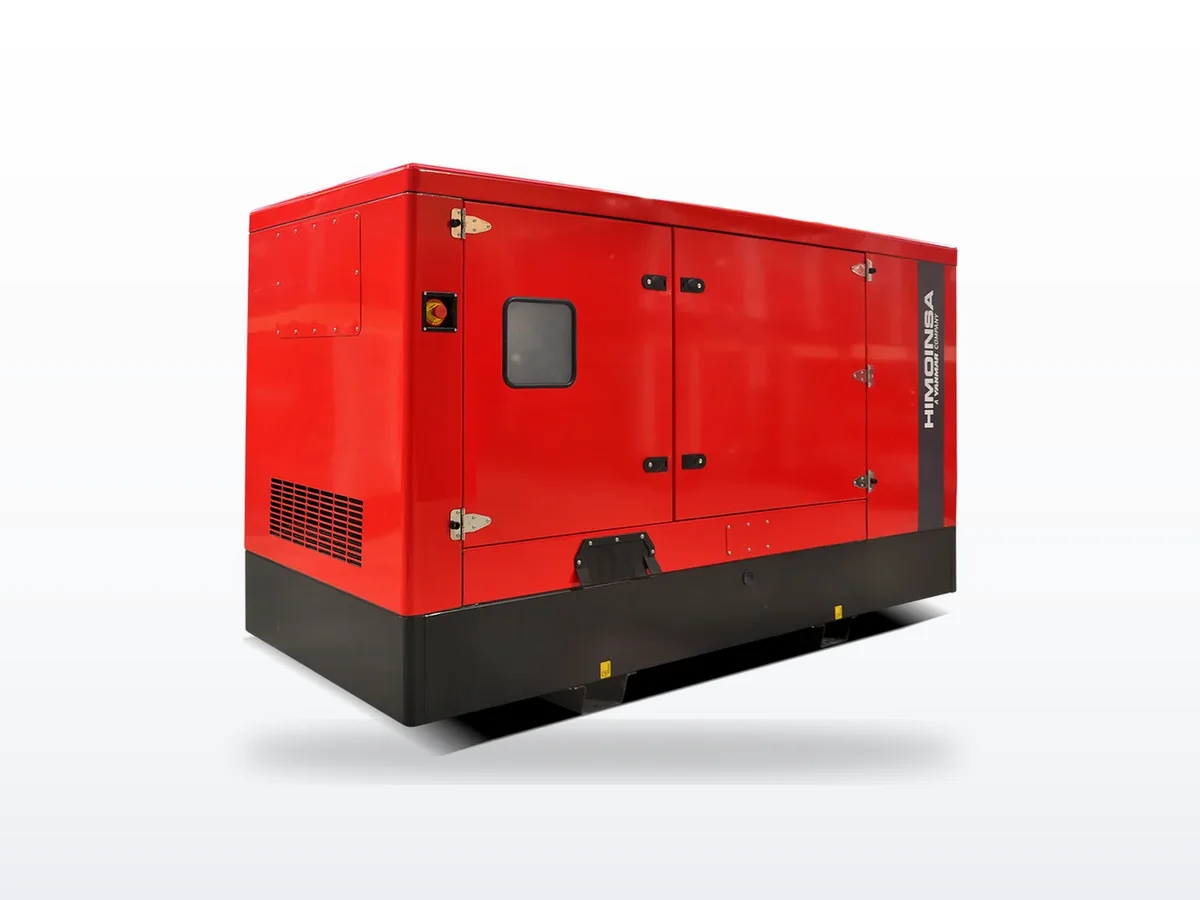

Hipower Systems Hipower HGM-55 generator — specifications and details
Standby power
52 kW / 42.5 kW prime
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
General Motors Vortec 5.7L · 5.7L
EPA / Emissions
EPA Stationary Spark Ignition
Alternator
Marathon Electric 361PSL1601

Overview#

The Hipower HGM-55 is a 52 kW stationary natural gas standby generator in Hipower's HGM series — a compact natural gas lineup for small commercial buildings where space is constrained and natural gas service is already available. Built in Olathe, Kansas, the HGM-55 is CARB certified for California natural gas standby applications.

At 52 kW, the HGM-55 covers essential standby loads for a small office building, neighborhood retail center, or light-commercial facility. Natural gas supply from the building's utility meter eliminates on-site fuel storage, SPCC compliance, and diesel delivery logistics.

Engine Platform#

The HGM-55 is powered by a General Motors Vortec 5.7L V8 naturally aspirated spark-ignited gaseous engine, the same proven small-block V8 platform used across industrial, agricultural, and fleet applications. At 1800 RPM on natural gas, the 350 CID (5.7L) engine produces 100 hp (108 hp on LPG). Marathon Electric provides the alternator (model 361PSL1601) with SE350 AVR. As with all spark-ignited natural gas generators, maintenance centers on spark plugs, oil changes, and gas system inspection — no DPF, DEF, or high-pressure diesel injection maintenance.

CARB-Certified for California#

The HGM series holds CARB certification for California natural gas stationary engine standby applications. This enables permit-by-rule approval in California air districts without a source test or air district variance.

Service and Maintenance#

  • Oil and filter: 1000 hours or 12 months
  • Spark plugs: 1000 hours
  • Air filter: 500 hours
  • Gas line and regulator: Annual inspection
  • Major overhaul: 30,000 hours

Our Service Experience#

OnPoint Generators services Hipower natural gas generators throughout the Bay Area and Northern California. The HGM-55 is appropriate for small commercial facilities where gas is the primary building fuel and diesel standby would introduce unnecessary storage and compliance complexity.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Hipower HGM-55

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HGM-55

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

546,000 BTU/hr546.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Service intervals

Manufacturer-recommended intervals for the Hipower HGM-55 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 1000 hours or 12 months
Air filter
Every 500 hours
Spark plugs
Every 1000 hours
Major overhaul
30,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Spark plugsErosion from natural gas combustion — replace at 1000-hour intervals1,000+minor
Gas pressure regulatorInlet pressure drift from utility fluctuations — test regulator at each service4,380+minor
Ignition moduleMisfire under low-load conditions — check ignition coil output and spark timing8,000+moderate

Frequently Asked Questions

What is the HGM series?
The HGM is Hipower's stationary natural gas generator series — compact, fixed-installation units for small-to-mid commercial buildings. The HGM-55 through HGM-120 use GM Vortec 5.7L V8 engines in various configurations (naturally aspirated, turbocharged, and gearbox-driven). The HGM-150 uses a PSI 8.8L V8.
Is the HGM-55 CARB certified?
Yes. Hipower's natural gas stationary lineup, including the HGM series, holds CARB certification for California installations.
What are the fuel options?
Natural gas and LP. The HGM-55 draws from the building's utility gas supply — no on-site fuel storage required.
What does 52 kW of standby power support?
Essential loads in a small commercial building: lighting, HVAC, POS systems, refrigeration, and communications equipment. A load analysis should confirm actual demand.
How does the HGM series differ from the HNI series?
Both are natural gas stationary generators from Hipower. The HNI series uses PSI and Origin engines across a broader range (30–1000 kW). The HGM series uses GM Vortec 5.7L V8 engines (HGM-55 through HGM-120) and a PSI 8.8L V8 (HGM-150). Both families are CARB certified.
Who services HGM units in Northern California?
OnPoint Generators provides service and maintenance for Hipower natural gas generators throughout Northern California.

Compatible equipment

More in the HGM Series (Stationary Natural Gas)

53 to 150 kW CARB-certified compact natural gas standby — broad voltage support, low-maintenance, and no on-site diesel storage required.

Similar models

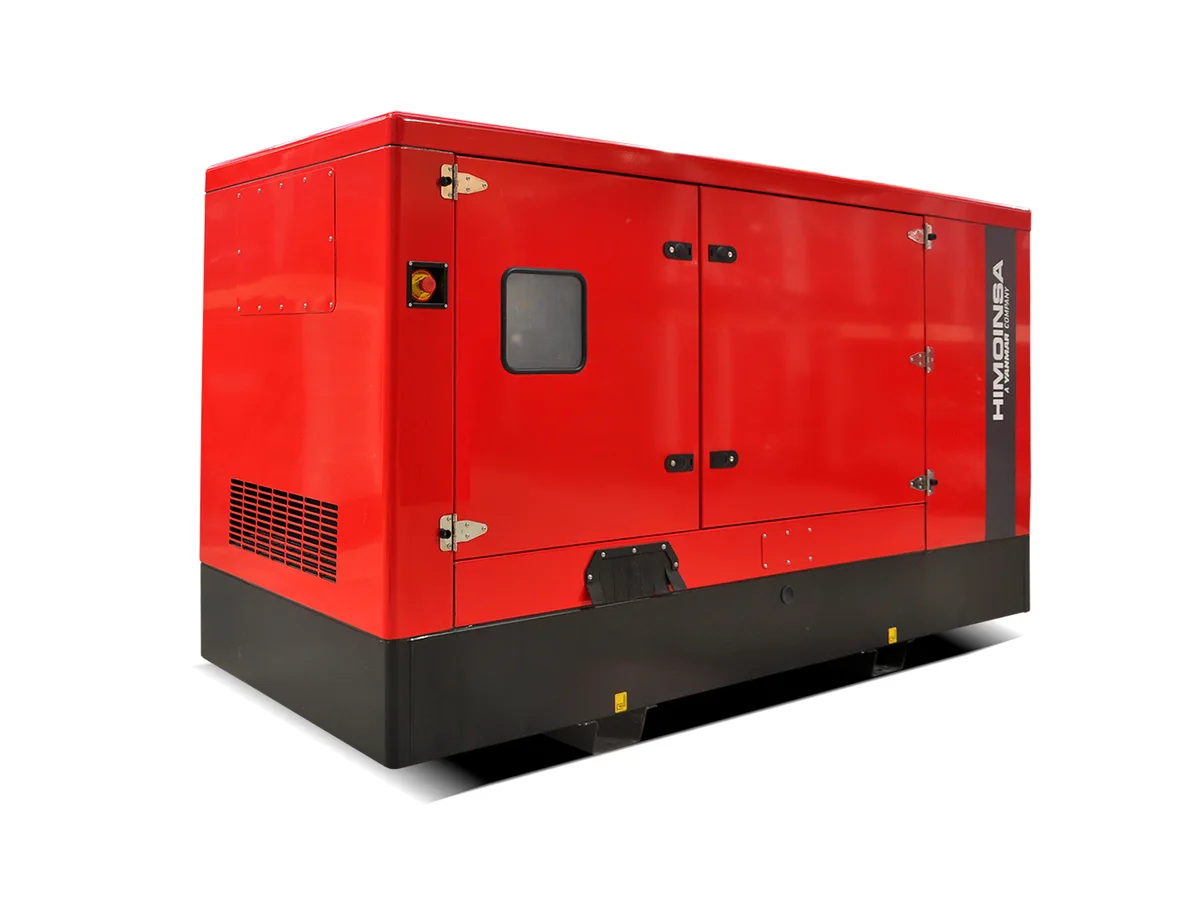

Hipower Systems Hipower HGM-65 60 kW liquid-cooled standby generator

Hipower Systems

Hipower HGM-65

CARB-certified stationary natural gas standby from Hipower's HGM series — compact, utility-supplied fuel, no on-site storage.

60 kW standby · Natural Gas / LPG · Liquid-cooled

60 kW stationary natural gas generator. CARB certified. Built in Olathe, Kansas.

EPA Stationary Spark Ignition3-phasecommercial-standbylight-commercial

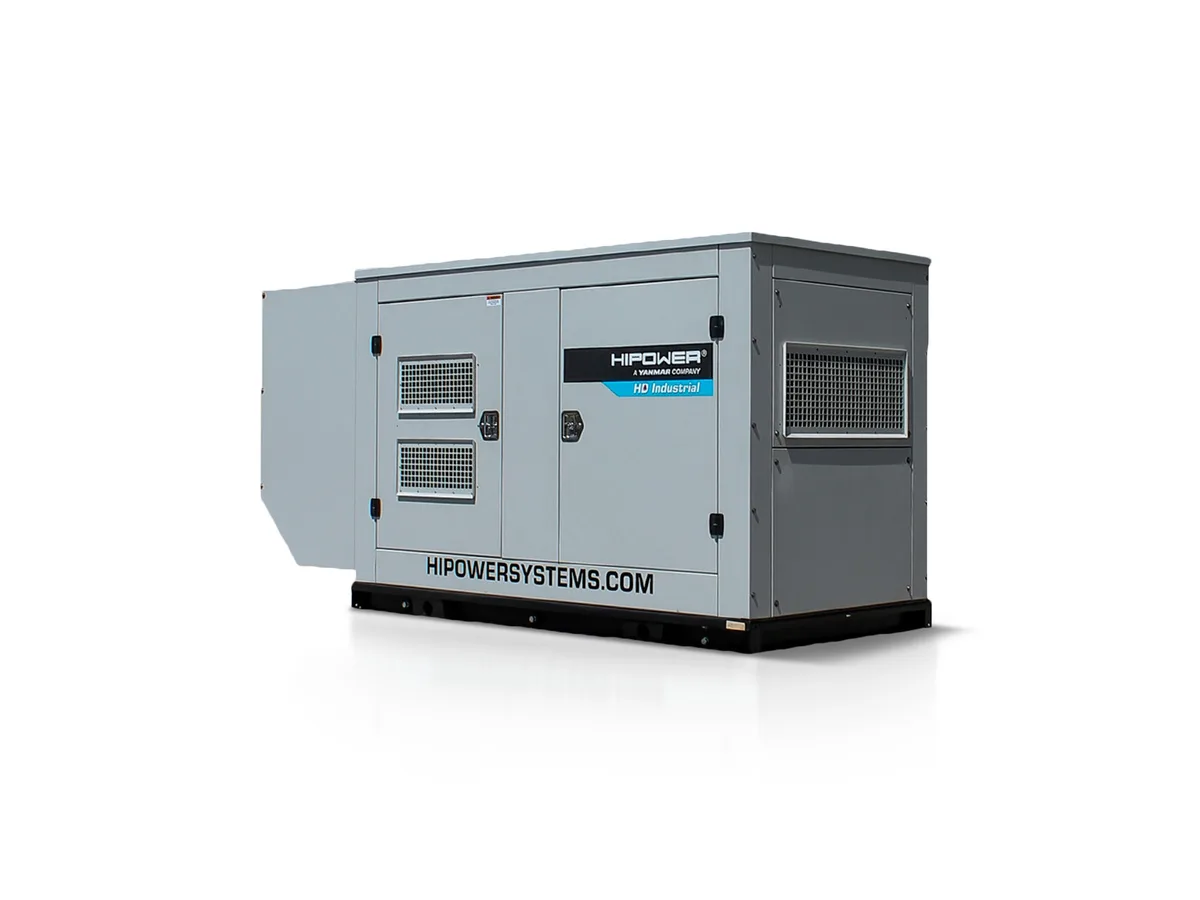

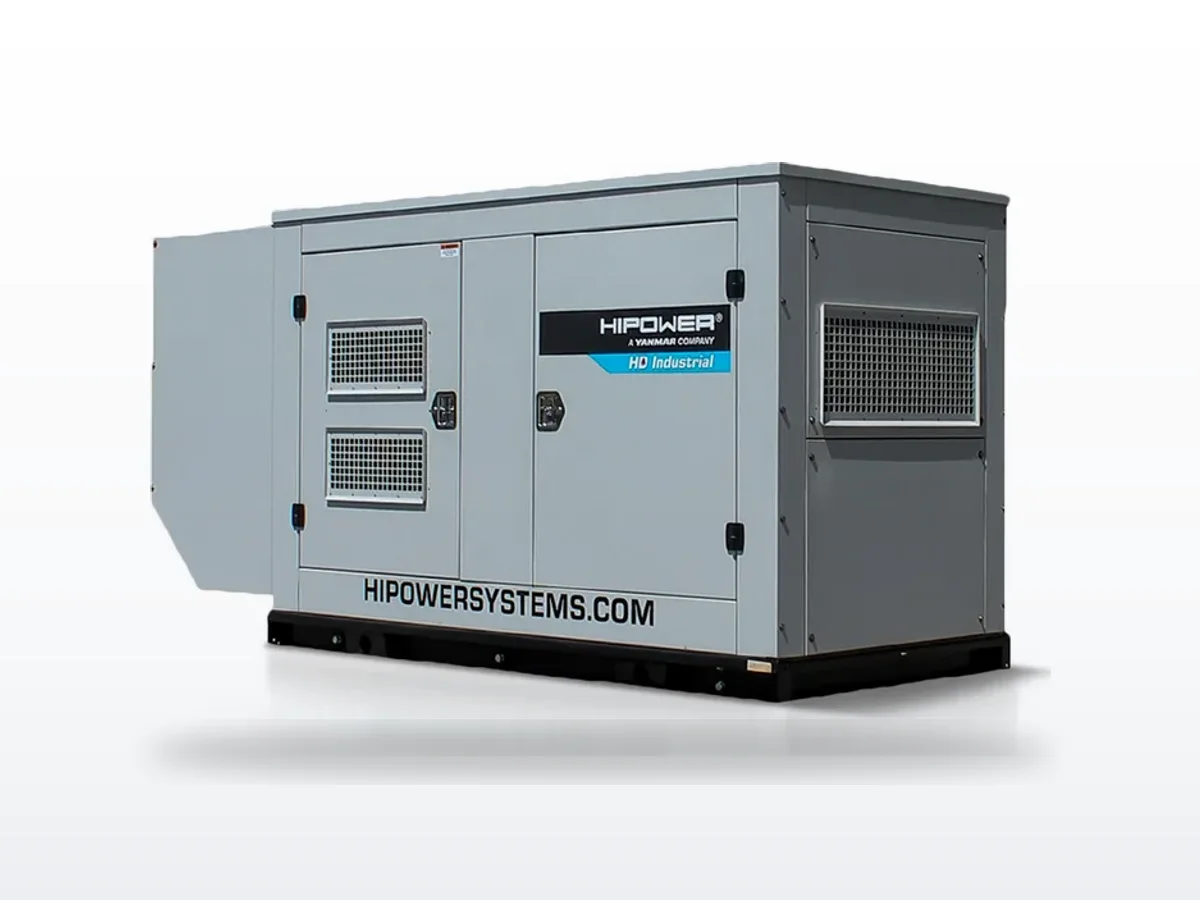

Hipower Systems Hipower HNI-50 50 kW liquid-cooled standby generator

Hipower Systems

Hipower HNI-50

Broadest CARB-certified natural gas lineup from a Tier 2 manufacturer — 30 to 1000 kW with PSI and Origin engines.

50 kW standby · Natural Gas / LPG · Liquid-cooled

50 kW standby natural gas generator with Origin 3.6L turbocharged engine. CARB certified for California natural gas standby.

EPA Stationary Spark Ignition3-phasecommercial-standbylight-commercial
Hipower Systems Hipower HJW-55 55 kW liquid-cooled standby generator

Hipower Systems

Hipower HJW-55

55 kW standby · Diesel · Liquid-cooled

55 kW diesel standby generator. John Deere 4045TF280-63 engine, Stamford UCI 224 alternator. EPA Tier 3. US manufactured in Lenexa, Kansas.

Tier 33-phasecommercial-standbylight-commercial

Need service or parts for the Hipower HGM-55?

We service every major OEM and stock genuine parts for the most common models.
