Generac · SD Series (Industrial Diesel)

Generac SD130-4

130 kW standby / 117 kW prime · Diesel · Liquid-cooled

130 kW industrial diesel standby generator with EPA Tier 4 Final emissions certification. Iveco/FPT 6.7L turbocharged-aftercooled inline-6 with exhaust aftertreatment, Digital H control with NFPA 110 Level I/II.

Standby power
130 kW / 117 kW prime
Voltage options
120/208V, 120/240V, 277/480V, 346/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Iveco/FPT 6.7L · 6.7L
Alternator
Generac K0130124Y21
Commerciallight-industrialHealthcareGovernmentData Centers
Configure & QuoteDownload spec sheet

Overview#

The Generac SD130-4 is the EPA Tier 4 Final certified variant of the SD130, a 130-kilowatt industrial diesel standby generator powered by an Iveco/FPT 6.7-liter turbocharged and aftercooled inline-six engine. Rated at 130 kW standby and 117 kW prime (163/146 kVA), the SD130-4 adds exhaust aftertreatment technology to meet Tier 4 Final emissions standards, which require significantly lower particulate matter and nitrogen oxide emissions compared to Tier 3 or emergency-only certified units.

The "-4" designation in the model name indicates Tier 4 Final (T4F) compliance. The underlying engine, alternator, and control platform are shared with the standard SD130, but the SD130-4 includes a diesel particulate filter (DPF) and diesel oxidation catalyst (DOC) in the exhaust system. This makes the SD130-4 suitable for installations in air quality non-attainment zones or projects where local permitting authorities require Tier 4 Final emissions certification regardless of duty cycle.

Generac offers the SD130-4 across the same four power nodes as the standard SD Series -- 100, 130, 150, and 175 kW -- with enclosure options from open skid through Level 2 sound-attenuated in steel or aluminum with RhinoCoat powder-coated finish. The Digital H control panel provides NFPA 110 Level I and II programmable operation, Modbus communications, and IBP/OSHPD seismic certification availability.

Our Service Experience#

The SD130-4's aftertreatment system introduces maintenance considerations beyond those of the standard SD130. The diesel particulate filter requires periodic regeneration -- either passive (during loaded operation) or active (initiated by the controller). Standby generators that exercise infrequently may not reach sufficient exhaust temperatures for passive regeneration, making scheduled loaded exercise cycles important to prevent DPF soot accumulation. Annual DPF inspection and cleaning should be added to the standard service schedule.

Fuel quality is especially critical on Tier 4 Final units. Ultra-low sulfur diesel (ULSD) is mandatory, and any fuel contamination or degradation accelerates aftertreatment component wear. The belt-driven water pump from the standard SD130 platform carries over -- belt inspection remains a standard item at every service interval.

Engineering specifications

Physical

Length
159 in
Width
53 in
Height
112 in
Dry weight
6,115 lb

Fuel system & runtime

Fuel use @ full load
9.6 GPH
Fuel use @ 75% load
7.7 GPH
Fuel use @ 50% load
5.4 GPH

Thermal & ventilation

Exhaust flow
910 CFM
Exhaust temp
960 °F

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Generac SD130-4

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quoteDownload datasheet

Estimate runtime for the Generac SD130-4

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

27.0 hours(1.1 days)

Fuel consumption ≈ 7.41 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Generac SD130-4 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter
Every 500 hours or 12 months
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Load bank test
Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

ComponentSymptomTypical hoursSeverity
Fuel quality / degradationHard starting, filter clogging, reduced power output4,380+moderate
TurbochargerPower loss, excessive smoke under load, oil consumption15,000+moderate
Exhaust aftertreatment (DPF/DOC)Regeneration fault codes, increased backpressure, derate warning10,000+moderate
BatteryFailed to start, slow cranking8,760+minor
Drive belt (water pump)Overheating, coolant temperature alarm, engine shutdown8,000+severe

Frequently Asked Questions

What is the difference between the SD130-4 and the standard SD130?
The SD130-4 is the EPA Tier 4 Final certified variant of the SD130. Both use the Iveco/FPT 6.7L inline-6 engine at 130 kW standby / 117 kW prime, but the SD130-4 adds exhaust aftertreatment (diesel particulate filter and diesel oxidation catalyst) to meet Tier 4 Final emissions standards. The standard SD130 is EPA Certified for Stationary Emergency applications only, while the SD130-4 meets stricter Tier 4 Final requirements for installations where air quality regulations demand lower particulate and NOx emissions.
What is the fuel consumption of the Generac SD130-4?
The SD130-4 shares the same 6.7L engine platform as the standard SD130. Fuel consumption at standby rating is approximately 9.6 gallons per hour at full load (100%), 7.7 gph at 75% load, and 5.4 gph at 50% load. Actual consumption may vary slightly due to the aftertreatment system's periodic regeneration cycles.
What voltages are available?
The SD130-4 is available in three-phase configurations: 120/208 VAC, 120/240 VAC, 277/480 VAC, and 346/600 VAC, all at 0.8 power factor.

Compatible equipment

Transfer switches

Similar models

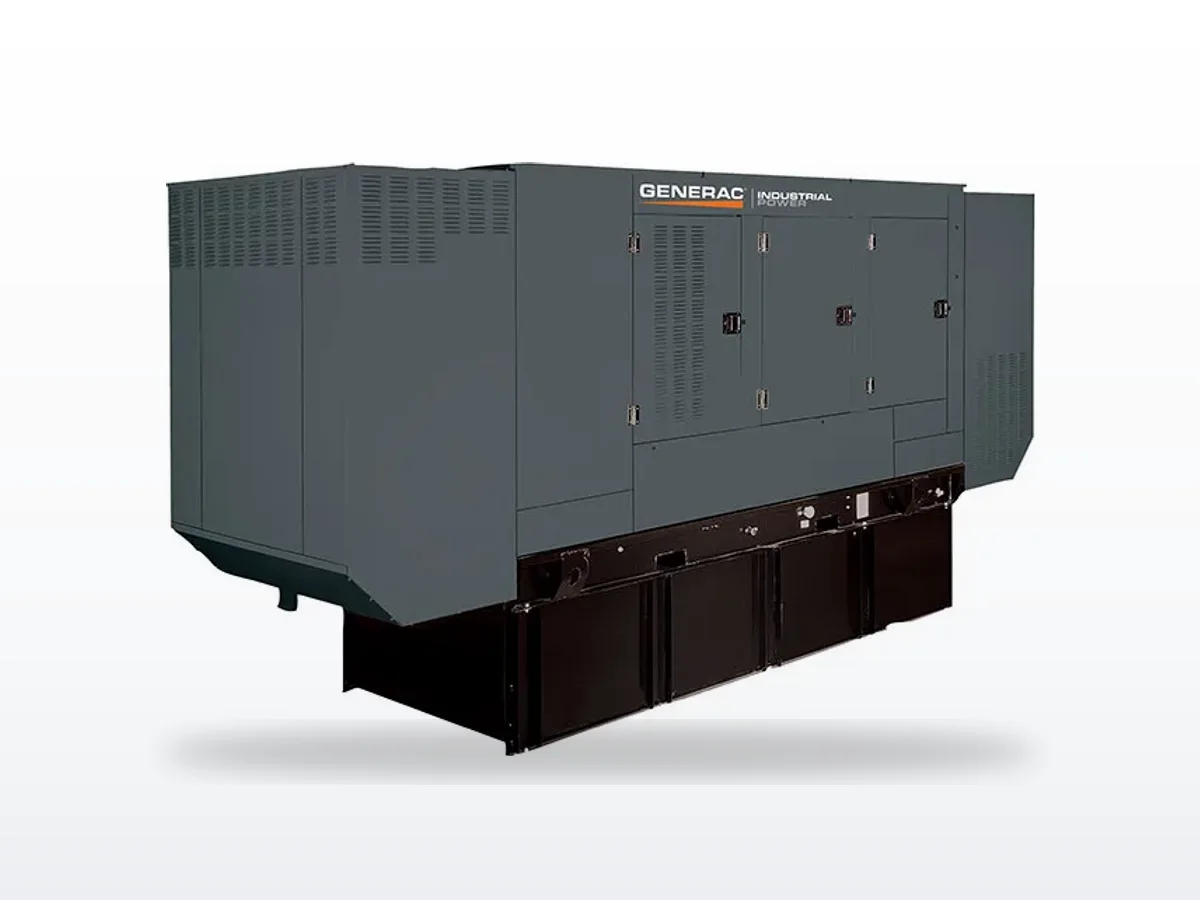

Generac Generac SD130 130 kW liquid-cooled standby generator

Generac

Generac SD130

130 kW industrial diesel with Iveco/FPT engine. 10-15% below Kohler pricing. Digital controller with paralleling capability.

130 kW standby · Diesel · Liquid-cooled

130 kW industrial diesel standby generator. Iveco/FPT 6.7L turbocharged-aftercooled inline-6, EPA Certified Stationary Emergency, Digital H control with NFPA 110 Level I/II.

3-phasecommercial-standbylight-industrial

Generac

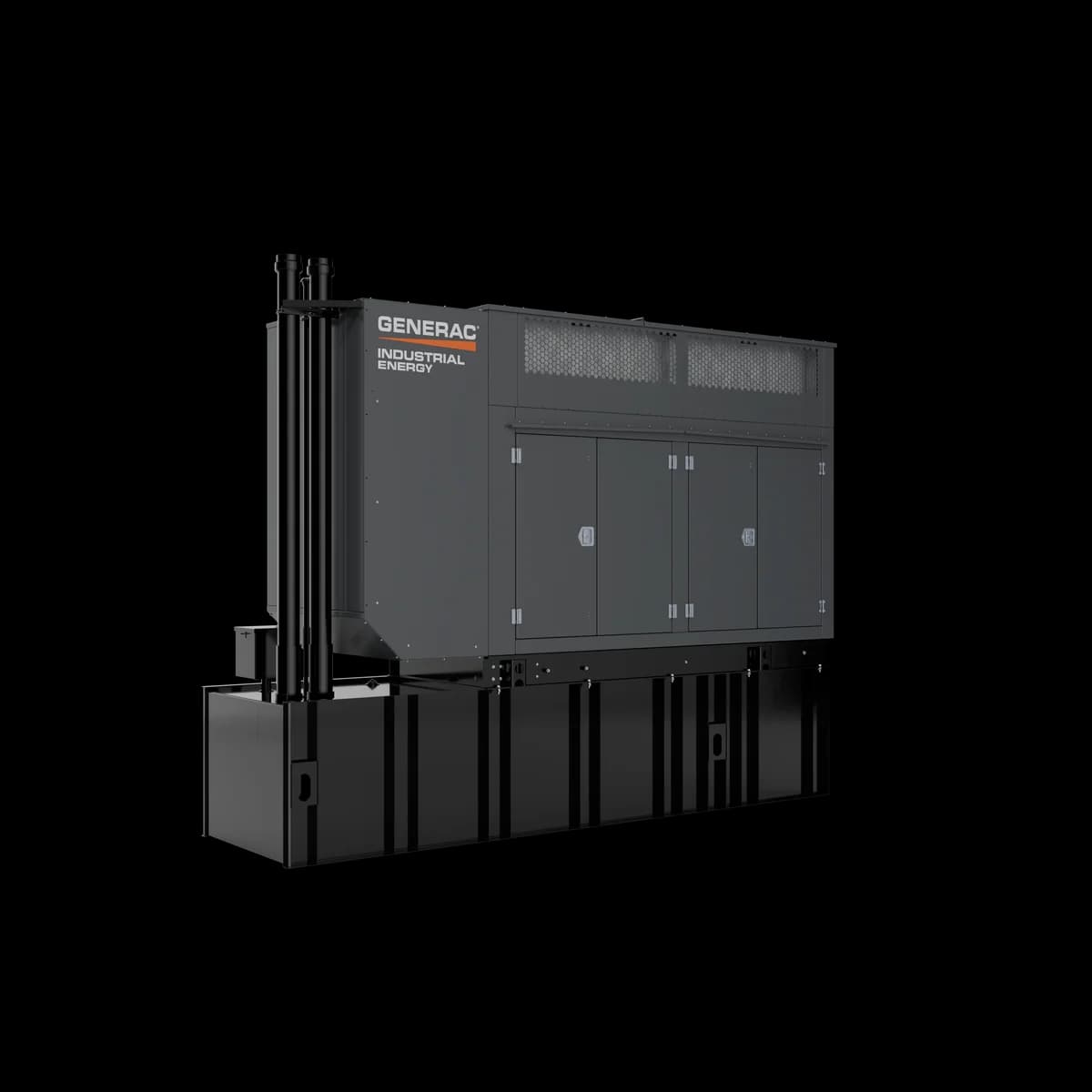

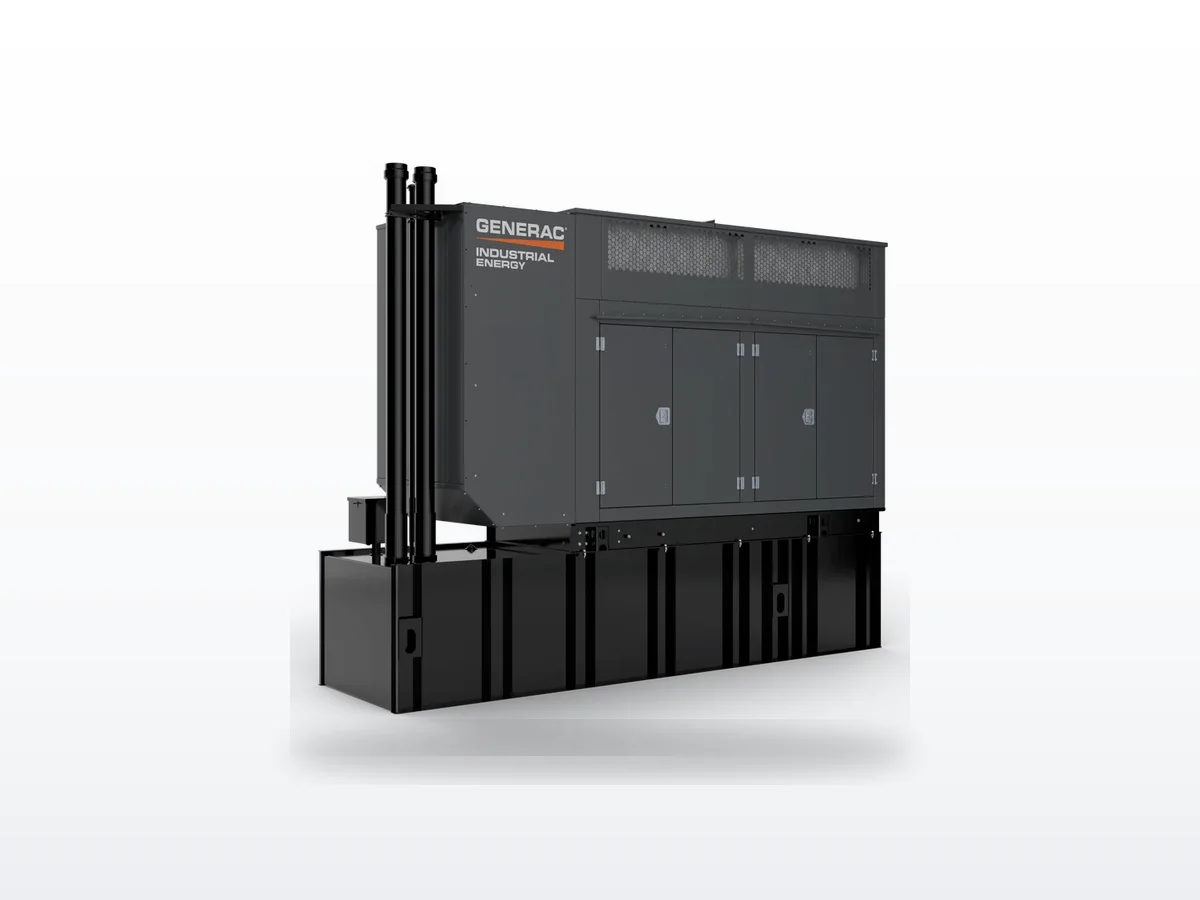

Generac SD100-4

100 kW industrial diesel with EPA Tier 4 Final emissions certification. Same proven 6.7L inline-6 platform with exhaust aftertreatment for projects requiring stricter emissions compliance.

100 kW standby · Diesel · Liquid-cooled

100 kW industrial diesel standby generator with EPA Tier 4 Final emissions certification. Iveco/FPT 6.7L turbocharged-aftercooled inline-6 with exhaust aftertreatment, Digital H control with NFPA 110 Level I/II.

3-phasecommercial-standbylight-industrial

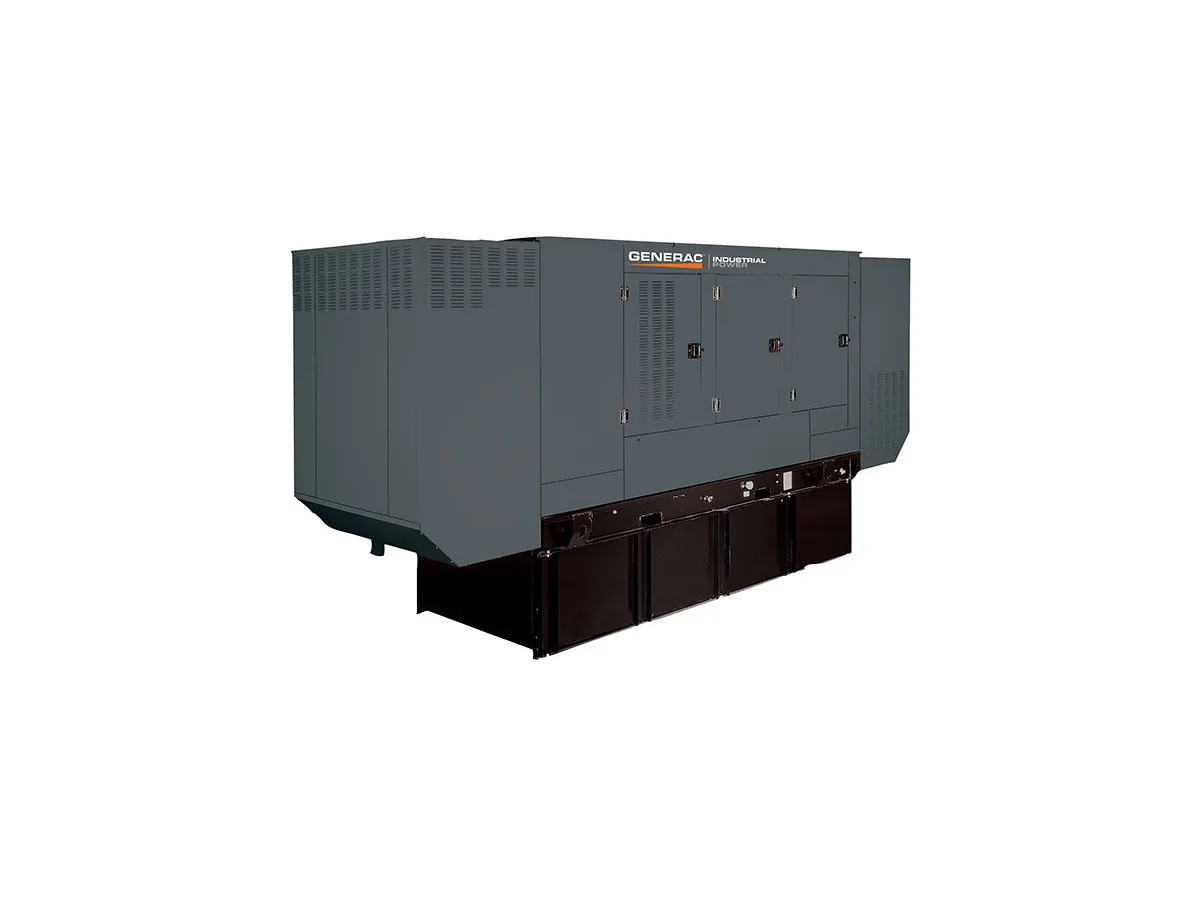

Generac Generac SD150 150 kW liquid-cooled standby generator
