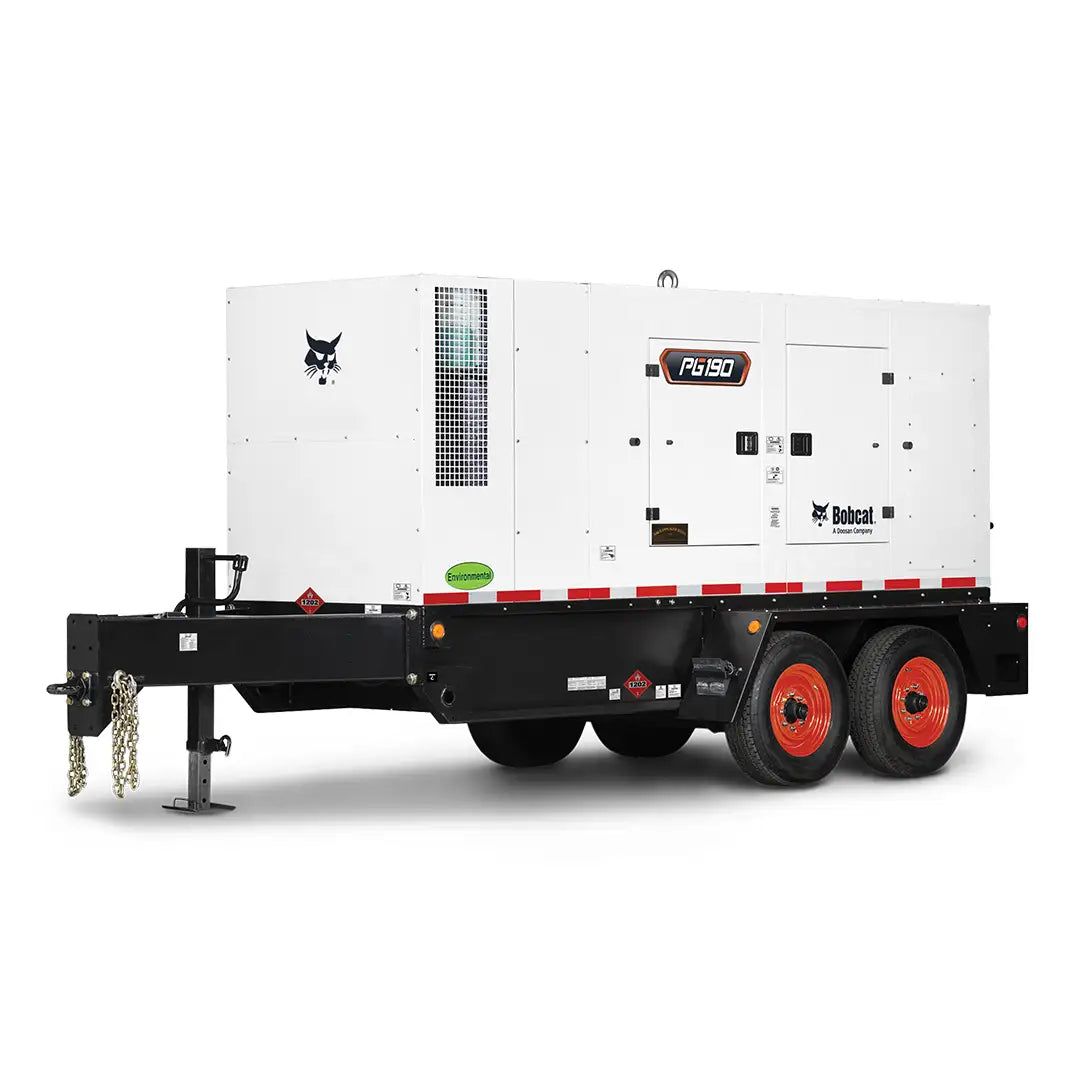

The Doosan G190 delivers 145 kW of prime power (181 kVA) from a Cummins QSB7-G8 6.7-liter inline-six diesel. The G190 is the first model in the Doosan lineup to feature the DualBox enclosure design, which separates the powertrain from the cooling system for improved thermal management and noise reduction.
At 69 dBA and 11,377 lbs, the G190 offers Cummins engine serviceability at a price point typically 15-30% below comparable units. The 368-gallon integrated fuel tank provides 31.7 hours of runtime at full load — one of the longest in its class.
The G190 introduces Doosan's DualBox enclosure — a split-compartment design that physically separates the engine/alternator powertrain from the radiator and cooling system. This separation serves two purposes: improved thermal management (hot engine air doesn't recirculate through the cooling compartment) and better noise attenuation (each compartment is independently sound-treated).
The DualBox design is used on all Doosan models from the G190 up through the G570. For service technicians, the split compartment means easier access to both the engine and the cooling system without working around each other. The 224" x 83.2" footprint accommodates the Cummins QSB7 6.7-liter inline-six with room for service access on all sides.
OnPoint services Cummins QSB7-powered generators extensively in Northern California — it is one of the most common engine platforms in the portable power industry. The G190's DualBox enclosure provides noticeably better service access than single-compartment designs at this power level. Cummins parts availability through Bay Area distributors is excellent. For operators running Cummins-powered units across multiple brands, the QSB7 service procedures are identical regardless of the generator manufacturer. The 500-hour oil change interval and strong Cummins dealer network keep total cost of ownership competitive.
Engineering specifications
Physical
Length
224 in
Width
83.2 in
Height
102.9 in
Wet weight
11,377 lb
Acoustic
Sound @ 7m, full load
69 dBA
Enclosure
Sound-attenuated
Fuel system & runtime
Integral fuel tank
368 gal
Request a quote
Get pricing & lead time on the Doosan G190
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
42.6 hours(1.8 days)
Fuel consumption ≈ 8.64 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Doosan G190 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Air filter
Every 500 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel filter
Restricted flow, hard starting, power loss under load
500+
minor
Battery
Failed to start or slow cranking after extended storage
4,380+
minor
Coolant hoses
Weeping at clamp connections, slow coolant loss
5,000+
minor
DPF regeneration
Incomplete regen at sustained light loads, power derate warning
2,000+
moderate
Frequently Asked Questions
What is the standby power rating of the Doosan G190?
The Doosan G190 delivers 160 kW standby and 145 kW prime power. It is the first DualBox enclosure model in the G-Series and the first to use the Cummins QSB7 6.7-liter engine. Also sold as the Bobcat PG190.
What engine does the Doosan G190 use?
The G190 is powered by a Cummins QSB7-G8 6.7-liter inline-6 turbocharged diesel engine running at 1,800 RPM. The QSB7 is one of the most common mid-range portable generator engines, ensuring wide parts availability and familiar serviceability for Cummins-trained technicians.
What are the service intervals for the Doosan G190?
Oil changes are due every 500 hours or 12 months, whichever comes first. Air filter and fuel filter replacement intervals are 500 hours. Major engine overhaul is specified at 20,000 hours. The DualBox enclosure provides improved service access to both the engine and cooling compartments.
Is the Doosan G190 EPA compliant?
Yes. The G190 is EPA Tier 4 Final compliant. The Cummins QSB7-G8 meets current U.S. emissions requirements. Note: the G190 does include a DPF in its aftertreatment system — operators should maintain adequate load to support proper DPF regeneration cycles.
How does Doosan compare to Atlas Copco at the 190 kVA class?
Both operate in the 190-200 kVA class with Cummins QSB7 engines. The G190 typically prices 15-30% below Atlas Copco's QAS 200 while the same engine class. The G190's 368-gallon tank and 31.7-hour full-load runtime are competitive for extended operations.
What control panel does the Doosan G190 use?
The G190 is equipped with Doosan's digital control panel providing auto-start, fault monitoring, voltage/frequency display, and runtime tracking. The DualBox enclosure separates the engine/alternator and cooling compartments, improving access for panel-side and engine-side servicing.
Who services Doosan generators in Northern California?
OnPoint Generators services Cummins QSB7-powered Doosan generators extensively across Northern California. The QSB7 is one of the most common engine platforms in the portable power industry, and parts availability in the Bay Area is excellent through multiple Cummins distributors.
Similar models
Doosan / Bobcat

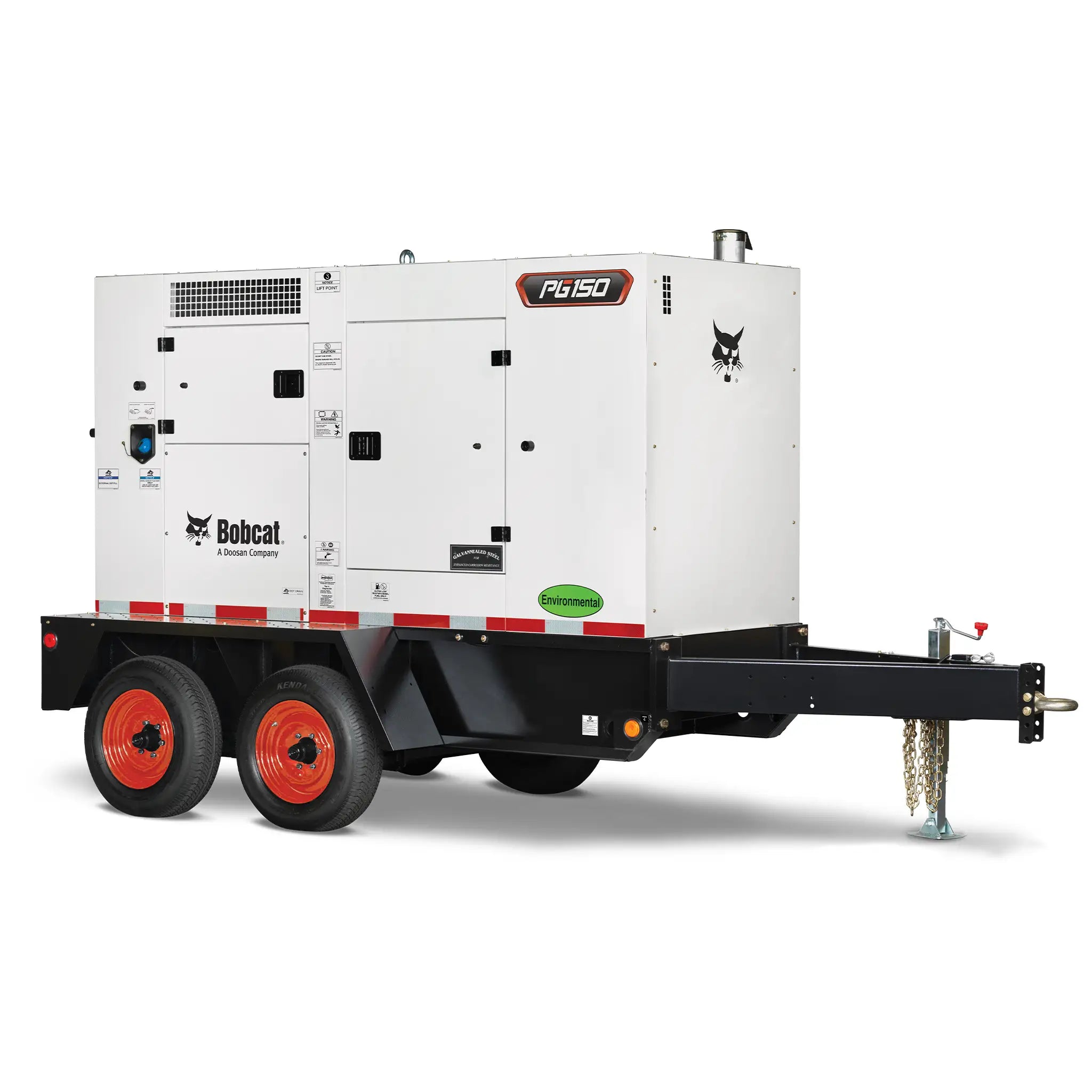

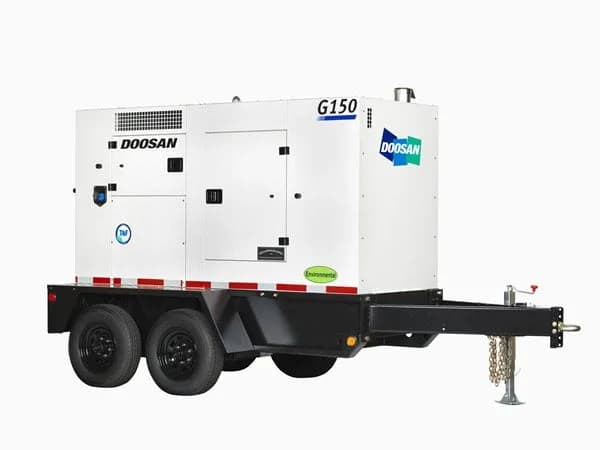

Doosan G150
23% more power than the G125 in the exact same chassis and footprint. Cummins QSB5 with no DPF — bridges the gap before stepping up to the larger DualBox G190.
135 kW standby · Diesel · Liquid-cooled
Commercial construction needing 100-150 kW, rental fleet gap-filler between 125 and 190 kVA classes, and temporary power for mid-size commercial buildings.
123 kW prime diesel portable generator. Cummins QSB5-G12-powered with 68 dBA operation and shared G125 chassis.
Tier 4 Final3-phaseconstructionrental-fleet
Doosan / Bobcat

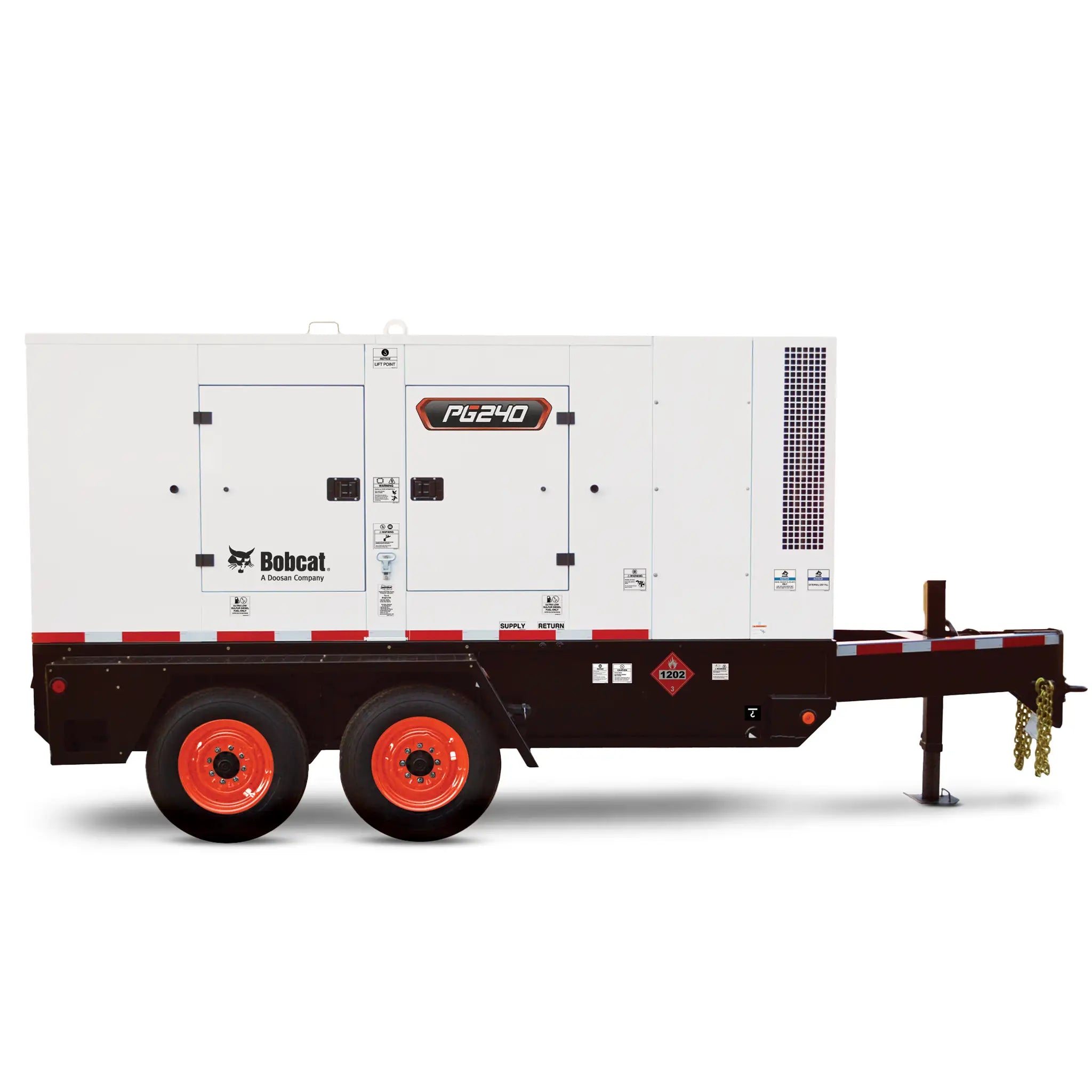

Doosan G240
