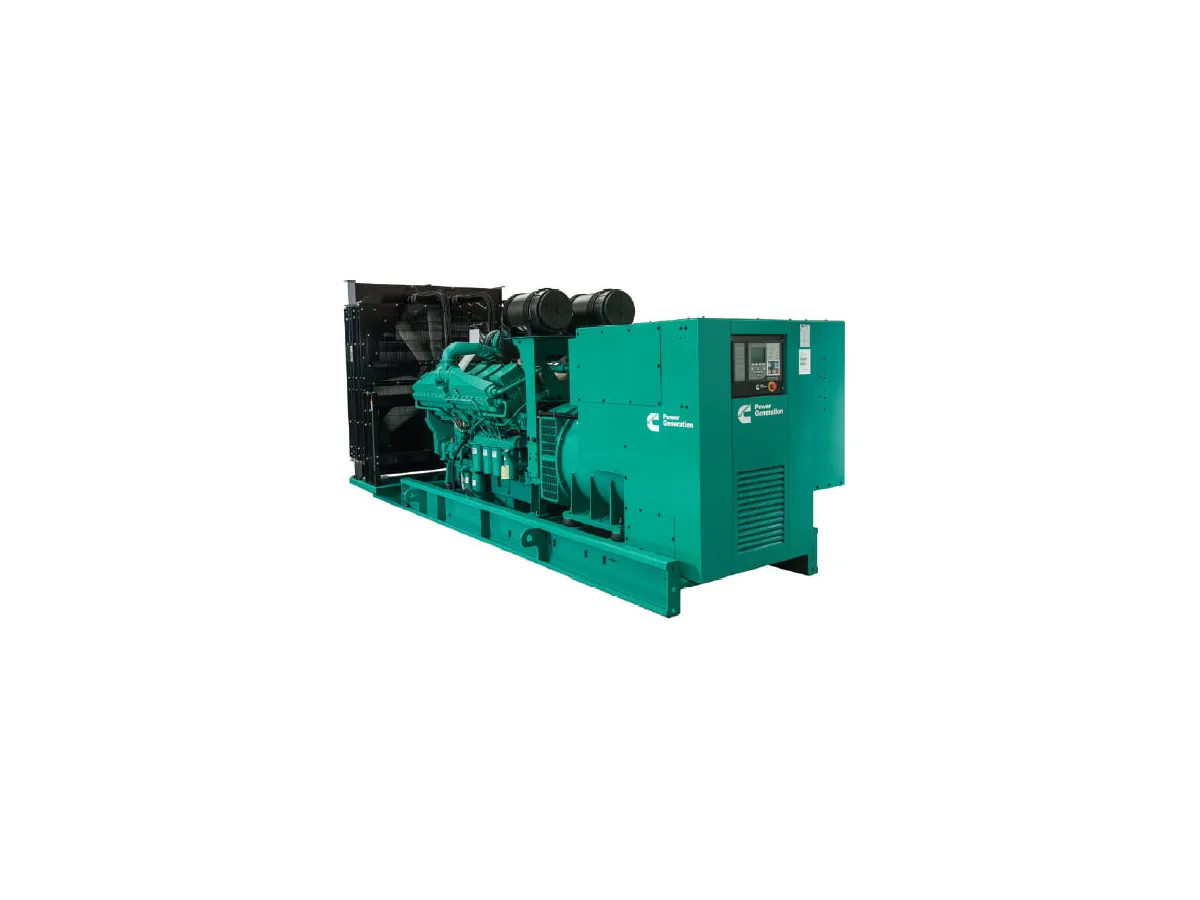

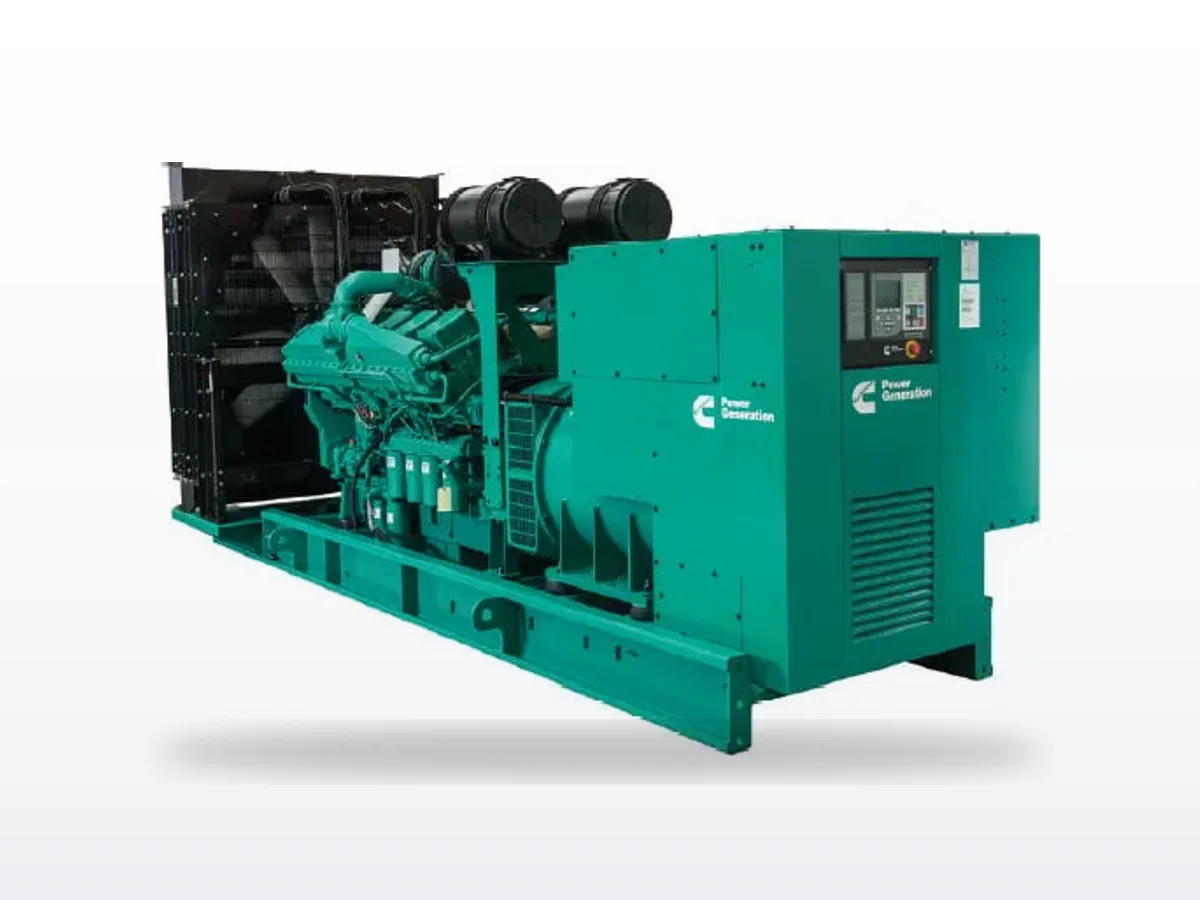

The Cummins KTA38 (C1000 D5) is a 1,000-kilowatt standby diesel generator built on the KTA38 V12 — the legacy large-displacement Cummins platform that was a workhorse of industrial, hospital, and mining standby power from the 1980s through the mid-2000s. Succeeded by the QSK38 in current production, the KTA38 remains in active service at a large installed base of industrial and institutional sites with Cummins legacy parts support continuing.
The KTA38's mechanically governed direct-injection fuel system is rugged and maintainable in demanding environments. At 1000 kW standby and 900 kW prime, the V12 delivers reliable large-scale power output in a platform that field technicians worldwide have decades of experience servicing.
The KTA38 comes up regularly in our industrial and legacy institutional accounts. The mechanical injection system requires periodic calibration attention to maintain rated output and clean combustion. Turbocharger condition, cooling circuit integrity, and injector pump condition are our primary inspection points. We treat every KTA38 service as an opportunity to assess overall platform health and flag components approaching end-of-life — proactive maintenance is especially important on legacy platforms where replacement lead times for some parts can be longer.
Request a quote
Get pricing & lead time on the Cummins KTA38
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
3.7 hours(0.2 days)
Fuel consumption ≈ 54.00 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Cummins KTA38 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 24,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
Fuel quality (standby degradation)
Injector fouling, filter clogging, hard starting
4,380+
moderate
Turbocharger(s)
Reduced power, excessive smoke, turbo noise
18,000+
moderate
Starting system (24V battery banks)
Slow crank, failed start requirement
8,760+
minor
Frequently Asked Questions
What is the relationship between the KTA38 and QSK38?
The KTA38 is Cummins' legacy V12 large diesel platform in the 1000 kW class, succeeded by the QSK38 in current production. The QSK38 uses MCRS common rail fuel injection for improved efficiency and tighter emissions compliance. The KTA38 uses a mechanically governed fuel system — simpler to service in the field but less fuel-efficient than the QSK38. Both are 1000 kW class V12 platforms.
How long can a KTA38 remain in service?
Properly maintained KTA38 generators routinely operate for 30+ years. Cummins' legacy parts support keeps them serviceable. Key longevity factors: regular oil and coolant analysis, injection timing maintenance, cooling system care, and periodic load bank testing to identify any performance degradation before it becomes a reliability risk.
Why is the KTA38 common in mining and industrial sites?
The KTA38 was a dominant platform in the 1980s–2000s for large industrial standby and prime power. Its mechanically controlled fuel system is field-serviceable without specialized diagnostic equipment — valuable in remote mining and industrial locations. The V12 configuration also provides redundancy within the engine itself, with individual cylinder isolation possible during operation in some configurations.
