Cummins · Cummins N6 Commercial Gas

Cummins C800 N6

800 kW standby · Natural Gas / LPG · Liquid-cooled

800 kW natural gas standby generator with GTA50 gas engine. 800 kW / 1000 kVA standby, PowerCommand controls, AmpSentry protection, UL 2200, EPA certified.

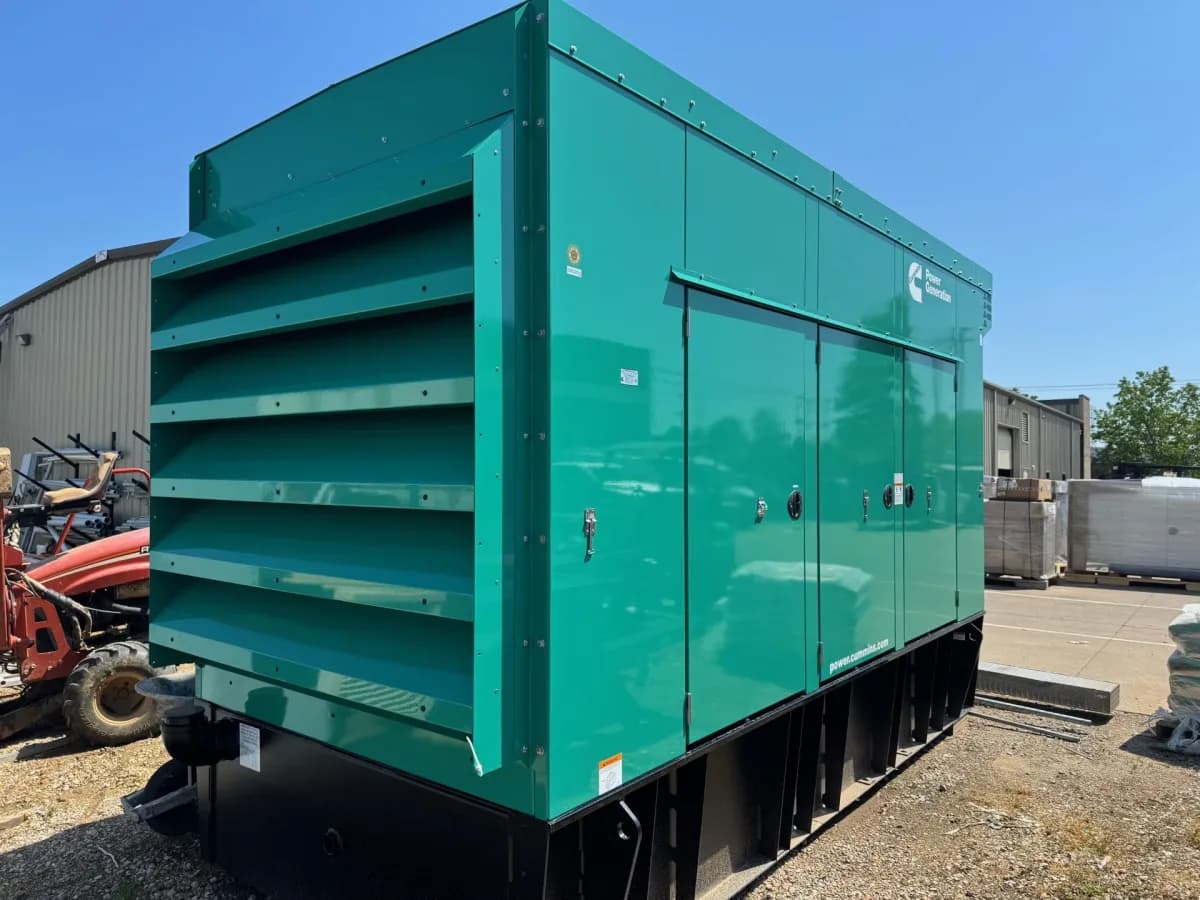

Cummins Cummins C800 N6 generator — specifications and details
Standby power
800 kW
Voltage options
120/208V, 277/480V, 347/600V
Frequency / Phase
60 Hz · 3-phase
Engine
Cummins GTA50

Overview#

The Cummins C800 N6 is an 800 kW (1000 kVA) standby natural gas generator set powered by the GTA50 gas engine -- a turbocharged and aftercooled spark-ignited engine. The unit runs on natural gas or propane vapor (field selectable) and is equipped with PowerCommand controls providing isochronous governing and AmpSentry alternator protection. It carries UL 2200 listing and EPA certification for stationary emergency use.

At 800 kW, the C800 N6 enters the high-capacity segment of the Cummins gas generator lineup. It is deployed in hospitals, data centers, large office campuses, and industrial facilities where full-building gas-fired backup is required. The GTA50 platform provides the foundation for reliable operation at this power level without the fuel logistics burden of an equivalently sized diesel generator.

Technical Specifications#

ParameterValue
Standby Rating800 kW (1000 kVA)
Frequency60 Hz
Power Factor0.8
Engine ModelGTA50
Fuel TypeNatural gas / LPG
CoolingLiquid
AspirationTurbocharged and aftercooled
Rated Speed1800 rpm
NG Fuel Consumption (Full Load)~8,000 CFH

Our Service Experience#

The GTA50 gas engine is a large-displacement platform that requires experienced technicians and proper tooling for service. Spark plug replacement on the GTA50 is a significant service event due to cylinder count and access constraints. The catalytic converter (where fitted) is a critical maintenance item at this power level -- backpressure buildup from catalyst degradation can derate the unit significantly.

Gas supply infrastructure is a major consideration at 800 kW. At approximately 8,000 CFH full-load consumption, the facility requires a dedicated high-capacity gas meter, 4-inch minimum supply piping, and an appropriately sized pressure regulator. We have seen installations where gas utility upgrades were required to support this level of demand -- coordinate with the local gas utility early in the project.

Frequently Asked Questions#

What engine does the C800 N6 use? The Cummins GTA50 -- a turbocharged and aftercooled spark-ignited gas engine rated for 800 kW standby at 1800 rpm.

What is the standby rating of the C800 N6? 800 kW (1000 kVA) at 60 Hz, 0.8 power factor. Emergency Standby Power (ESP) rating.

Can OnPoint Generators service the C800 N6 in Northern California? Yes. OnPoint Generators provides authorized Cummins natural gas generator service across the San Francisco Bay Area, Silicon Valley, and Northern California.

Engineering specifications

Ready to order this model?

Configure your Cummins C800 N6

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Cummins C800 N6

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Fuel demand at 75% load

8,400,000 BTU/hr≈ 8400.0 cf/min @ 1,000 BTU/cf

On utility natural gas the runtime is generally unlimited provided the supply line and meter can deliver this BTU/hr at the engine's required inlet pressure (typically 5–14" WC residential, up to 5 psi commercial). Confirm against the OEM's published fuel-pressure spec.

Frequently Asked Questions

What engine does the Cummins C800 N6 use?
The C800 N6 is powered by the Cummins GTA50 gas engine -- a turbocharged and aftercooled spark-ignited engine rated for 800 kW standby output at 1800 rpm.
What is the standby rating of the Cummins C800 N6?
The C800 N6 is rated at 800 kW (1000 kVA) standby at 60 Hz, 0.8 power factor. This is an Emergency Standby Power (ESP) rating for both natural gas and propane vapor fuel types.
How much natural gas does the C800 N6 consume at full load?
Approximately 8,000 CFH at full standby load on natural gas. Gas supply infrastructure must be sized accordingly -- typically requiring a dedicated high-capacity gas meter and 4-inch supply piping.
Can OnPoint Generators service the C800 N6 in Northern California?
Yes. OnPoint Generators provides authorized Cummins natural gas generator service across the San Francisco Bay Area, Silicon Valley, and Northern California. We handle spark plug service, gas regulator calibration, turbocharger inspection, catalytic converter service, and load bank testing for C800 N6 installations.

Compatible equipment

Similar models

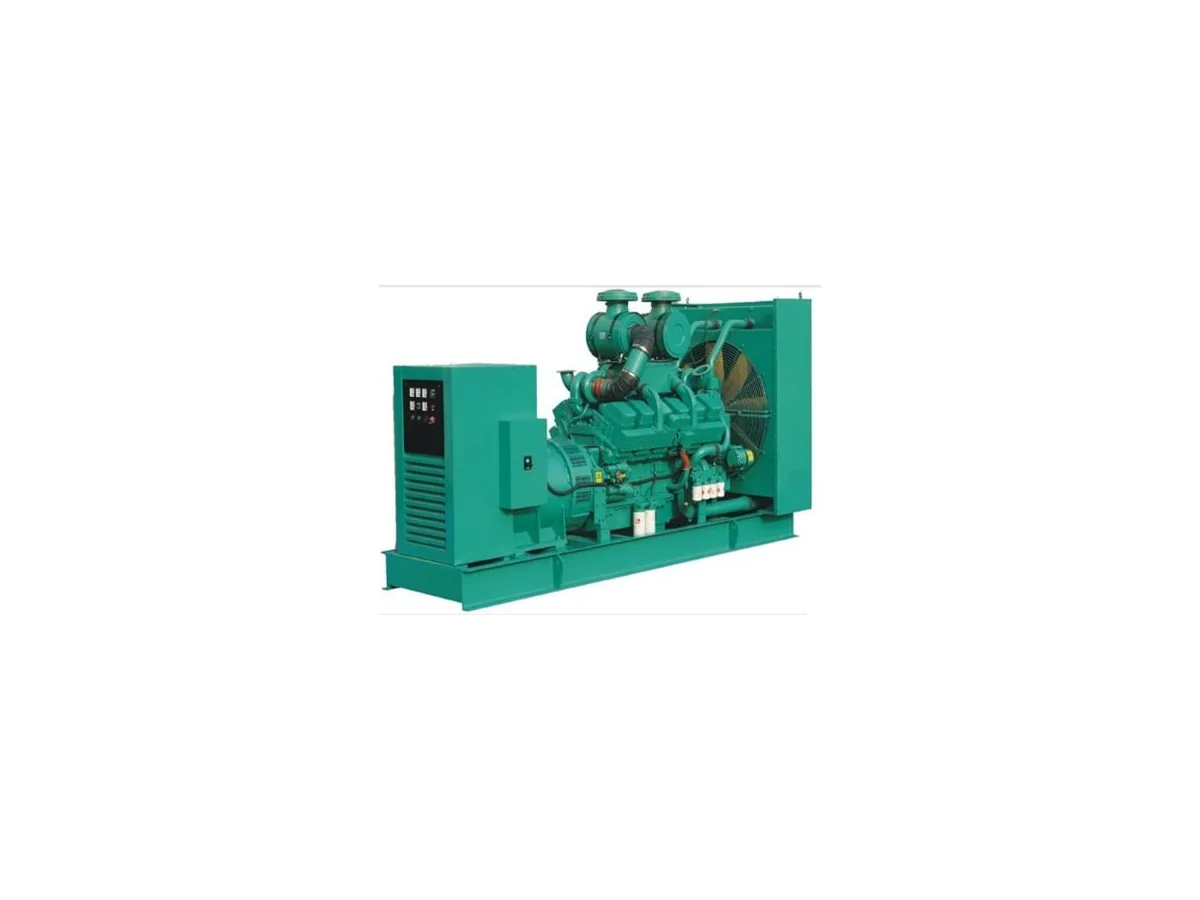

Cummins Cummins C800 D6 800 kW liquid-cooled standby generator

Cummins

Cummins C800 D6

800 kW standby diesel generator set with a Cummins QSK23-G3 engine and the HPI-PT full authority electronic fuel system.

800 kW standby · Diesel · Liquid-cooled

800 kW standby, 727 kW prime diesel generator set at 60 Hz with a Cummins QSK23-G3 23.1L inline-6 engine and HPI-PT fuel injection, liquid-cooled, for data center, hospital, and mission-critical standby applications.

3-phasecommercial-standbylarge-commercial
Cummins Cummins C750 N6 750 kW liquid-cooled standby generator

Cummins

Cummins C750 N6

750 kW standby natural gas generator set on the Cummins GTA50 engine, with PowerCommand 3.3 paralleling control functions.

750 kW standby · Natural Gas · Liquid-cooled

750 kW standby natural gas generator with GTA50 engine. PowerCommand 3.3 controls, AmpSentry protection, NFPA 110 Type 10 load acceptance; UL 2200 certification on select models.

3-phasecommercial-standbyindustrial

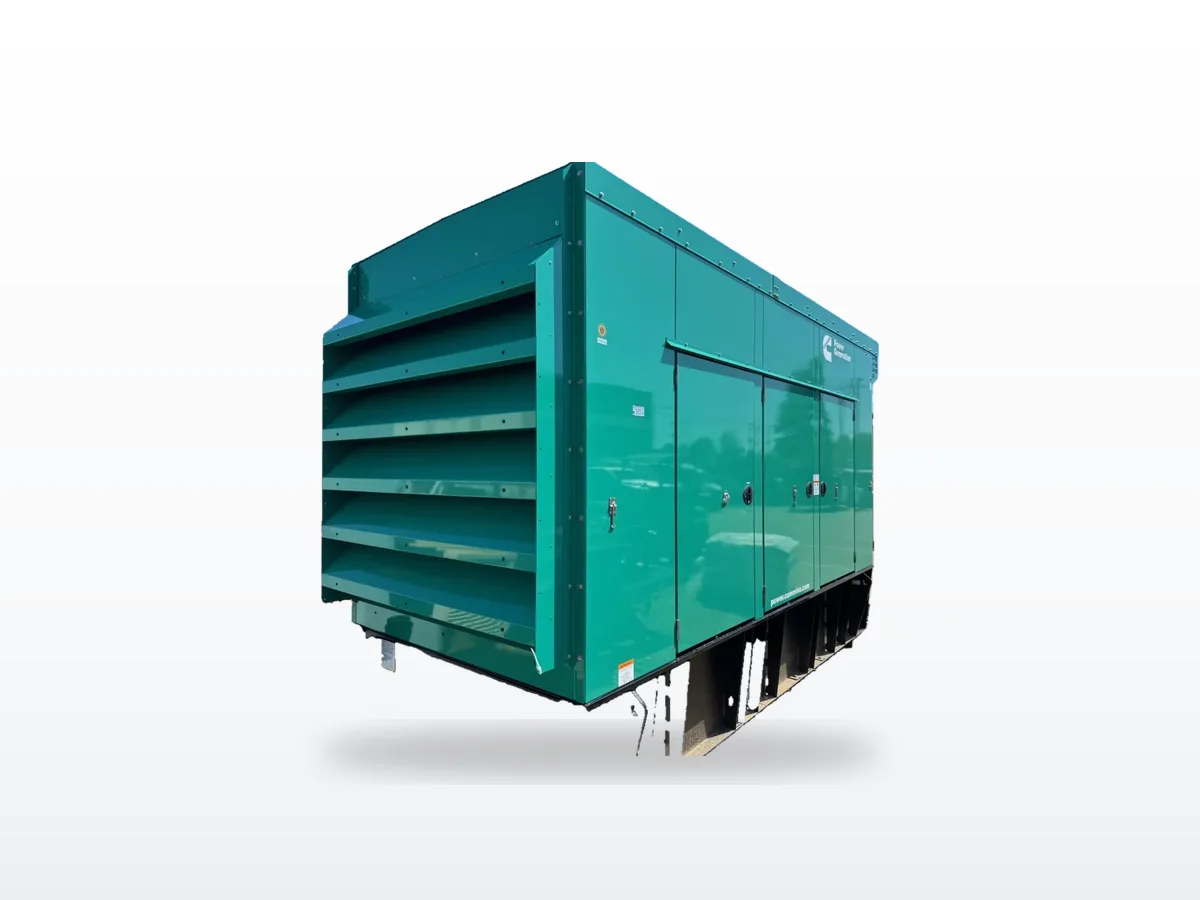

Cummins Cummins C1000 N6 1 MW liquid-cooled standby generator
