Overview#

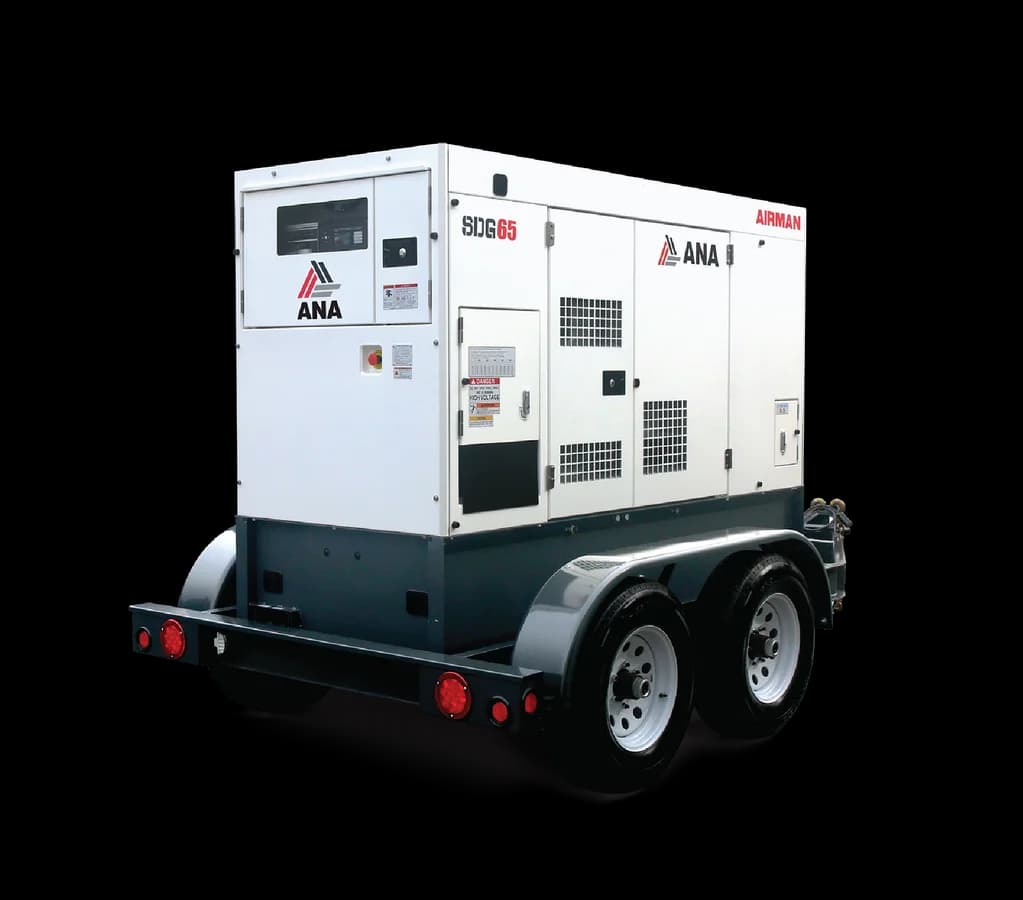

The Airman SDG65 delivers 51 kW of prime power (65 kVA) from an Isuzu 4JJ1X engine at 1,800 RPM, filling the gap between the 36 kW SDG45 and the 100 kW SDG125. The 111-gallon integral fuel tank provides 28.5 hours of runtime at full load.
At 4,189 lbs operating weight, the SDG65 occupies a mid-size portable footprint (97" x 39") that bridges compact towable units and the larger trailer-mounted class. Standard 110% fluid containment and Tier 4 Final compliance meet California environmental and emissions requirements.
The Isuzu 4JJ1X Platform#
The Isuzu 4JJ1X is a step up in displacement from the 4LE2-series engines used in Airman's smaller models. This turbocharged four-cylinder diesel is widely used in medium-duty commercial vehicles and industrial equipment worldwide, which means parts availability and technician familiarity are excellent. The engine's common-rail fuel injection system delivers precise fuel metering across the load range, contributing to the SDG65's 28.5-hour runtime on 111 gallons. Running at 1,800 RPM, the 4JJ1X operates well below its mechanical limits in this application, supporting the extended service intervals and low warranty claim rate that Airman units are known for.
Our Service Experience#
The SDG65 fills an important gap in our portable fleet. Many Northern California commercial construction projects — office fit-outs in downtown San Francisco, hospital renovation phases in the East Bay, and data center commissioning work in Santa Clara — need more than 36 kW but do not justify mobilizing a full-size 100 kW trailer unit. The SDG65 at 51 kW prime covers these loads while keeping the overall equipment footprint manageable in congested urban job sites.
We see the SDG65 deployed for extended durations, often 30-90 days on a single project. The 111-gallon tank and 28.5-hour runtime mean weekly fuel deliveries rather than daily, which simplifies logistics. For units running continuously, we recommend the standard 250-hour oil change interval and fuel filter inspection at each service visit. The Isuzu 4JJ1X has been exceptionally reliable in our fleet — the most common unscheduled service events are battery-related, easily prevented with proper float charging between deployments.
