What is the standby rating of the Airman SDG13?

The Airman SDG13 delivers 11 kW standby / 10 kW prime at 60 Hz. It is rated for single and three-phase output across 120/240V, 208V, and 240V configurations.

What engine does the Airman SDG13 use?

The SDG13 is powered by a Kubota D1503 — a naturally aspirated three-cylinder diesel engine running at 1,800 RPM with EPA Tier 4 Final emissions compliance. The naturally aspirated design means no turbocharger to maintain, simplifying long-term service in the field.

What is Airman's warranty claim rate?

Airman generators are built by Hokuetsu Industries in Japan and carry a documented 0.001% warranty claim rate — the lowest in the portable generator industry. This figure reflects the precision manufacturing standards applied to every unit built at the Hokuetsu facility.

What are the service intervals for the SDG13?

The Kubota D1503 engine in the SDG13 requires oil and filter changes every 200 hours or 12 months (whichever comes first), air filter replacement at 500 hours, fuel filter replacement at 500 hours, and is rated for major overhaul at 10,000 hours.

What fluid containment does the SDG13 have?

All Airman generators, including the SDG13, feature 110% fluid containment as standard. This means the integrated drip tray can hold more than the total volume of all engine fluids — eliminating the need for separate secondary containment on environmentally sensitive California job sites.

Who services Airman generators in Northern California?

OnPoint Generators is the authorized Airman service provider for Northern California. We stock parts, perform warranty service, and offer maintenance contracts for the full Airman SDG lineup including the SDG13.

Airman · SDG Series

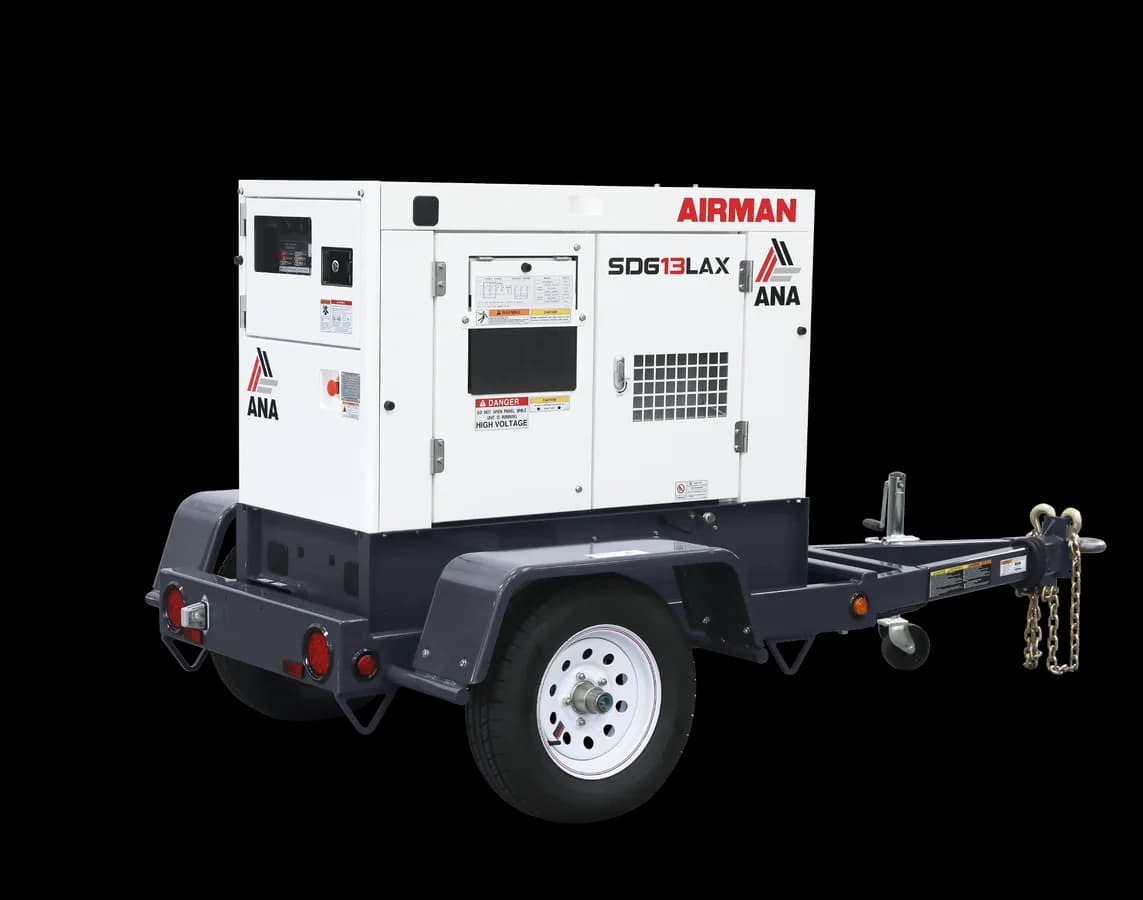

Airman SDG13

Name: Airman SDG13
Brand: Airman
Availability: PreOrder

11 kW standby / 10 kW prime · Diesel · Liquid-cooled

10 kW prime diesel portable generator. Ultra-compact Kubota-powered unit with 110% fluid containment and 27.7-hour runtime.

Standby power: 11 kW / 10 kW prime
Voltage options: 120/240V, 208V, 240V
Frequency / Phase: 60 Hz · 1/3-phase
Engine: Kubota D1503
EPA / Emissions: Tier 4 Final

Commercialrental-fleettemporary-powerevents

Configure & Quote Download spec sheet

Overview#

The Airman SDG13 is the most compact generator in Airman's portable diesel lineup, delivering 10 kW of prime power from a Kubota D1503 engine at 1,800 RPM. Weighing just 1,290 lbs dry, it fits into tight spaces where larger units cannot go while still providing reliable single and three-phase output.

Like all Airman generators, the SDG13 features 110% fluid containment as standard — a critical requirement for environmentally sensitive California job sites. The unit runs 27.7 hours at full load on its 26.4-gallon integral tank, making it well-suited for overnight construction operations and small event power.

The Kubota Advantage#

The Kubota D1503 is a naturally aspirated three-cylinder diesel engine with a well-earned reputation for durability in compact equipment. Running at 1,800 RPM rather than 3,600 RPM, the engine operates below its stress threshold, contributing to the extended service life that Airman units are known for. The naturally aspirated design means no turbocharger to maintain or replace — one less failure point in the field. Combined with Tier 4 Final emissions compliance, the SDG13 meets California's strict air quality requirements without requiring a diesel particulate filter (DPF) regeneration cycle, which simplifies operation for crews unfamiliar with active aftertreatment systems.

Our Service Experience#

We see the SDG13 deployed frequently on residential remodel projects in the Bay Area's hillside communities — Los Altos Hills, Woodside, Saratoga — where tight lot access and noise sensitivity rule out larger generators. The unit's compact footprint and 110% containment make it a natural fit for jobs near creeks or protected watersheds where environmental compliance is non-negotiable. Common service patterns on SDG13 units in our fleet center on fuel quality: diesel that sits in the integral tank for weeks between mobilizations picks up moisture, which accelerates fuel filter clogging. We recommend draining and refueling with fresh diesel if the unit has sat idle for more than 30 days. Battery maintenance is the other recurring theme — a quality trickle charger between deployments prevents the most common no-start calls we receive on this model.

Engineering specifications

Physical

Length: 55 in
Width: 26 in
Height: 46 in
Dry weight: 1,290 lb
Wet weight: 1,500 lb

Acoustic

Enclosure: Sound-attenuated

Fuel system & runtime

Integral fuel tank: 26.4 gal

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Ready to order this model?

Configure your Airman SDG13

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Configure & Quote →Just request a quote Download datasheet

Estimate runtime for the Airman SDG13

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

44.4 hours(1.9 days)

Fuel consumption ≈ 0.59 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Airman SDG13 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 200 hours or 12 months
Air filter: Every 500 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 10,000 hours

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Fuel filter	Clogging from contaminated or stale diesel causes hard starting and power loss — replace at 500-hour intervals or sooner if fuel quality is suspect	500+	minor
Starting battery	Capacity degradation during extended storage without a maintainer — test under load at every service visit and replace proactively at 36 months	4,380+	minor
Coolant hoses	Weeping at clamp points from thermal cycling — inspect during every oil change and replace at first sign of swelling or seepage	5,000+	minor

Frequently Asked Questions

What is the standby rating of the Airman SDG13?: The Airman SDG13 delivers 11 kW standby / 10 kW prime at 60 Hz. It is rated for single and three-phase output across 120/240V, 208V, and 240V configurations.
What engine does the Airman SDG13 use?: The SDG13 is powered by a Kubota D1503 — a naturally aspirated three-cylinder diesel engine running at 1,800 RPM with EPA Tier 4 Final emissions compliance. The naturally aspirated design means no turbocharger to maintain, simplifying long-term service in the field.
What is Airman's warranty claim rate?: Airman generators are built by Hokuetsu Industries in Japan and carry a documented 0.001% warranty claim rate — the lowest in the portable generator industry. This figure reflects the precision manufacturing standards applied to every unit built at the Hokuetsu facility.
What are the service intervals for the SDG13?: The Kubota D1503 engine in the SDG13 requires oil and filter changes every 200 hours or 12 months (whichever comes first), air filter replacement at 500 hours, fuel filter replacement at 500 hours, and is rated for major overhaul at 10,000 hours.
Is the SDG13 EPA compliant?: Yes. The Airman SDG13 meets EPA Tier 4 Final emissions standards through its Kubota D1503 engine — without requiring a diesel particulate filter (DPF) regeneration cycle. This simplifies operation for crews unfamiliar with active aftertreatment systems and eliminates DPF maintenance.
What fluid containment does the SDG13 have?: All Airman generators, including the SDG13, feature 110% fluid containment as standard. This means the integrated drip tray can hold more than the total volume of all engine fluids — eliminating the need for separate secondary containment on environmentally sensitive California job sites.
Who services Airman generators in Northern California?: OnPoint Generators is the authorized Airman service provider for Northern California. We stock parts, perform warranty service, and offer maintenance contracts for the full Airman SDG lineup including the SDG13.

More in the SDG Series

Tier 4 Final portable diesel from 11 to 336 kW — Isuzu, Kubota, and John Deere engines with 110% fluid containment standard.

View all 9models in this series →

Similar models

Airman

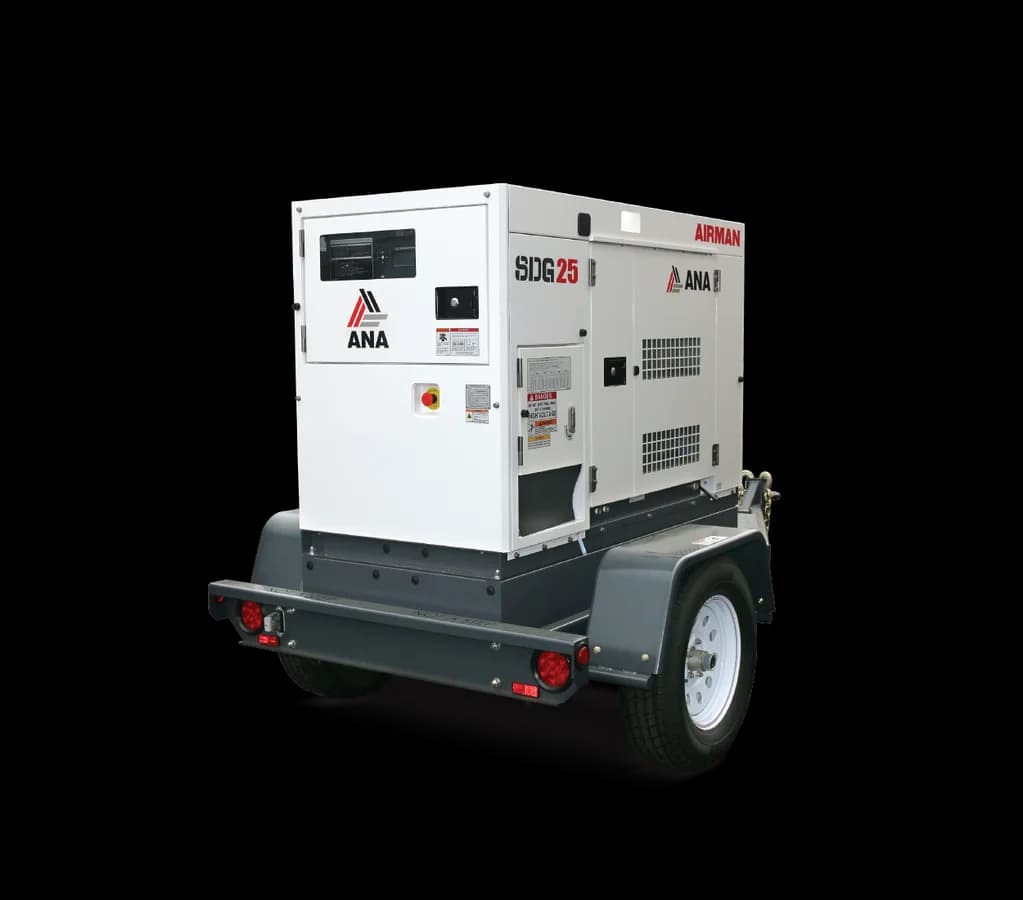

Airman SDG25

0.001% warranty claim rate, 110% fluid containment standard, 32-hr runtime — the longest in the 20 kW portable class. Isuzu turbo diesel with lowest total cost of ownership.

22 kW standby · Diesel · Liquid-cooled

Workhorse 20 kW portable for construction sites, film production, and event power where extended runtime and environmental compliance eliminate downtime and aftermarket add-ons.

20 kW prime diesel portable generator. Isuzu-powered with 32-hour runtime, 110% fluid containment, and switchable single/three-phase output.

Tier 4 Final3-phaseconstructionrental-fleet

Echo

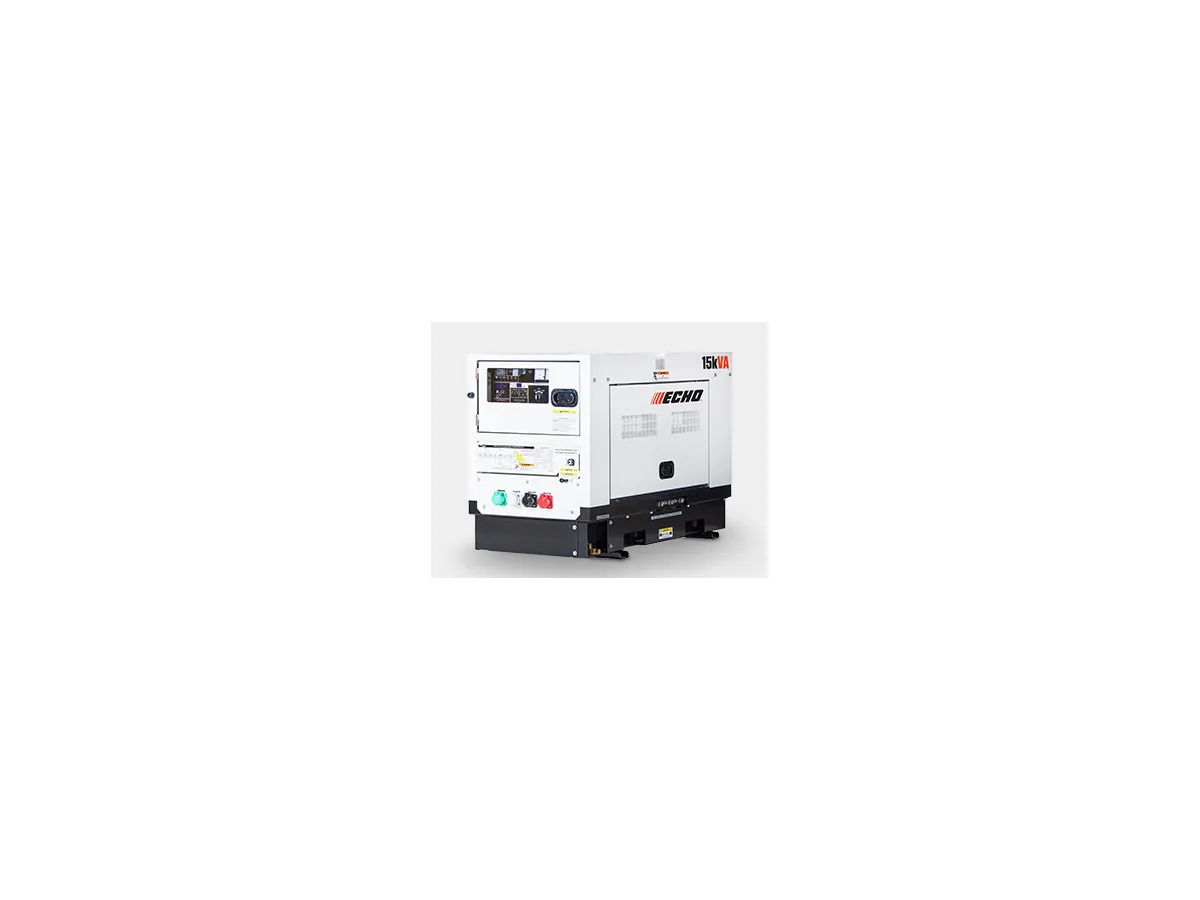

Echo DGK15F

Patented SimulPhase — simultaneous single and three-phase output from one unit, eliminating step-down transformers on mixed-load sites.

13.2 kW standby · Diesel · Liquid-cooled

Mixed-load construction sites where SimulPhase eliminates transformer cost, and rental fleets discovering Shindaiwa heritage.

15 kVA portable diesel generator with SimulPhase technology. Built in Japan.

Tier 4 Final3-phaseconstructionrental-fleet

Airman

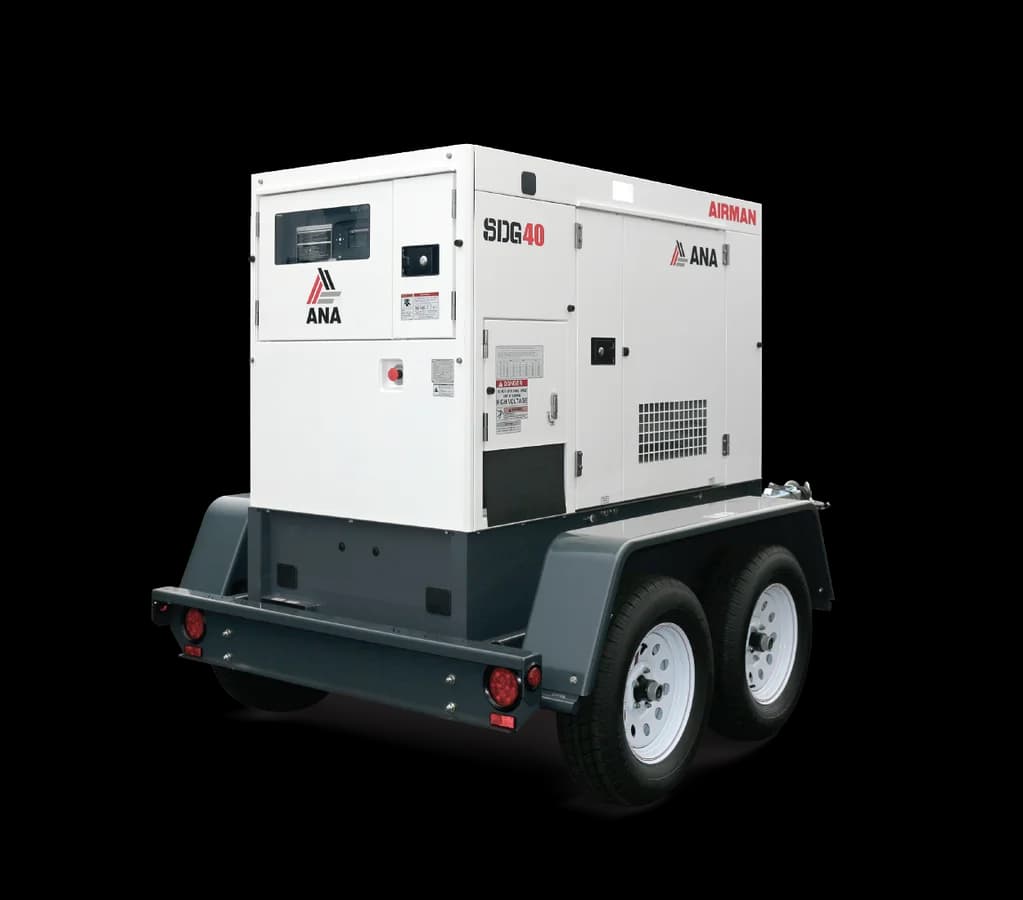

Airman SDG40
