Overview#

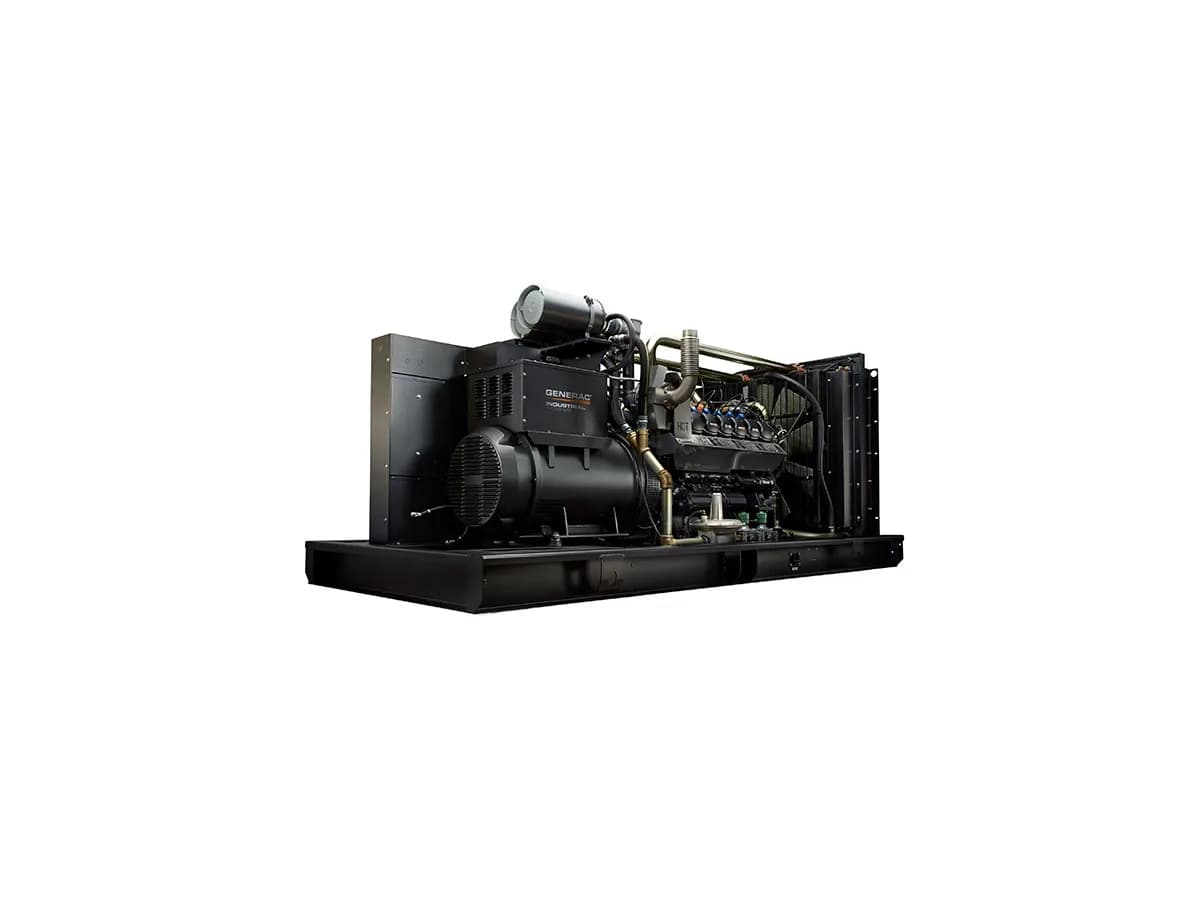

The Generac SG450 is a 450-kilowatt industrial natural gas generator from Generac's SG Series, powered by a Generac-built 21.9-liter V12 spark-ignited engine. Rated at 450 kW standby and 405 kW prime, it is EPA Certified for both Stationary Emergency and Non-Emergency operation and is Demand Response Ready, making it suitable for facilities participating in utility peak-shaving programs.
Generac pairs its 21.9L engine with the K0500124Y23 alternator featuring Class H insulation, permanent magnet excitation, 2/3 pitch design, and skewed stator. The Power Zone Pro Sync controller provides NFPA 110 Level 1 compliance, Modbus RTU/TCP-IP communication, Ethernet connectivity, BMS integration, and a 7-inch sunlight-readable color touchscreen display with built-in programmable logic.
The Generac 21.9L V12 platform#
The 21.9-liter V12 in the SG450 features a 10:1 compression ratio, electronic ignition, and seven main bearings for durability. The turbocharged and intercooled intake air system ensures consistent power delivery across load ranges. At standby rating, the engine produces 656 horsepower with BMEP of 216 psi -- moderate loading for the displacement, indicating Generac has conservatively rated this platform for reliability in standby duty cycles. Piston speed of 1,680 ft/min is well within acceptable limits for a long-life stationary application. The gear-driven oil pump and 31.7-quart crankcase capacity support extended oil change intervals.
Our service experience#
In Northern California commercial and industrial installations, the SG450 fills the gap between medium commercial gaseous units and the larger 625-750 kW class. Natural gas fuel supply sizing is critical at this capacity -- the 5,040 scfh full-load consumption requires a properly sized regulator and gas service connection. We verify gas supply pressure (minimum 11 inches WC) at every annual service visit. The spark ignition system is the most frequent maintenance item; we recommend inspecting spark plugs and ignition wires at each scheduled oil change and replacing plugs at the OEM-recommended interval. The factory-installed radiator system supports operation up to 122 degrees F ambient, which covers virtually all Northern California conditions.
