Blue Star Power Systems · Mobile Product Line (Volvo Penta)
New
Blue Star VD300-04FT4MP
300 kW standby · Diesel · Liquid-cooled
300 kW Tier 4 Final / EU Stage 5 mobile trailer diesel generator built by Blue Star Power Systems. Volvo Penta TAD1383VE six-cylinder engine, Stamford S4L1D-E41 alternator, DSE DCP7310 controller, 350-gallon integrated fuel tank.
The Blue Star VD300-04FT4MP is a 300-kilowatt EPA Tier 4 Final / EU Stage 5 mobile trailer diesel generator powered by the Volvo Penta TAD1383VE — a 12.8-liter, six-cylinder turbocharged and charge-air-cooled engine. It is the highest-output model on Blue Star's 260 × 92 in mobile trailer platform and the maximum output available from the TAD1383VE in this product line.
Blue Star Power Systems pairs the TAD1383VE with a Stamford S4L1D-E41 alternator and DSE DCP7310 controller, mounted on an aluminum road trailer with a 350-gallon integral fuel tank and 18.5-gallon DEF tank. At 15,700 lbs, the VD300-04FT4MP is three-phase only — no single-phase output option exists at this output level in the mobile T4F lineup. The next step up is the VD550-04FT4MP, which moves to the larger 334.5 × 99.5 in trailer platform with a 550-gallon fuel tank.
The VD300-04FT4MP is three-phase only. Unlike the VD250 below it (which supports 120/240V single-phase), the VD300 is available only in 120/208V and 277/480V three-phase configurations. This is an important planning distinction for applications with any single-phase load requirements. If 120/240V single-phase is needed at or near 300 kWe, a step-down transformer or a different product specification is required.
The VD300-04FT4MP is the maximum output available on the 260 × 92 in trailer class. The VD550-04FT4MP steps up to the 334.5 × 99.5 in trailer with the TWD1682GE engine (16.12L, I-6) and a 550-gallon fuel tank — representing a substantial increase in trailer size, weight (24,750 lbs vs 15,700 lbs), and fuel capacity. If load requirements sit between 300 and 550 kWe, there is no intermediate model in the mobile T4F VD series.
The TAD1383VE running at 300 kWe full load consumes 21.1 gph — plan fuel logistics accordingly for 24-hour deployments (approximately 500 gallons per day). The 18.5-gallon DEF tank requires daily attention at this consumption rate. Exhaust temperature of 893°F is on the higher end for this platform; ensure exhaust connections and flex connectors are rated appropriately. DPF regeneration is generally reliable at this load density. Annual full-load testing and Volvo Penta T4F/Stage 5 aftertreatment inspections are required maintenance items.
Get pricing & lead time on the Blue Star VD300-04FT4MP
Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.
Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.
Estimate runtime on this tank
Estimated runtime
21.5 hours(0.9 days)
Fuel consumption ≈ 16.28 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.
Service intervals
Manufacturer-recommended intervals for the Blue Star VD300-04FT4MP under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.
Oil & filter
Every 500 hours or 12 months
Coolant change
Every 6000 hours
Air filter
Every 1000 hours
Fuel filter
Every 500 hours
Major overhaul
≈ 20,000 hours
Load bank test
Every 12 months
Common failure modes
What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.
Component
Symptom
Typical hours
Severity
DEF system (SCR catalyst)
Derate warning, NOx fault, DEF quality alert
4,380+
moderate
Fuel quality
Injector fouling, hard starting
4,380+
moderate
Battery
Failed to start, slow crank
8,760+
minor
Frequently Asked Questions
What engine does the VD300-04FT4MP use?
The Volvo Penta TAD1383VE — a 12.8-liter, six-cylinder turbocharged and charge-air-cooled diesel. The TAD1383VE is the higher-output calibration of the 12.8L VP platform shared with the VD250-04FT4MP (TAD1381VE). Both engines share the same block, cylinder count, and displacement; the 1383 calibration produces 300 kWe through higher fuel delivery and boost. EPA Tier 4 Final and EU Stage 5 dual certification applies. The 18.5-gallon DEF tank is shared across the VD100 through VD300 mobile range. Rated power is available to 4,921 ft (1,500 m) at 122°F (50°C).
Is the VD300-04FT4MP available in single-phase output?
No. The VD300-04FT4MP is three-phase only — available in 120/208V (3Ø) and 277/480V (3Ø) configurations. Single-phase 120/240V output is not available at 300 kWe in the Blue Star mobile T4F VD series. The VD250-04FT4MP is the last model in this lineup to support single-phase output. Loads requiring single-phase above 250 kWe from this product line require a transformer or a different product.
How does the VD300-04FT4MP compare to the VD250-04FT4MP on the same 260 × 92 in platform?
The VD250 (TAD1381VE, 15,400 lbs, 17.3 gph, S4L1D-D41) and VD300 (TAD1383VE, 15,700 lbs, 21.1 gph, S4L1D-E41) are footprint-compatible — same 260 × 92 × 124 in trailer — but diverge in phase capability: VD250 supports single-phase, VD300 does not. The weight difference is 300 lbs. The 50 kWe gain costs approximately 3.8 gph at full load. Both share the 350-gallon fuel tank and 18.5-gallon DEF tank. The S4L1D-E41 alternator in the VD300 is the E-wind variant of the S4L1D frame, one step above the D41 in the VD250.
What are the fuel capacity and runtime of the VD300-04FT4MP?
The 350-gallon integral fuel tank at full load (21.1 gph) provides approximately 16.6 hours of runtime. At 75% load (16.6 gph), runtime extends to approximately 21 hours. The 18.5-gallon DEF tank needs refill approximately every 17 hours at full load. Combustion air draw is 931 CFM; ventilation requirement is 13,074 CFM; heat rejected to coolant is 582,660 BTU/hr; exhaust exits at 893°F at 1,823 CFM. Plan daily fuel and DEF replenishment for around-the-clock deployments.
250 kW Tier 4 Final / EU Stage 5 mobile trailer diesel generator built by Blue Star Power Systems. Volvo Penta TAD1381VE six-cylinder engine, Stamford S4L1D-D41 alternator, DSE DCP7310 controller, 350-gallon integrated fuel tank.
Tier 4 Final3-phaseconstructiontemporary-power
B
Blue Star Power Systems
New
Blue Star VD550-04FT4MP
550 kW standby · Diesel · Liquid-cooled
550 kW standby / 500 kW prime Tier 4 Final / EU Stage 5 mobile trailer diesel generator built by Blue Star Power Systems. Volvo Penta TWD1682GE six-cylinder engine, 572RSL6429 alternator, DSE DCP7310 controller, 550-gallon integrated fuel tank.
Tier 4 Final3-phaseconstructiontemporary-power
B
Blue Star Power Systems
New
Blue Star JD300-02
300 kW standby · Diesel · Liquid-cooled
300 kW Tier 3 diesel standby generator built by Blue Star Power Systems. John Deere 6090HFG86 9.0L 6-cylinder engine, Stamford S4L1D alternator, DSE DCP7310 controller. Three-phase only.
Tier 33-phasecommerciallight-industrial
B
Blue Star Power Systems
New
Blue Star PD300-01
300 kW standby · Diesel · Liquid-cooled
300 kW Tier 3 diesel standby generator built by Blue Star Power Systems. Perkins 1706D-E93TAG2 six-cylinder engine with charge air cooling, Stamford S4L1D-D41 alternator, DSE DCP7310 controller.
Tier 33-phasecommerciallight-industrial
B
Blue Star Power Systems
New
Blue Star VD300-01
300 kW standby · Diesel · Liquid-cooled
300 kW Tier 3 diesel standby generator from Blue Star Power Systems. Volvo Penta TAD1351GE 12.8L inline-six with DSE DCP7310 controller, 208-600V output.
Tier 33-phasecommerciallarge-commercial
B
Blue Star Power Systems
New

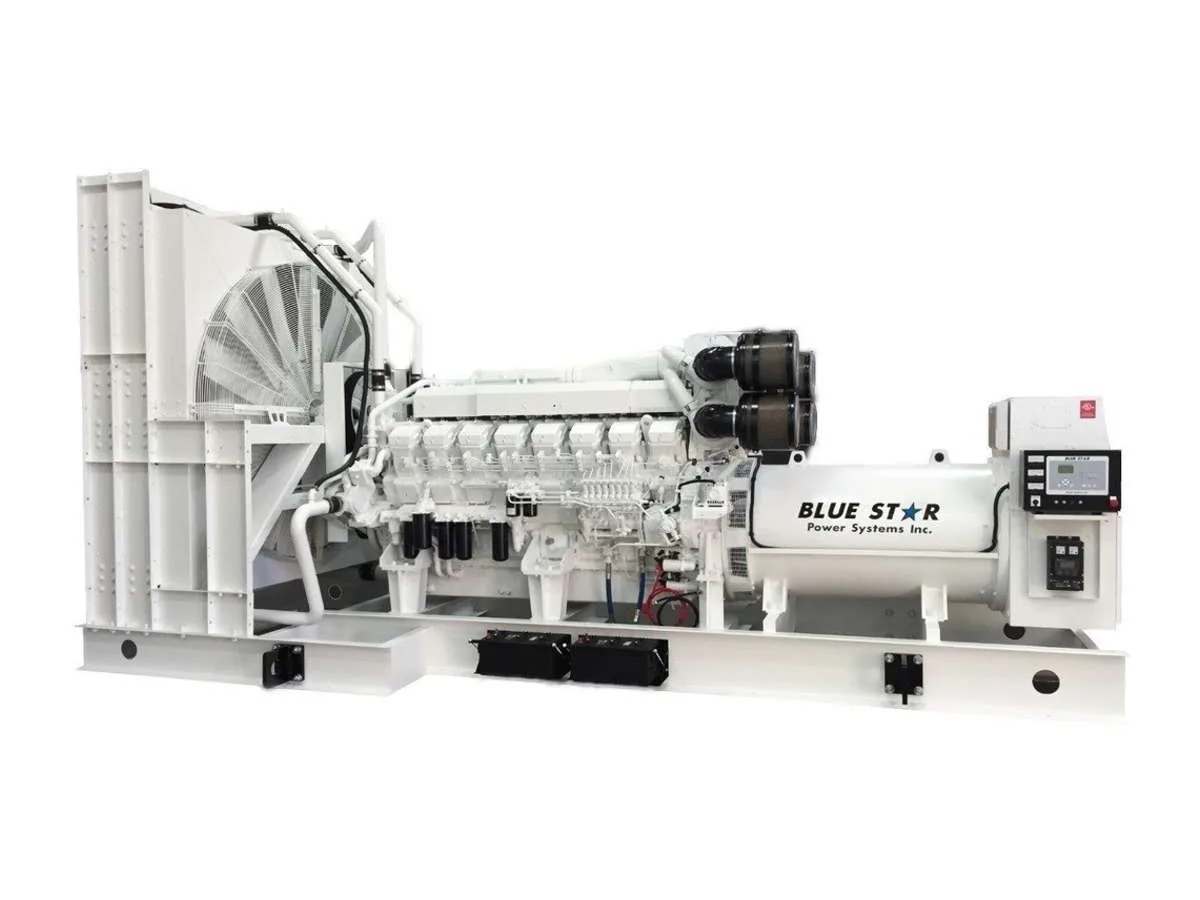

Blue Star VD300-02FT4
