Blue Star Power Systems · Diesel Product Line (Mitsubishi)

New

Blue Star MD1600-01

Name: Blue Star MD1600-01
Brand: Blue Star Power Systems
Availability: PreOrder

1600 kW standby · Diesel · Liquid-cooled

1600 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Mitsubishi S16R-Y2PTAW-1 65.4L V16 engine, Stamford S7L1D alternator, DSE DCP7310 controller. Three-phase, 208–4160V.

Blue Star MD1600-01

Photo coming soon

Standby power: 1600 kW
Voltage options: 120/208V, 240V, 277/480V, 347/600V, 4160V
Frequency / Phase: 60 Hz · 3-phase
Engine: Mitsubishi S16R-Y2PTAW-1 · 65.4L
EPA / Emissions: Tier 2
Alternator: Stamford S7L1D-D

industrialmunicipalcampusdata-centerutilitymilitary

Overview#

The Blue Star MD1600-01 is a 1,600-kilowatt Tier 2 diesel standby generator — the first model in Blue Star's lineup to use a Mitsubishi V16 engine. It is powered by the Mitsubishi S16R-Y2PTAW-1, a 65.4-liter, 16-cylinder turbocharged and water/air-intercooled diesel producing 2,346 HP at 1800 RPM. At this power level the generator moves decisively into utility, military, and large industrial standby territory.

Blue Star Power Systems (North Mankato, Minnesota; DEUTZ AG subsidiary since 2024) assembles the MD1600-01 on a structural steel base with a Stamford S7L1D-D alternator (480/600V configurations; consult factory for 208/240V) and DSE DCP7310 controller. The unit is three-phase only, available from 208V through 4160V.

The Mitsubishi S16R platform#

The S16R extends the S12R's bore and stroke (6.69×7.09 in) to 16 cylinders, yielding 65.4 liters of displacement and 2,346 HP standby. The transition from V12 to V16 is reflected in the unit's physical profile: the MD1600-01 is 244 inches long on the same 89-inch-wide structural steel base used by the MD2000-01. The intercooler remains a separate water circuit from the jacket water system, requiring two independent fluid maintenance regimes.

When to spec the MD1600-01#

1,250–1,600 kW continuous emergency loads on three-phase power
Large industrial complexes, utility substations, military installations, and major data center blocks
Sites requiring 4160V output at 1.6 MW without a step-up transformer
Buyers who need the V16 platform's output headroom but whose load analysis does not justify the MD2000-01

Our service experience#

At 34,450 lbs OPU, the MD1600-01 requires structural pad engineering comparable to a small vehicle fleet deployment. Fuel at full load (127 gph) means a 2,000-gallon tank provides approximately 15.7 hours of runtime — plan accordingly for extended outage scenarios. The 75,053 CFM radiator airflow requirement essentially defines the generator room design. This unit is best approached as an infrastructure project, not a product procurement.

Engineering specifications

Physical

Length: 244 in
Width: 89 in
Height: 121 in
Dry weight: 34,450 lb

Acoustic

Sound @ 7m, full load: 94 dBA
Enclosure: Open

Fuel system & runtime

Fuel use @ full load: 127 GPH
Fuel use @ 75% load: 96 GPH
Fuel use @ 50% load: 67.7 GPH

Thermal & ventilation

Heat to coolant: 2,170,020 BTU/hr
Heat radiated: 1,896,540 BTU/hr
Exhaust flow: 15,642 CFM
Exhaust temp: 940 °F
Combustion air: 5,932 CFM
Ventilation air: 75,053 CFM

Documents & downloads

Spec sheets & manuals

Spec sheet (datasheet)

Request a quote

Get pricing & lead time on the Blue Star MD1600-01

Tell us about the application — kW, voltage, application, install timeline — and we'll respond within one business day with budgetary pricing, lead time, and any sizing notes.

Request a quote →Download datasheet

Estimate runtime for the Blue Star MD1600-01

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Generator size

Fuel

Fuel tank capacity

gal

Load

Override full-load GPH (optional)

GPH

Estimated runtime

2.0 hours(0.1 days)

Fuel consumption ≈ 97.97 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Service intervals

Manufacturer-recommended intervals for the Blue Star MD1600-01 under standby duty. Field intervals may differ based on load profile, ambient conditions, and fuel quality.

Oil & filter: Every 500 hours or 12 months
Coolant change: Every 6000 hours
Air filter: Every 1000 hours
Fuel filter: Every 500 hours
Major overhaul: ≈ 20,000 hours
Load bank test: Every 12 months

Common failure modes

What we've seen fail on this platform. Use as a service-planning reference, not a diagnostic — actual failure modes depend heavily on duty cycle and maintenance history.

Component	Symptom	Typical hours	Severity
Turbocharger(s)	Major power loss, heavy exhaust smoke	12,000+	severe
Fuel quality / degradation	Injector fouling, hard starting	4,380+	moderate
Battery bank (24V)	Failed start, slow cranking	8,760+	minor

Frequently Asked Questions

What engine does the MD1600-01 use?: The Mitsubishi S16R-Y2PTAW-1 — a 65.4-liter (3,989 cu in), 16-cylinder V-configuration turbocharged and water/air-intercooled diesel producing 2,346 HP at 1800 RPM for standby use. The S16R uses the same bore and stroke as the S12R (6.69×7.09 in), adding four cylinders for the step from 49.0 to 65.4 liters. Compression ratio is 14.5:1. EPA Tier 2 certified for stationary emergency standby.
What alternator does the MD1600-01 use?: The alternator selection is voltage-dependent. At 480V (4-lead wye) and 600V (4-lead wye), Blue Star specifies the Stamford S7L1D-D. At 208V and 240V, the specification is 'Consult Factory' — these high-current configurations require factory engineering at this power level. For the 4160V configuration, a Stamford MVWI734H medium-voltage alternator is installed. All are 4-pole, brushless single-bearing units.
What controller does the MD1600-01 use?: The DSE DCP7310 Digital Control Panel — CAN Bus J1939, digital metering, RS-485, 8 programmable contact inputs, 10 contact outputs, cULus Listed, CE Approved, NFPA 110 Level 1 compatible.
How does the MD1600-01 compare to the MD1250-01 and MD2000-01?: The MD1250-01 uses a Mitsubishi V12 engine (S12R, 49.0L, 1,881 HP) on a smaller 220×95 in base. The MD1600-01 moves to the V16 platform (S16R-Y2PTAW-1, 65.4L, 2,346 HP) on a 244×89 in base — 24 inches longer but 6 inches narrower. The MD2000-01 uses the S16R-Y2PTAW2-1, the higher-output variant of the same V16 block (65.4L, 2,923 HP), on the same 244×89 in footprint but 14 inches taller (135 in vs 121 in). Fuel at full load: 99.1 gph (MD1250), 127 gph (MD1600), 155 gph (MD2000).
What ventilation airflow does the MD1600-01 require?: The MD1600-01 requires 75,053 CFM of radiator cooling airflow and 5,932 CFM of combustion air. Heat radiated to the equipment room is 1,896,540 BTU/hr, with 2,170,020 BTU/hr rejected through the jacket water cooling circuit. At this power level, equipment room thermal design is a first-order structural and mechanical engineering concern — consult an MEP engineer before specifying an indoor installation.

Similar models

Blue Star Power Systems

New

Blue Star MD1250-01

1.3 MW standby · Diesel · Liquid-cooled

1250 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Mitsubishi S12R-Y2PTAW-1 49.0L V12 engine, Stamford S6L1D alternator, DSE DCP7310 controller. Three-phase, 208–4160V.

Tier 23-phaseindustrialmunicipal

Blue Star Power Systems

New

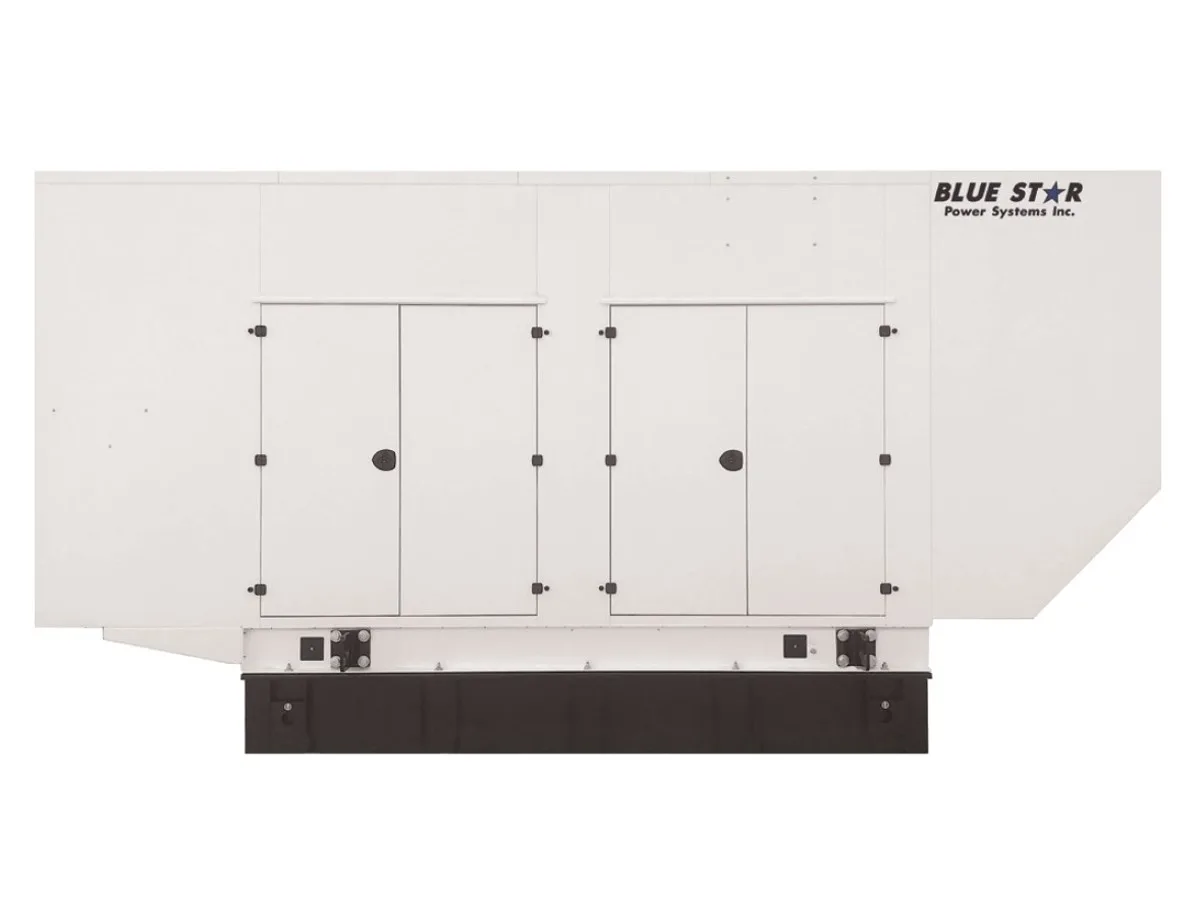

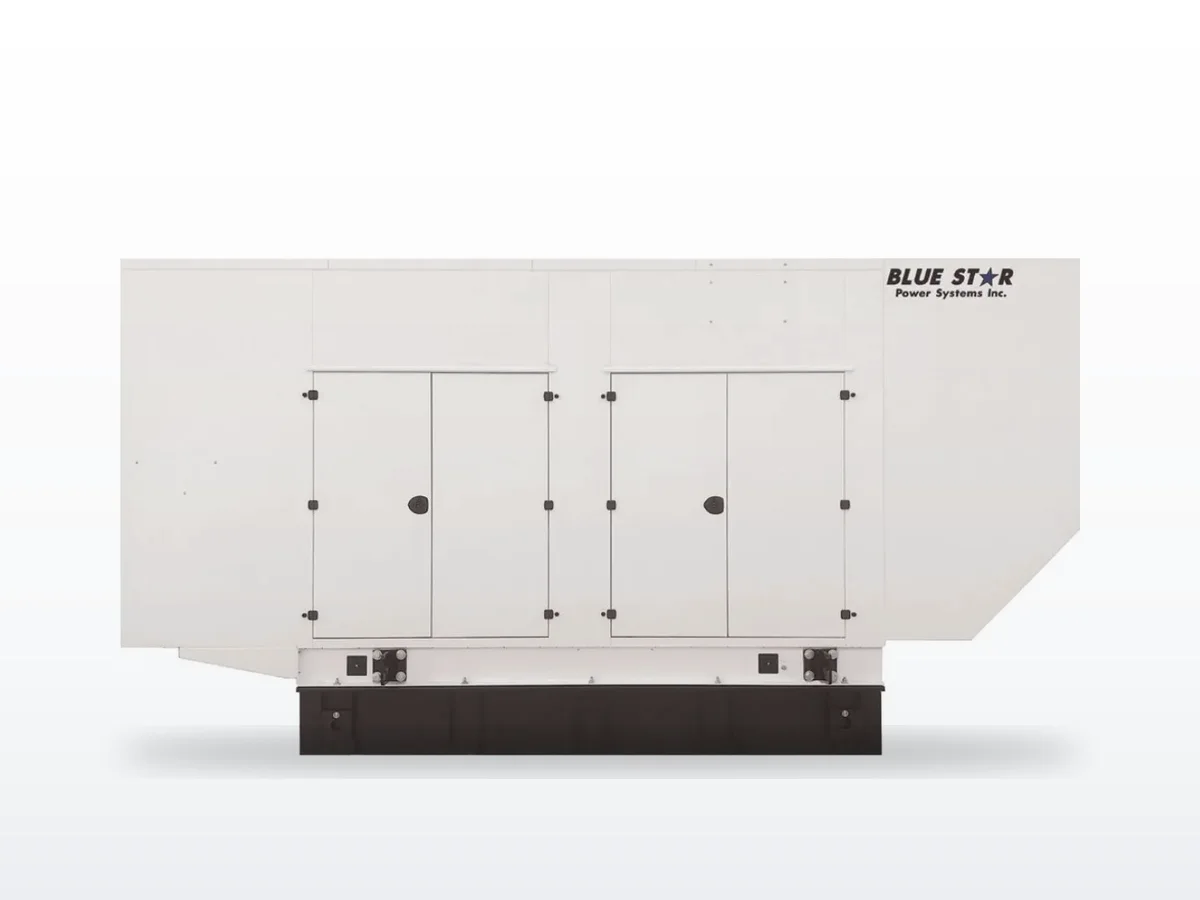

Blue Star MD2000-01

2 MW standby · Diesel · Liquid-cooled

2000 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Mitsubishi S16R-Y2PTAW2-1 65.4L V16 engine, Stamford S7L1D alternator, DSE DCP7310 controller. Three-phase, 208–4160V.

Tier 23-phaseindustrialmunicipal

Blue Star Power Systems

New

Blue Star MD1000-01

1 MW standby · Diesel · Liquid-cooled

1000 kW Tier 2 diesel standby generator built by Blue Star Power Systems. Mitsubishi S12H-Y2PTAW-1 37.1L V12 engine, Stamford S6L1D alternator, DSE DCP7310 controller. Three-phase, 208–4160V.

Tier 23-phaseindustrialmunicipal

Kohler

New

Kohler 1600REOZMD

1.6 MW standby · Diesel · Liquid-cooled

1600 kW diesel industrial generator powered by Mitsubishi. Mission-critical standby for data centers, hospitals, and large commercial facilities.

Tier 23-phasedata-centerhealthcare

Kohler

New

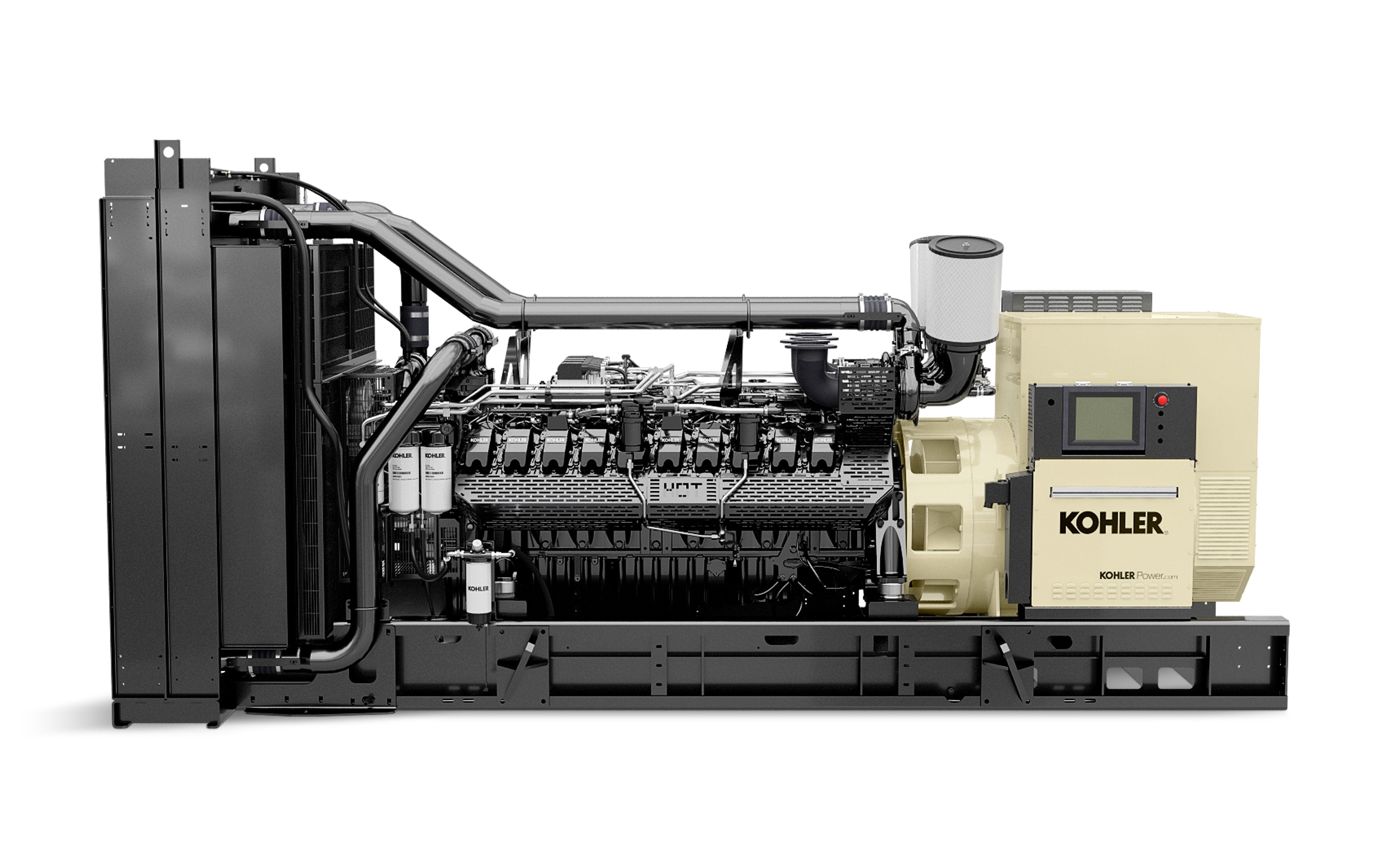

Kohler KD1600
