Hipower Systems · HSY Series (Standby Yanmar Diesel)

Hipower HSY-10

8.8 kW standby · Diesel · Liquid-cooled

9 kW Yanmar diesel standby generator. Ideal for small commercial and residential backup power.

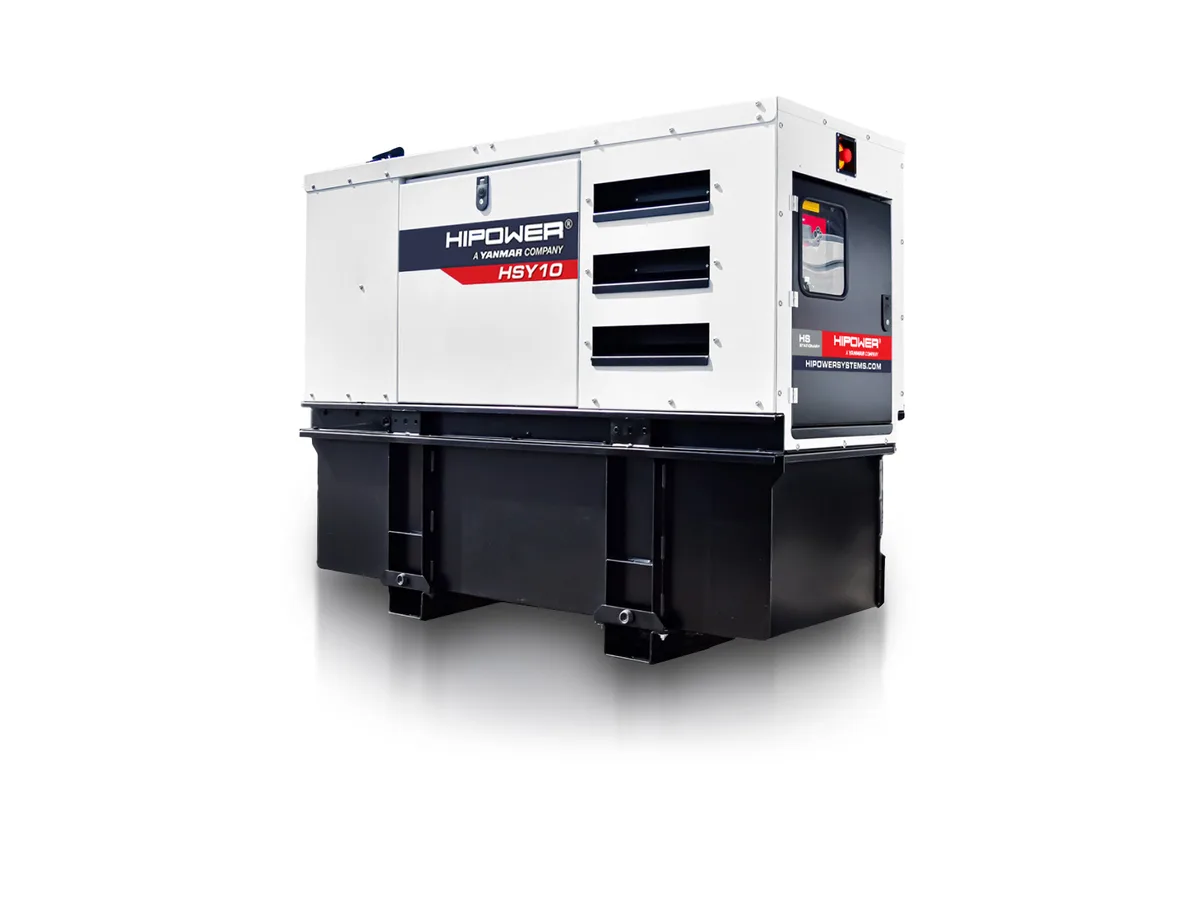

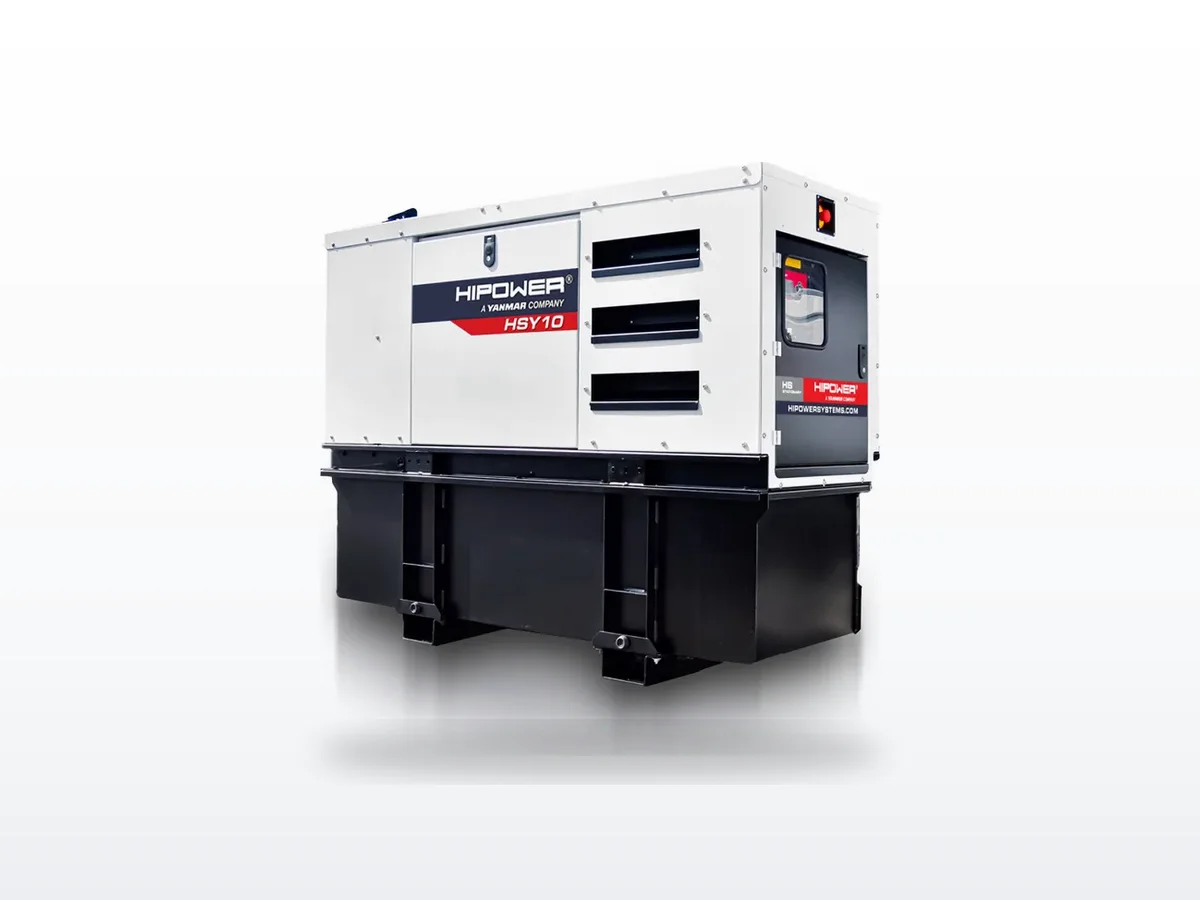

Hipower Systems Hipower HSY-10 generator — specifications and details
Standby power
8.8 kW
Voltage options
120/240V, 120/208V, 277/480V
Frequency / Phase
60 Hz · 1/3-phase
Engine
Yanmar 3TNV76GGEH
Alternator
Stamford VITA01

Overview#

The Hipower HSY-10 is a 9 kW diesel standby generator in the HSY Series, built around a Yanmar 3TNV76GGEH three-cylinder diesel engine. At 9 kW it is among the most compact liquid-cooled standby generators available, sized precisely for small commercial occupancies — a single-zone medical office, a small restaurant walk-in cooler circuit, or a light-industrial control room.

Yanmar Reliability#

Yanmar has manufactured diesel engines in Japan since 1933. The 3TNV engine family descends from a lineage refined over decades in marine, agricultural, and light-industrial applications — environments that demand consistent starts after long idle periods. That pedigree translates directly to standby generator duty, where the engine may sit unloaded for weeks and must start reliably under full load within seconds. Yanmar of America maintains a nationwide dealer and service network, ensuring parts availability even in markets where Hipower itself does not have a direct service presence.

Right-Sized for Small Commercial#

The 9 kW output of the HSY-10 is deliberately small, and that is a feature rather than a limitation. Generators that are significantly oversized for their connected load run at light load percentages that promote wet-stacking — incomplete combustion that deposits unburned fuel in the exhaust system. A properly sized 9 kW unit running its actual connected load at 70–80% capacity burns cleanly and accumulates fewer internal deposits than a 25 kW unit running at 20%. For small retail spaces, server closets, or residential essential circuits, the HSY-10 delivers right-sized protection without the cost or footprint penalty of a larger machine.

Service and Maintenance#

Battery float charging is essential for units in standby service: a quality automatic battery maintainer prevents the deep discharge that is the most common cause of no-start failures on infrequently exercised generators.

Our Service Experience#

OnPoint Generators services Yanmar-powered generator sets throughout the greater San Francisco Bay Area, serving commercial clients in small office, light-retail, and residential applications. When evaluating a backup power solution, we routinely discuss load sizing with clients — matching generator output to actual critical load rather than over-specifying. If your critical circuit load is under 7 kW, we will say so rather than sell you a 25 kW machine. The HSY-10 is a unit we recommend when the load data supports it.

Engineering specifications

Acoustic

Enclosure
Sound-attenuated

Documents & downloads

Spec sheets & manuals

Ready to order this model?

Configure your Hipower HSY-10

Lock the enclosure, fuel system, transfer switch, and add-ons — we'll confirm pricing, availability, and lead time within one business day. Prefer a free-form quote? That option is still here.

Estimate runtime for the Hipower HSY-10

Adjust load percent and tank size to estimate runtime. Pre-filled with this model's spec where available.

Estimate runtime on this tank

Estimated runtime

420.9 hours(17.5 days)

Fuel consumption ≈ 0.48 GPH at 75% load. Estimate based on industry-typical 1800 RPM standby curves (≈0.07 GPH/kW at full load). Actual consumption varies by engine, ambient temperature, fuel quality, and tuning.

Frequently Asked Questions

What is the standby power output of the HSY-10?
The HSY-10 delivers 9 kW standby power. Available in 120/240V single-phase, 120/208V three-phase, and 277/480V three-phase configurations — versatile for small commercial occupancies and residential essential circuit protection.
What Yanmar engine powers the HSY-10 and what is its reliability track record?
The HSY-10 uses a Yanmar 3TNV-family three-cylinder liquid-cooled diesel engine. Yanmar has manufactured diesel engines since 1933, and the 3TNV engine family has been refined over decades in marine, agricultural, and light-industrial applications — environments that require consistent starts after long idle periods. That pedigree translates directly to standby generator duty.
What does 'right-sizing' mean for the HSY-10, and why does it matter?
Right-sizing means matching generator output to actual critical load. A 9 kW generator running at 70–80% of rated capacity burns cleanly and resists wet-stacking — the incomplete combustion that deposits unburned fuel in the exhaust of chronically underloaded diesels. For small commercial spaces where the critical load is under 7–8 kW, the HSY-10 is the correct answer rather than an oversized 25 kW machine.
What applications is the HSY-10 best matched for in the Bay Area?
The HSY-10 is well-suited for single-zone medical offices, small restaurant walk-in cooler circuits, light-industrial control rooms, and residential essential circuit panels where the total critical load is in the 6–8 kW range. OnPoint performs load surveys to confirm whether this size is correct before recommending it.

More in the HSY Series (Standby Yanmar Diesel)

9 to 45 kW Yanmar diesel standby — liquid-cooled compact generators for residential and light-commercial installations where space is premium.

Similar models

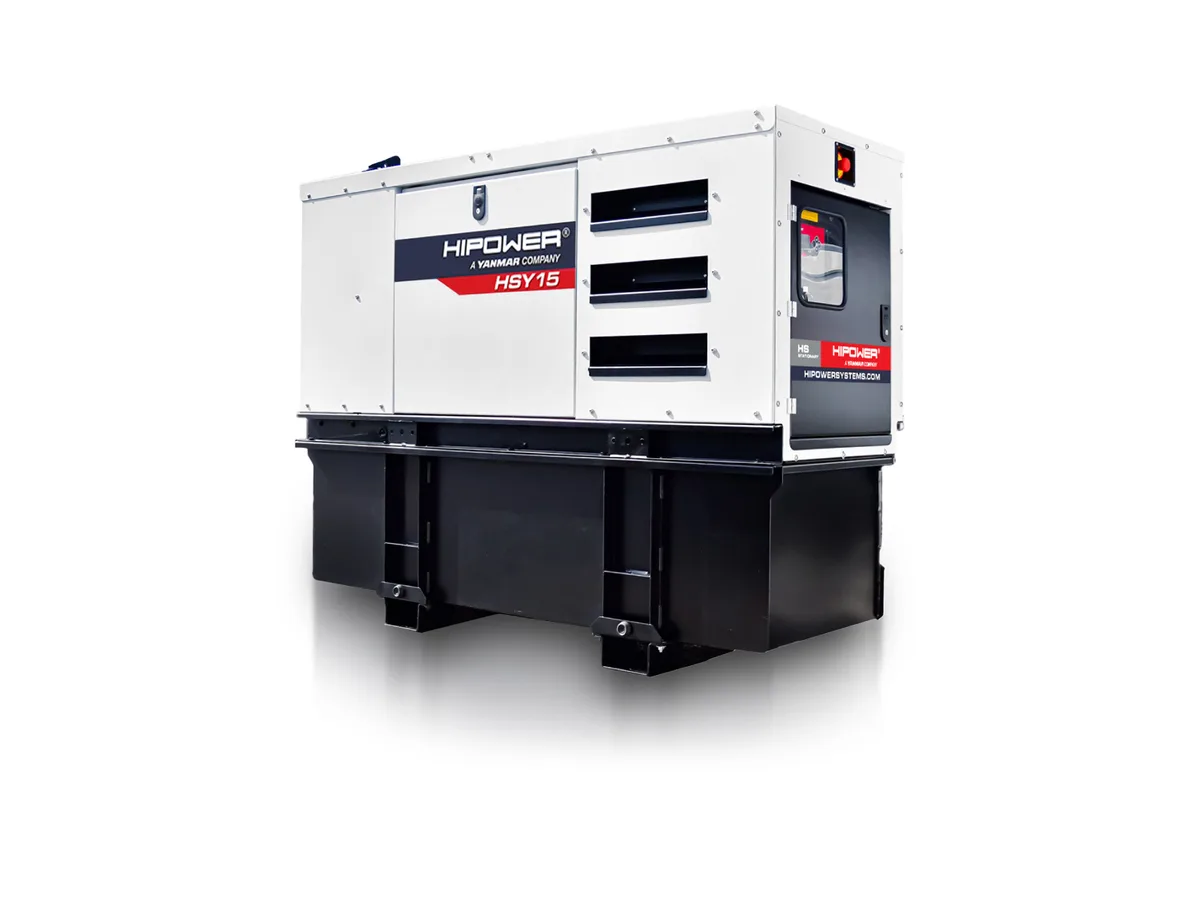

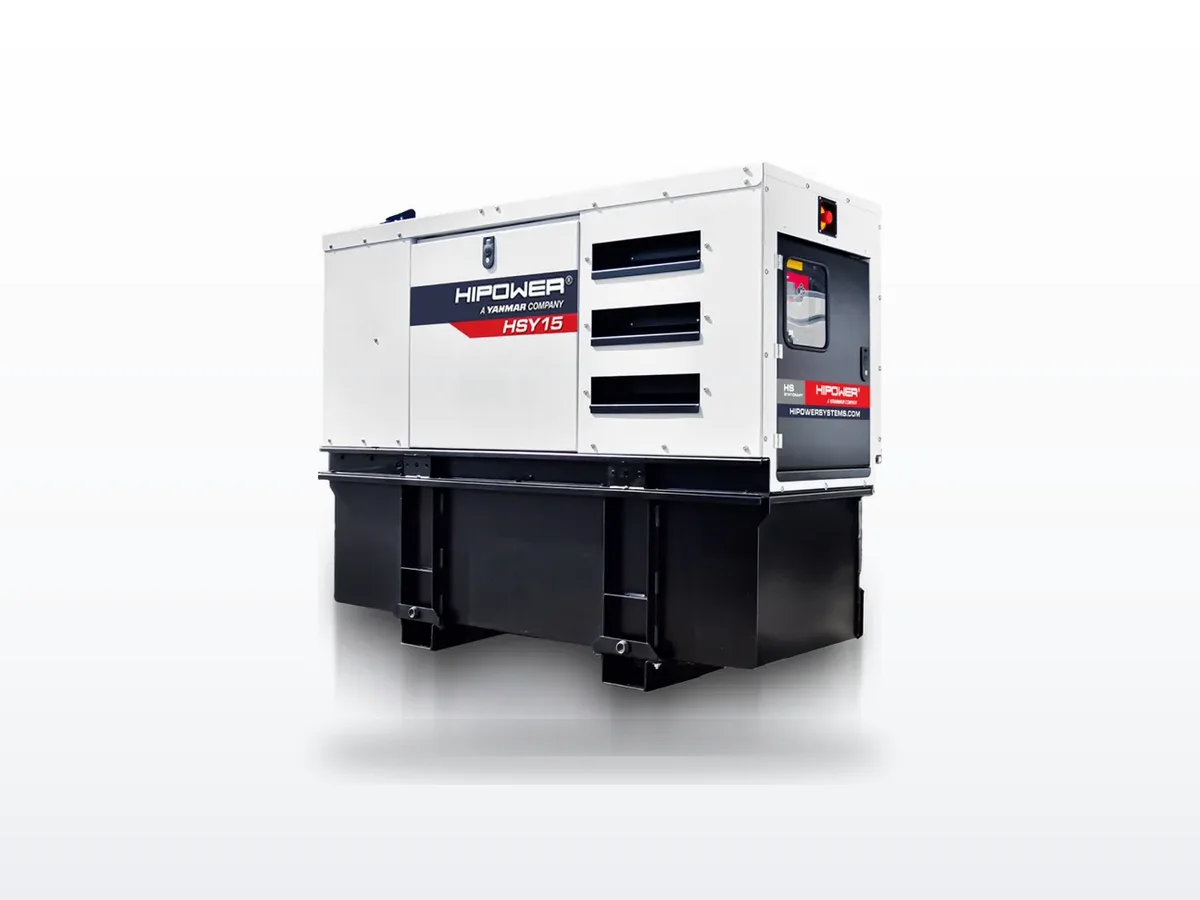

Hipower Systems Hipower HSY-15 13.7 kW liquid-cooled standby generator

Hipower Systems

Hipower HSY-15

13.7 kW standby · Diesel · Liquid-cooled

14 kW Yanmar diesel standby generator. Compact footprint for small commercial and residential standby.

3-phaseresidential-standbylight-commercial

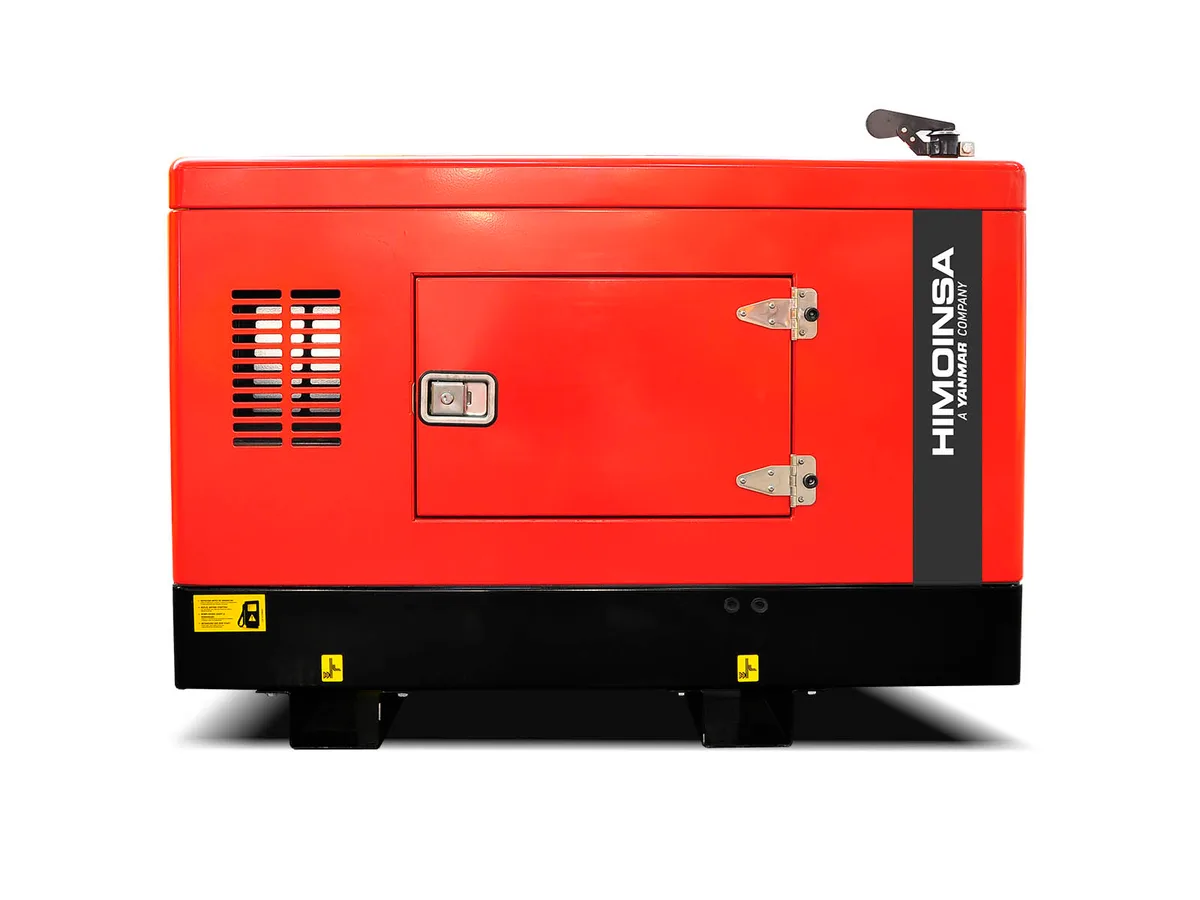

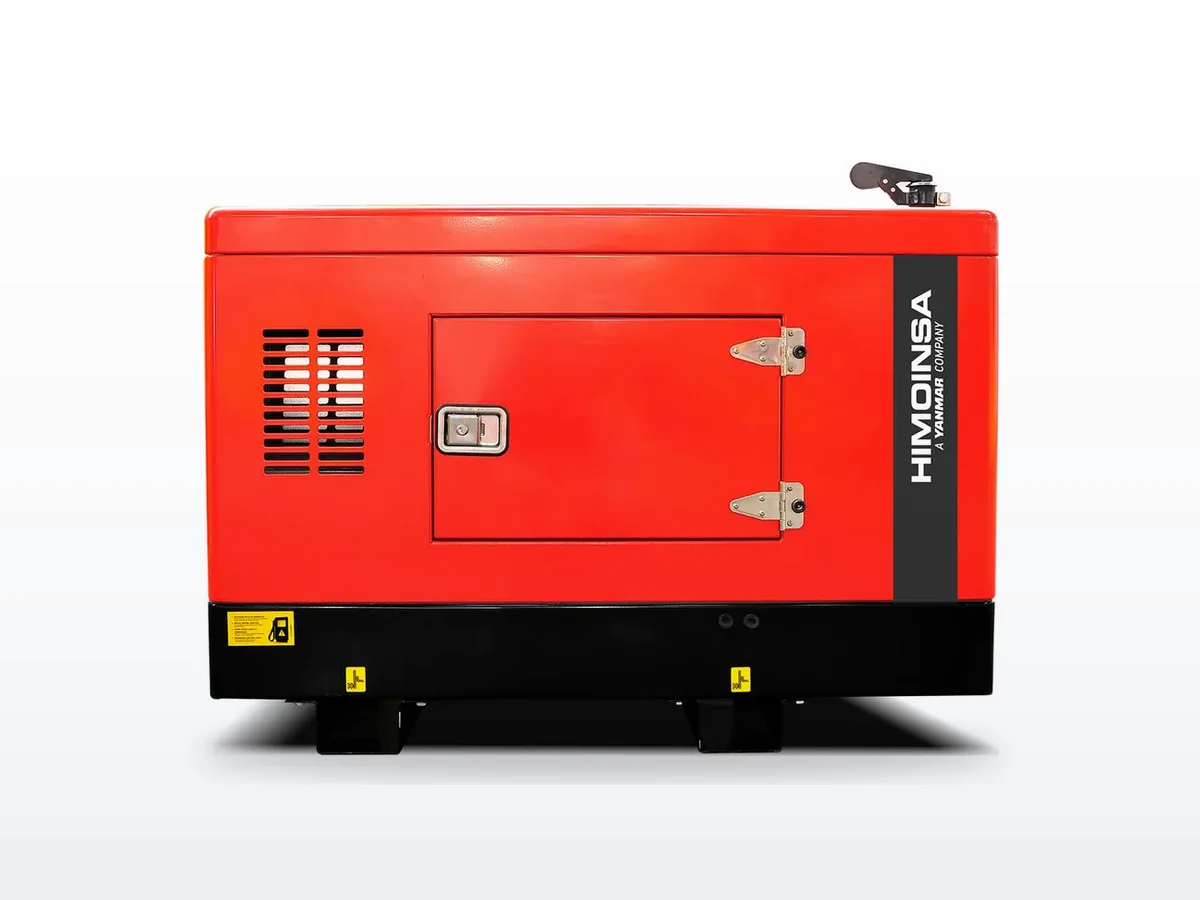

Hipower Systems Hipower HYW-20 18 kW liquid-cooled standby generator

Hipower Systems

Hipower HYW-20

18 kW standby · Diesel · Liquid-cooled

18 kW Yanmar diesel generator in weatherproof enclosure. Outdoor-rated compact standby for small commercial.

Tier 4 Interim3-phasecommercial-standbylight-commercial

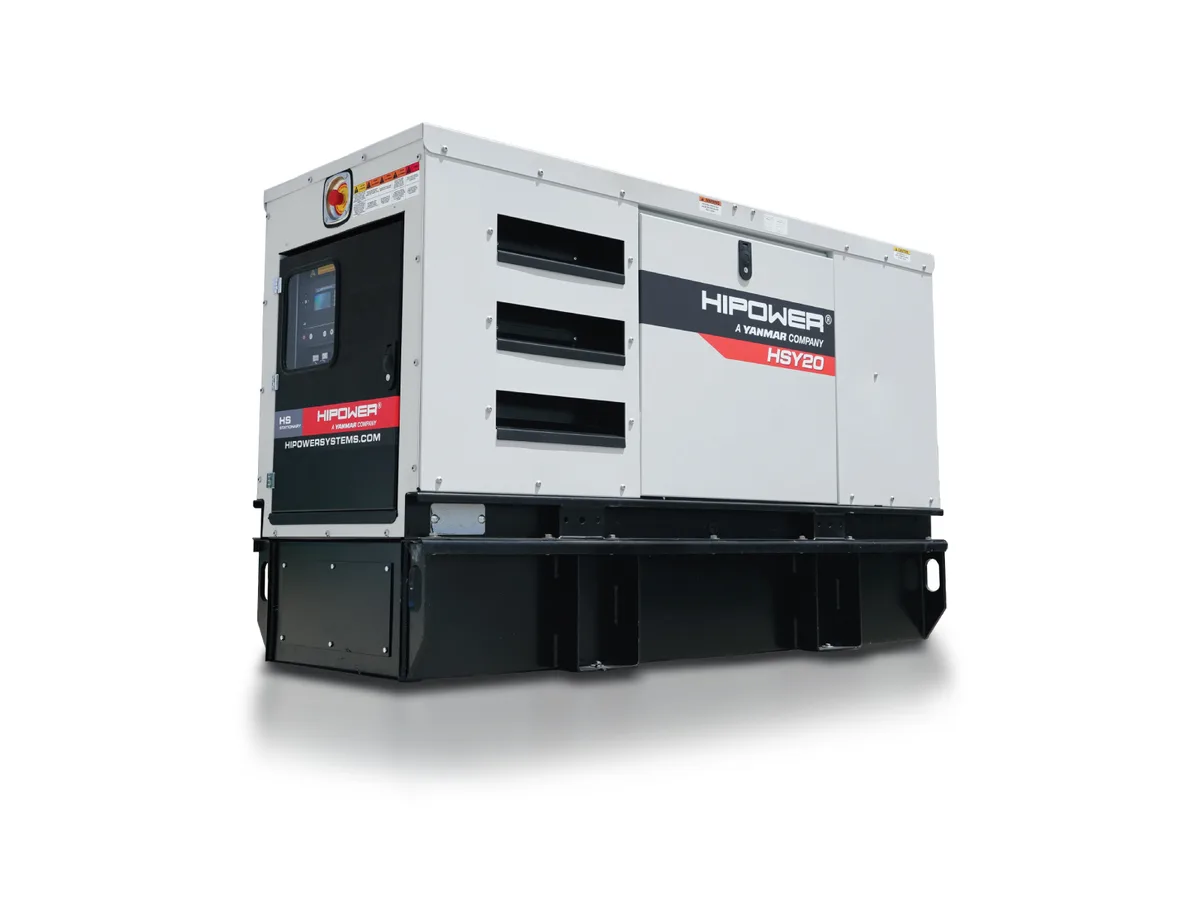

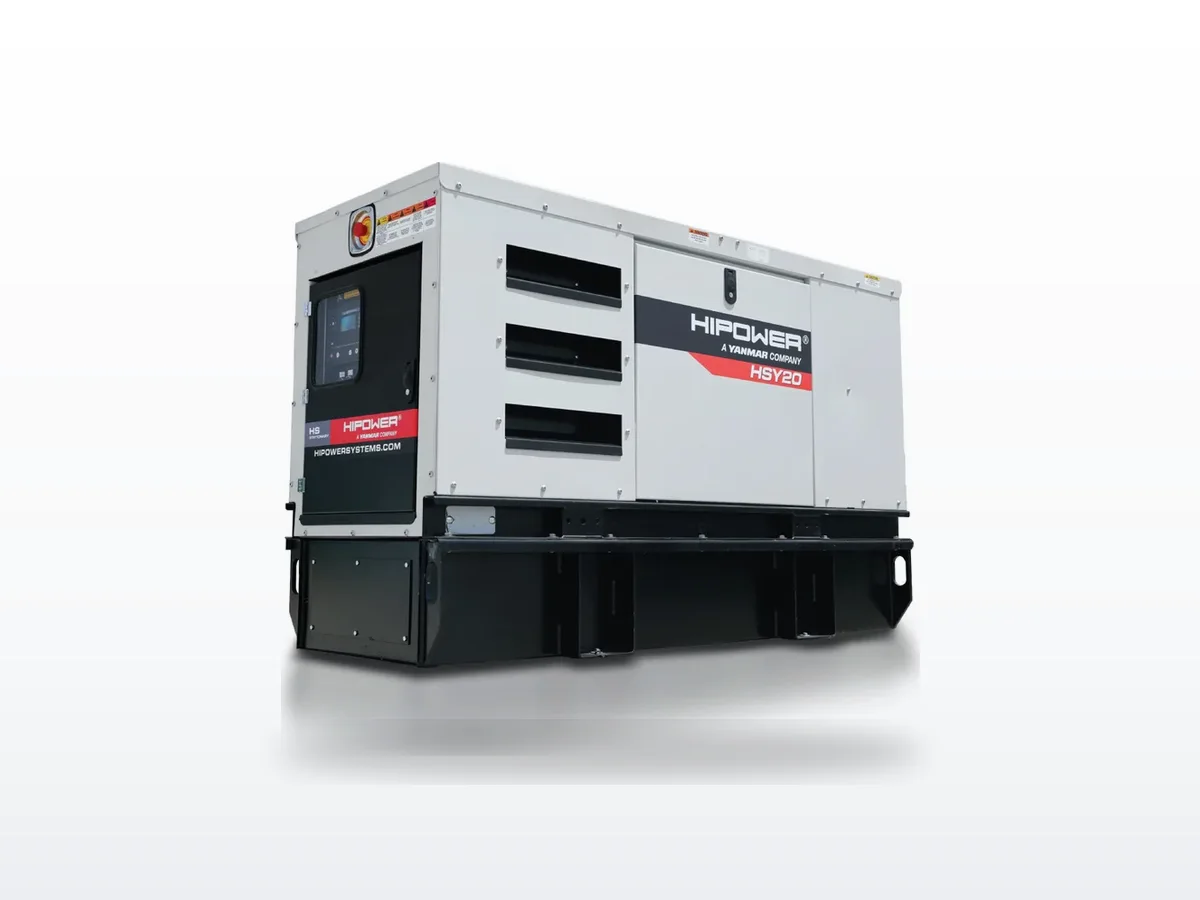

Hipower Systems Hipower HSY-20 19.1 kW liquid-cooled standby generator
